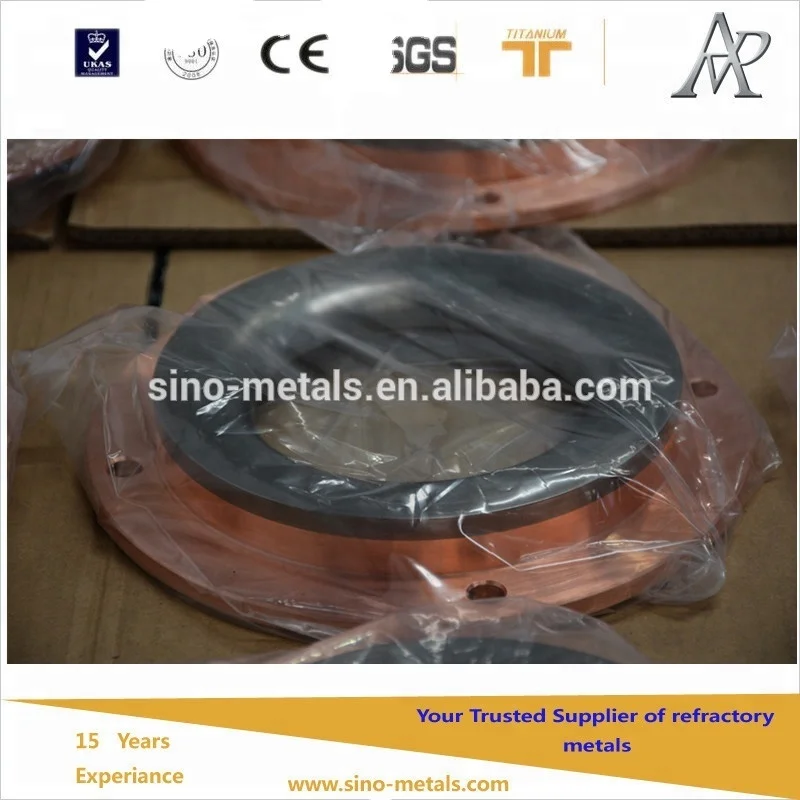

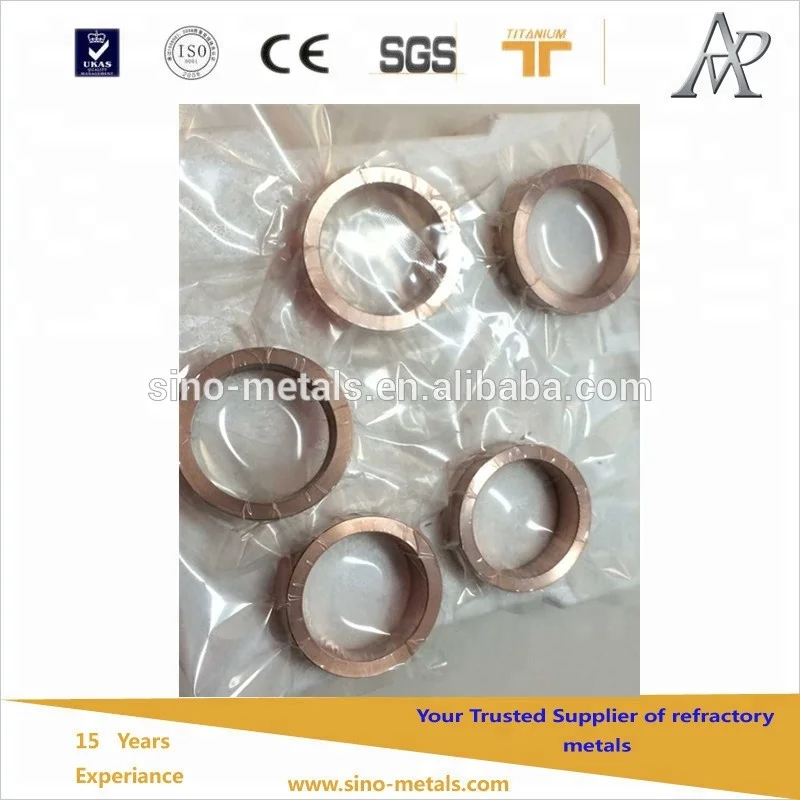

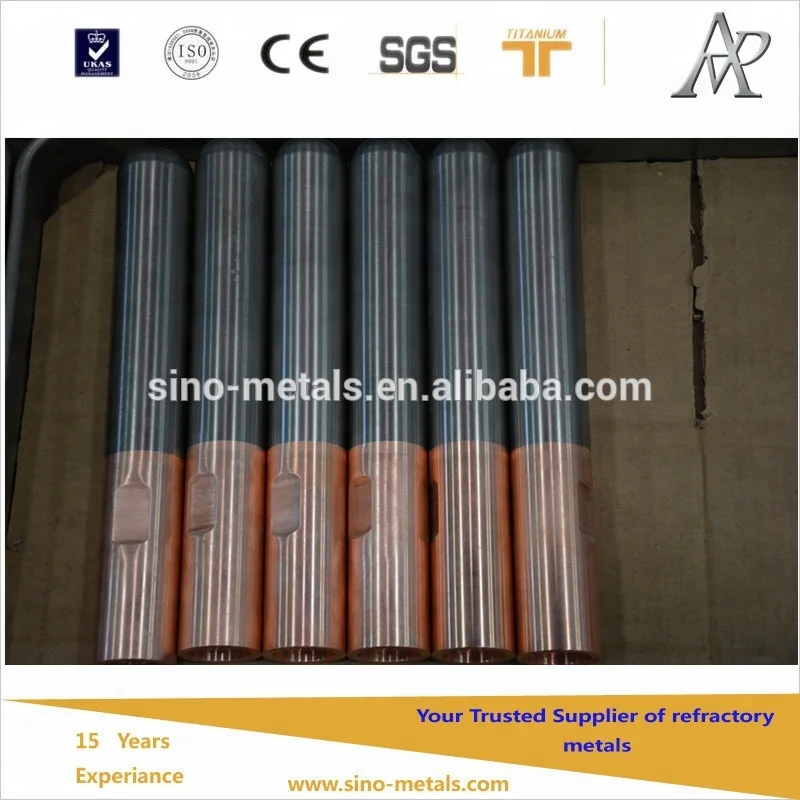

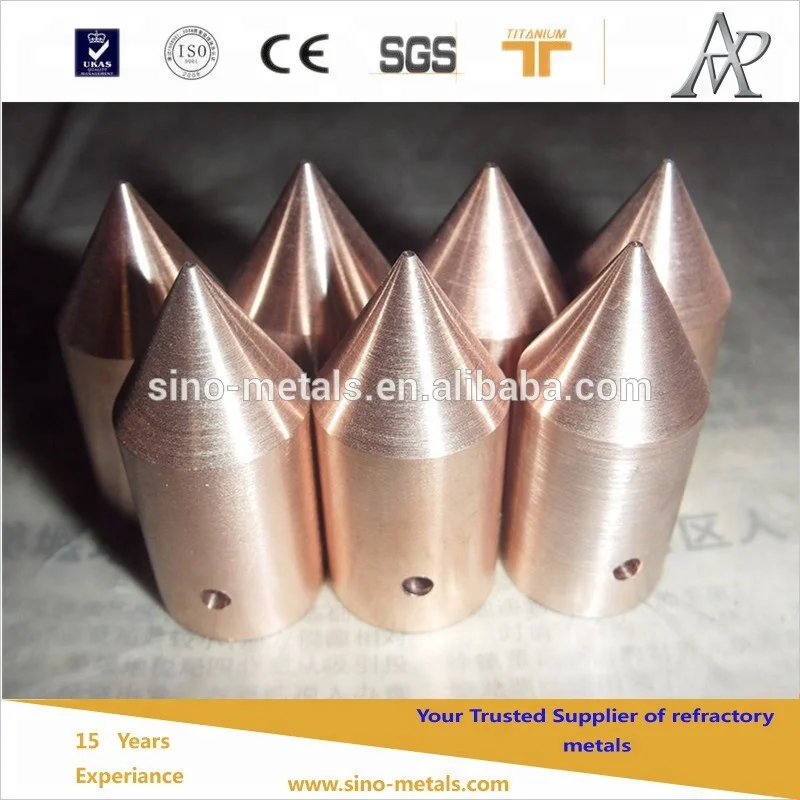

tungsten copper contact

(1).Copper–tungsten alloy is a pseudo-alloy of copper and tungsten. As copper and tungsten are not mutually soluble, the material is composed of distinct particles of one metal dispersed in a matrix of the other one. The microstructure is therefore rather a metal matrix composite instead of a true alloy.

(2 ).The material combines the properties of both metals, resulting in a material that is heat-resistant, ablation-resistant, highly thermally and electrically conductive, and easy to machine.

(3). Parts are made from the CuW alloy by pressing the tungsten particles into a desired shape,sinteringthe compacted part, then infiltrating with molten copper. Sheets, rods and bars of the alloy are available as well.

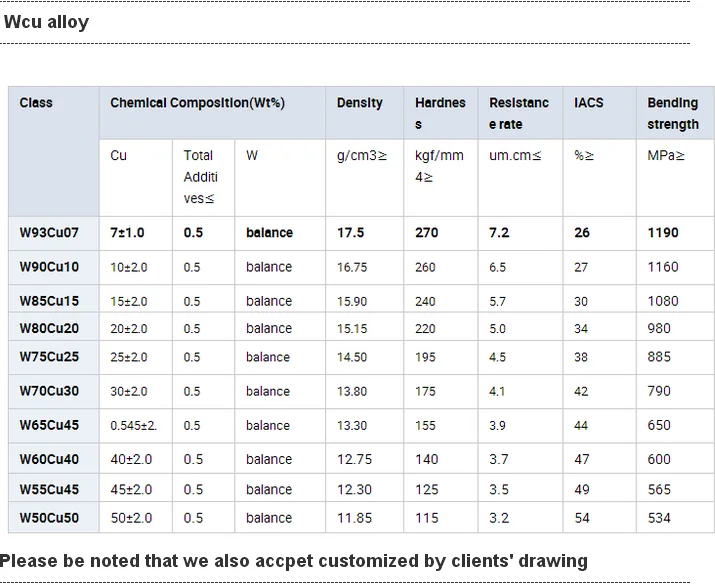

(4). Commonly used copper tungsten alloy contains 10–50 wt.% of copper, the remaining portion being mostly tungsten. The typical properties of the alloy depend on its composition.

(5). The alloy with less wt.% of copper has higher density, higher hardness and higher resistivity. The typical density of CuW90 alloy, with 10% of copper, is 16.75 g/cm3 and 11.85 g/cm3 for CuW50 alloy. CuW90 has higher hardness and resistivity of 260 HB kgf/mm2 and 6.5 µΩ.cm than CuW50.a

Characters:

1. Better heat resistant;

2. better ablate-resistant;

3. High intensity

4. High density;

5. Excellent thermal and electrical conductivity;

6. easy to be machined.

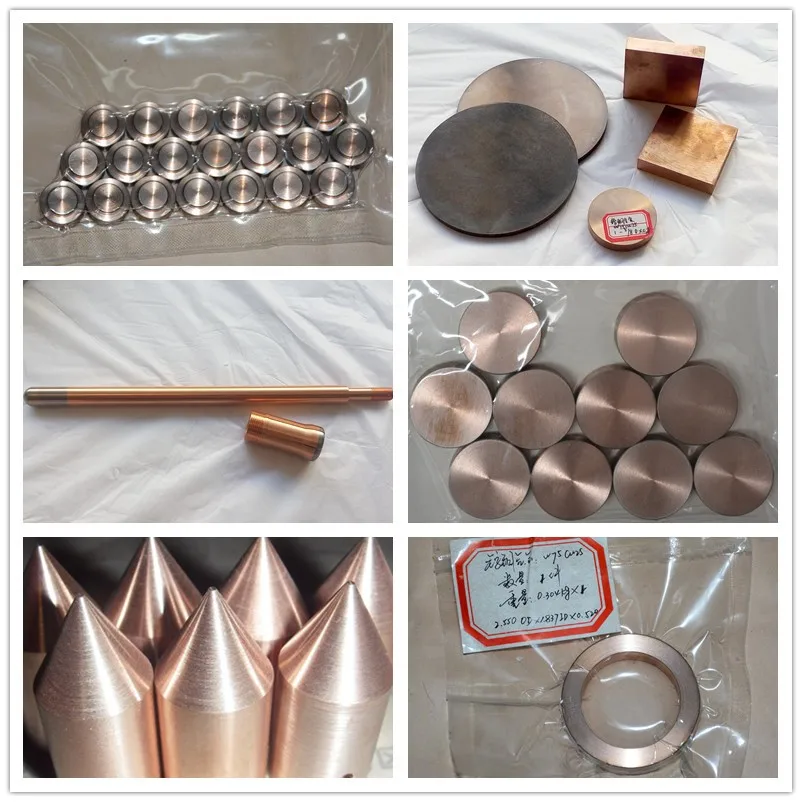

Products ShowCustomer Show

 We offer material composition sheet and examination report which include density, flaw detection, dimensions and so on. Our products are packed in plywood case with expanded plastic. What's more, the case is moistureproof and grooved for products being placed stably.

  We have 15 years experiences in producing and saling qualified Refractory metals to our customers
