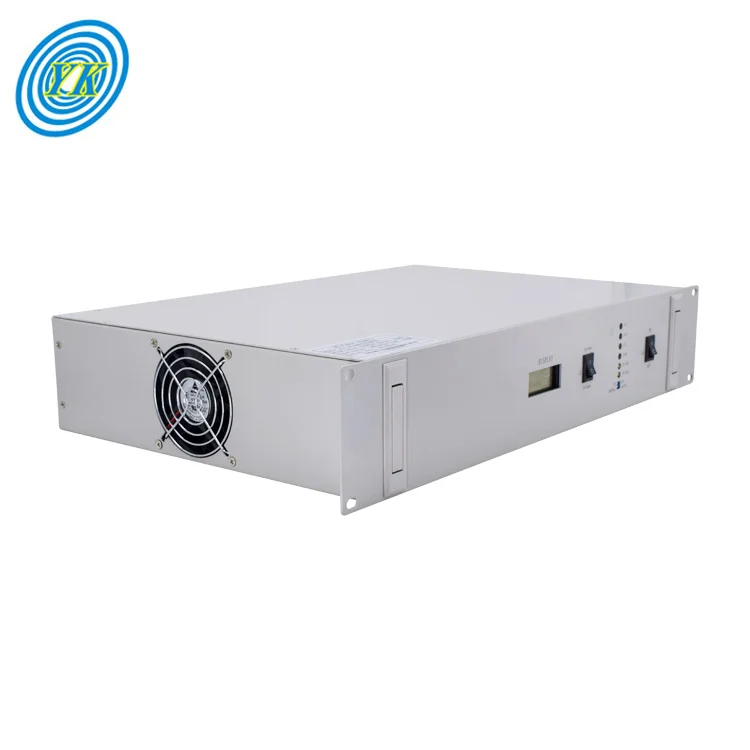

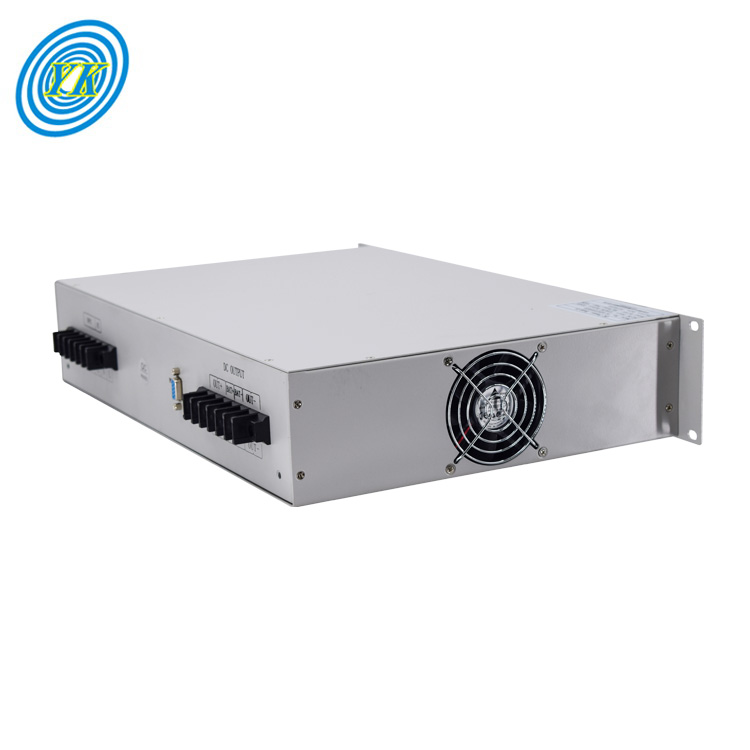

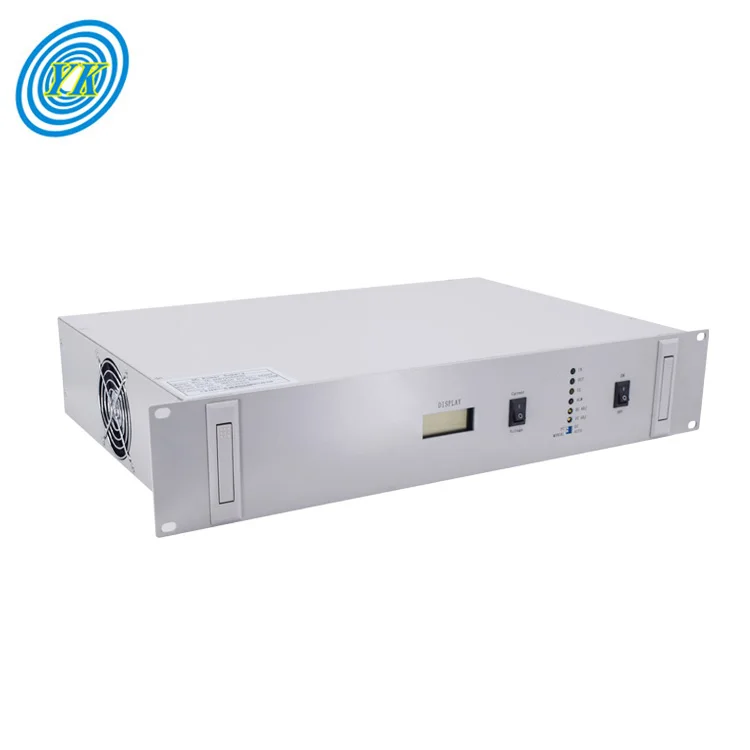

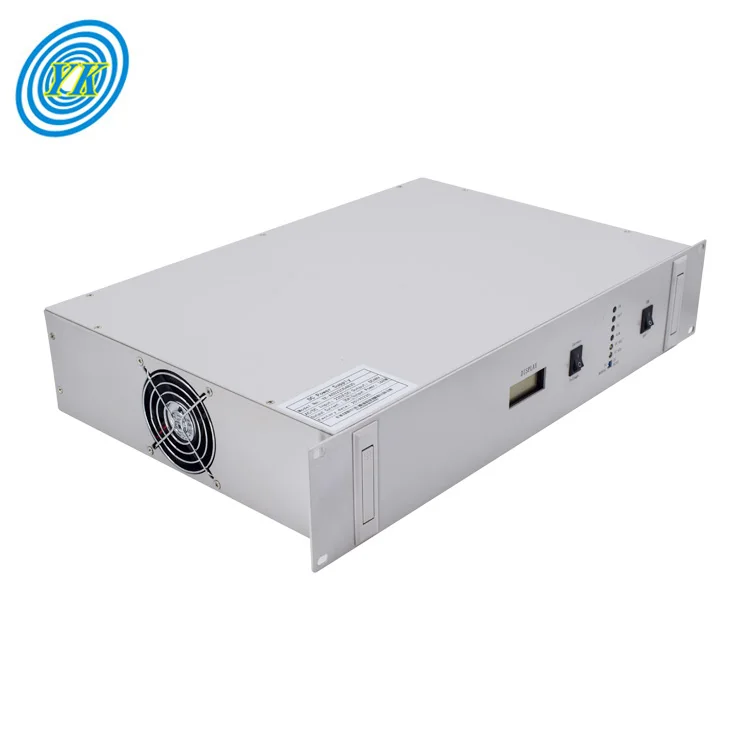

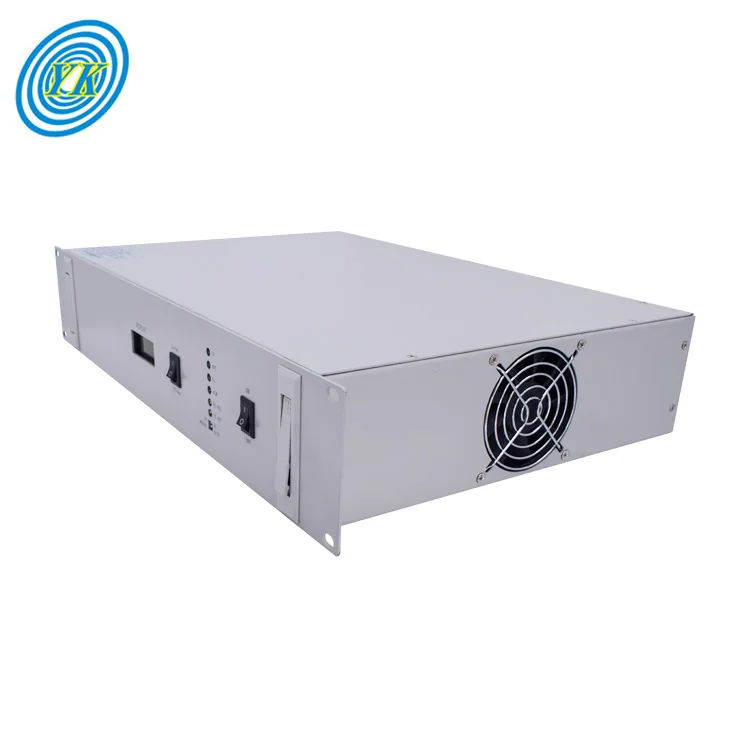

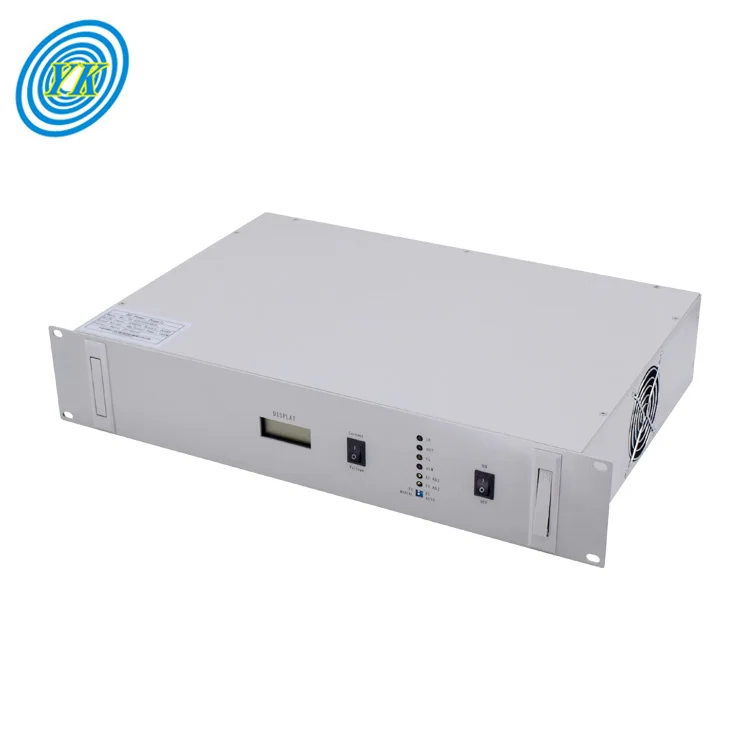

220v ac to 48v dc 30a switching power supply rectifier
Product Description
YUCOO NETWORK EQUIPMENT CO., LTD
We Design , We Delelop, We Support! QUALITY IS OUR CULTURE
Features of 48v 30a switching power supply:
1. Wide input voltage range
2. DC output voltage adjustable
3. High precision voltage regulation
4. Low output noise ripple
5. Intelligent fan
6. High efficiency, small volume and light weight
7. 19 inch rack mounting and stand-alone available
8. Strong protection function
9. Limiting Output Power Protection
10. Over current and Short-circuit Protection
11. Input Over voltage and Under voltage Protection
12. Output over voltage protection
13. Output limiting current protection
14. Over temperature protection
Parameters of 48v 30a switching power supply:
| Item | YK-AD 4810 | YK-AD 4815 | YK-AD 4820 | YK-AD 4825 | YK-AD 4830 | YK-AD 4850 |
| Input Voltage | AC220V | |||||
| Start up Surge | <12A | |||||
| Input Current | 8A | |||||
| Output Voltage | 48V | |||||
Output Float Charging Voltage | 53.5V | |||||
Output Equal Charging Voltage | 56.5V | |||||
| Output Voltage Range | 40~58VDC Adjustable | |||||
| Output Current | 10A | 15A | 20A | 25A | 30A | 50A |
| Efficiency | >88% | |||||
| Start up Delay Time | ≤5S | |||||
| Hold Time | ≥20mS | |||||
| Working Temperature | -10℃~+45℃ | |||||
| Humidity | 5%~95% RH | |||||
| External Dimension | 235*483*44mm | 300*483*88mm | ||||
| Weight | 5kg | 7.5kg | ||||
Product details
Customized Range

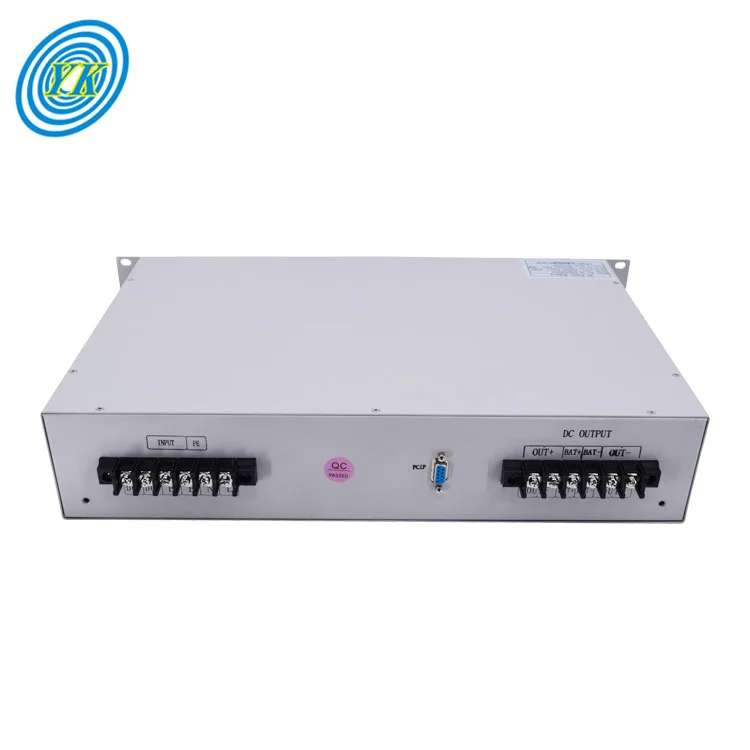

Model | Input Voltage | Output | Output | Load Port | Battery Port | Rack Dimension |
YK-AD4810 | AC220V | DC48V | 10A | 4chs | / | 1U |
YK-AD4815 | AC220V | DC48V | 15A | 2chs | 2chs | 2U |
YK-AD4820 | AC220V | DC48V | 20A | 2chs | 2chs | 2U |
YK-AD4825 | AC220V | DC48V | 25A | 2chs | 2chs | 2U |
YK-AD4830 | AC220V | DC48V | 30A | 2chs | 2chs | 2U |
YK-AD4850 | AC220V | DC48V | 50A | 1chs | 1chs | 2U |
