HH ZY029 flame sponge laminating machine

Share on:

Price:RUB 991,159.00
Price in USD:Details


Product Overview

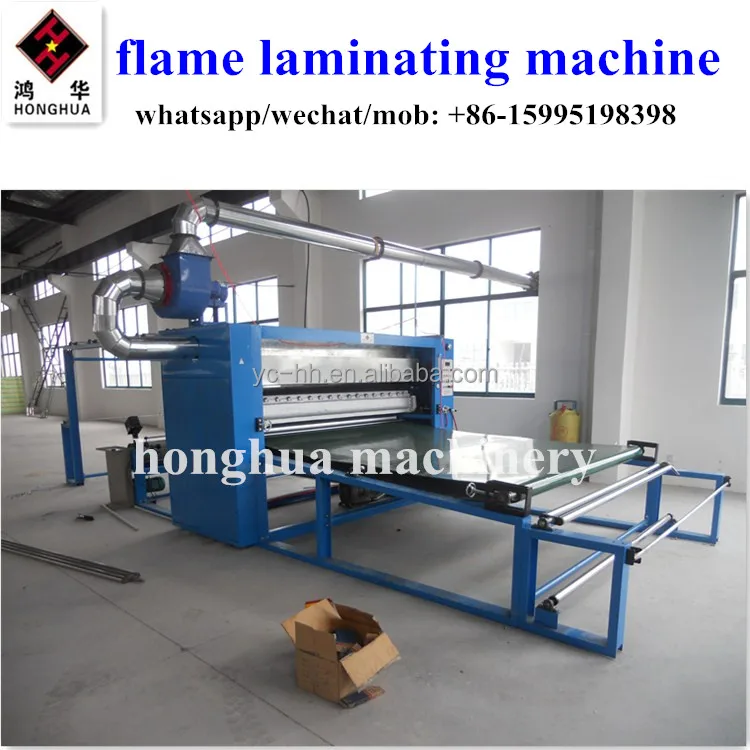

HH-ZY029 flame sponge laminating machine

(laminating machine, flame laminating machine)






Youtube link:

mesh belt laminating machine:  https://youtu.be/_aHtgg8wCo8

spreading and cutting machine: https://youtu.be/ZR4A1al-R2I

embossing laminating machine: https://www.youtube.com/watch?v=-jQ6ngOBli0



product description for HH-ZY029 flame sponge laminating machine


1.It is used to compound fire-resistant sponge/foam with fabric or non-woven products.

2. It is used sponge as the sticky material, melted by spraying flame, can bind other material, it can also bind any other two kinds of material with melted sponge by spraying flame.

3.Laminated products feel good, washable and dry-washable.

4.This type of machine is especially suitable for the compound of plush and abrasive.

5. The air exhaust diaphragm will exhaust the odor.


6.The water cooling system well enhances the lamination effect .


features -- HH-ZY029 flame sponge laminating machin

1.Gas Type: Natural Gas or Liquefied Gas.

2.The water cooling system well enhances the lamination effect.

3.The air exhaust diaphragm will exhaust the odor.

4. Fabric spreading device is installed to make the laminated material smooth and neat.

5. The strength of the bonding depends on the material and the foam or EVA selected and the processing conditions.

6.With high integrity and long term adhesive durability, the laminated materials touch well and is dry washable.

7. Edge tracker, tensionless fabric unwinding device, stamping device and other auxiliary equipment can be optionally installed.

Main technical parameters

Heat source  industrial use of electricity

Width of roll  2100mm


Heat sourceindustrial use of electricity
Width of roll2000mm
Width of finished product1900mm
Mechanical speed20 - 45m / min
Installed capacityabout 10KVA
Dimensions5000 x 3200 x 2800mm




details parts of HH-ZY009 no glue flame laminating machine for sponge









Working process for HH-ZY009 no glue flame laminating machine for sponge

Flame lamination is a process that adheres material to one side of the fire retardant foam or EVA.

Pass the foam or EVA over a flame produced by a flare roller, creating a thin layer of sticky stuff on the surface of one side of the foam or EVA.Then, quickly press the material against the sticky stuff of the foam or EVA.





Application for HH-ZY009 no glue flame laminating machine for sponge

1. Usage:

To laminate foam with woven or non woven fabrics, knitted, natural or synthetic fabrics, velvet, plush, polar fleece, corduroy, leathter, synthetic leather, PVC, etc.


2. Application:

Automotive industry ( car interiors, car seats)

Furniture industry ( office chairs, sofas, babies items, stuffings)

Footwear industry

Garment industry

Household cleaning products -PU-fibre scourers


Heat insulation - sound absorption, etc.







Packaging & Shipping for HH-ZY009 no glue flame laminating machine for sponge

Inner Package: Protective Film, etc

Outside Package: Standard Export Container

Machines well packed with protective film and loaded in export container;

English version operation manual and technical data;

One-Year-Period wear parts;

Tool kit






functional products from us --- mesh belt laminating machine, spreading machine....etc. see below:

laminating machine-- general laminating machine, mesh belt laminating machine, strong glue laminating machine, super glue laminating machine, adhesive tape laminating machine, Guiltter laminating machine.

spreading machine -- semi-spreading machine, automatic spreading & cutting machine

in these years, we researched one new type machine, UD laminating machine, special equipment.









we work with customers

if you have time, we welcome you coming visit our factory. we export machine to many countries like Pakistan, Uzbekistan, Algeria...etc

photobank (1)




Our service:

Before-sale services:
(1)Guide customers to choose the best appliable machine type; provide the advanced, energy-saving and practical technological process,
(2) We are responsible for the process chart and design.
Sale services:
(1)Products must be inspected strictly before selling;
(2)In accordance with the agreements stipulated in the contract,
(3)We will organize delivery.
After-sale services:
(1)Our company will send professional engineers to guide with device installation, debugging and training operators until customers are fully satisfied. Moreover, we will design and manufacture products, according to the special requirements of customers.
(2)The quality guarantee period for machines is one year except the wearing parts.






Company information

our workshop around 5000m2 area, we professionally make laminating machine, spreading machine, winding machine...etc for many years.

photobank (3)







1, Are you a factory or a trade company ?

 we are a factory , welcome you to visit our factory and discuss our business face to face .


 2, Where is your factory located ? How can I visit your factory ?

 Our factory is located in No 98 Wolong Road Daguang Town Yancheng city Jangsu Province China .

 You can take plane from Guangzhou city to Yancheng city or shanghai to yancheng . It is very convenient .


 3, Do you attend any Fair ?

 Yes , we attend some professional fairs every year :

Each year we attend outland exhibition.  in 2017 we attend 17th textile & CFT Asia UFI 28-30 in Pakistan.

  International exhibition on shoes& leather industry

 (In Guangzhou china )


4, Can we use our company logo on your machine ?

Yes , you can use your logo if necessary .


5, How does your factory control the machine quality ?

We have some QC staffs to inspect and test the machine .

every machine must be tested for 12-16 hours before leaving factory .
