Manufacturer Clearance Price1.2W/mk PBC Heat Sink Cooling Thermal Conductive Silicone paste China Factory
- Category: >>>
- Supplier: Dongguan Sheen Electronic Technology Co. Ltd.
Share on (60647227009):
Product Overview
Description
1.2W/mk PBC Heat Sink Cooling Thermal Conductive Silicone paste
Thermal Grease | ||||||||
Sheen grease series | Thermal conductivity | Viscosity 25℃ | Thermal impendance (℃-in2/W)@50psi) | Working temperature | ||||
1.0 W/mK | 150K cps | 0.25 | -45 - 150℃ | |||||
1.8 W/mK | 200K cps | 0.18 | -45 - 150℃ | |||||
2.5 W/mK | 220K cps | 0.14 | -45 - 150℃ | |||||
3.0 W/mK | 240K cps | 0.12 | -45 - 150℃ | |||||
3.8 W/mK | 310K cps | 0.10 | -45 - 150℃ | |||||
5.0 W/mK | 450K cps | 0.07 | -45 - 150℃ | |||||
Product Description
SG560-12 series thermal paste is a paste compound of thermal interface material that does not dry out; it can transfer heat from the heating device to the heat sink and the chassis. The product can still be insulated if the thermal metal oxide is filled. Thermal conductivity. SG560-12 has low permeability, good temperature resistance and low fluidity. It is also very stable at high temperatures. Even if the temperature reaches 200 °C, it will not crack due to drying. It can be manually operated and screen printed.
Item | SG560-12 | * |
Color | White | Visual |
Viscosity 25℃ | 170K cps | Brookfield RVF,#7 |
Density g/cm3 | 2.1 | *** |
Applicate Temperature° F/℃ | (-49 to 392°F) (-45 to 200℃) | *** |
Thermal Conductivity W/mK | 1.2 | ASTM D5470 |
Volatilization（200℃，24H） | 0.27% | *** |
Oil Bleeding（200℃，24H） | 5.1% | *** |
Thermal Impedance(℃-in2/W)@50psi | 0.23 | ASTM D5470 |
RoHS (10) | PASS | IEC 62321 |
Halogen (4) | PASS | EN14582 |
REACH（191） | PASS | EN14372 |
Customization Ability
Different thermal conductivity can be customized
thermal grease：1.0~5.0w/mk
Different Packing can be customized

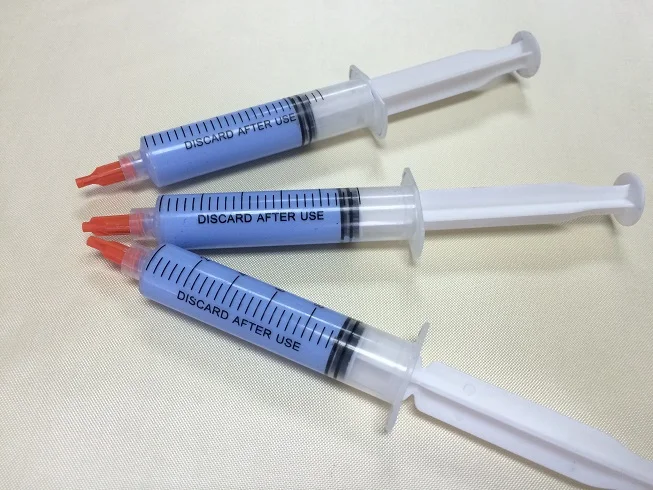

Syringe Form: 2g/5g/10g/50g/30cc

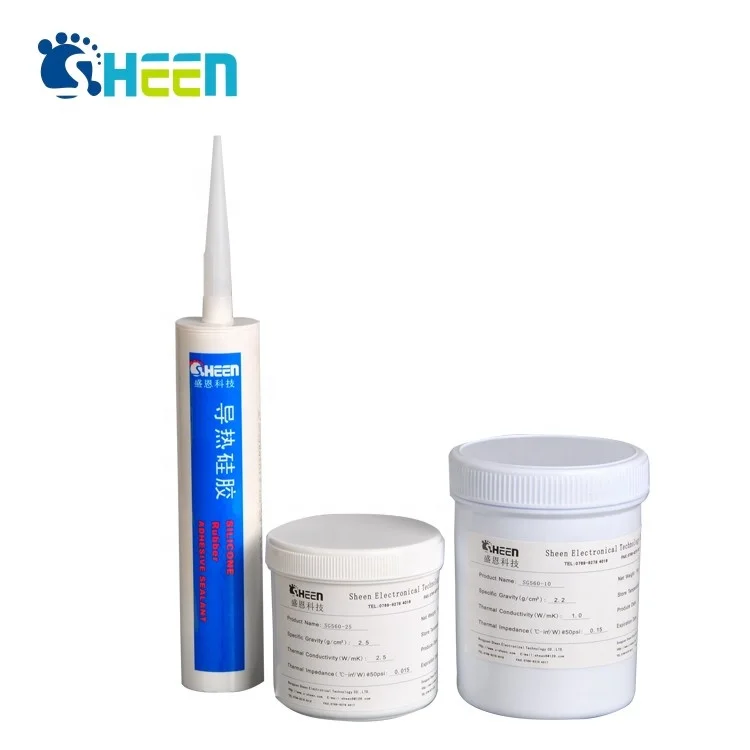

Container Form:1kg/5kg/10kg
Container Form:1kg/5kg/10kg
Sertifications
ISO9001:2015
ISO14001:2015
IATF16949:2016
UL
REACH
ROHS

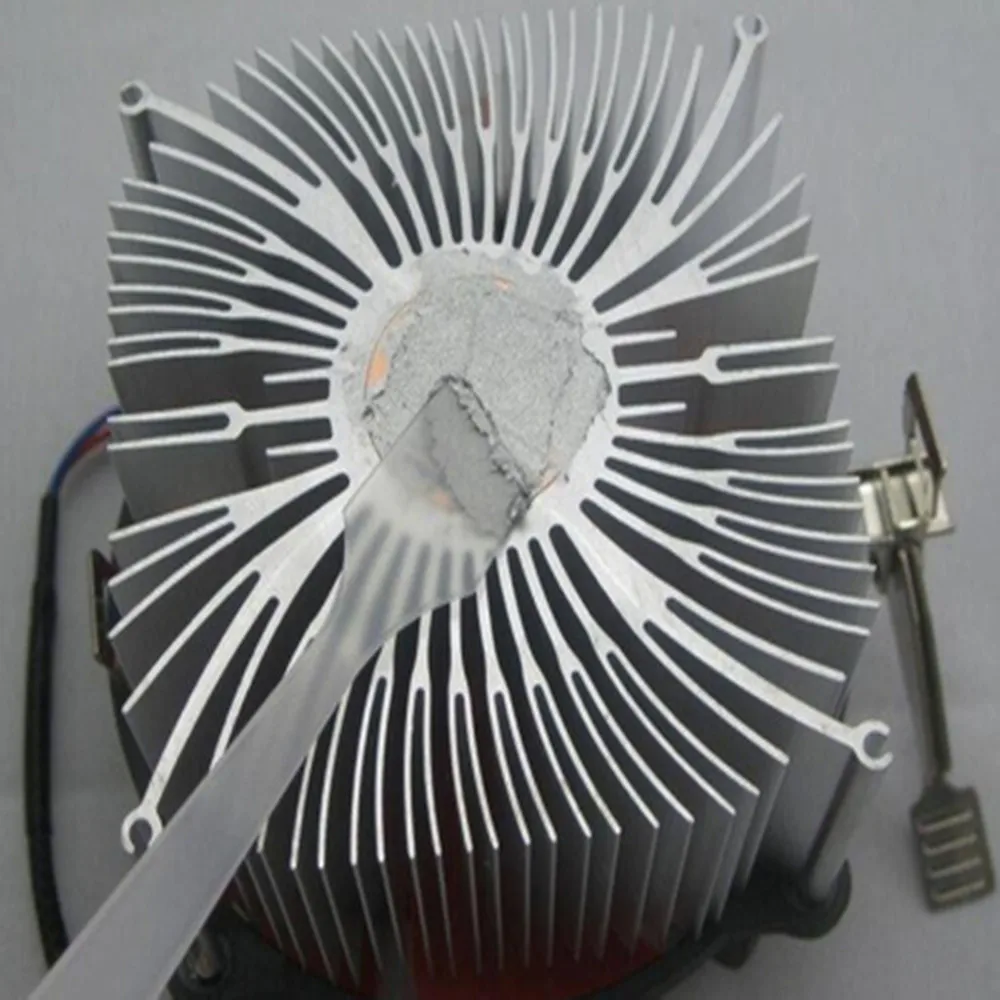

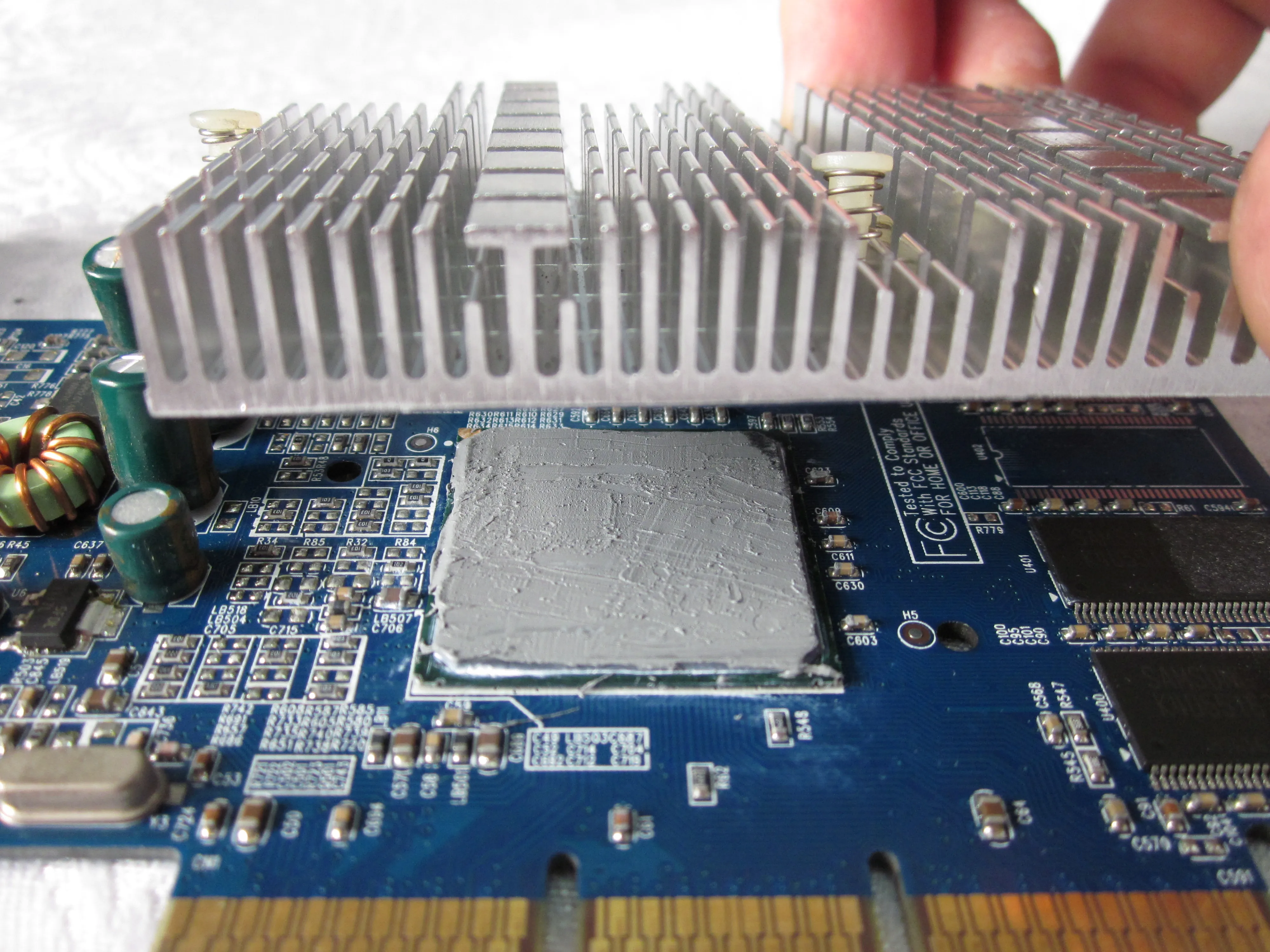

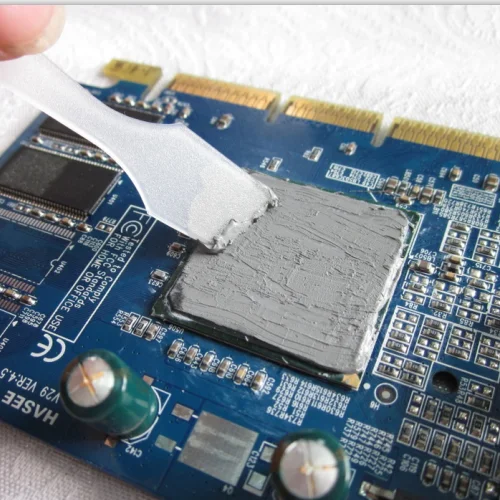

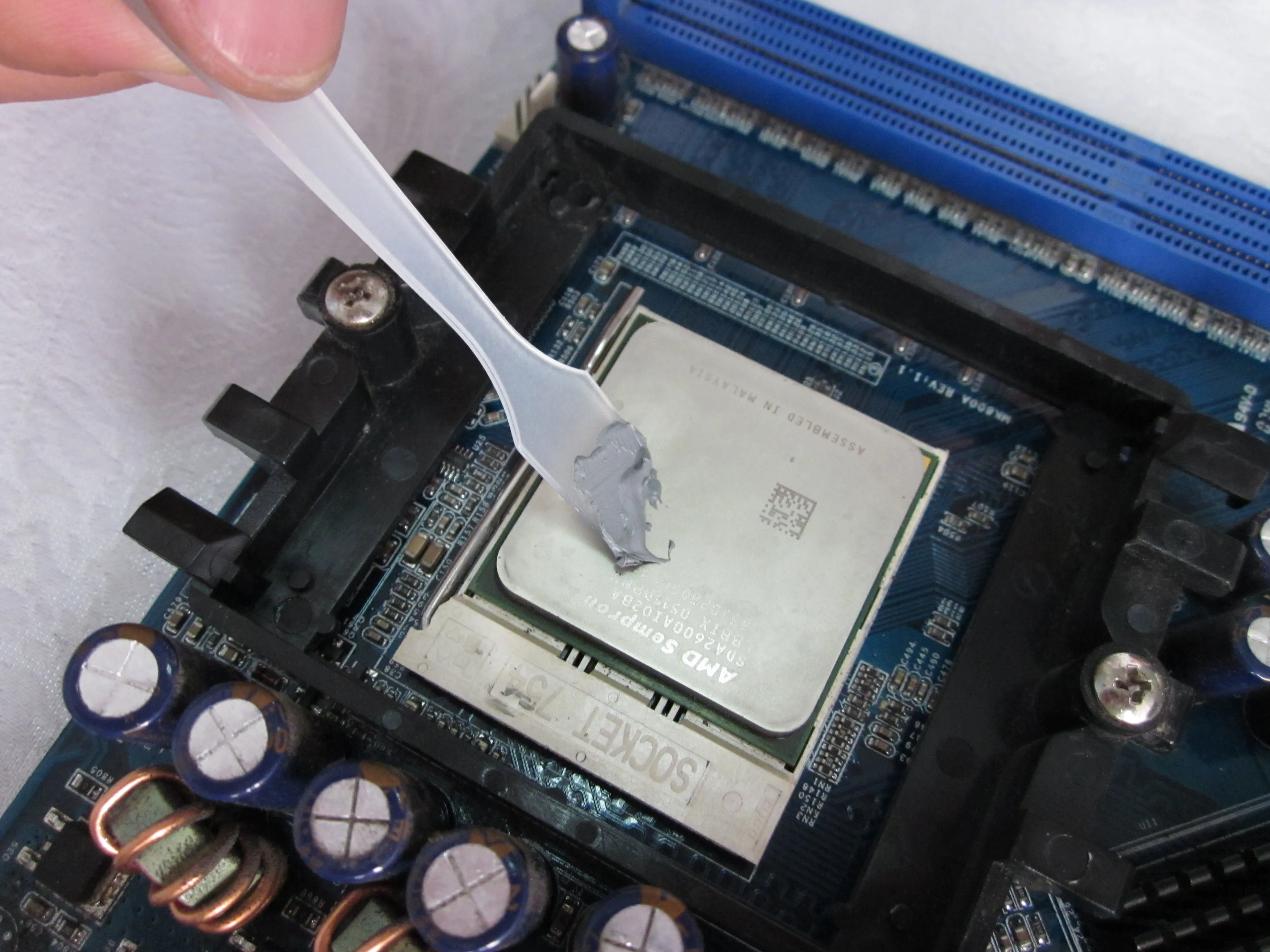

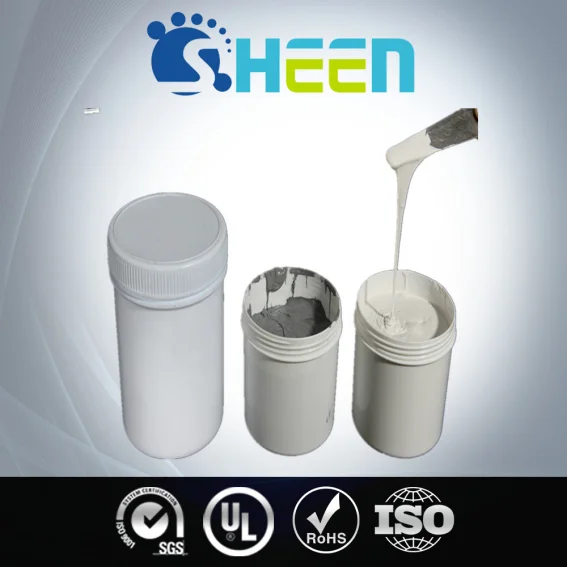

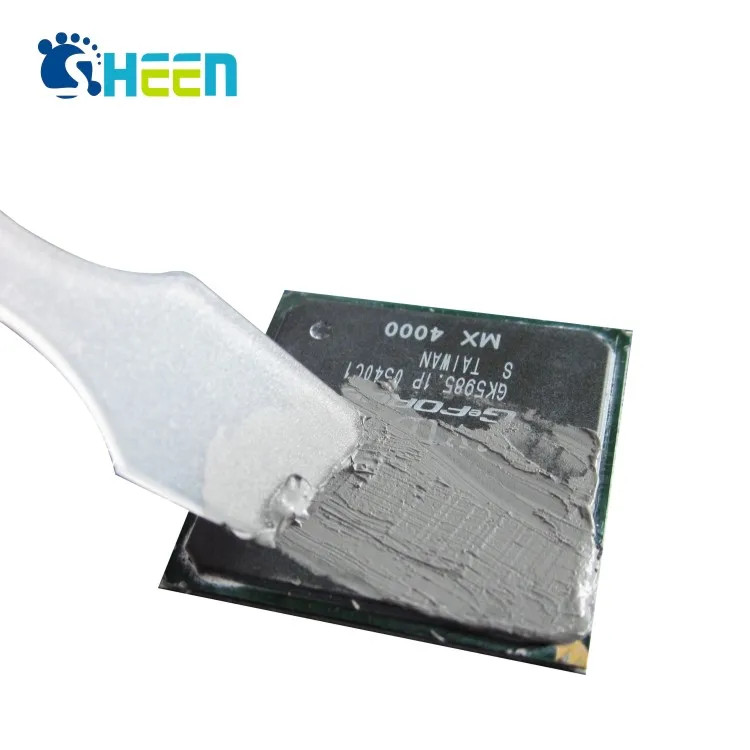

Details Images
Applications

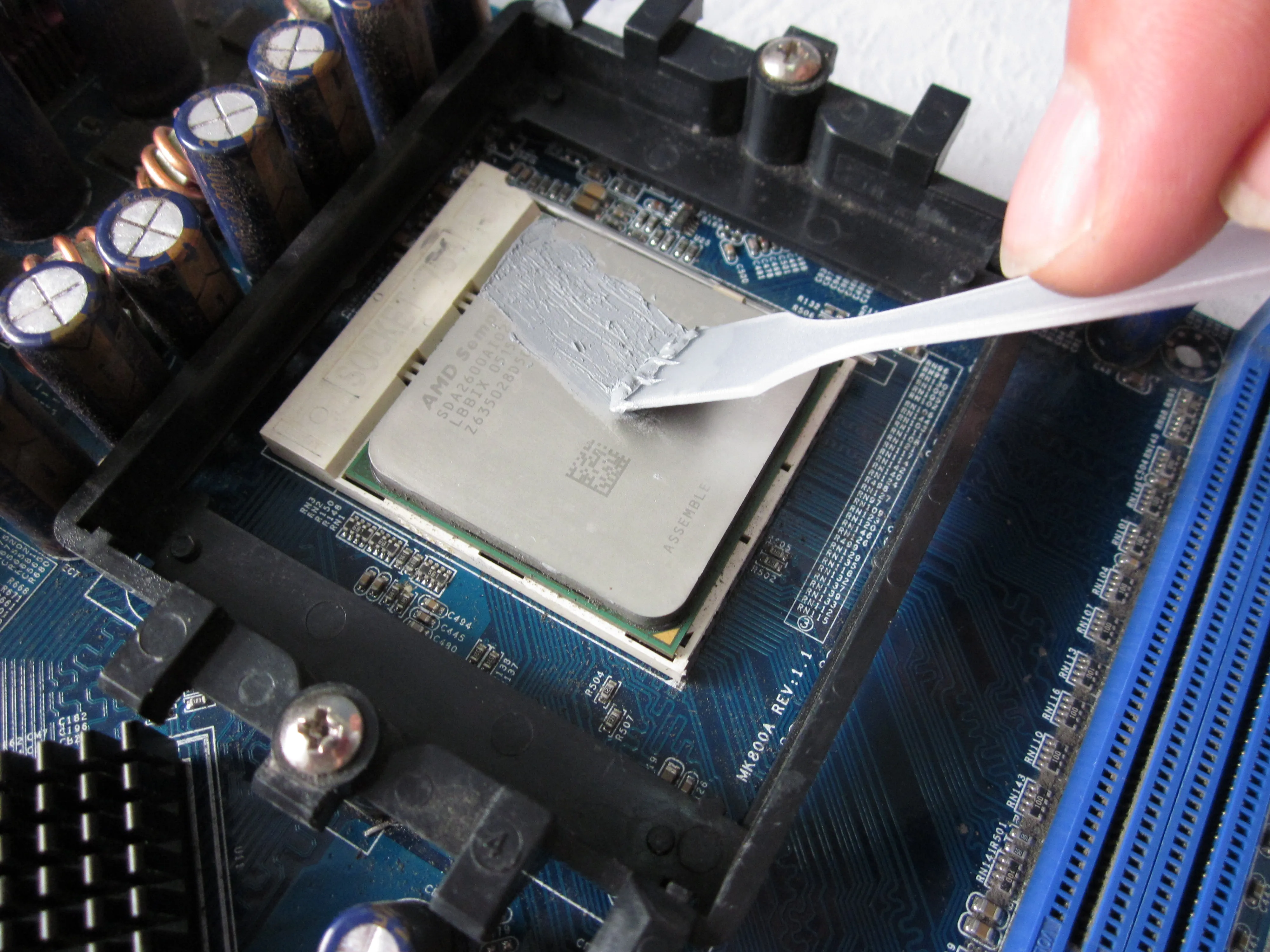

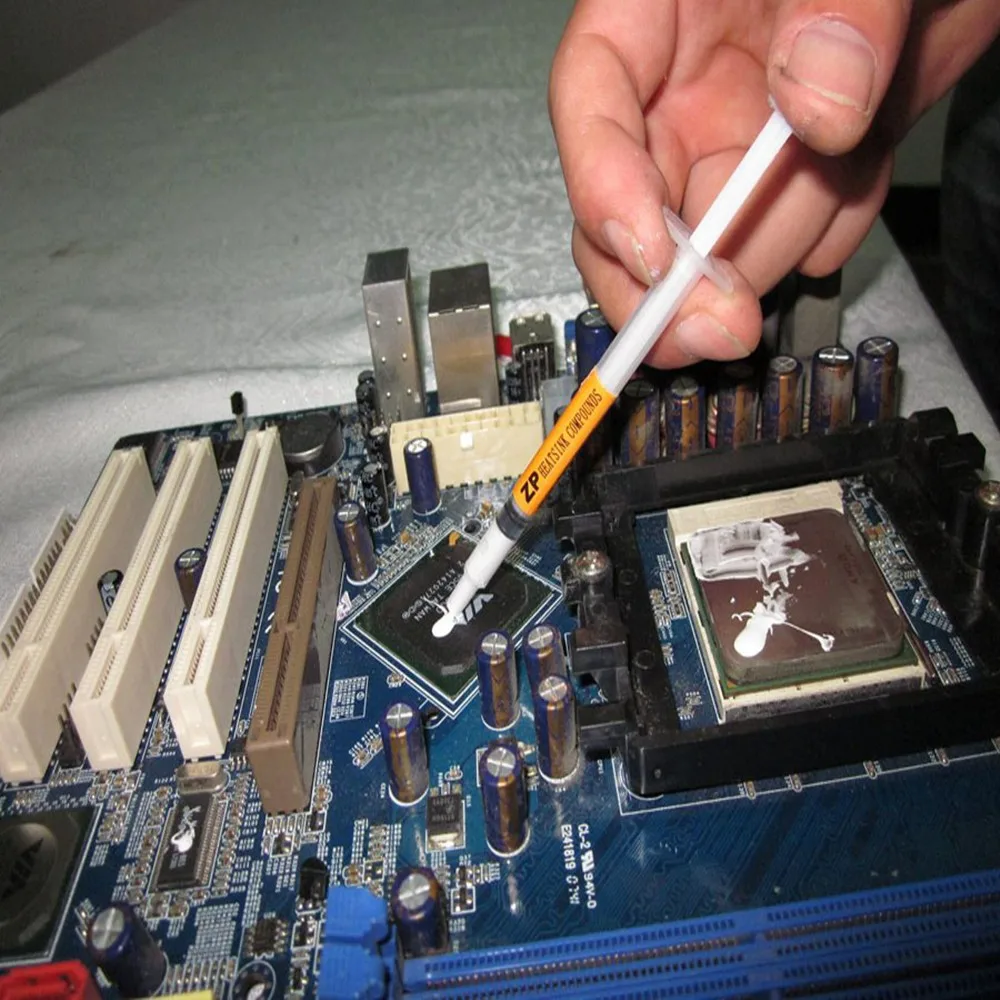

◇High frequency microprocessor
◇notebooks and desktop computers
◇Computer
◇Power adapter
◇Audio video equipment

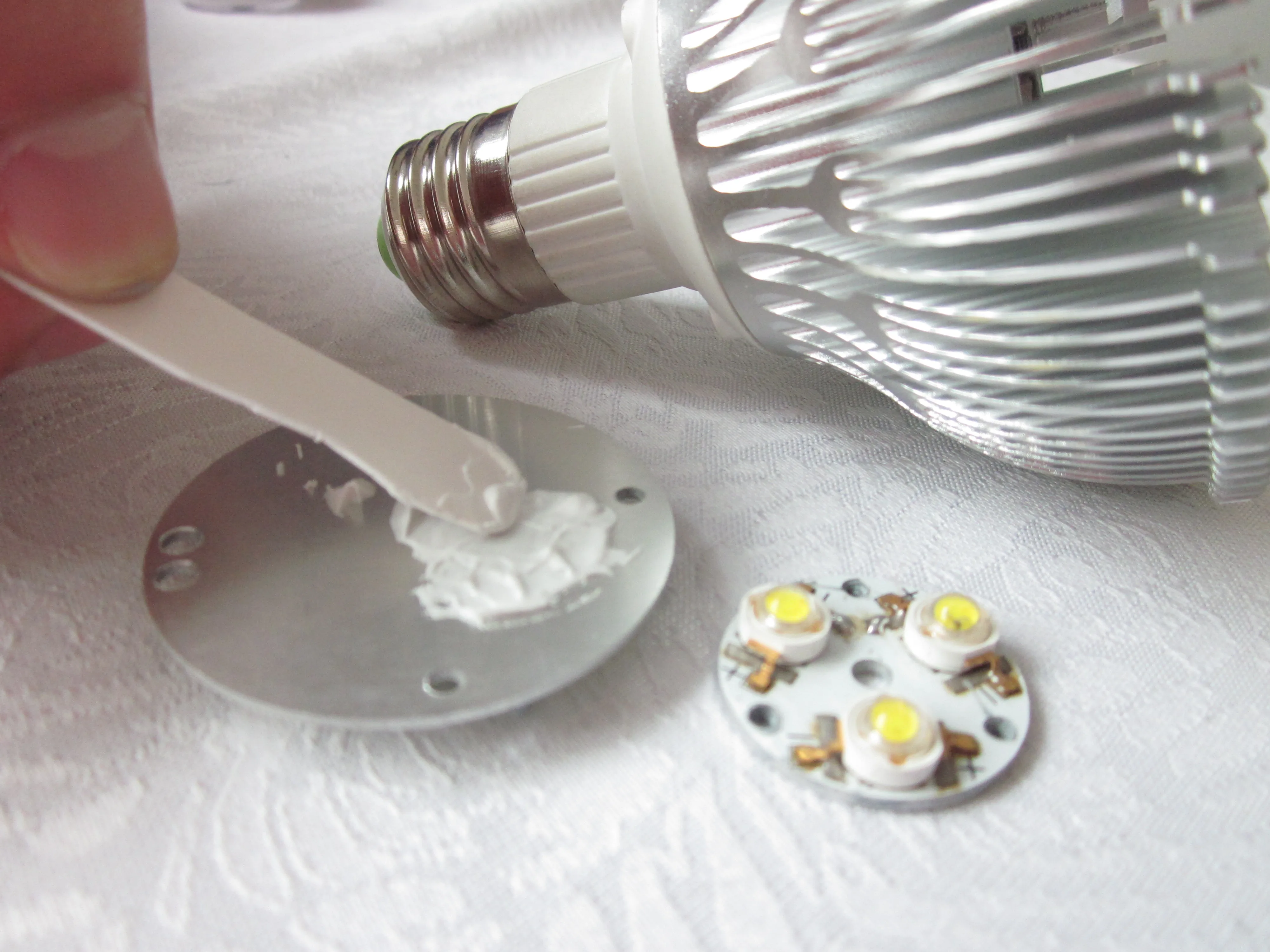

◇LED lighting products
Company Introduction
Dongguan Shengen electronic / Shengyuan New Material Co., Ltd. was founded in 2008. It is a manufacturer specializing in R & D and customization of high reliability thermal conductive materials. We are committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries. The company has a professional R & D team and complete testing equipment. The company's main products are SF thermal conductive silicone sheet, SE thermal conductive gel, SP thermal conductive phase material, AF silicon free thermal pad and SG thermal conductive paste. At present, it has become the main supplier of many well-known manufacturers at home and abroad. The company has obtained iatf16949:2016, iso14001:2015, iso9001:2015 system certification and the title of national high-tech enterprise.
Contact Us
Tel | +86-769-22479425 | Address | 6th Floor, Building M, Jinxiongda Science and Technology Park, Datanglang Villiage, Dalingshan Town, Dongguan City, Guangdong Province, China |
Fax | +86-769-82784017 | ||
Web | //sheen.en.alibaba.com/ //www.usheenthermal.com/ | E-Mail Address | tina@u-sheen.com |
FAQ
1. What are your main products?
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component
silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal
grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,IATF16949,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component
silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal
grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,IATF16949,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
