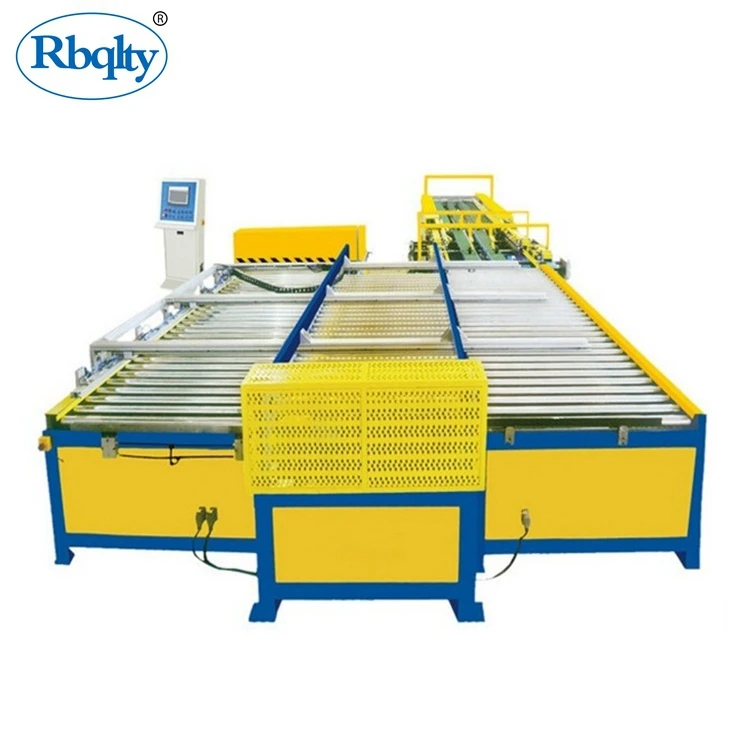

Galvanized iron u shape auto duct line 5
Duct V production line is composed of rack, leveling embossing, hydraulic pointed mouth and square opening, hydraulic shearing machine, joint angle displacement type nip machine, manipulator grabbing assumed a feeding platform, plate double joint flange and double linked list bone molding machine, servo feeding platform, TDF hydraulic crimping machine, electric control part adopts full computer control, bending servo feeding, positioning precision, especially the “ ” word processing line, guarantee the precision of bending. The max feed speed is 16m/min. The length error is ±0.5mm. The line can be used to process TDF flange and angle steel flange duct, with simple and rapid exchange.
The line covers small area, with linear processing and high production efficiency. It can produce a small section of the “ ” word wind pipe. The min section of TDF flange can be as small as 200*200mm

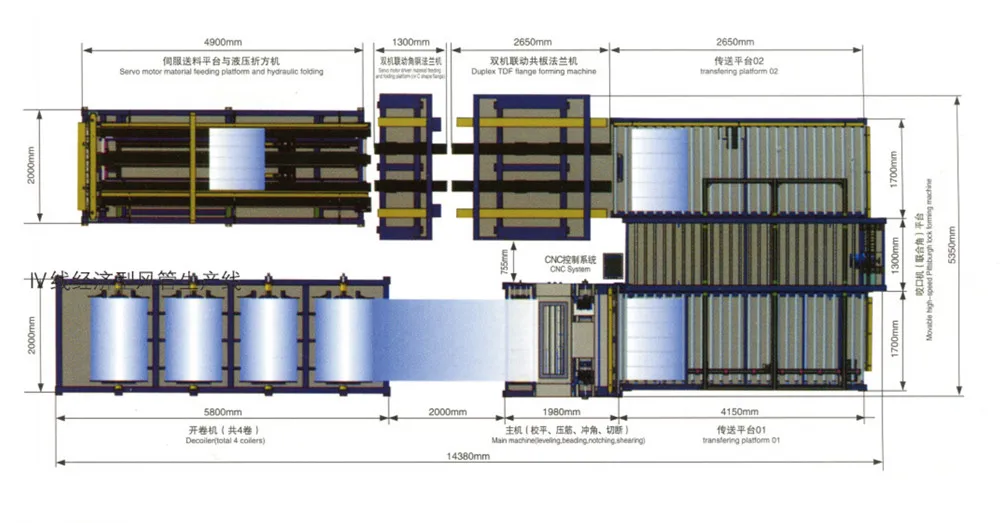

Components

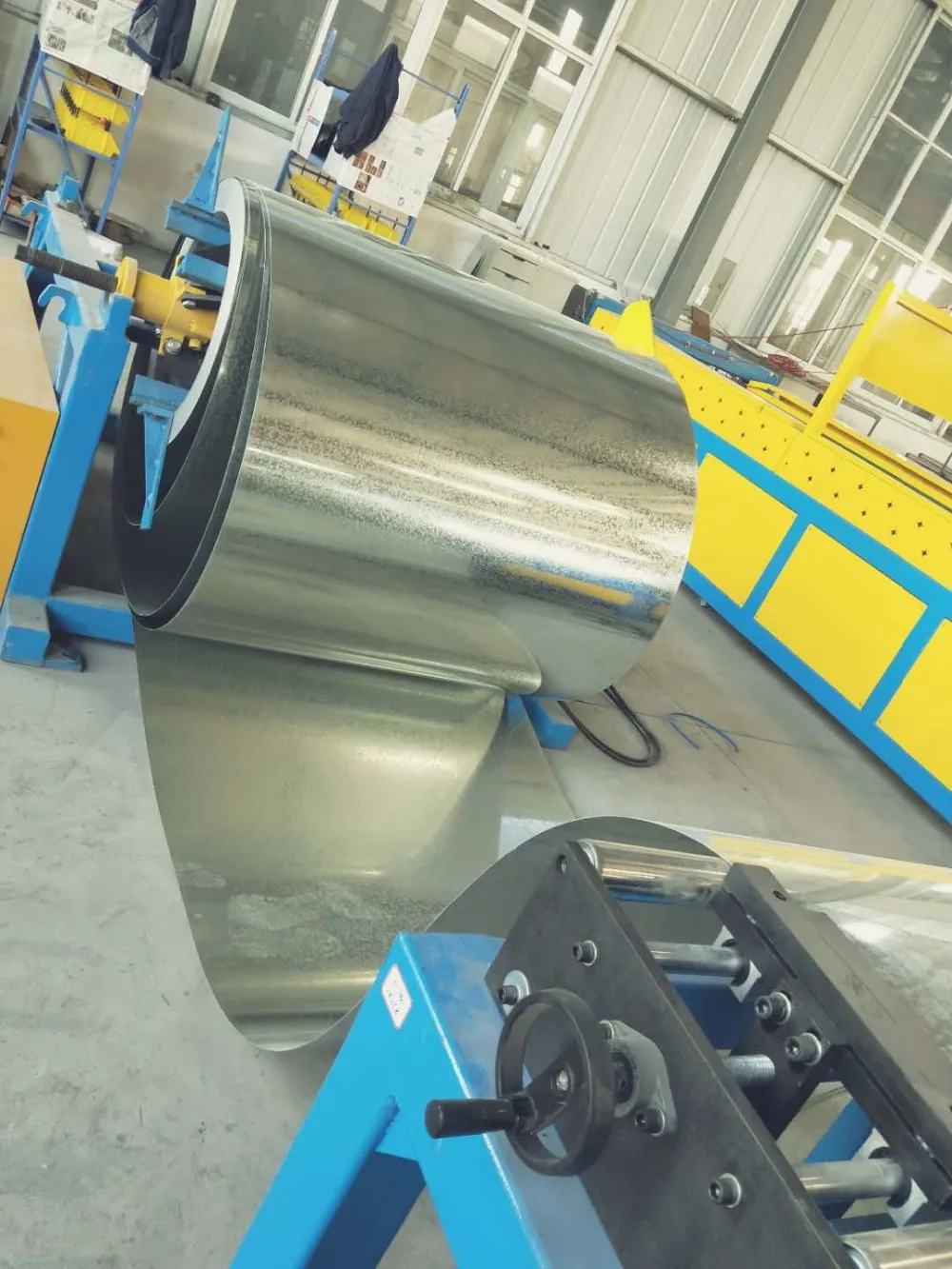

1. Electric feeding racks 2 sets 4 coil cradles
2. Leveling, beading, notching, cutting equipment 1 set
3. High speed lock former device
4. An electric feeding platform
5. A duplex TDF flange forming machine (Optional a duplex angle steel flange forming machine)
6. A servo feeding platform
7. A bending device
8. A CNC controller, software
9. An electrical cabinet
| Model | SDL-V | |
| Plate Thickness Range (mm) | 0.5-1.2 | |
| Max-width(standard) (mm) | 1300 | 1600 |
| Max-working Speed (m/min) | 16 | |
| Coiler Max-weight (kg) | 6000*4 | |
| Dimension | 24000 | 24000 |
| 3500 | 3800 | |
| 1300 | 1300 | |
| Weight (kg) | 9500 | 10000 |

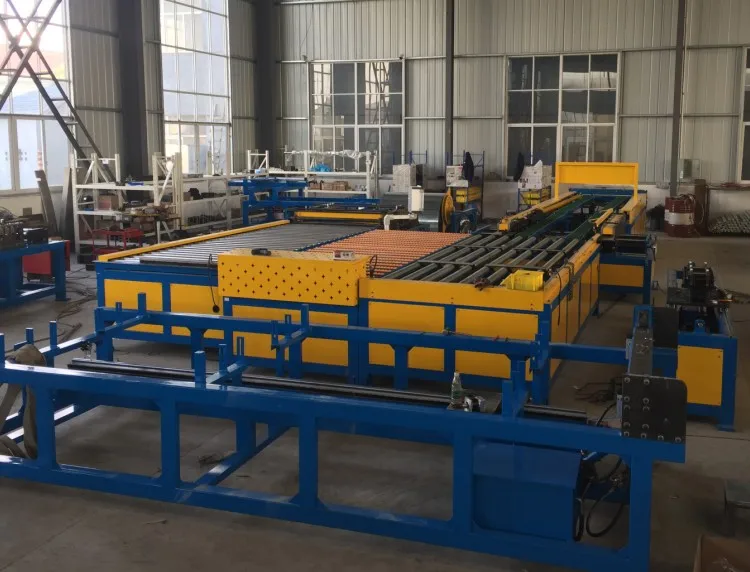

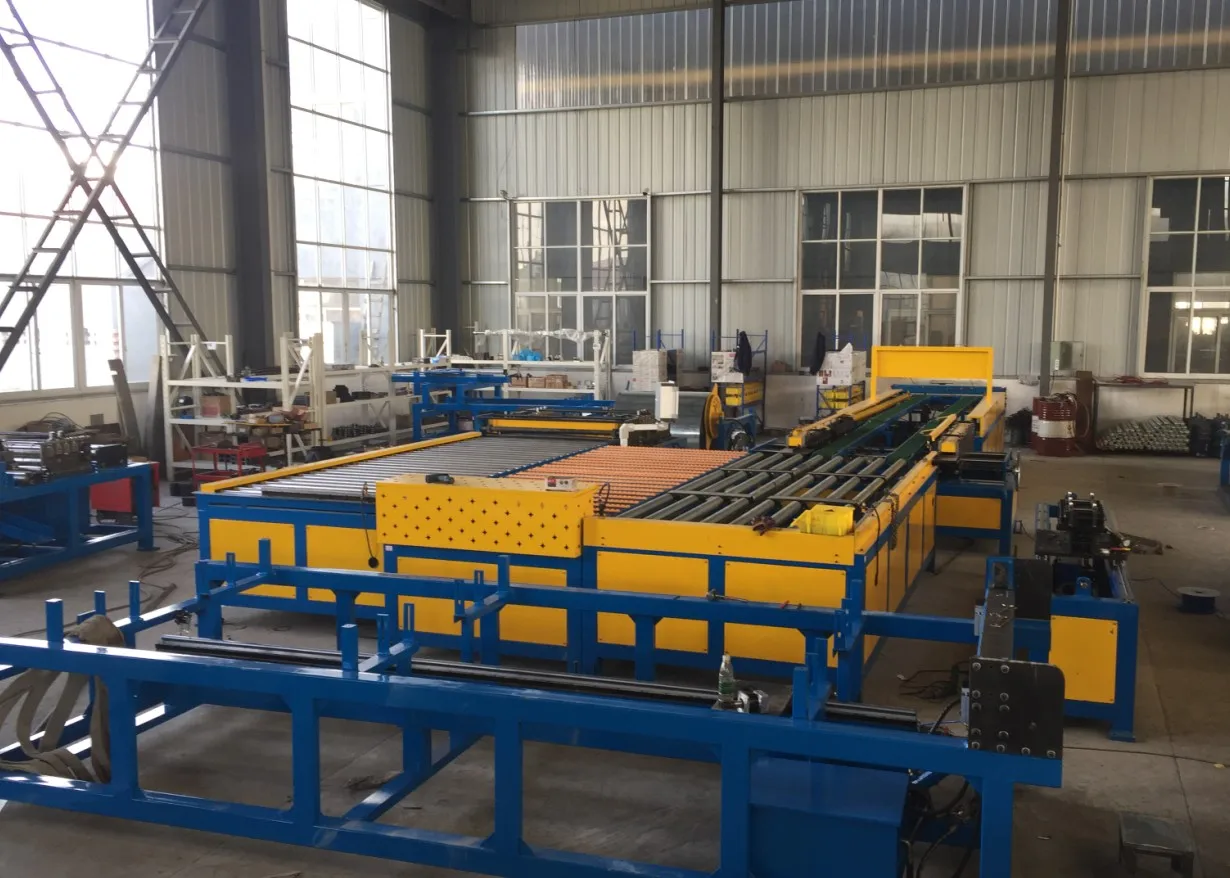

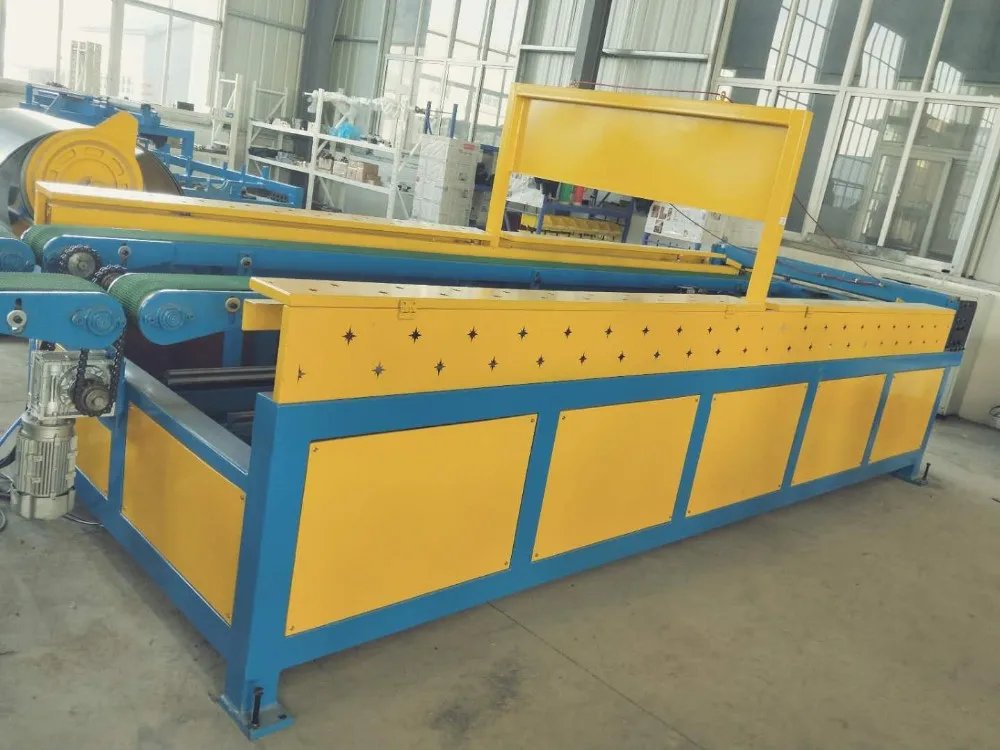

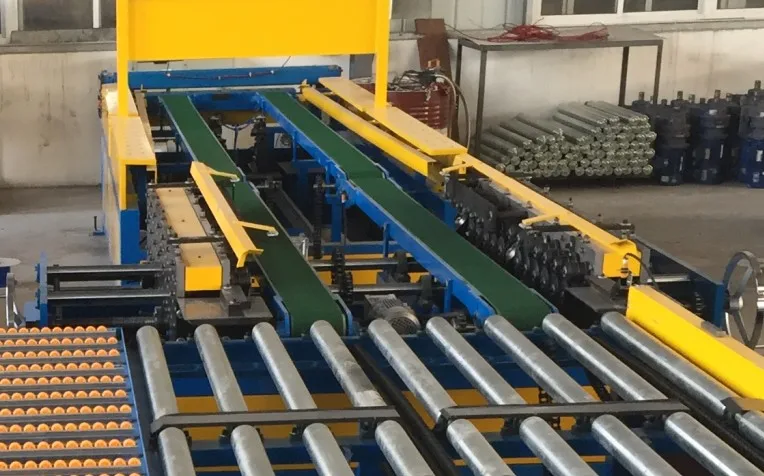

The details photos:
The ending products show:
Packaging & Shipping
Packaging
- Waterproof plastic film
- Pallet with plastic film
- Plywood box with plastic film
Shipping
- Transport by van to Shanghai port or your address
- Transport by air to your address
- Transport by sea to destination port
Service & Payment
Pre-sales services
- Min.Order Quantity:1 set.
- Certicate: CE or ISO certificate.
- Lead time: some in stock, some half month
- OEM & ODM support
- Response in 12 hours
- 72 hours running test before delivery
After-sales services
- 24 hours hotline 0086-0553-7568159
- Online installation and operation instruction
- Onsite service fee: 100 dollars per day except air ticket and hotel
- Lifetime maintainence support
Warranty
- 1 year for main parts except accessaries.
- Do not cover wrong operation, careless maintenance, deliberate damage
