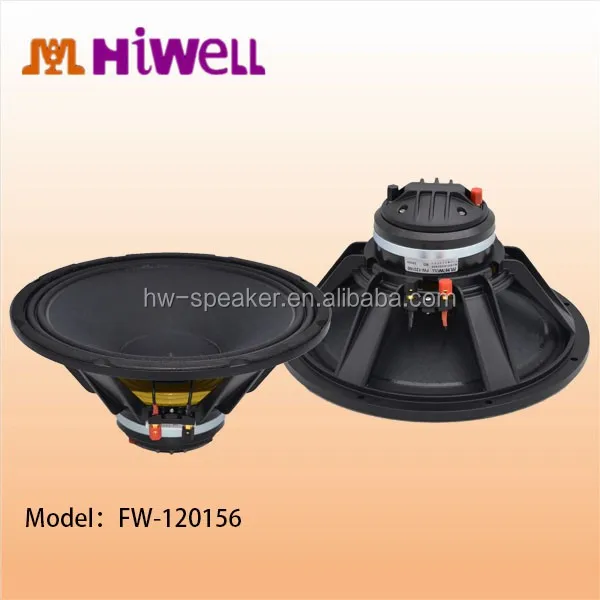

2017 Newest 12inch coaxial speaker loudspeaker neodymium
- Category: >>>
- Supplier: Guangzhou Panyu District Shiji Hiwell Audio Equipment Factory
Share on (60647327293):
Product Overview
Description
Product Description
2017 Newest 12inch coaxial speaker loudspeaker neodymium
| Specifications | WF | HF |
| Nominal Diameter | 311 mm | |
| Nominal Impedance | 8 Ohm | |
| Minimum Impedance | 6.3 Ohm | |
| Power handling | ||
| (50-500Hz) | ||
| Nominall | 350 W | 60 W |
| Continuous Program | 700 W | 120 W |
| Sensitivity (1W/1m)3 | 96.4 dB | 106 dB |

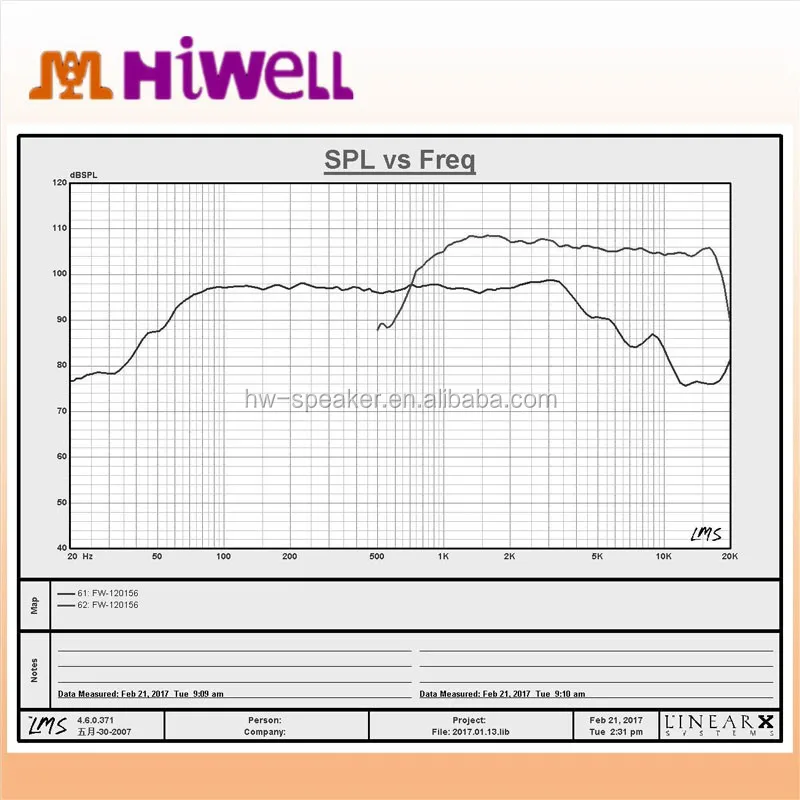

| Frequency Range | 62-3500 Hz | 800-18000 Hz |
| Voice Coil Diameter | 65.5 mm | 44.4 mm |
| Winding Material | ALR | CCAR |
| Former Marerial | TIL | KSV |
| Winding Depth | 16 mm | |
| Magnetic Gap Depth | 8 mm | |
| Flux density | 1.2 T | |

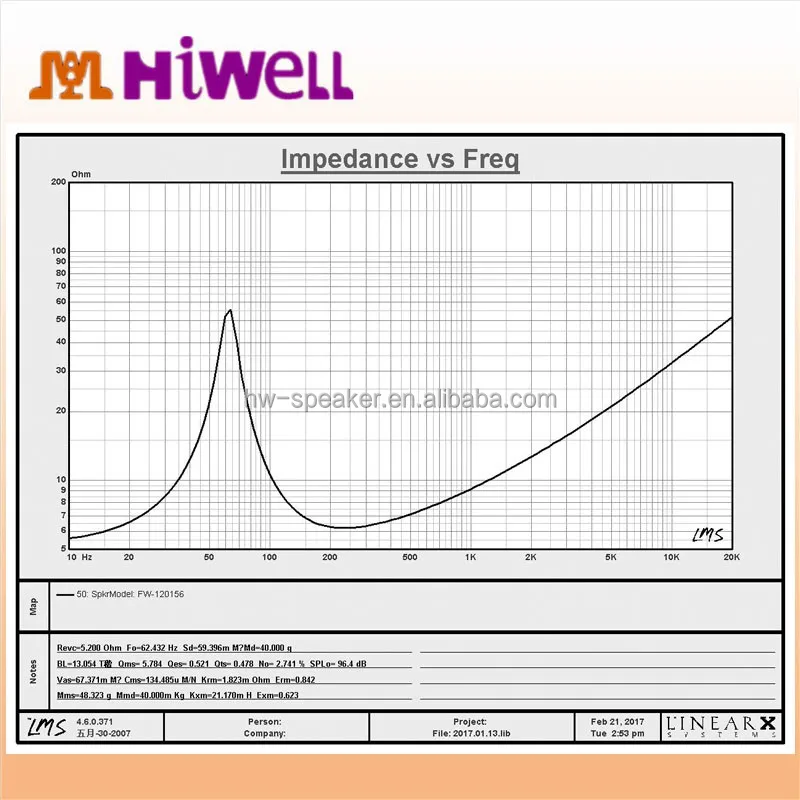

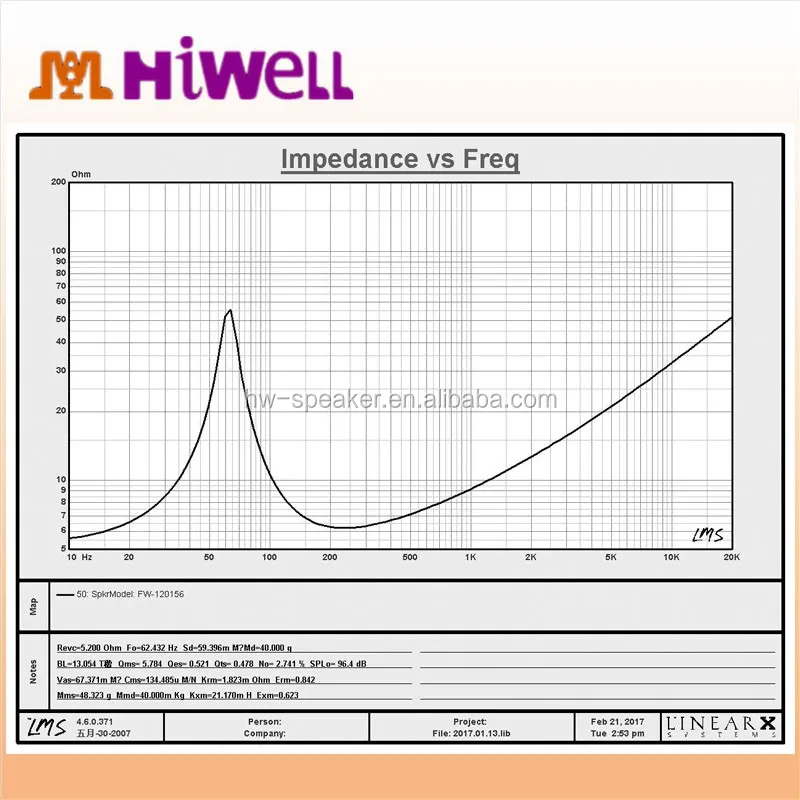

| Thiele-Small parameters4 | ||
| Fs | 62.432 Hz | |
| Re | 5.2 Ohm | |
| Qes | 0.521 | |
| Qms | 5.784 | |
| Qts | 0.478 | |
| Vas | 67.371 | |
| η0 | 2.741% | |
| X max | 4 mm | |
| X mech | 15 mm | |
| Mms | 48.323 gr | |
| BL | 13.054 T.m | |
| Le | 21.17 | |
| Sd | 59.396 | |
| Cms | 134.485 | |

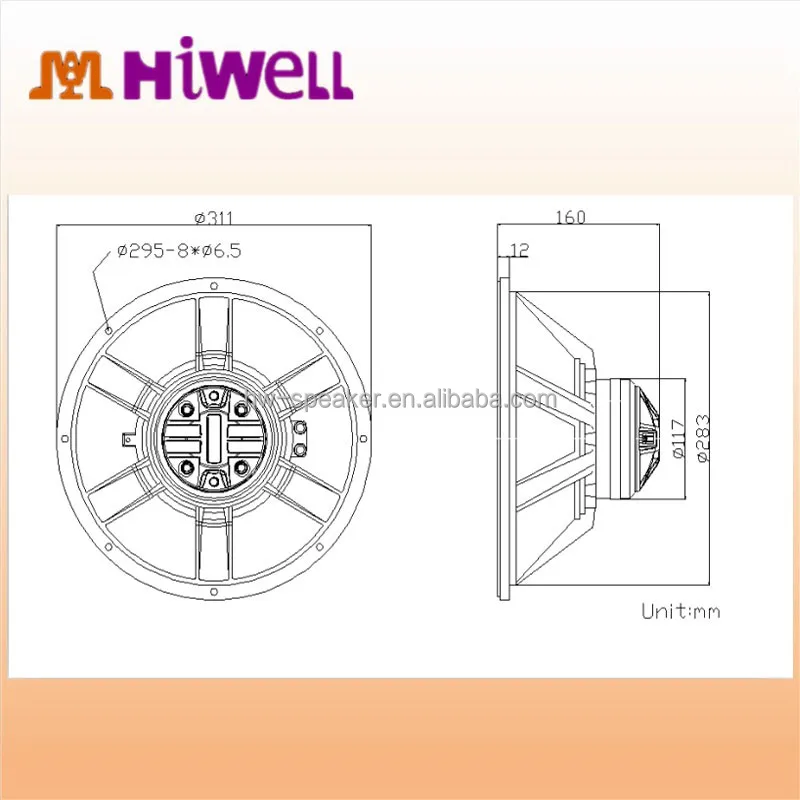

| Mounting and Shipping Information | ||
| Blot Circle Diameter | 295-8XØ6.5 | mm |
| Overall Diameter | 311 | mm |
| Baffie Cutout Diameter | 283 | mm |
| Depth | 160 | mm |
| Flang and Gasket Tickness | 12 | mm |
| Net Weight | * | Kgs |
| Shipping Weight | * | Kgs |
| Shipping BOX | 320*320*195 | mm |
| Magnet Size | 117X70X10 | |
