Product Description

professional wifi module and router manufacture ,OEM and ODM are welcome

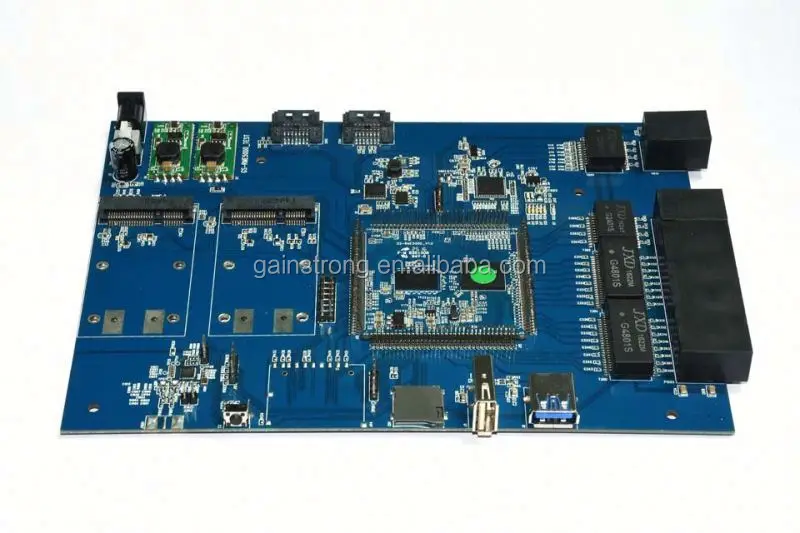

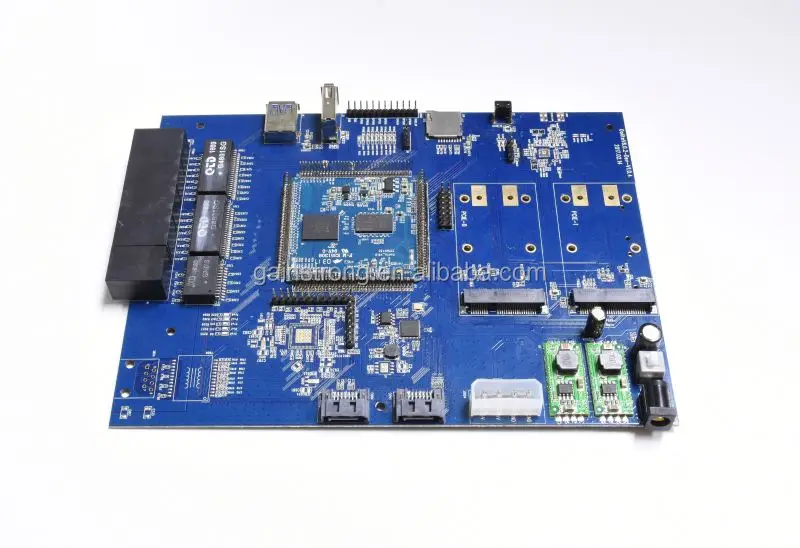

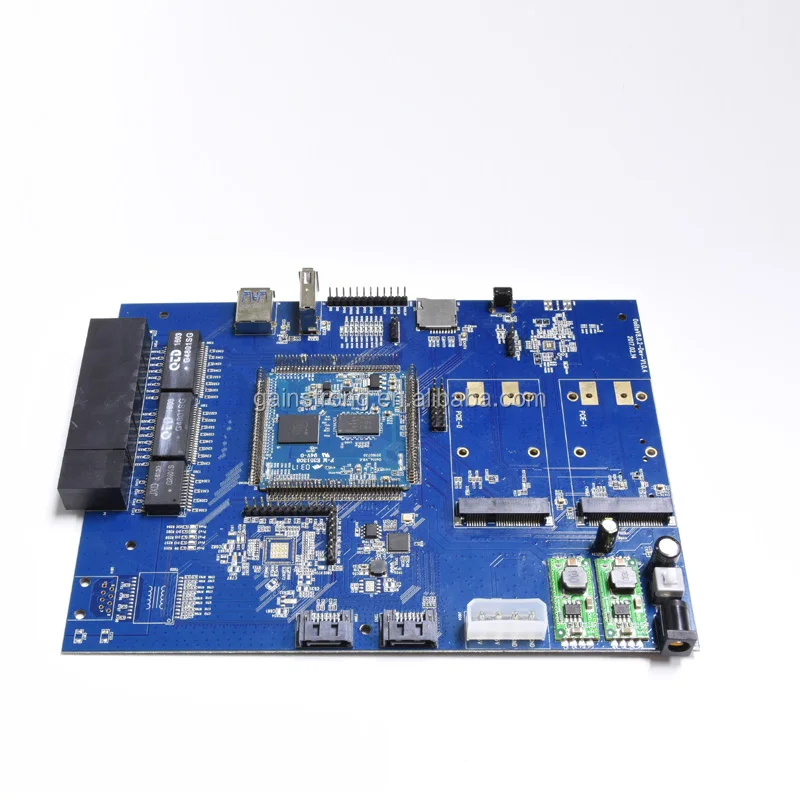

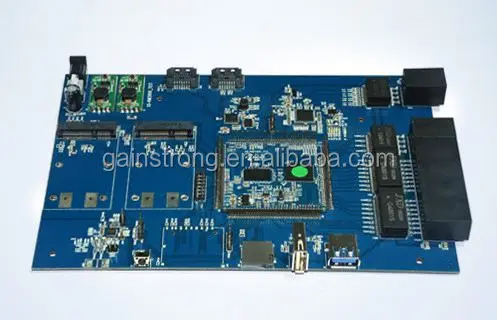

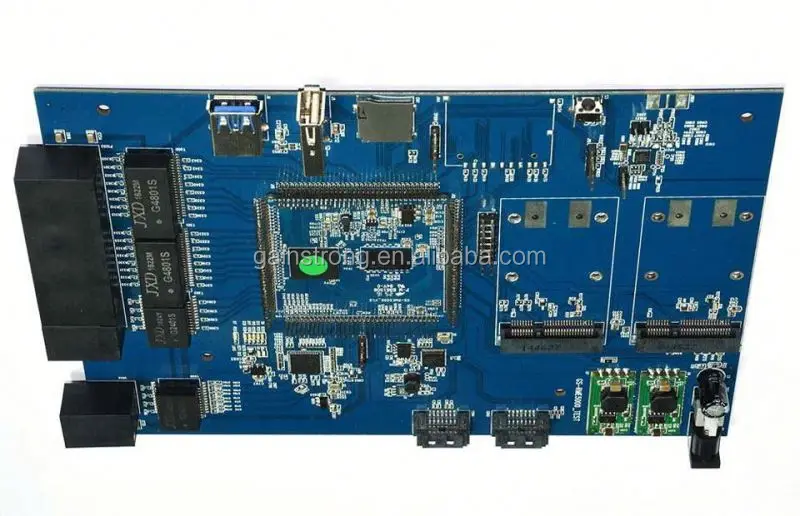

High speed openwrt mt7621a wifi router

The OoliteV8.0 module use the MT7621A chipset. The MT7621A integrates a dual-core MIPS- 1004Kc (880MHz),HNAT/HQoS/ Samba/VPN accelerators,5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control). It can also connect to touch-panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.

For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic.These accelerators relief the CPU for other upper layer applications.
product details

1. Features
>> Embedded MIPS1004Kc (880 MHz) with 32 KB ICache and 32 KB D-Cache for each core
>> 16-bit DDR2/3 512 Mbytes
>> SPI, NAND Flash, SDXC, eMMC(4 bits)
>> 1x USB 3.0, 2x USB 2.0, 3x PCIe host
>> 5-port 10/100/1000 SW/PHY and one RGMII
>> I2C, SPI*2, UART lite*3, JTAG, MDC, MDIO, GPIO,PCIe host x 3
>> Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC
>> HW storage accelerator
>> HW NAT - 2Gbps wired speed - L2 bridge - IPv4 routing, NAT, NAPT
IPv6 routing, DS-Lite, 6RD, 6to4 HW QoS 16 hardware queues to guarantee the
min/max bandwidth of each flow. -Seamlessly co-work with HW NAT engine. - 2Gbps wired speed.

HW Crypto Deliver 400~500 Mbps IPSec throughputFirmware:
>> Linux 2.6 SDK, or OPENWRT
>> One RGMII/MII interface
>> VoIP support (I2S, PCM) , Audio interface (SPDIF-Tx, I2S, PCM)

2. Functional Block Diagram

3. MECHANICAL

\t
Dimensions
(mm)
\t
Length
\t
Width
\t
Height
\t
50
(Tolerance:±0.2mm)
\t
50
(Tolerance:±0.2mm)
\t
4
(Tolerance:±0.2mm)

3. MECHANICAL

\t
Dimensions
(mm)
\t
Length
\t
Width

\t
Height

\t
  48.0
(Tolerance:±0.2mm)
\t
39.5
(Tolerance:±0.2mm)
\t
1.6
(Tolerance:±0.2mm)

4. PINS DESCRIPTION

Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application.

Our Service

We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service

Certifications
FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.

skype :bella(a)ioes.cn                                          email:bella(a)ioes.cn (openwrt mt7621a）
