Water Tank Plastic Float Valve flush valve toilet flush valve
- Category: >>>
- Supplier: Chongqing Yuhui Keyu Machine Electricity Equipment Corp. Ltd.
Share on (60647565708):
Product Overview
Description

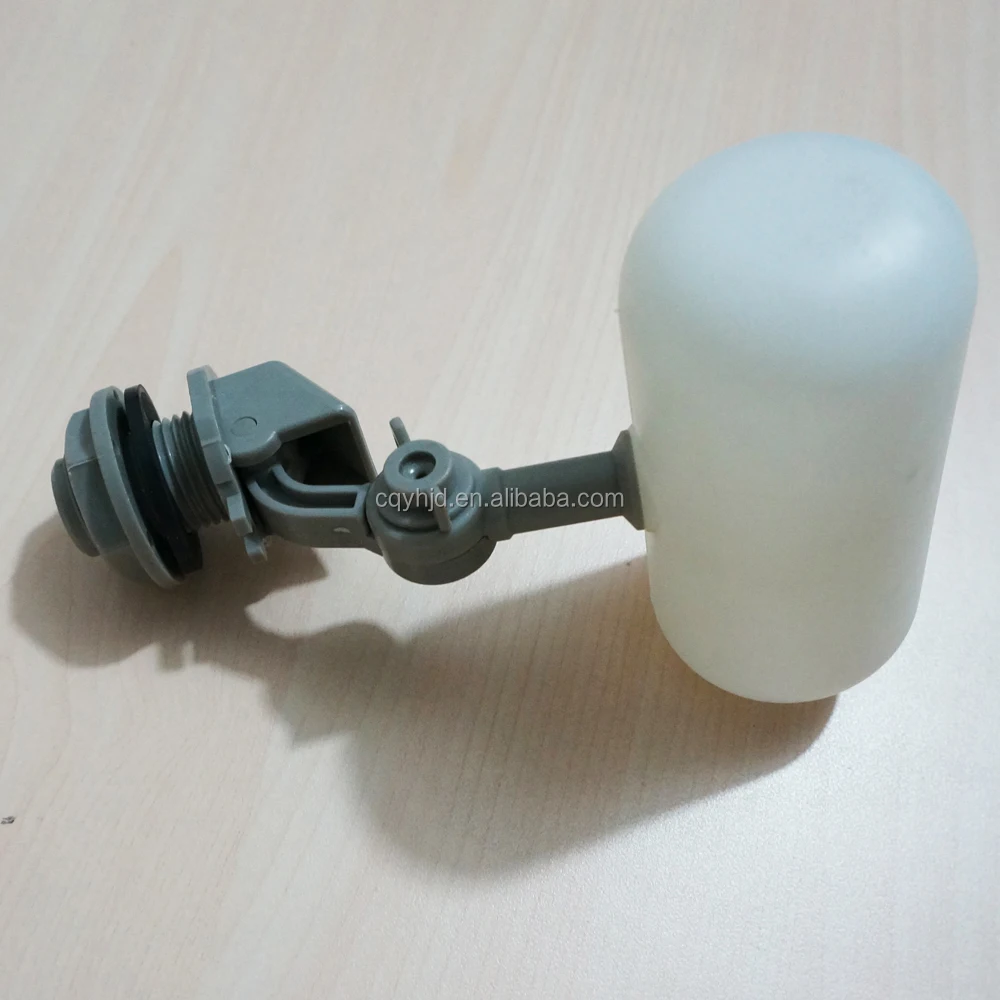

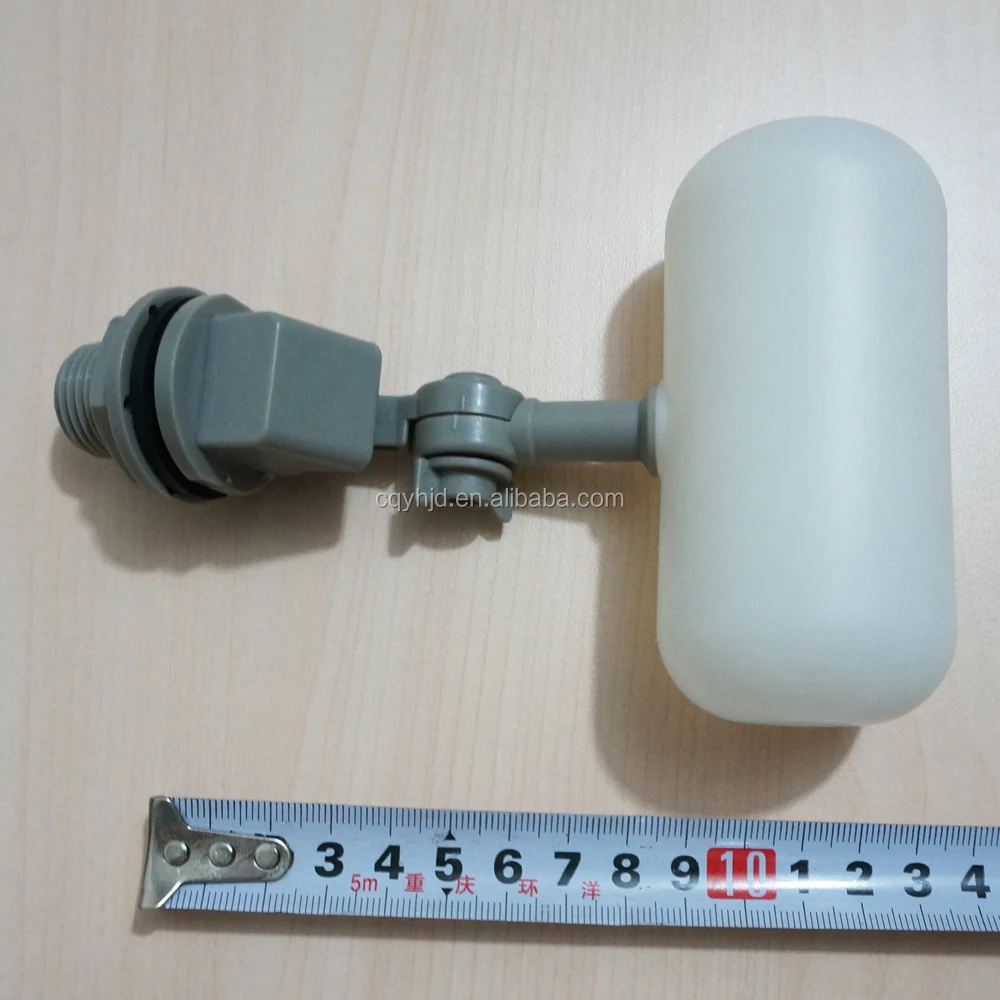

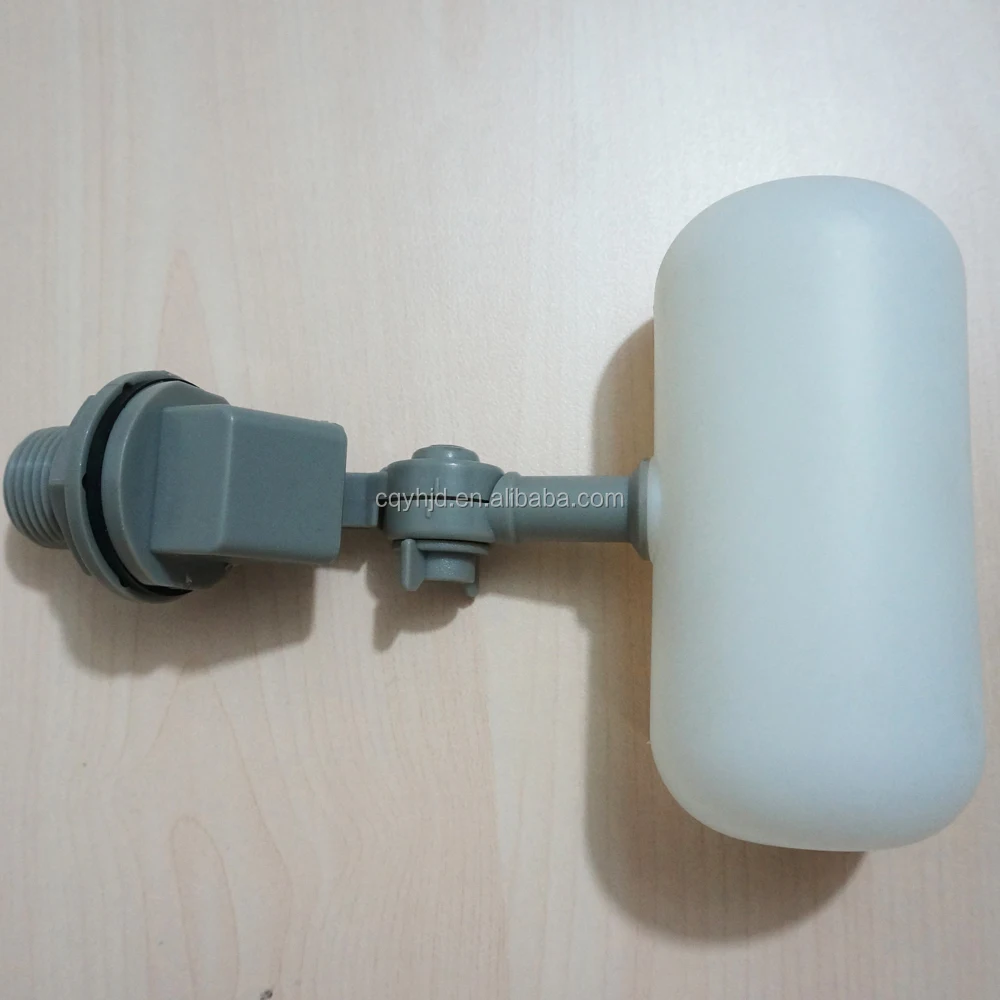

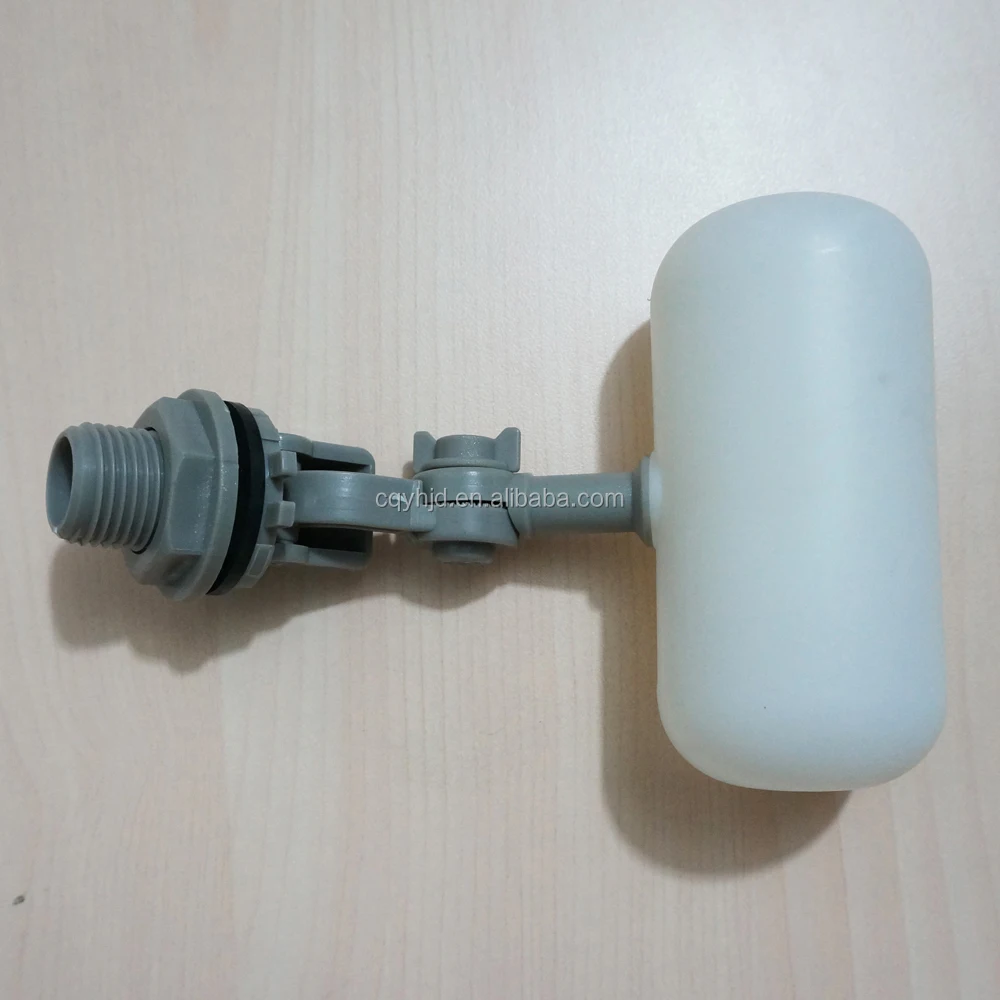

Mini Plastic Floating Valve DN15WK With T Ball
Technical Parameters
| Mode | 1/2" small plastic float valve DN15WK |
| Install Size | 172.6mm(Maximum) |
| Thread | 1/2" Inch |
| Body Material | ABS(Acrylonitrile Butadiene Styrene plastic) |
| Float Ball Material | PE(Polyethylene) |
| Seals Material | SR(Silicon Rubber) |
| Working Pressure | 0.01- 1.2Mpa(0.1Mpa=1Bar=14.5Psi) |
| Working Temperature | 0-70°C |

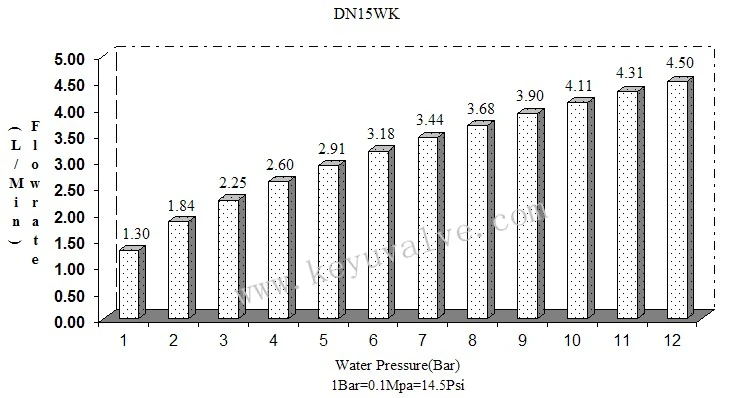

Flow rate figure

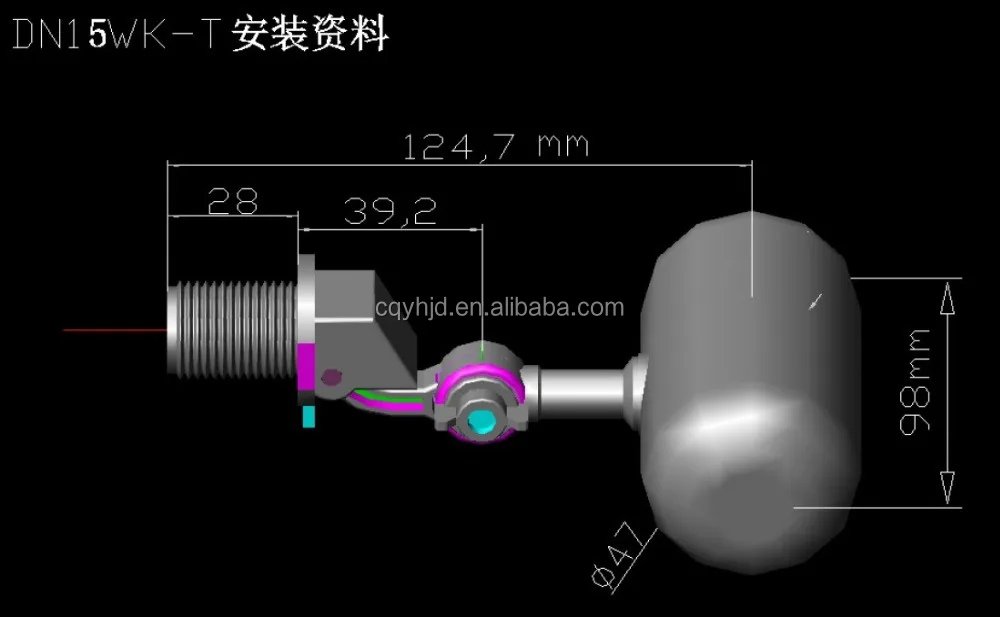

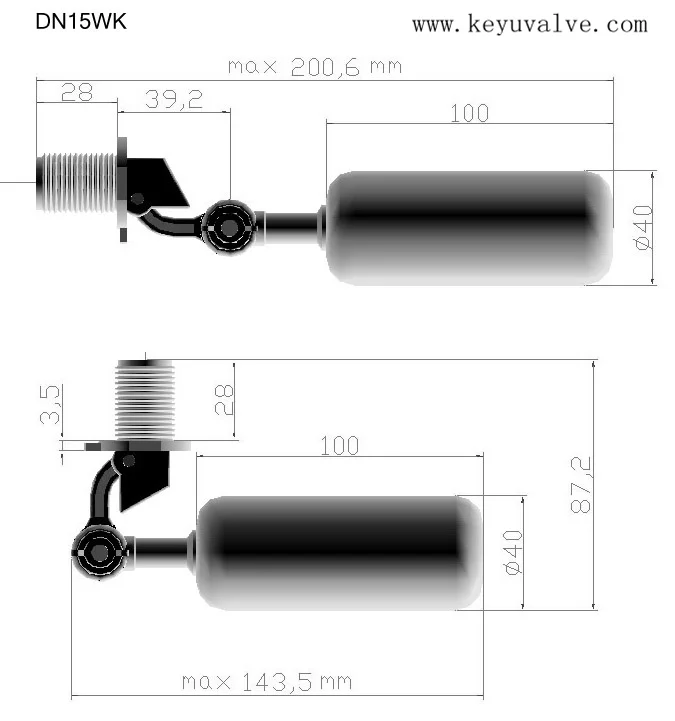

CAD documents
Features
- Easy Installation and Maintenance
- Accurate Water Level Control
- Good Performance:
- Quiet
- Stability
- Quick stop
- Long lifetime
- Non-polluting
- Less abrasion
- Corrosion-resistant
- Quick water flow rate

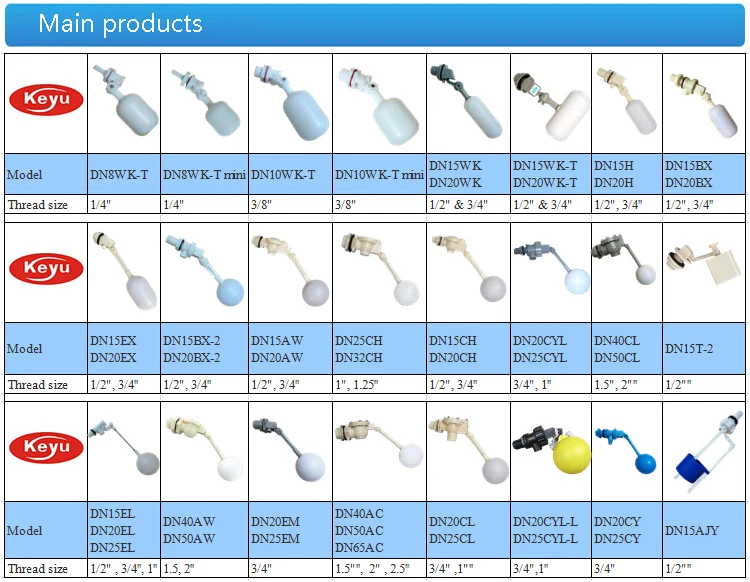

Other products you may be like
Application place
The actual application depends on the specific circumstances
DN15WK plastic float valve can be installed in small water tank, ice maker machine, humidifier, aquariums, gardening, livestock, etc.
Installation
Loose the screw on the arm to adjust the float position and achieve the horizontal and vertical installation. Each of install method will not affect the performance.
Tips
1.If the body and pipe joint leak water, please check water tape is wrapped and the pipe joint is tighted.
2.The Strength should suitable when tight and fix the float valve, too much excessive strength will damage the valve.
3.Please check the water inlet filter regularly and remove the garbage out in time.
4.Please do not use the cleanser which will cause damage when clean the float valve.
FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: Do you offer samples?
A: We offer 2-3 samples, only charge for freight.
Q: Which payment methods do you accept?
A: We prefer confirmed 100% irrevocable letter of credit payable at sight.
Possibly T/T 30-50% of total amount as down payment before shipment and left balance before releasing documents.
All by T/T before shipment, especially for the case that the total deal amount is small.
Some other payments are also welcome if the amount is very small, such as Paypal, Western Union, etc.
Q: When are you going to deliver cargo after payment?
A: It is depend on the quatity you had ordered, under one thousand generally within 30 days.
Q: Do you offer OEM and custom service?
A: Yes, we offer OEM and custom service about high temperature ,material requests, strong acid and alkali.
