2020 ACCUTEK CNC CONTROL AT MINI Multifunctional Bending Machine

Product Application

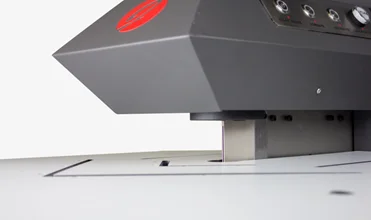

Special for precision work. In view of the specific processing range the new design exquisite components, more elaborate blade and knife edge structure, make the bending forming angle to be better control, easily cope with the processing of small radian and angle, it is a powerful tool in the field of pure precision work.

Main Features

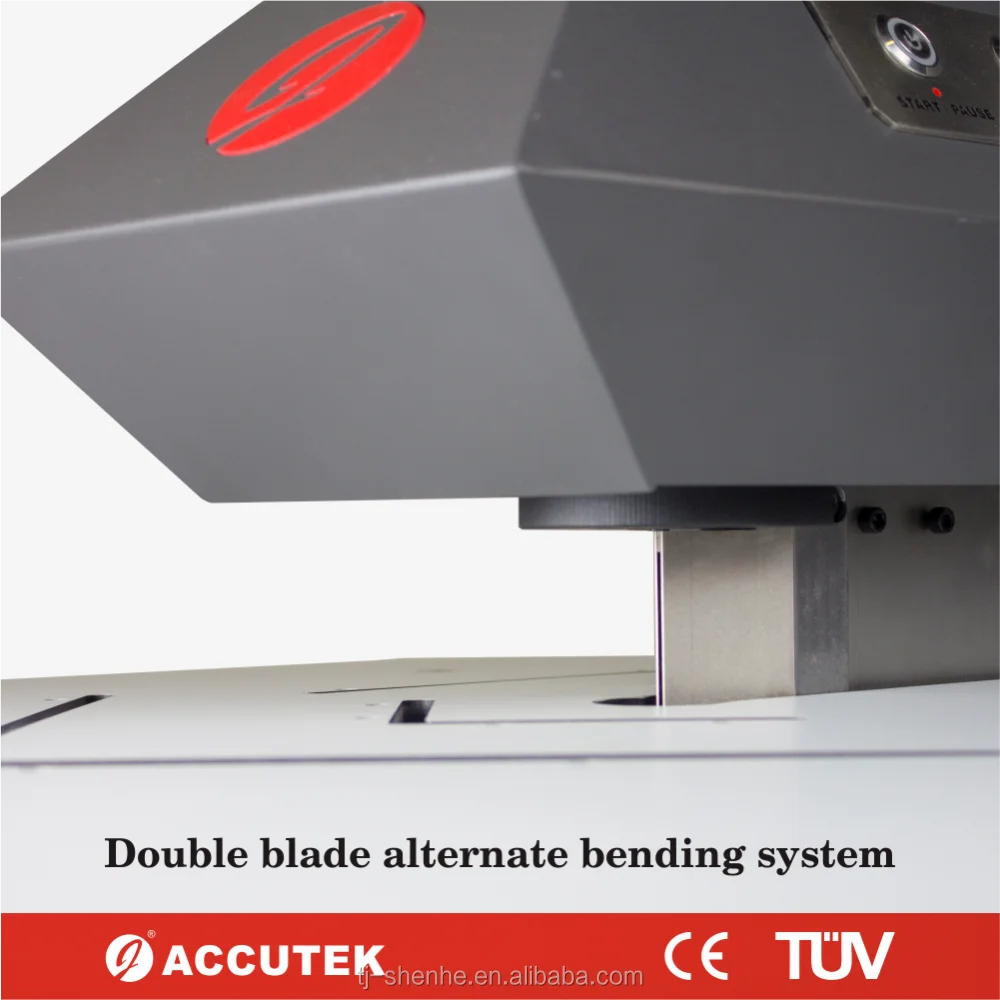

Double knife alternating bending system,according to the change of internal and external arc,automatically switch to bend the bending tool,reverse bending tool automatic income tools library,to avoid the phenomenon of intervention bending tools forming angle,for small arc of the small angle of the molding performance is very good.

Main Features

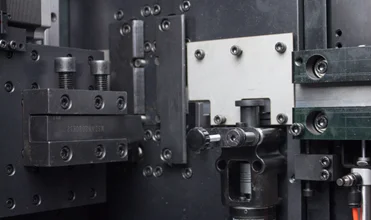

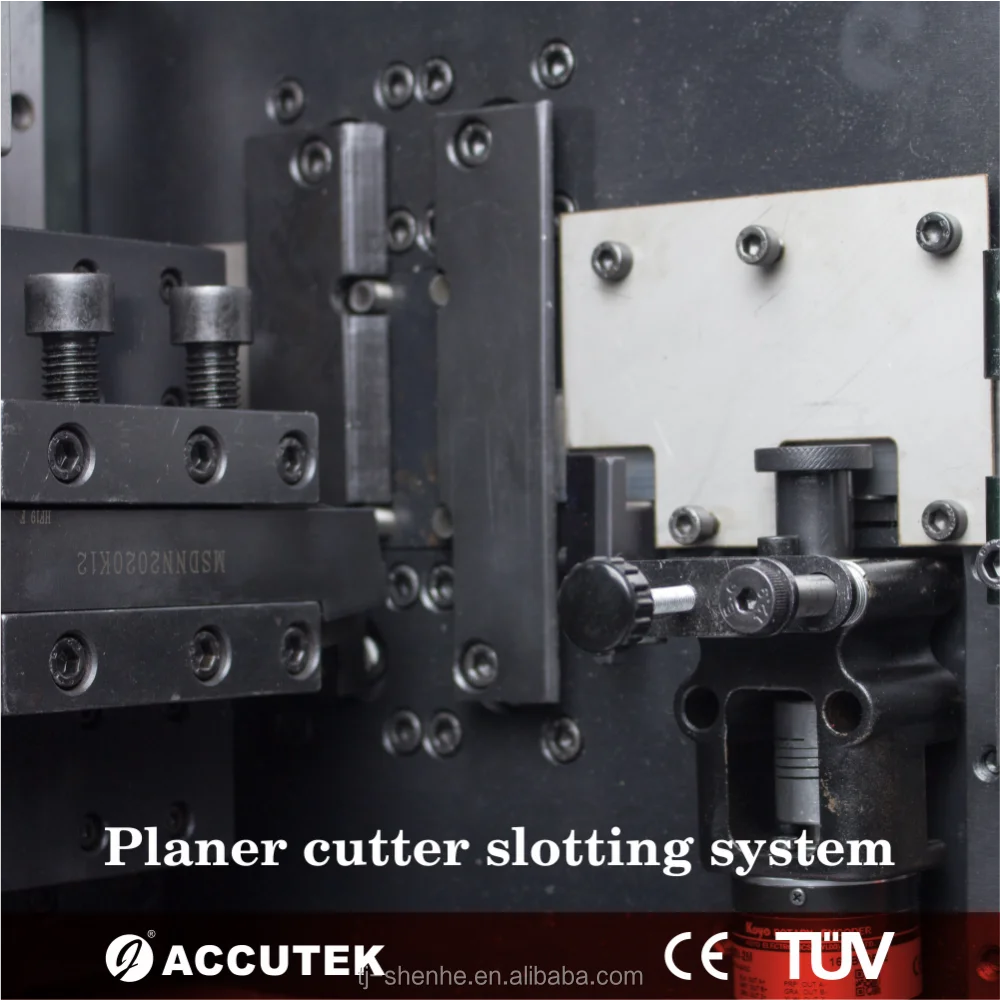

Using the CNC tool as the slotting cutter blade, used in Germany imported hard alloy knife, high strength and low loss, double edge blade 8, replacing the time-saving without sharpening.In high power servo drive is equipped with high quality ball screw and linear guide, ensure the smooth and smooth body should be.The system has the function of natural angle slot, so it is easy to deal with complex and changeable graphics.

Main Features

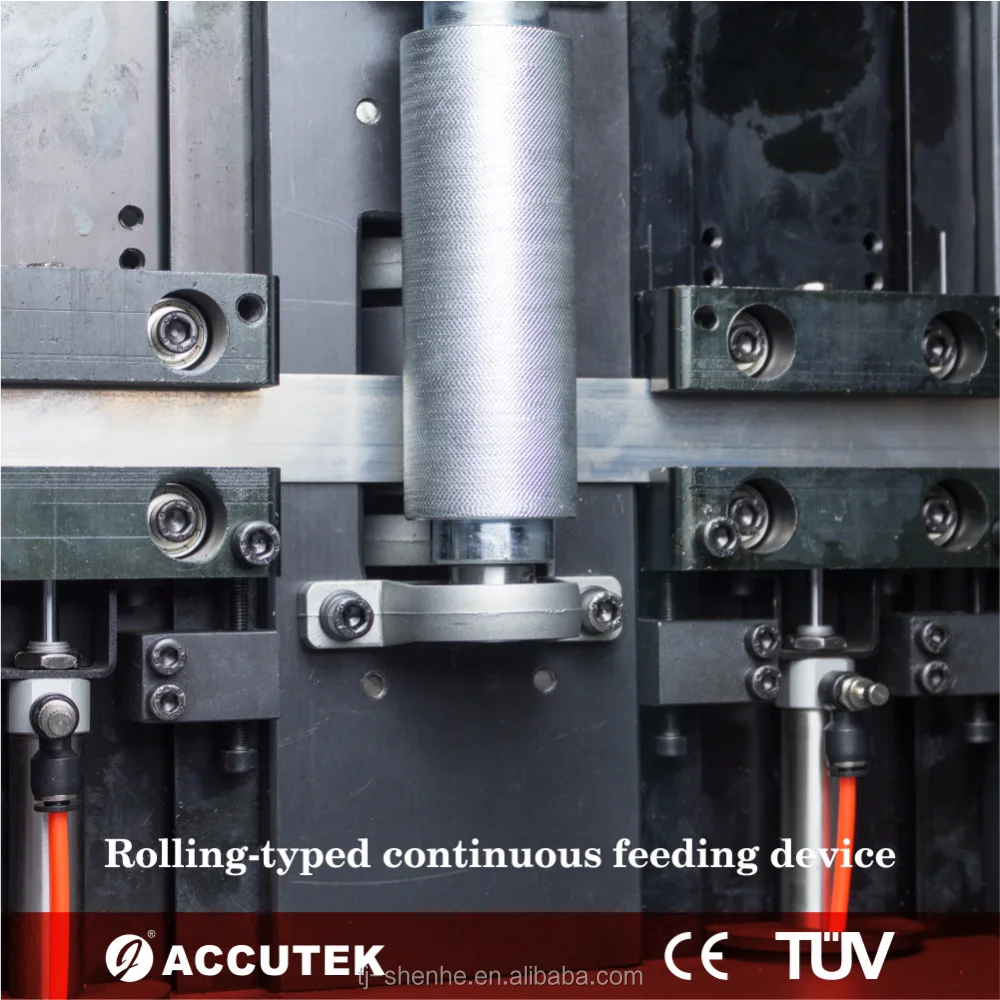

Rolling continuous feeding system,Rapid and sensitive, continuous response.The pressure can be adjusted according to the change of material, which can avoid the occurrence of indentation and sliding material.The setting of the double feeding support avoids the change of feeding track, and ensures the smooth input of the material.

Main Features

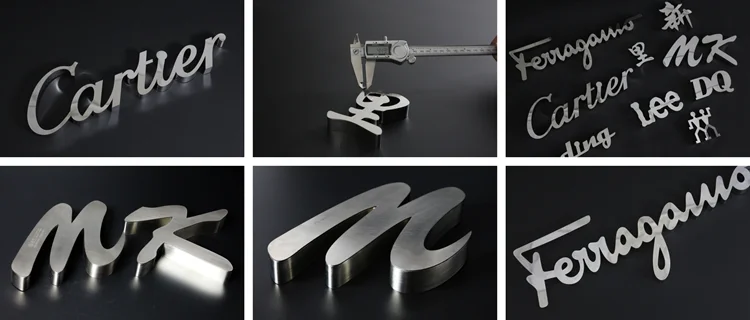

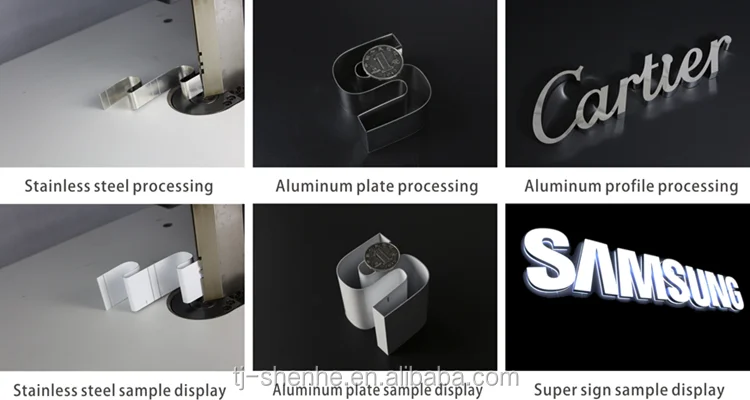

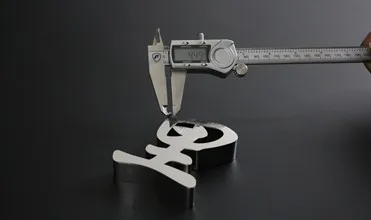

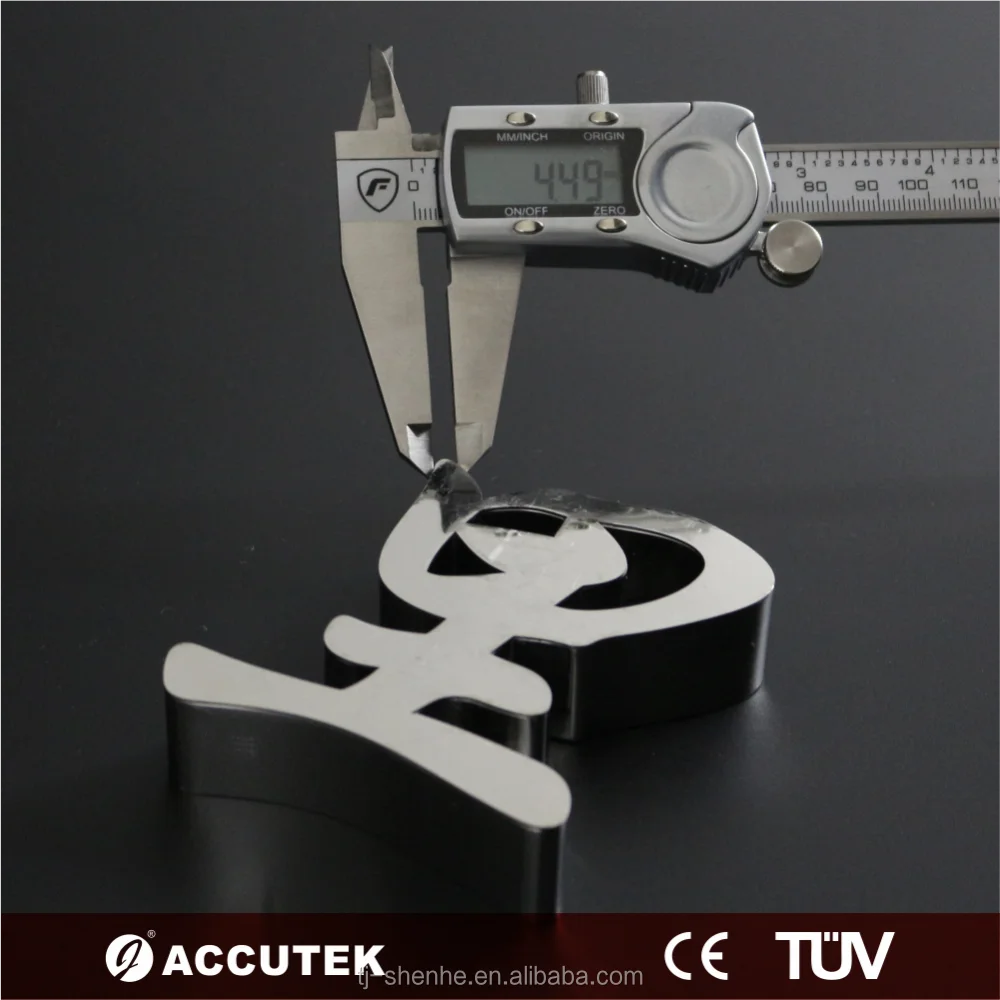

1.For the same graphics processing the consistency achieved to 99% For the batch words producing even more advantages.
2.Perfectly match with laser welding machine.
3.High degree of Forming ,It can match with the panel which produced by all kinds of cutting equipment and the matching degree is more than 90%.

Main Features

board card,U-KEY,data expansion line, USB flash disk ,warranty card，bending tool adjusting picture ,mouse pad,2 Power lines, 1VGA line,hexagon wrench,
hardware tool, Insurance,mini cutter

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration requirements: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

File Format

The software of bending machine is self-developed. Import file format supports .dxf.Plt We recommend using Coredraw or adobe illustrator tocomplete the file after the export file to.Dxf.Plt format. Then open the operating software, select the document.

Pump

The use of equipment should be equipped with
air compressor, we suggest that the selection of
more than 4kw, the gas flow is 0.6m³/Min.
