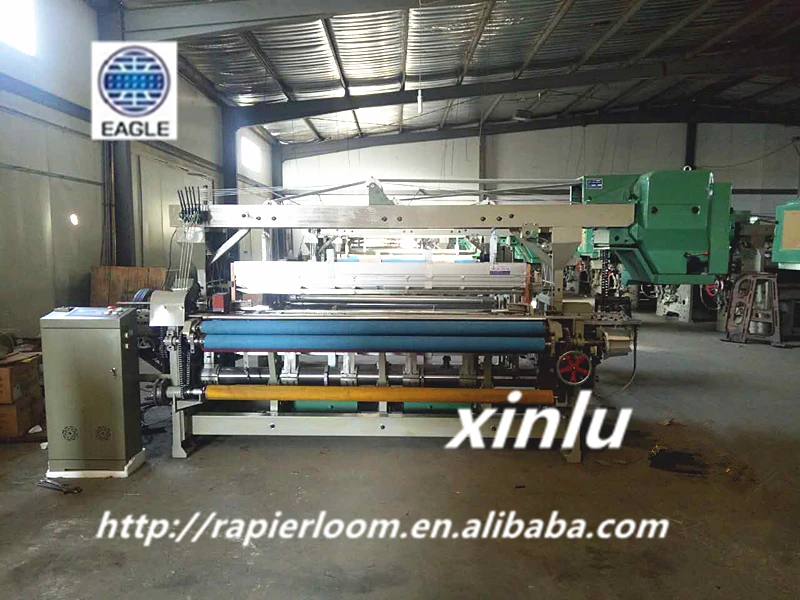

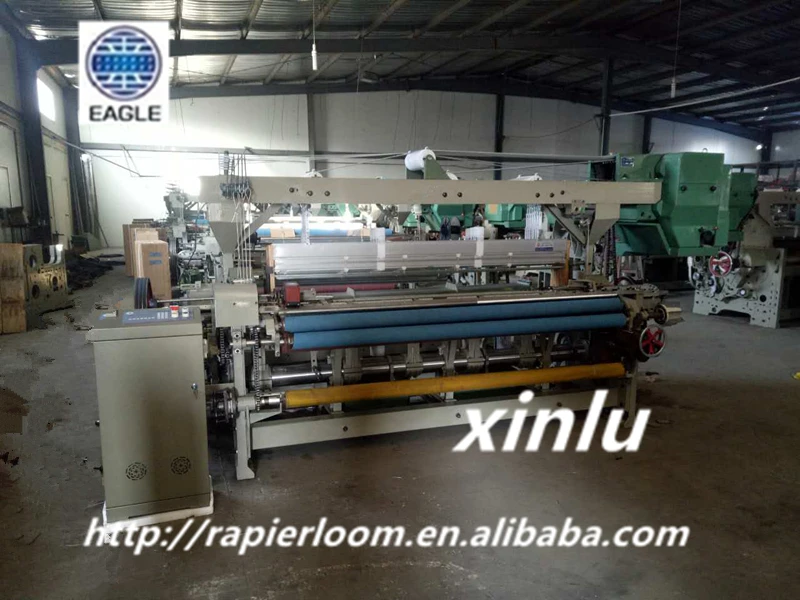

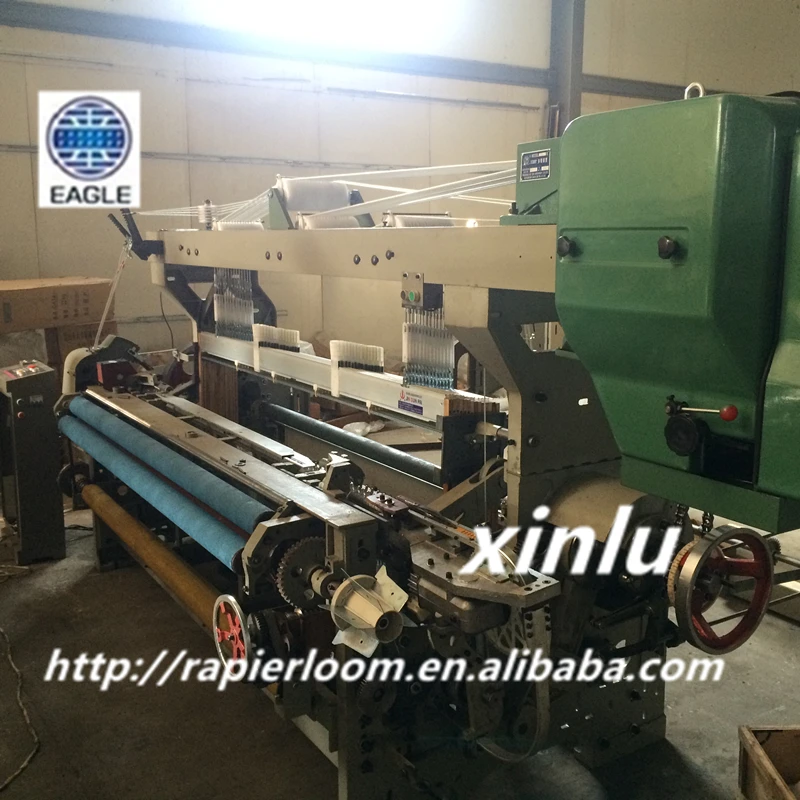

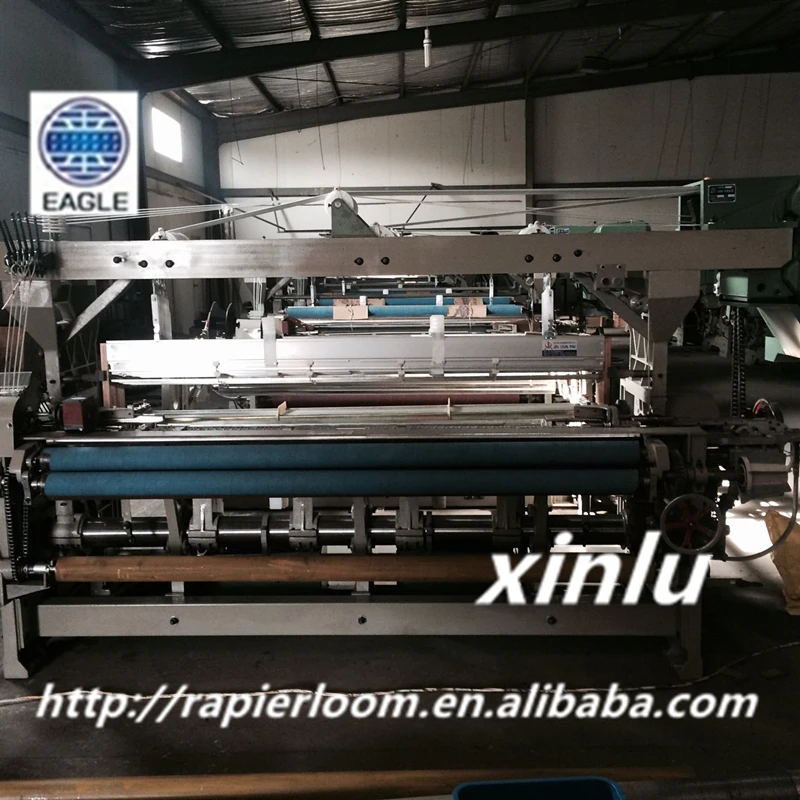

Manufactures indian terry towel rapier loom

Model Number

Manufactures indian terry towel rapier loom

Reed width (mm)

250~280cm

Rotation speed

Designing speed 250~280rpm.

Weft insertion

250-280rpm

Warp beam dia.

Standard 600mm.

Cloth Roll Dia.

300mm, can match with big rolling cloth mechanism.

Weft feeder

FDP electronic weft accumulator.

Driving control

Rated 2.2~3kw main motor power, 3-phase line, 380v, 50hz;

Beat-up motion

Crankshaftweft beat-up motion.

Lubrication

Oiling pump, automatic oil for dobby.

Electric circuit

Standard modularization design, LED displays working condition.

Weft selection

6 or 8 colour weft selector motion.

Material

Terry Towel material

12-18 pieces heddle frame, mechanical dobby with max. 24 shafts automatic open, can match with big jacquard.

Let-off motion

Semi positive let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension.

Take-up motion

Continuous gapless take-up, adjustable according to weft density of the cloth by pick wheels.

Selvage formation

Mechanical selvage cutter, Leno selvedge. Temple: ring type copper cylinder with pin.

Stop motion

Warp yarn: automatic stop by electric dropper pin type with 6 rows;Weft yarn: high-sensitivity piezoelectricity detector automatic stop. Stop display: 4-colour multi-function indication lamps.

Electronic control

Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment.

Overall size

450*250*260cm, 3.1 MTs.
