Machine Detail
machine for making leather bag use and character This machine is suitable for blanking of the nonmetallic materials as small-knife mold、 ticket clip units、 handset sleeve、 small toys.、adornments、 leather bag fittings etc.

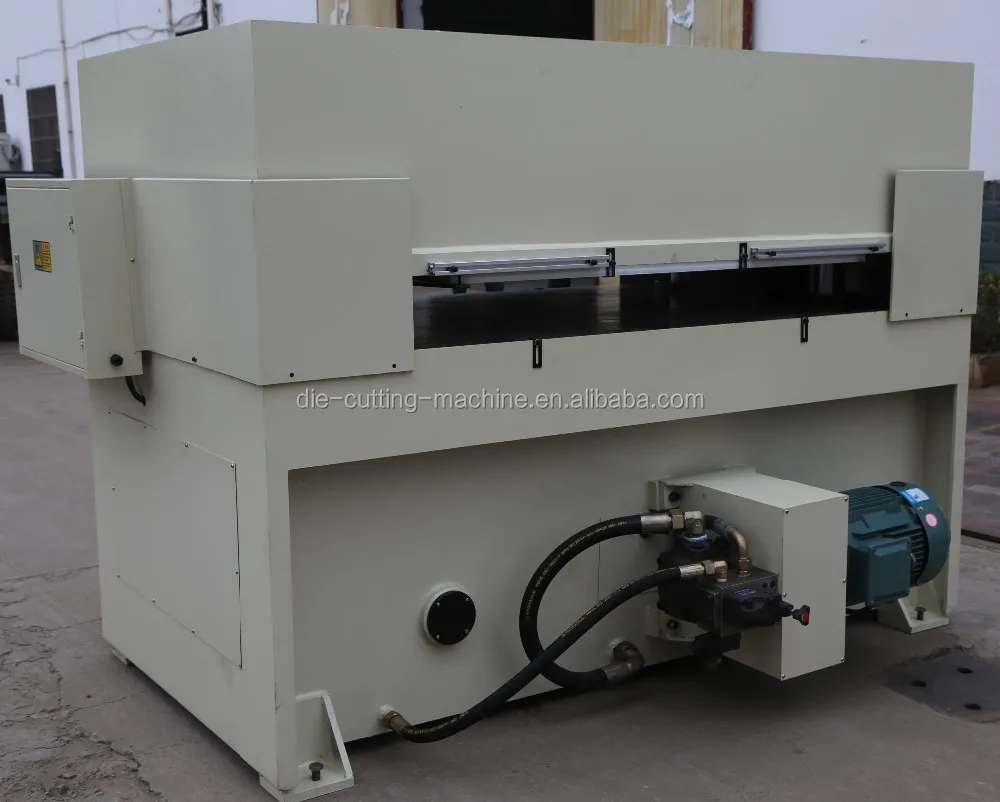

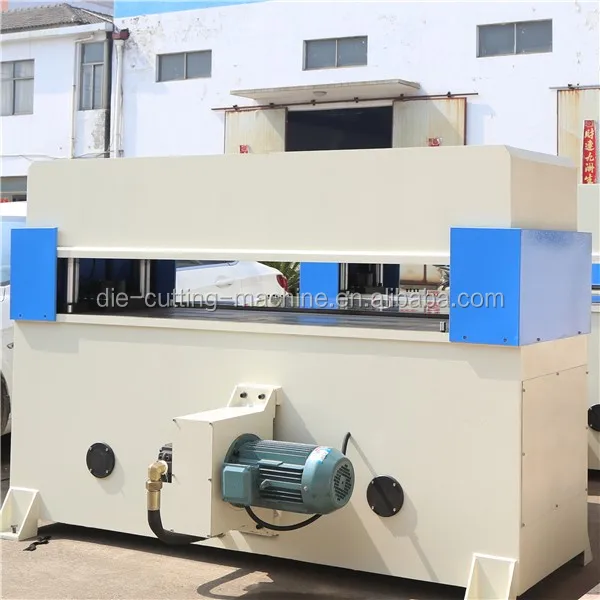

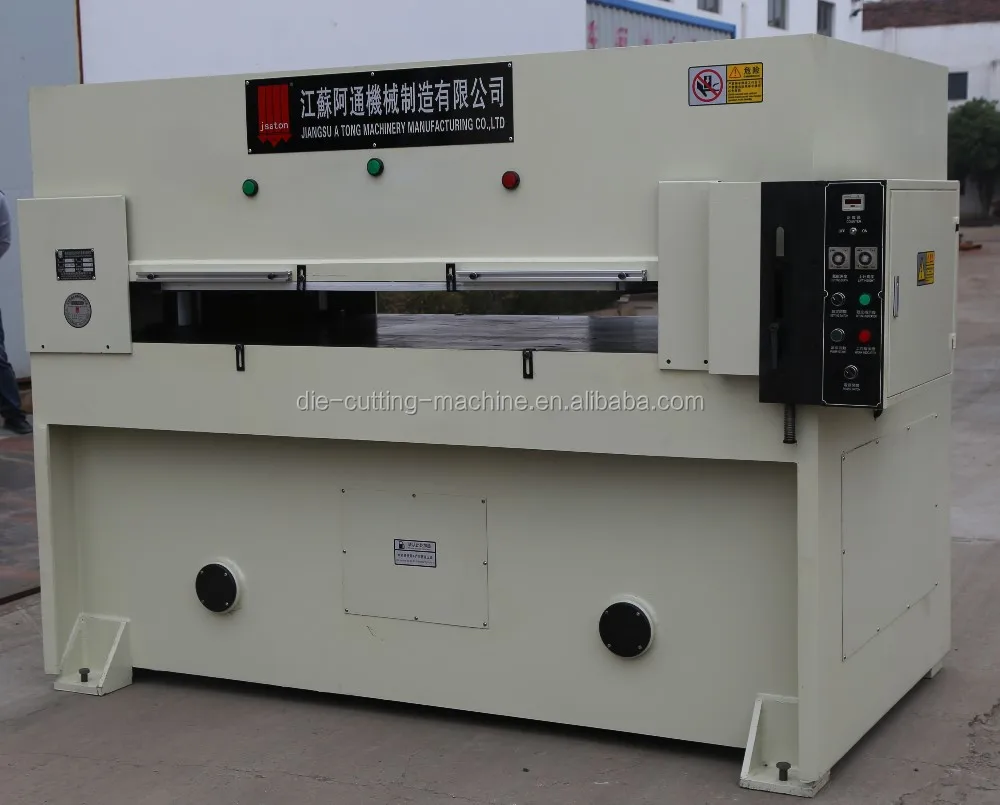

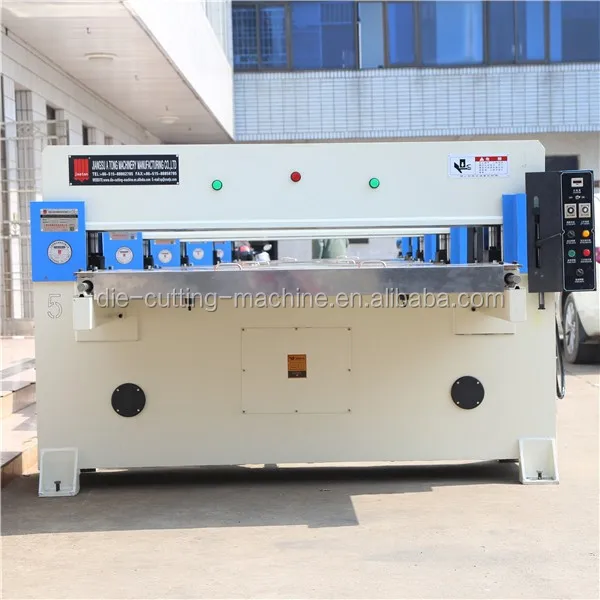

machine for making leather bag
Model number : JSAT1-500 Max cutting force :500KN
Distance between the upper platen and the working table surface :50-230mm Cutting table area : 1600*810mm/1250*810mm/Customised Motor power: 4KW

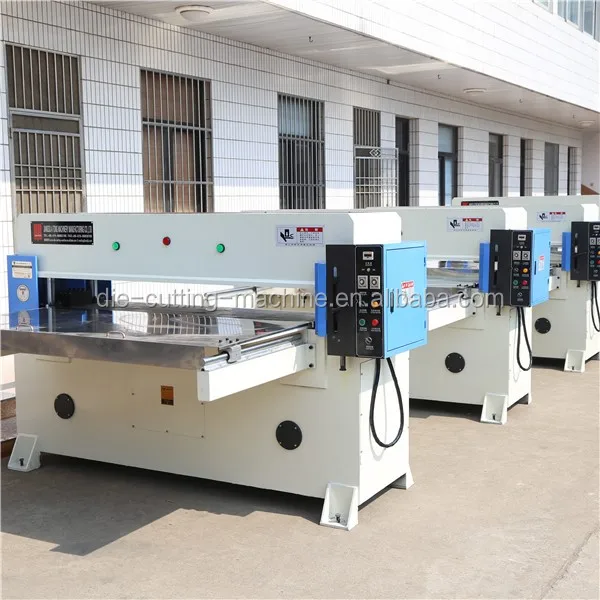

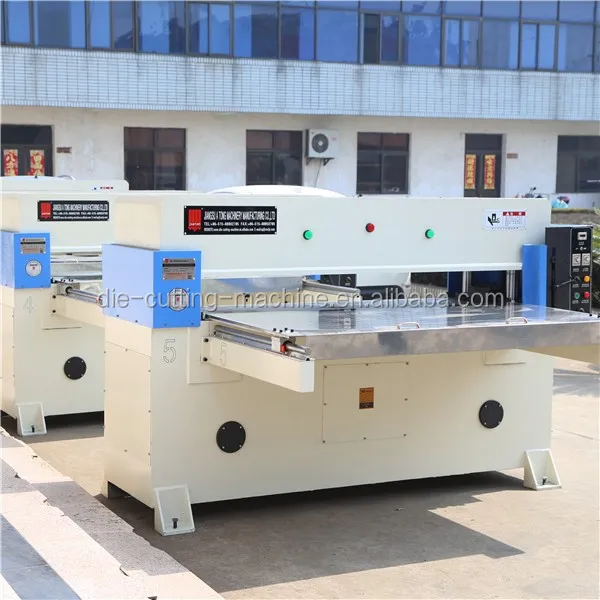

MASS PRODUCED PRODUCTS
1.Features and Advantages 1.Oil is supplied to all sliding parts of this machine by the hydraulic system for lubrication,reducing wear and prolonging the service life of the machine. 2.The upper platen may automatically cut slowly as it presses down rapidly the knife mold for cutting so that there will be no dimension errors between the upper and lowe layers of the cutting materials. 3.Structural changes during designing of this machine remove the need for the users to worry about possible oil leakage of the machine. 4.External motor and oil pump enable good ventilating and cooling conditions,safety operation and prolonged service life. 5.Setting of the knife mold is rapid,accurate and easy-to-learn. 6.Small motor power results in low power consumption.
Model number
JSAT1-400
JSAT1-500
JSAT1-600
JSAT1-800
JSAT1-1000
Maximum cutting force
400KN
500KN
600KN
800KN
1000KN
Distance between the upper platen and the working table surface
50-190mm
50-230mm
50-230mm
50-200mm
50-200mm
Area of the working table
610*1600mm
650*1250mm
810*1600mm
810*1250mm
810*1600mm
810*1250mm
810*1600mm
810*1250mm
910*1600mm
910*1250mm
Motor power
3KW
4KW
5.5KW
7.5KW
7.5KW
Hydraulic oil quantity
140L
220L
220L
320L
330L
Electric suppl voltage
3*440/415/400/380/220V,50/60HZ
2*380/220v,50/60HZ
Color
red/blue with dark green/white
Voltage
Three/single phase,380v/220v
Hydraulic oil
46# 48# 68#
Function
machine for making leather bag
2.Product application
This machine for making leather bag is suitable for all kinds of plastic, sponge, EPE pearl cotton, carpets, automotive interior, gloves, bags, puzzles, EVA, PAC, PVS, plastic floor, ceiling, floor mats, car cushion car seat, decoration materials, square tiles, flooring, carpet, football, sandpaper, grinding wheel, polishing, polishing CD, insoles, shoe uppers and shoe soles, leather, rubber, chemical fiber, paper, canvas, nylon, non-woven fabric, cotton fabric and various non-metallic materials in one layer or multilayer sheet and coil using the knife mold cutting so as to achieve the purpose of molding.
3.Configurations
The product name
Origin
brand
Intermediate relay
Japan
And spring
contactor
Taiwan
The shilin
Thermal relay
Taiwan
The shilin
The seals
The United States
Parker
The oil pump
Sinojpanesen joint venture
Spirit
The tubing
Germany
QC610
Oil cylinder
Sinojpanesen joint venture
Pioneer
Cylinder
Taiwan
Of the DE
Solenoid valve
Taiwan
Northern precision machine
Check valve
Taiwan
Northern precision machine
The overflow valve
Taiwan
Northern precision machine
Switch operation
Taiwan
Northern precision machine
Ball screw
Taiwan
Northern precision machine
The motor
Shanghai
DEDONG
The servo motor
Taiwan
ABBA
Infrared safety device
Taiwan
TIANDE
PLC
Japan
Mitsubishi
The man-machineinterface
Taiwan
Dangerous Aaron
The inverter
Japan
Mitsubishi
The encoder
Japan
Mitsubishi
4..the cutting-dies & PP board
We can according to your material,requirements,design the mould for you
5.How to choose the most suitable hydraulic die cutting machine for your business? 1)material: nonmetal 2)Cutting area depends on your material size. 3)Feeding system depends on your material style ( rolls or sheets). 4)The force depends on the perimeter of the die blade. Welcome to contact us for select the right model. Attention: we can produce different cutting force and cutting area of your machine according to your demand. factory direct sales, one year guarantee OEM orders welcomed machine for making leather bag with dies to cut the soft materials into small different shapes. DIES SAMPLES ( if you need the factory product the dies for your cutting machine, pls send the drawings of dies)
What Working of our die cutting machine?
Please contact us to see the video!
6.Working Shop :
COMPANY PROFILE
we specialize in R&D,manufacture and sell the highest-guality die cutting machine(production line) with more than 20 years experience in china. we havea professional service team to provide users with fast and efficient after-sale service. from shanghai to our company has four hours' drive.Jiangsu A tong adhere to the road of science and technologgy innovation and development,has with Italy,Britain,the Czech republic and other countries and regions with counterparts close technical cooperation and trade relation,the best-selling products at home and abroad market area.
COMPANY HOMOR
Payment & Shipping
Trade term:FOB,CIF,EXW Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram. Payment Condition:30% deposit in advance. 70% balance before delivery. Delivery time:5-15days working days after deposit. Packing:Wooden case with plate. Shipment:By Sea.
Our lead time is punctual and fast We will offer our factory price with guaranteed quality. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us We can produce the product under your brand name, also the size can be changed as your requiremen Factory direct sale; Guarantee Period one year Note: we can produce different types, tons and cutting area of machine according to your demand.
