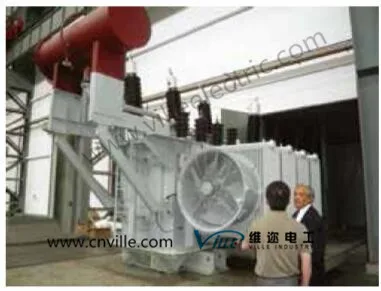

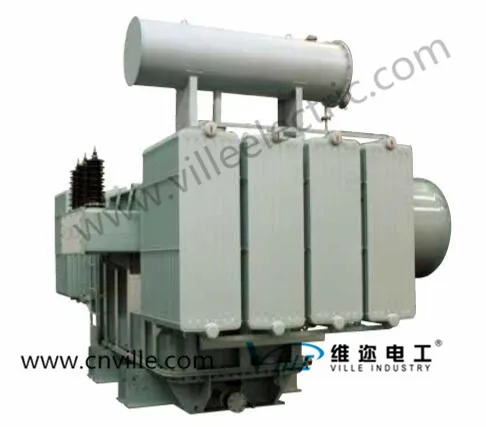

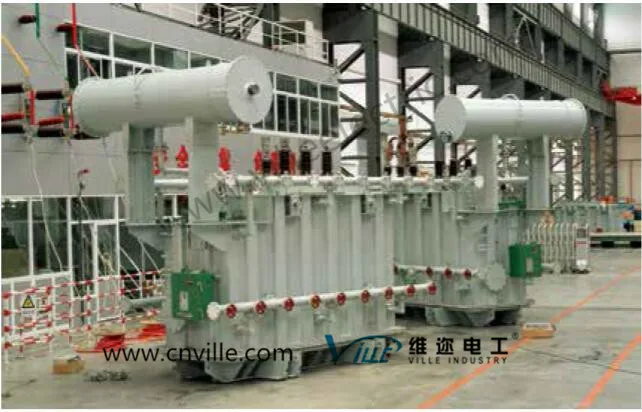

2.5mva S11 Series 35KV Oil immersed Power Transformers with on load tap changer
- Category: >>>
- Supplier: Ningbo Ville Electric Co. Ltd.
Share on (60647920991):
Product Overview
Description
2.5mva S11 Series 35KV Oil-immersed Power Transformers with on load tap changer
Technical Parameters
Model:S11-2500/35
Rated Capacity(KVA):2500
Rated Voltage HV(KV):35/38.5
Rated Voltage LV(KV):3.15
HV Tapping Range:±5%
Vector group:Yd11
No-load Losses(KW):2.45
Load Losses(KW):19.5
No-load Current(%):0.6
Impedance Voltage(%):6.5
Oil Weight (t): 1670
Total weight(t): 7570
Dimension(mm): HxLxW=2830x2860x2000
HL=5100 T1xT2=1070x1070
Packaging & Shipping
Reference list
Our Services
Pre sale service | |
a. | make technical solution |
b. | send quotation, technical data sheet and drawing |
c. | prepare power transmission plan, testing plan and shipment plan |
2. | In sale service |
a. | supervise the manufacturing schedule totally in accordance with the plan |
b. | send photos to customer during every manufacturing process(hold point) |
c. | inform the customer one week before testing. |
3. | After sale service |
a. | installation and commissioning, training the workers |
b. | quick response within 12 hours any time |
c. | provide 12 months guarantee period normally. |
FAQ
What is your delivery time ? | |
A: | Depend on the type of transformer. |
2. Q: | What is your payment term? |
A: | 30% advance by T/T , 70% before delivery by T/T or L/C or we can discuss about it. |
3. Q: | What kind of standard you follow? |
A: | IEC, ANSI, CSA, GB, etc |
4. Q: | What kind of supporting documentation you can provide normally |
A: | Quotation, outline drawing, manufacturing plan, quality control plan |
5. Q: | What is your normal warranty period? |
A: | 12 months after transformer operation. |
6. Q: | Can u do installation and commission in user's site? |
A: | Yes, we can send our installation team to user's country for service. |
7. Q: | Do you have any experience in this kind of transformer? |
A: | Yes, we can provide reference list for check. |
