Product Overview
Description
New Complete Halal Sheep Slaughtering Line Equipment for Goat Lamb Butcher Plant Machinery
· Stainless steel hooks with integral hook sterilization system
· Peeling machine has a capacity of 80-100 heads per hour.
· Our product complete with stainless steel hydraulic motor,cylinder,valves
Product Description
| Whats Your Products General Description ? |
V Type Conveyor
Used to deliver living sheep(goat) to the killing position.
1.Restrain the sheep from moving and transfer forward;
2.Save labor and trouble of catching sheep from holding pen;

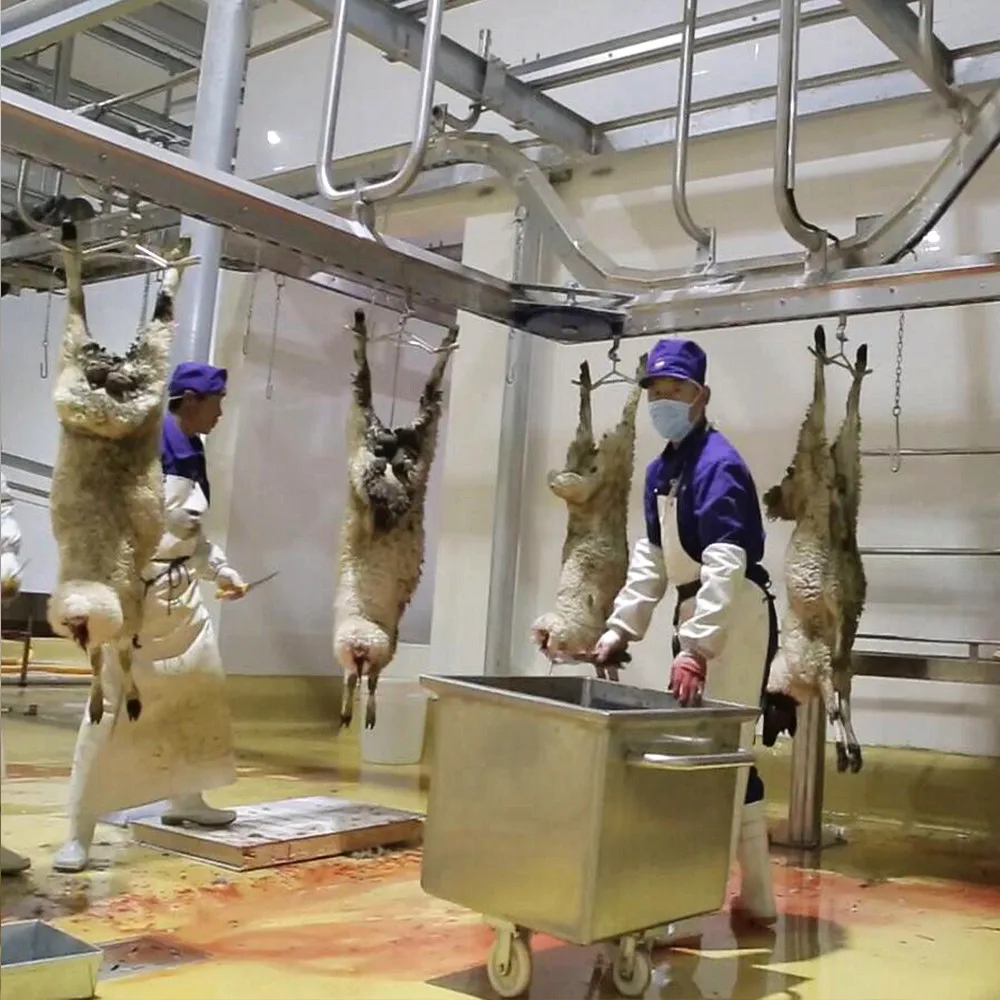

3.Reduce the fear of sheep;Bleeding Conveying System
4.Used to hang the sheep (goat) for bleeding.
Specification
| Whats Your Products Details Specification ? |
Bleeding Suspend Convey Machine
Used to convey cattles for bleeding,1set drive unit, painted coating
Frequency changer adjusts the speed,1set of pneumatic tension unit(airbag)
2sets of slewing gears, Installed power: 3kw
Cattle spacing: 2000mm,5 manual limit brakes,Others are hot galvanized structure
Frequency changer adjusts the speed,1set of pneumatic tension unit(airbag)
2sets of slewing gears, Installed power: 3kw
Cattle spacing: 2000mm,5 manual limit brakes,Others are hot galvanized structure

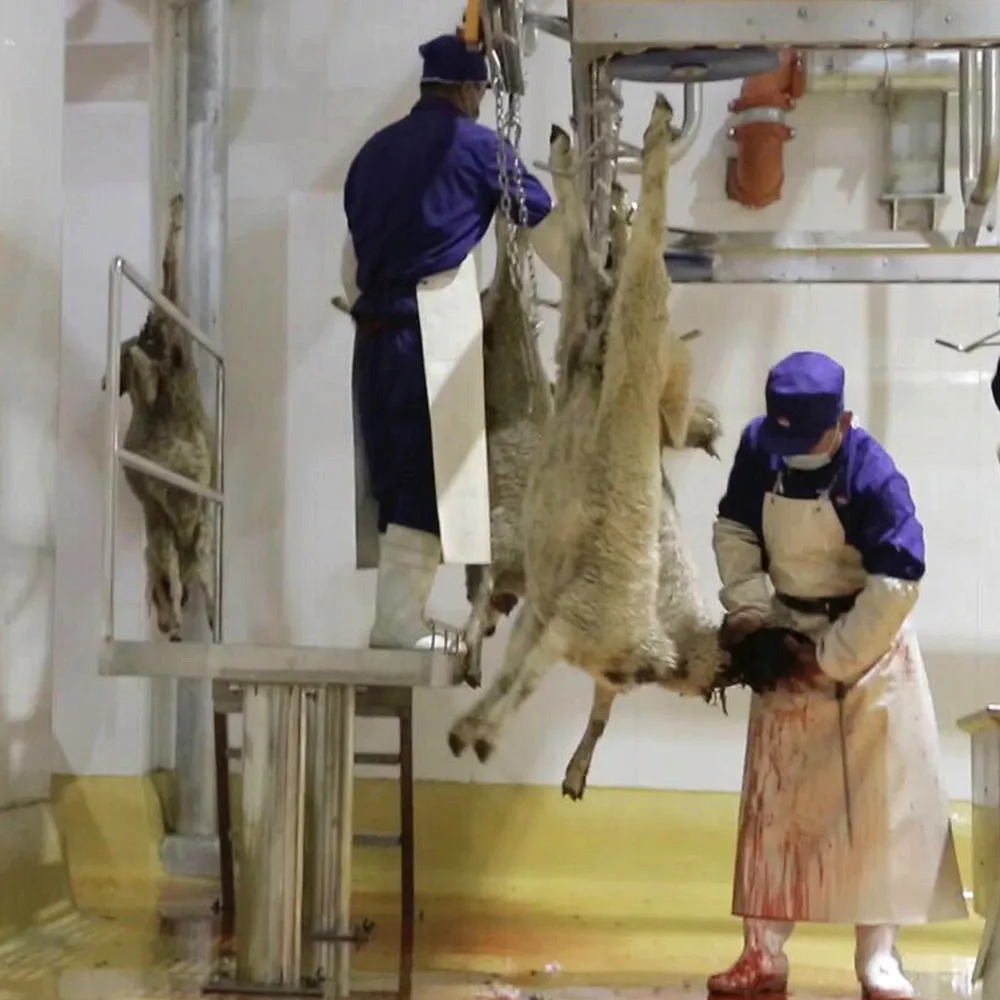

Chest Open Fixed Platform
Standing board: 1500×1200×600mm (L×W×H), made of 25mm thick plastic grid plate.
Chest opening saw can be installed in this platform
Platform legs made of Stainless Steel round tube 159 ×2.7~3 mm
The frame made of 80×40×2.7~3mm and 50×50×2.7~3mm Steel Steel square tube
Guardrail: 0.5~1m high, made of Stainless Steel tube 30×1.7~2mm
Questionable Sick Carcass Orbit System
15m Hot Galvanized #12 double channel steel secondary beam
15m of Stainless Steel tube rail 60×3.7~4mm,Steel parts are Hot Galvanized
30 Pcs of Hot Galvanized tube rail hangers and connections
Carcass High Pressure Washing Machine
Used to wash the hot temperature carcass before enter into the chilling room
Made by 1.7~2mm thick Stainless Steel plate, support part made by 50×50×2.7~3mm Stainless
10 Stainless Steel sprayers which can move up andown to cover whole carcass
1 Set high pressure pump With Stainless Steel water tank and support frame
Size: 1800×2200×4500mm(LxWxH) Water supply and drainage pipe line are not included.

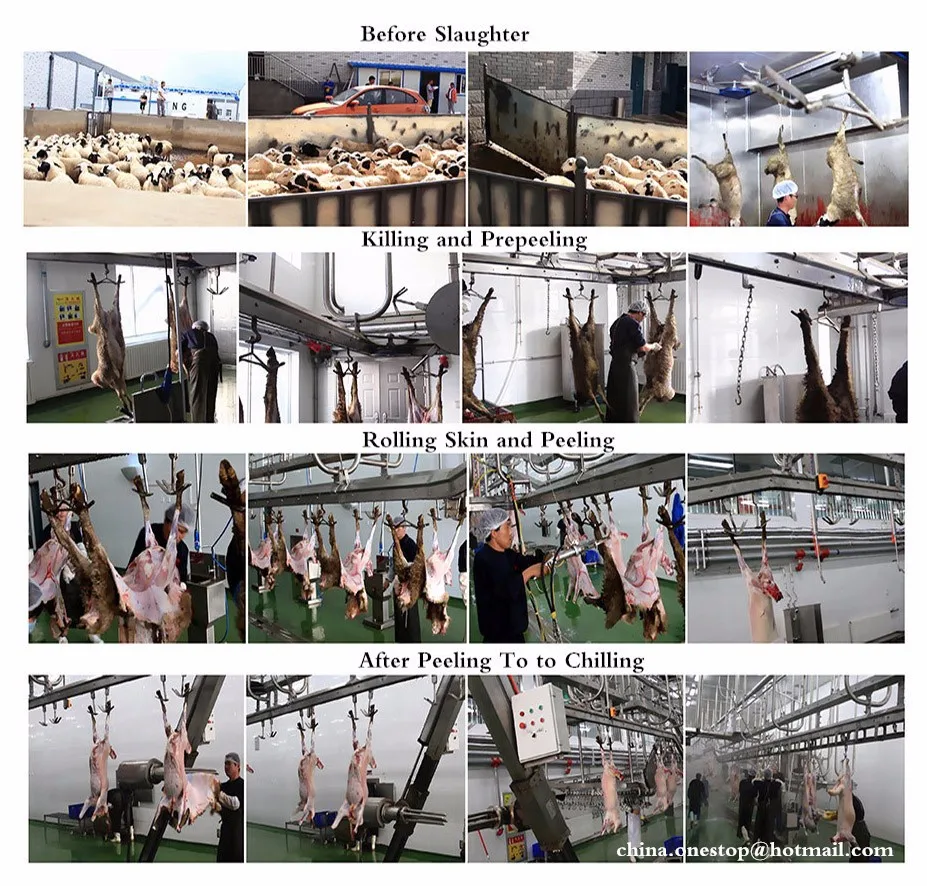

| Whats Your Products Slaughter Steps ? |

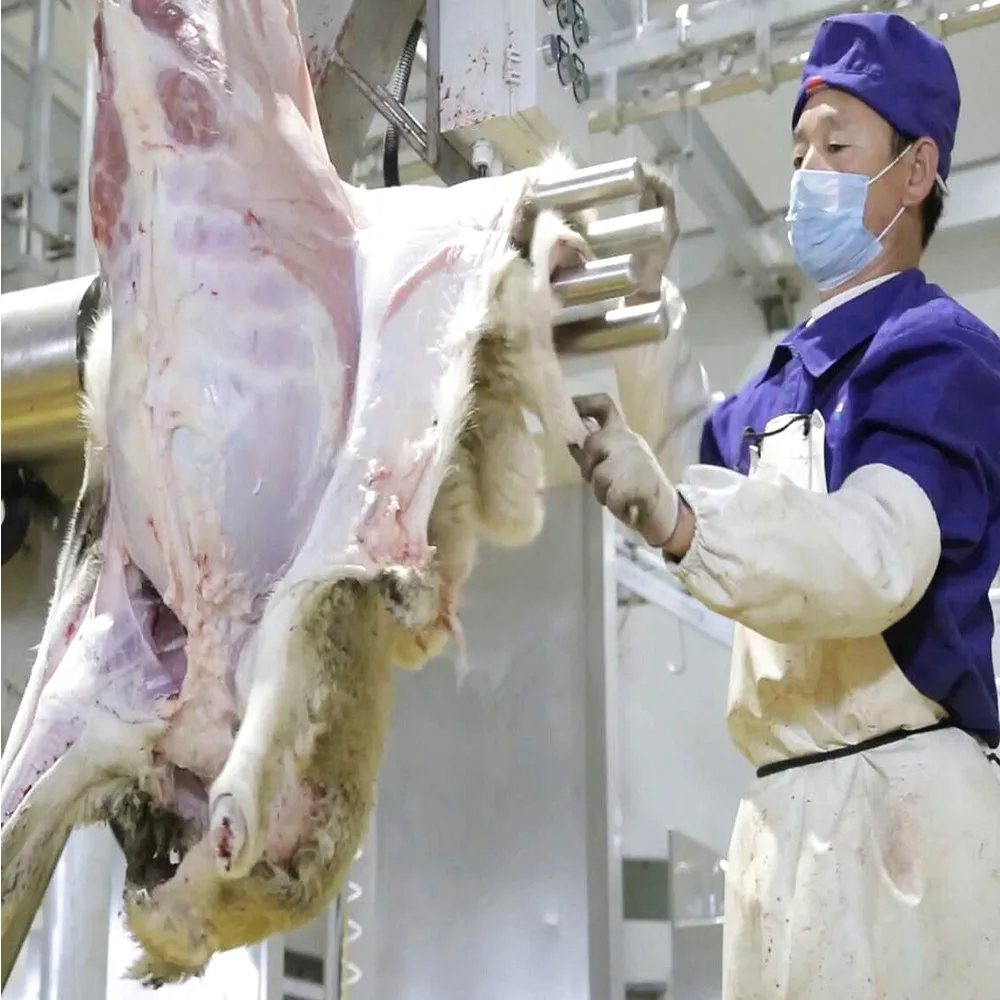

Dehiding Machine
Used to remove the sheep(goat) skin.
1.Stable pulling performance.
2.Complete skin ensured, less meat loss
3.Easy operation and maintenance
New Complete Halal Sheep Slaughtering Line Equipment for Goat Lamb Butcher Plant Machinery
Synchronous Inspection System
This system can synchronously convey the carcass, white and red viscera for inspection.
1.Special design greatly reduces labor intensity.
2.The hooks and trays can be automatically cleaned and disinfected after use;

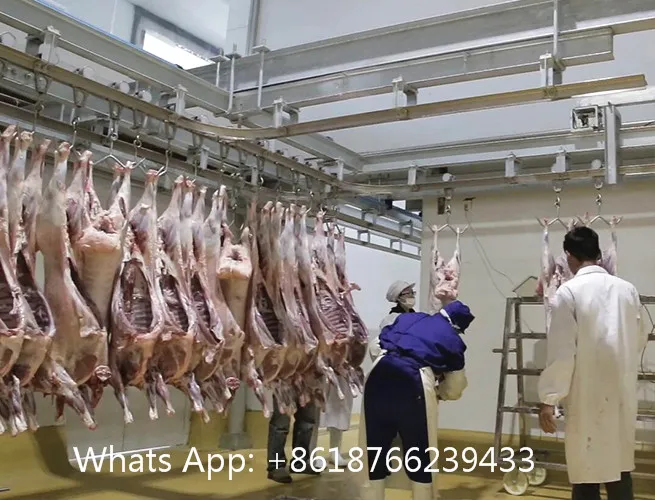

Chilling Rail System
Used to convey and hang the sheep (goat) carcasses in chilling room.
1.Complete management of chilling room stock
2.Transfer carcass easily, first in and first out.

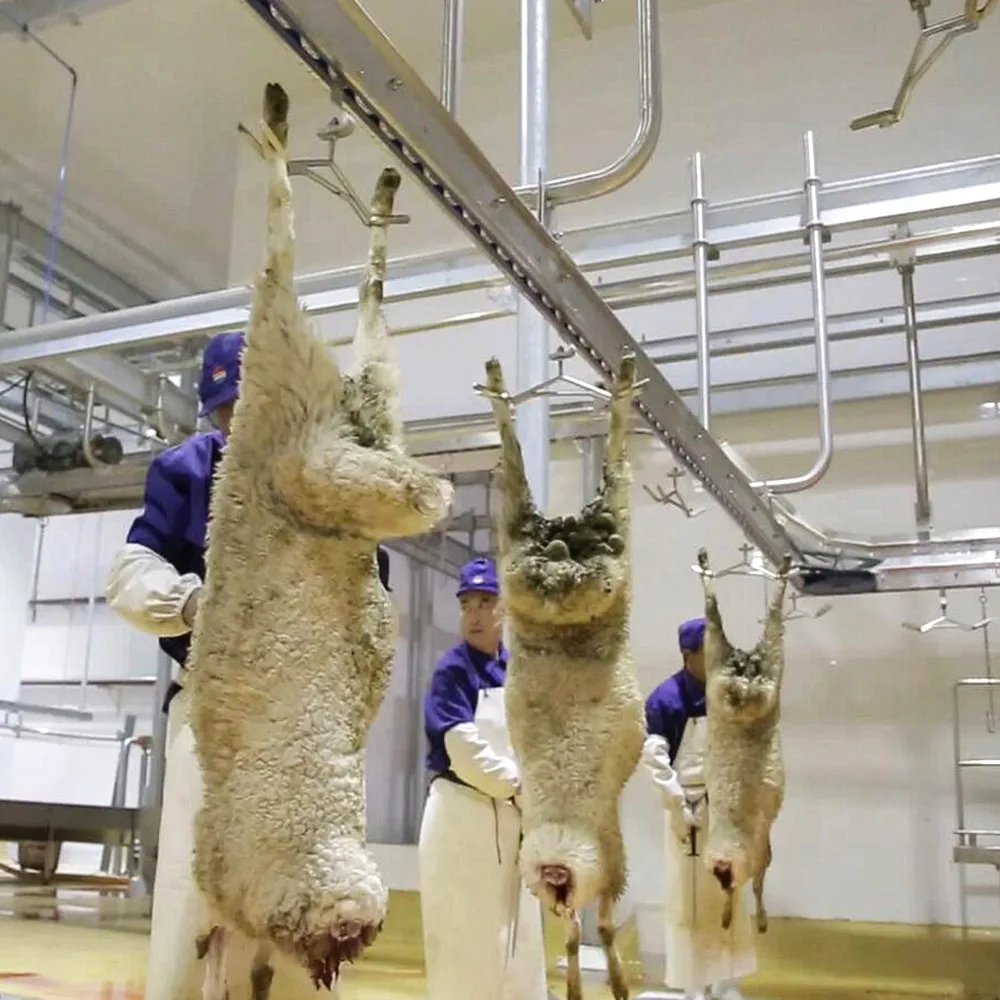

Balanced Pre-dehiding System
Used to pre-skinning in preparation for dehiding.
1.Synchronous moving speed of two parallel conveying lines;
2.Avoid sheep skin from sticking on the carcass, easy for dehiding;
| Application | Cattle, Sheep, Pig, Deer, Camel, Poultry, Horse, Seafood, Vegetales |
| Processing | Meat Conveying, Food Production, Cutting and Transportation |
| Speed | 15m/min, 30m/min, 45m/min, 55m/min (As Customized) |
| Industry | Meat Processing Machinery, Food Production |
| Motor | 1.1KW, 3.3KW, 5.5KW (As Order) |
| Material | SUS 304 Stainless Steel, SUS 316 Stainless Steel |
Related Products
New Complete Halal Sheep Slaughtering Line Equipment for Goat Lamb Butcher Plant Machinery
Company Information
With over 20 years experience in slaughtering industry, Onestop Engineering is the unique professional enterprise, which undertakes the cattle,sheep/goat,poultry and pig Slaughterhouse Turnkey project.
Enterprise structure
We own four machinery factories and one construction steel structure factory,producing slaughtering equipment,wastewater treatment system,refrigeration equipment and cold storage material,stainless steel products and constructure steel structure.
Core advantages
Our company provides one-stop service,
covering consultancy,design, construction,manufacture,installation,commissioning,training,and after-sales service.This can avoid conflicts by different parties in construction project to achieve money,time and labor saving.
Achievements
China Onestop Engineering Co.Ltd has built the slaughterhouse distributed in over 50 countries,such as Russia, Mongolia, Japan, Indonesia,Pakistan, India, Iran, UAE, Brazil, Venezuela, Latvia, American etc.
| Whats Your Equipment Show ? |
Tube Rail Hook Convery Cart Lifting Machine
Delivery the tube rail carrier cart from second floor to first floor
2 Stainless steel safety chain,Lifting capacity: 1 Tons,Manual switch
Sheep Carcass Hand Pushing Orbit
Hot Galvanized double curved steel and secondary steel beam
Hot Galvanized tube rail 60×4.2—4.5
Hot Galvanized tube rail hang frame and connection parts
Other parts Hot Galvanized material
Carcass Trimming Hand Pushing Orbit
Hot Galvanized double curved steel and secondary steel beam
Hot Galvanized tube rail 60×4.2—4.5
Hot Galvanized tube rail hang frame and connection parts
Sheep Decline Machine
Delivery the sick sheep from second floor to first floor
Lifting capacity: 0.5 Tons, Manual switch
Sheep Lifting Hole Guard Bar
At the hole surrounding have weld guardrail to make sure worker’s safety
Made of 40 and 32 stainless steel material by welding,Food grade stainless steel 304
Carcass Decline Hole Guard Bar (Guardrail)
At the hole surrounding have weld guardrail to make sure worker’s safety
Made of 40and 32 stainless steel material by welding,Food grade stainless steel 304
At the hole surrounding have weld guardrail to make sure worker’s safety
Made of 40 and 32 stainless steel material by welding,Food grade stainless steel 304
Carcass Decline Hole Guard Bar (Guardrail)
At the hole surrounding have weld guardrail to make sure worker’s safety
Made of 40and 32 stainless steel material by welding,Food grade stainless steel 304
Certifications
Hot Water Preevisceration Pasteurization System
The Hot Water Prewash has shown significantly improved antimicrobial benefit versus the original prewash equipment and provides significant water usage savings at the same time.
Antimicrobial Spray System
The Antimicrobial Spray System is proven technology in reducing and controlling microbial contamination on all red meat products.The automatic mixing system supplies antimicrobial solutions at several points throughout harvesting, processing and further processing.
Conveyorized Antimicrobial Spray System
Concerns about cross contamination and bacteria transfer during further processing encourage the use of an antimicrobial spray on primals, subprimals and trim. The Conveyorized Antimicrobial Spray System accomplishes this treatment while integrating with your existing unloading or conveyor system.
Sheep Slaughterhouse Equipment Line
Use this unique product to automatically scrub, wash and sanitize soles, tops and sides of your boots and sanitize personnel’s hands at the same time. It can be located at the entrance and exit of the work place; especially your ready-to-eat product areas.
Rotary Halal/Kosher Knocking Box
Double rotary type killing box(As per Islamic method)
Stainless steel(ss304), Speed 100 heads per hour
Landing Grate and Lifting Hoist
Stainless steel 304 grade landing grate for smooth animal landing after slaughter
Lifting hoist is a quick mechanized system to lift and guide the slaughtered animal to an automatic continuous bleeding conveyor
Butcher Halal Stainless Steel Sheep Slaughtering Line for Meat Processing Workshop
FAQ
What's the minium order?
Nice to help you, our min.order is 1pcs
What Payment item we accept?
Onestop always produce all equipment from spare parts to complete machine in one factory, so that we can control quality of all facilities and reduce cost of complete machine, then we can supply high quality equipment with better price than other competitors
Payment item we can accept.L/C,TT,etc.
How long the Delivery time?
15-30days after order (According to the customer order,we will arrange it for customer)
How long warrenty time?
1 year maintaining time, we will arrange the technical workers to do it.
