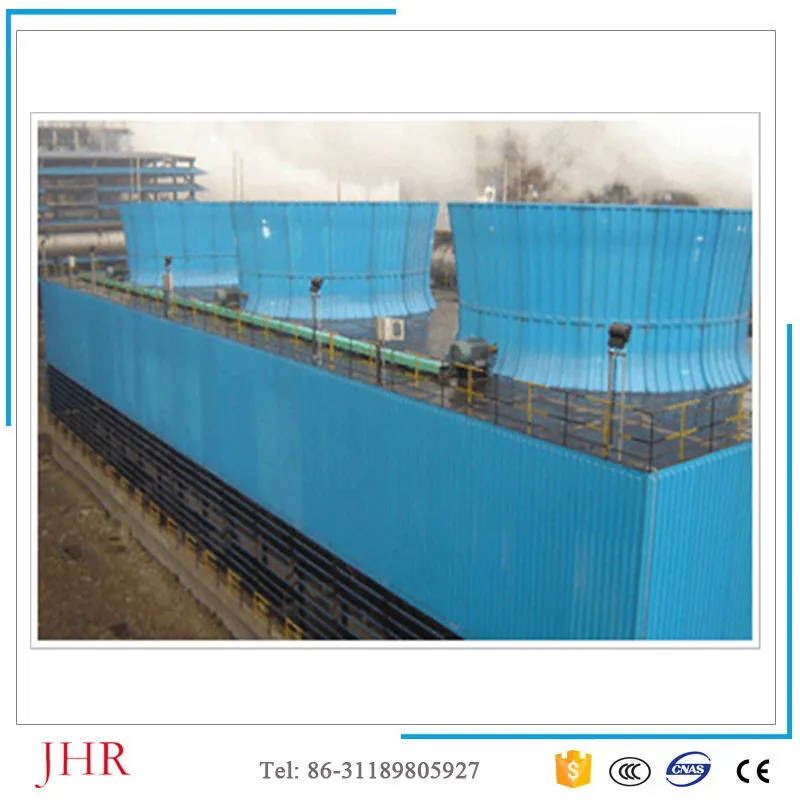

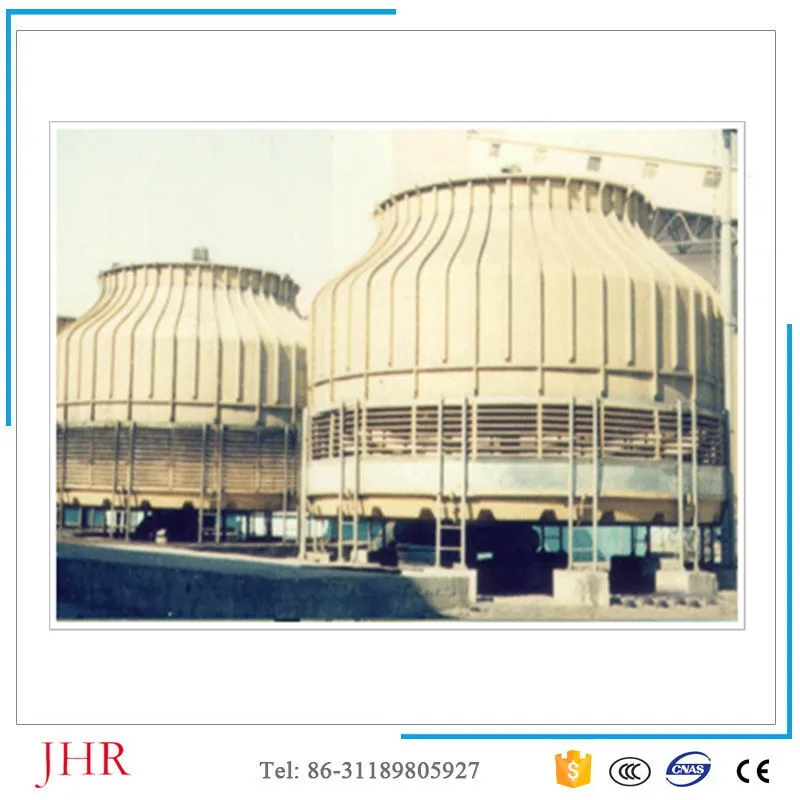

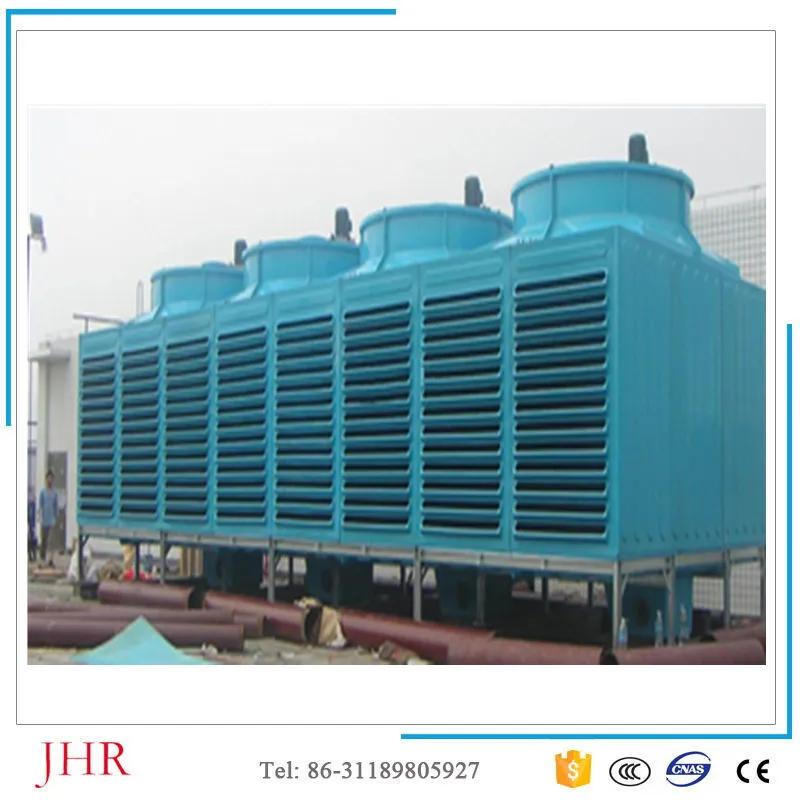

JHR closed circuit cooling tower for industrial usage

Share on (60648161109):


Price:$3,890.00 - $3,900.00

Quantity:


Product Overview

Description


Product Description

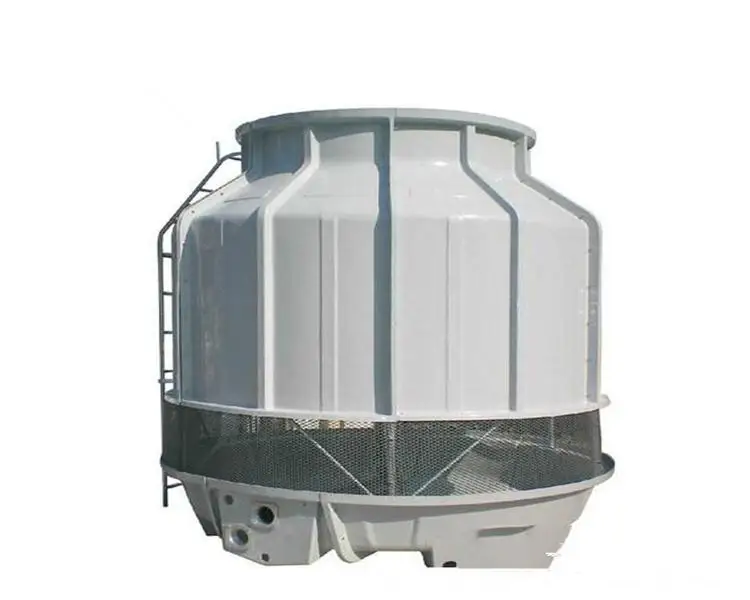

Closed circuit cooling tower

Cooling tower is a kind of tower which uses Low motor capacity in the same kind of cooling tower at home and abroad. Low noise and ultra low noise cooling tower water temperature is generally reduce 3 to 8 degrees Celsius, Suitable for general water temperature drop of air conditioning and refrigeration.
Ultra low noise cooling tower is a series of noise control facilities on the basis of low noise cooling tower. The standard point noise level is lower than the corresponding low noise value 5dB(A).
Suitable for more stringent noise requirements of the place. For example:

hotels,hospitals,public buildings and residential areas closer to the occasion.



typeDBNL3-50

cooling tower volume( m³/h) civil drop 5 ℃

50m³ /h

cooling tower volume( m³/h) civil drop 8 ℃

37m³ /h
cooling tower volume( m³/h) industry drop 5 ℃57m³ /h
cooling tower volume( m³/h) industry drop 8 ℃44m³ /h
Total height (mm)2830
Max diameter (mm)2215
Air volume ( m³/h)28000
Fan diameter (mm)1400
Motor power (KW)1.5
dead weight (t)596
Operation weight (t)1480
Inlet pressure*10000Pa2.65
Noise  dB(A)  Dm55.0
Noise dB(A) 1044.7
Noise dB(A) 16m41.1
Diameter  Dm(m)2.1







Company Information




FAQ

Q: Are you a trading company or a manufacture factory?

A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China



Q: Can your factory customize the machine for clients ?

A: Yes, we can.



Q: What is your payment terms ?

A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.



Q: How about after-sales service ?

A: 1 year free warranty, Lifetime technical service support.



Q: How can I install the production line and get a commissioning ?

A: We may send our engineer for installation and commissioning, but

 relevant cost will be paid by you.



Q:Have you some videos where we can see the line producing?

A: Yes, we can provide some videos.



Q:How is the packing?

A:Steel frame for plywood Box Package with steel belt.save space as much as possible for container loading.
