2017 Factory supply high quality soft ferrite core, magnetic wave absorbing material

Product Overview

Description

2017 Factory supply high quality soft ferrite core, magnetic wave absorbing material





(1)PH's EMC (electromagnetic compatibility) absorbing material including RMS40, RMS120, RMS150 and  RMS05 those four series according to different permeability.



(2) The main ingredient: compounded of various types of wave absorbing powder and polymer resin composite.



(3)How it works: Our product is high loss and excellent impedance, applied to suppress theelectronic noise from different frequency electromagnetic. After the electromagnetic wave be injected into the interior of the absorbing material, by the hysteresis loss, dielectric loss, resistance loss, eddy current loss, interference reduction mechanism is changed into heat energy, energy and other forms of energy, to achieve the effect of absorbing electromagnetic wave . There are parts of items holds the dual characteristics of absorbing and shielding electromagnetic wave, the effect is rather excellent in certain applications.



(4)Enviroment protect: All the EMC materials from PH meet ROHS and halogen free.

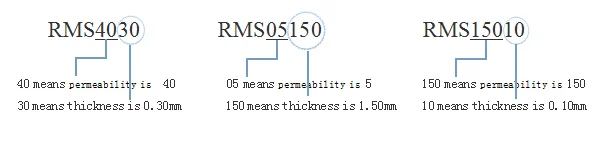

Our product's naming rules:



Material structure

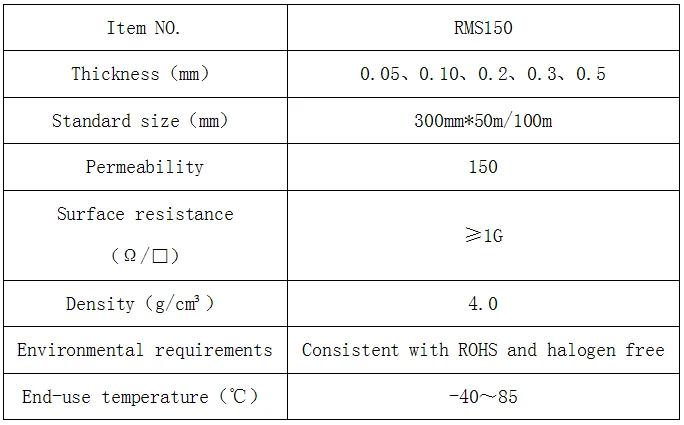

Technical parameter



 Product description:













 Aplication:



PH EMC (electromagnetic compatibility) absorbing wave material is mainly attached to the device and location where produce electronic noise and radiation easily such as IC chip, antenna, power, high-speed signal transmission line connector, camera, battery, touch screen from the set-top box, intelligent mobile phone, tablet computer, UAV, GPS navigation, digital camera, recorder, memory,  switching power supply and so on. Used to eliminate the electronic noise and radiation generated by these places, so that the electronic products be able to achieve EMC.
It can also be pasted on the shielding box, to provide test environment with no electromagnetic interference to the electronic test.





Typical applications show:

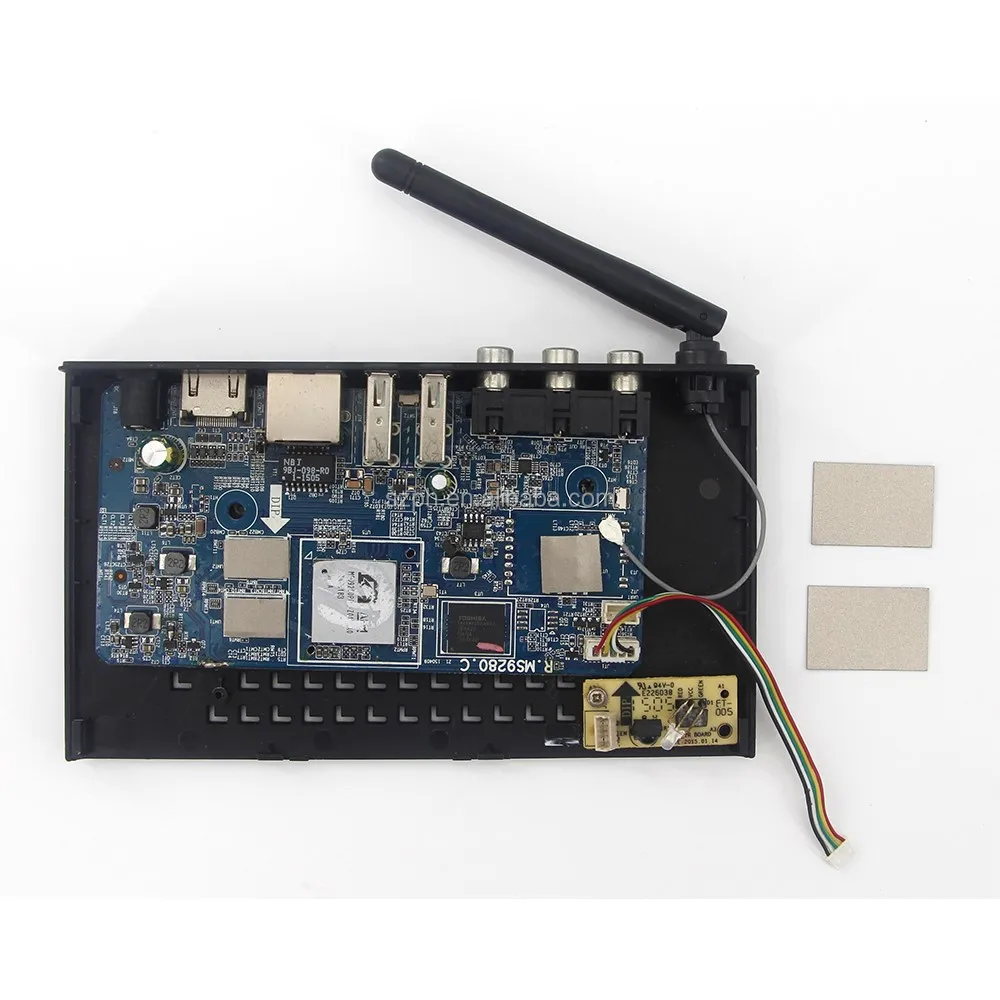

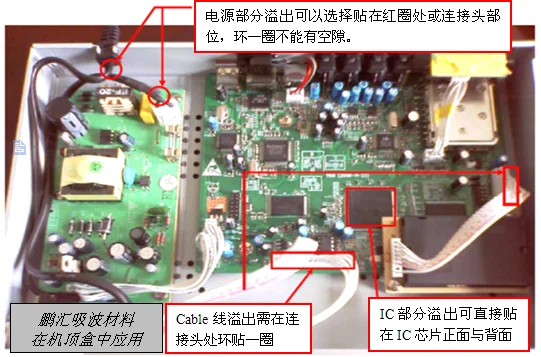

Example 1: Absorbing material apply in STB



Example 2: Absorbing material apply in  smart mobilephone

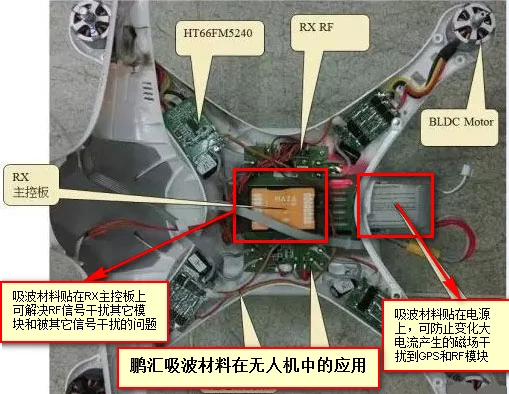

Example 3: Absorbing material apply in UAV



Example 4: Absorbing material apply in screening box



Example 5:  Absorbing material apply in Tablet touch screen



Example 6: Absorbing material apply in HD camera
