1. Alloy steel (38CrMoAl A) screw made by nitriding process:high strength and wear-resistance,self-cleaning ability made it much easier to cleaning and reloading 2.Feeding system, extrusion system and cutting system are using food grade stainless steel

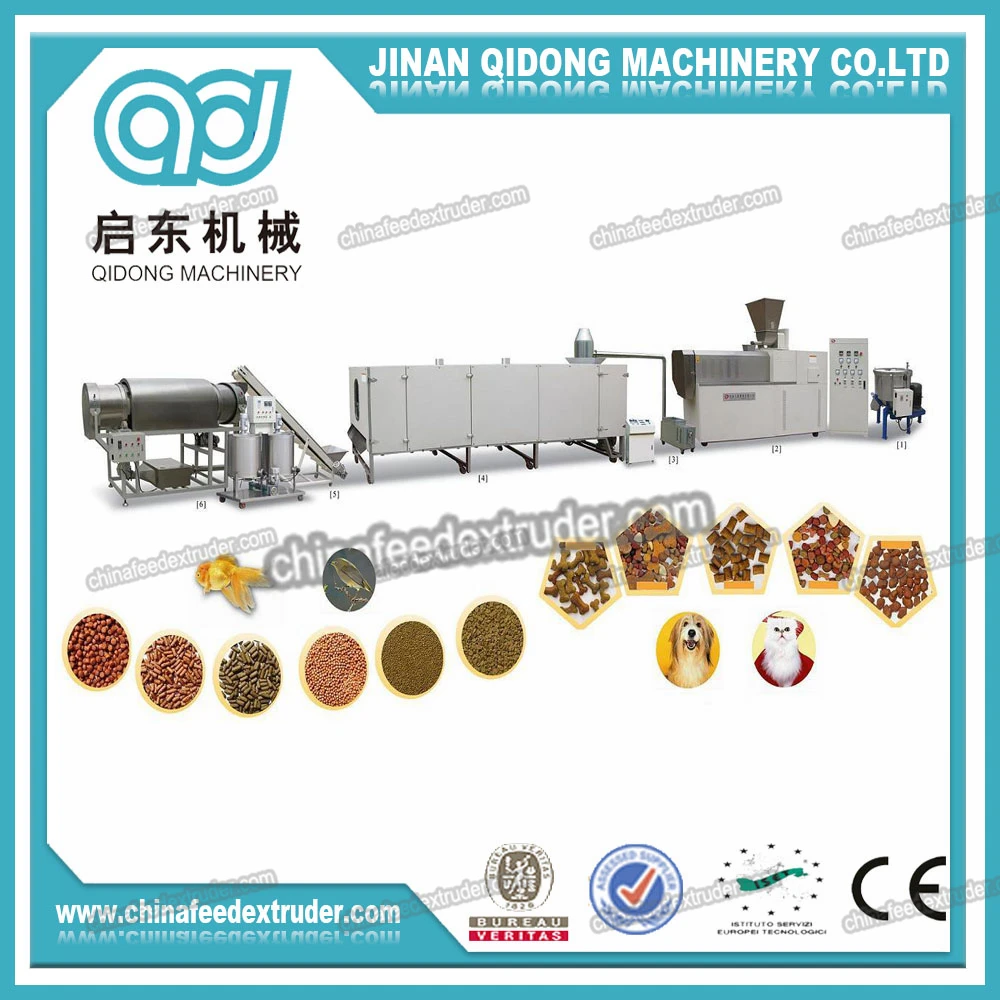

Main Machine:
Simple Introduction

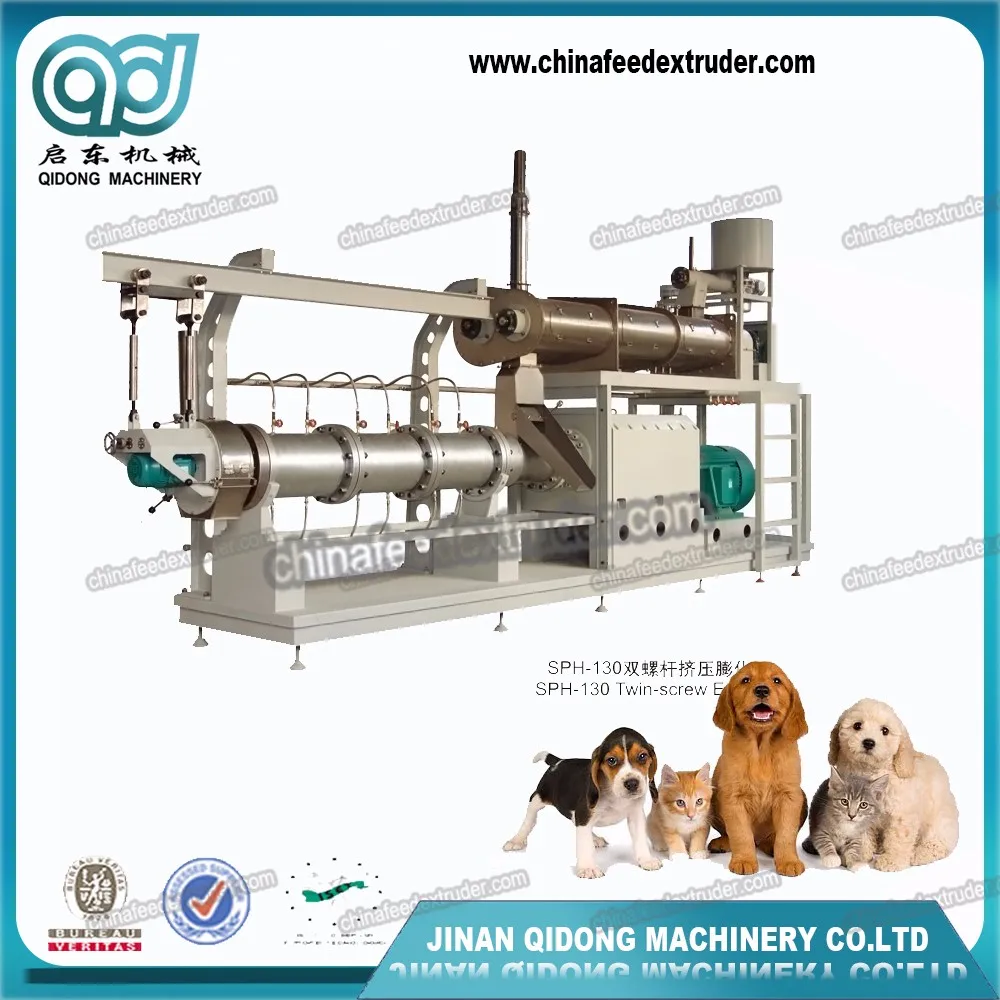

Twin-Screw Extruder
1. Main motor power:30-850kw
2. All motors controlled by inverters 3. Material:
-Screw: 50Mn2 Barrel:45# steel -Inside coating: double metal anti-friction
-Feed device: stainless steel -Rotary cutter: stainless steel 4. Capacity:100-20,000kg/h 5. Double-shaft pre-conditioner 6. Manual steam valve, auto material and water feed Material(barrel,shafts,wings):stainless steel
7. Heating way: Electricity and Steam

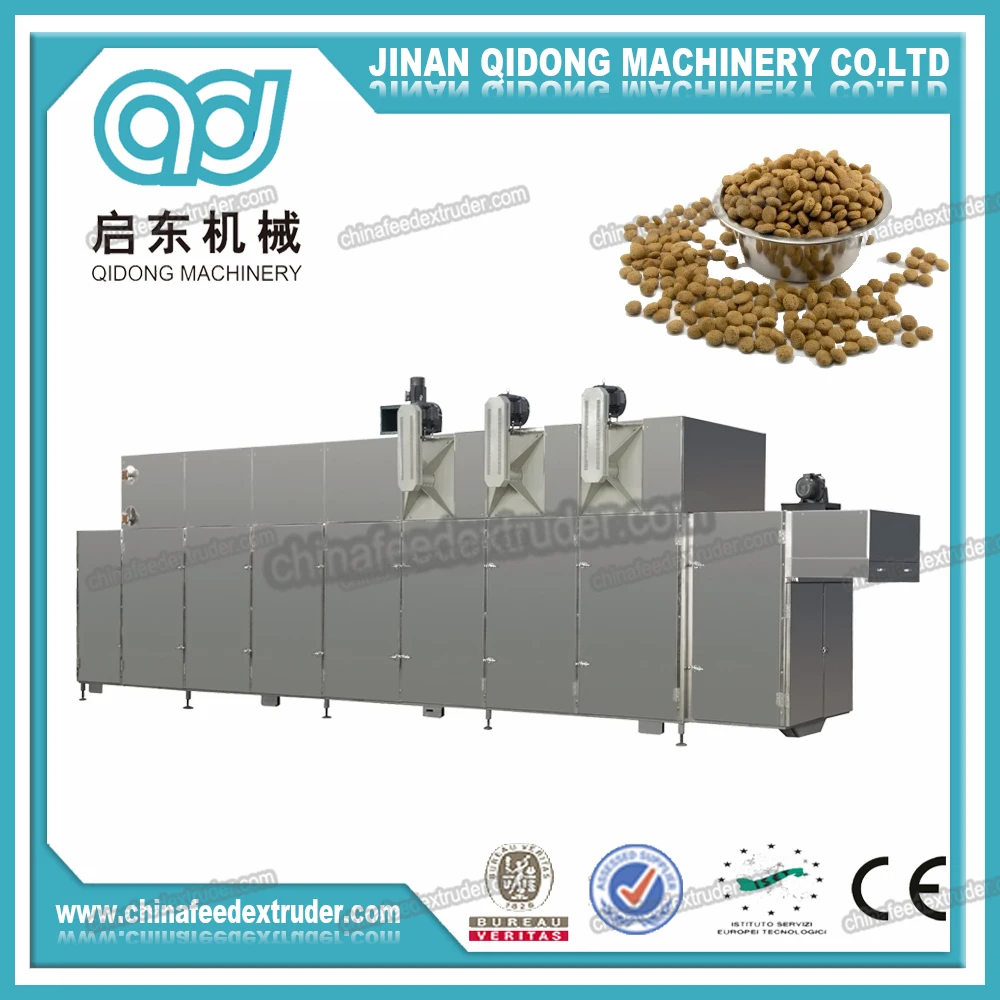

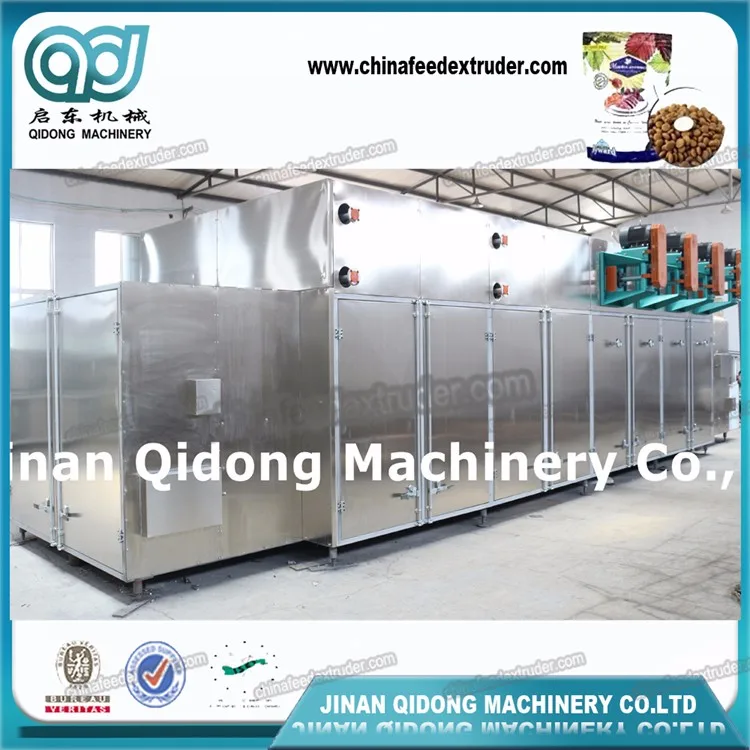

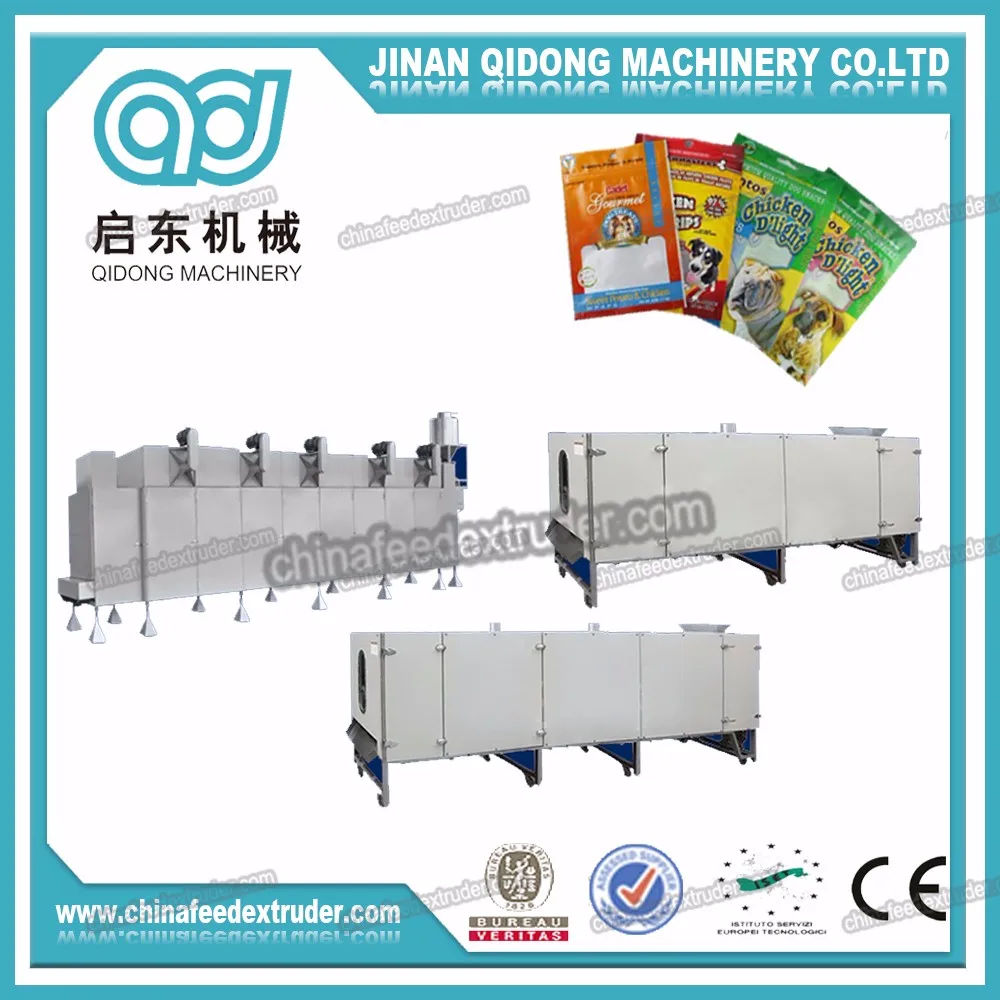

Steam Dryer Machine
1. Composed of spreader, feeding zone, drying zone, discharging zone, conveying belt, stand bar and other components.
2. Multi-layer conveying belt can guarantee even and complete drying to all materials, reducing disruption ratio obviously.
3. Hot air circulation may increase the usage efficiency. 4. Outside doors, inside protection board, bolts and folders: stainless steel 5. All connection area must be neat without sharp edges and escaping 6. Two layers painting: anti-rust painting and epoxy final painting

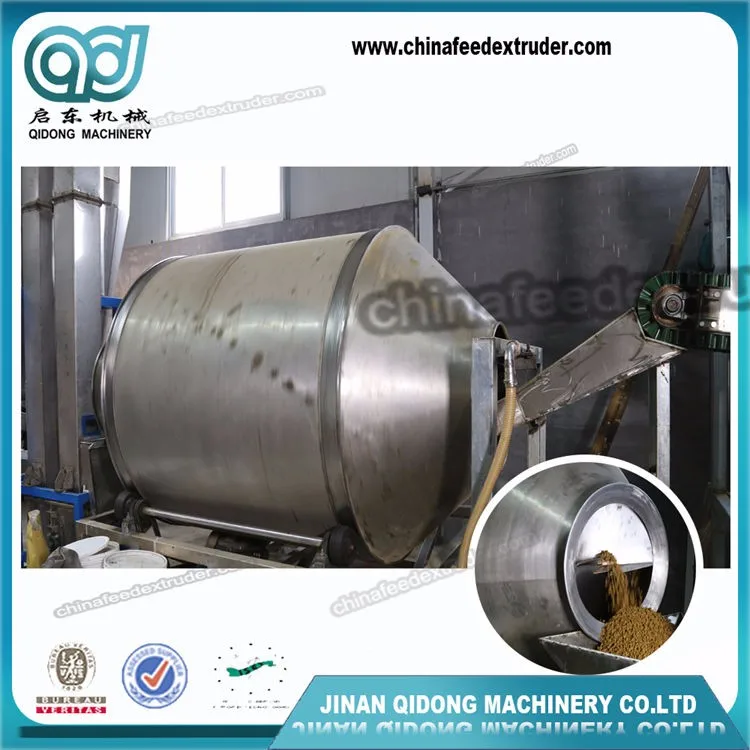

Fat Coater
1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomatization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.

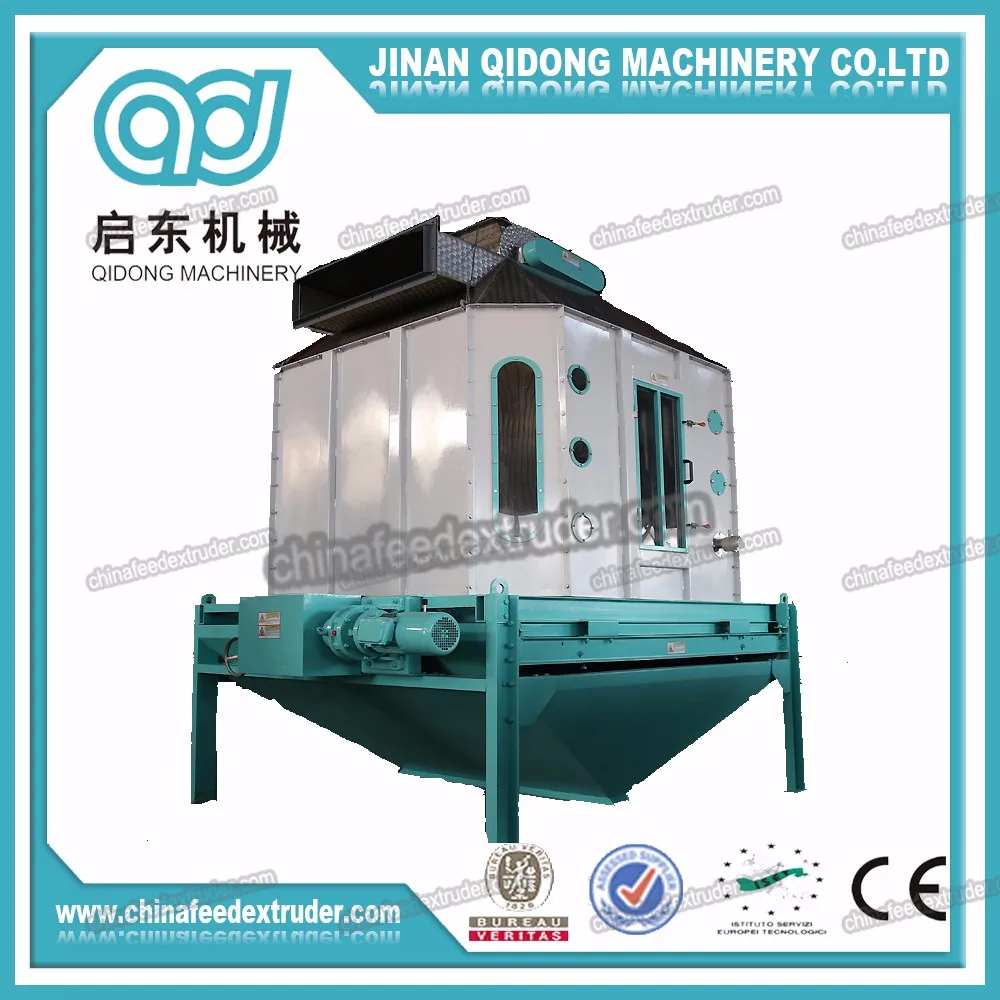

SKLN Series Counter-flow Cooler
Model:SKLN Series
Capacity:t/h
Material:carbon steel
Principal:cold air current flows counter with granular
Adopt slide reciprocating discharging institute to make operation smooth and reliable
3-5℃ higher than room temperature after cooling
Reduce surface crack ratio

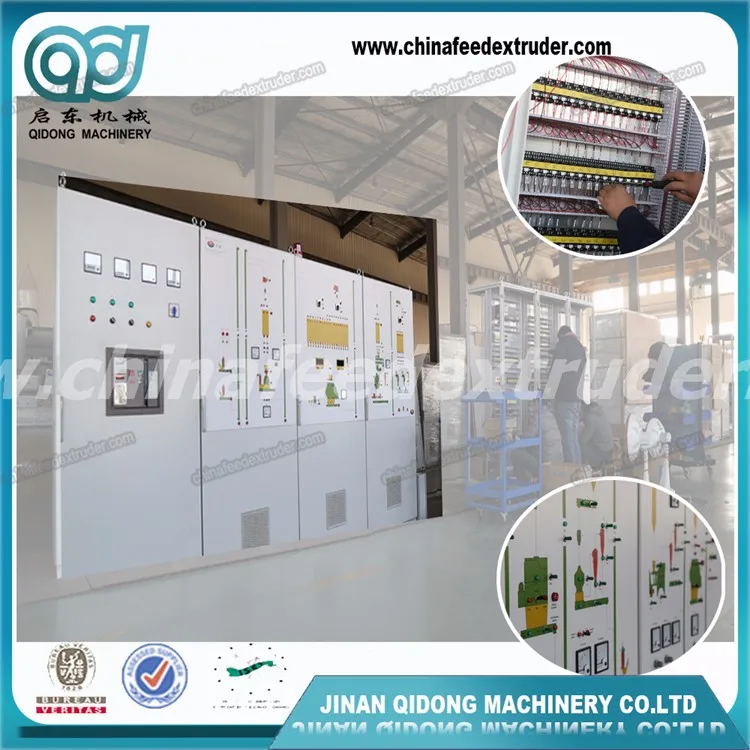

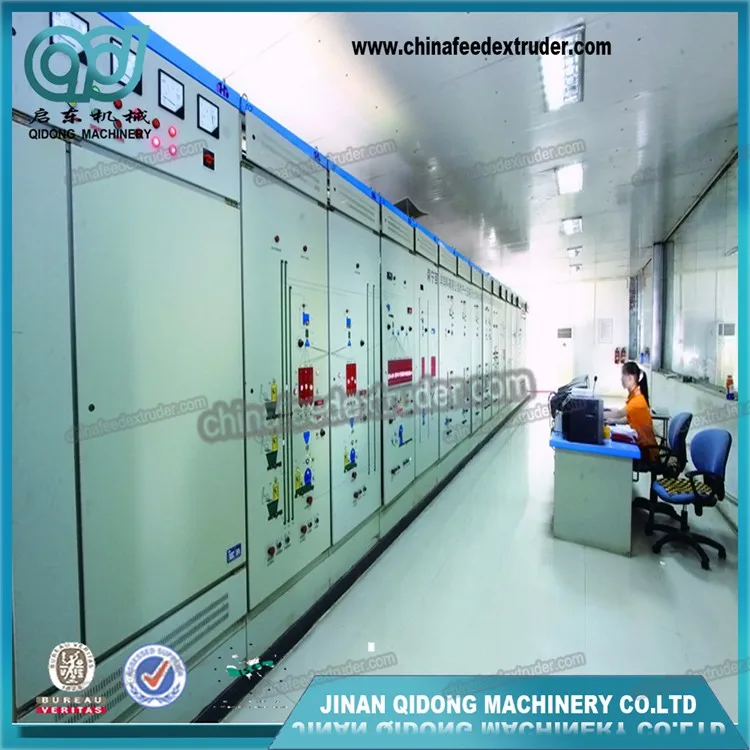

Control Cabinet
1. Instruments utilized;
2. Temperature control: Omron;
3. Frequency inverter: Delta;
4. Switches: LG, Seimens, Chint;
5. Low voltage: Schneider;
6. Circuit Breakers: Schneider;
7. Contactors: schneider;
8. Led Indicators Utilized;
9. Auxiliary LED indicators;
10. Digital control;
11. Control panel completly sealed against dust
12. Control Panel wih air ventilation system to extract the heating.
13. Control panel wih alarm system for protection.
14. The extruder will not start if the oil pump is not running
Key Accessories:
Siemens Beide Motor
NSK Bearing
Top 5 Brand Screw
Pioneer inverter
High Grade Dog Food Samples:
