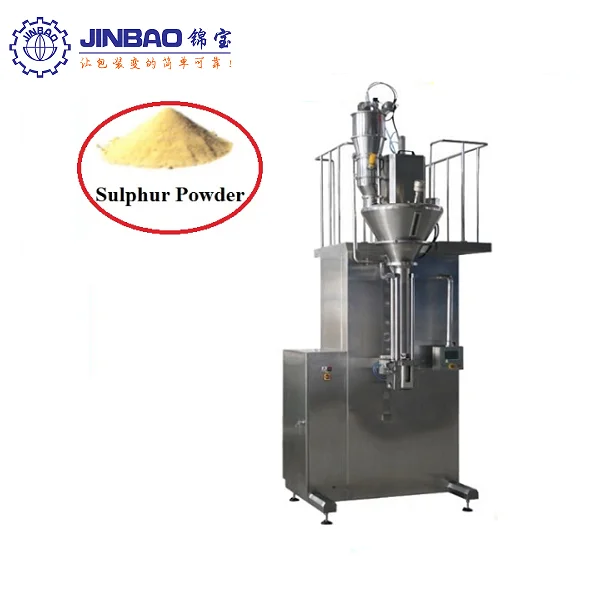

Sulphur powder automatic packaging machine bag 25kg packing and filling machine
PRODUCT INFORMATION
A.Brief description
It designed to fill dry mixes powder, such as flour and additives.
The filler is a 110 L hopper,it is used for accommodating the mixes and putting them into a pouch by an auger/screw(which is controlled by the agitator).

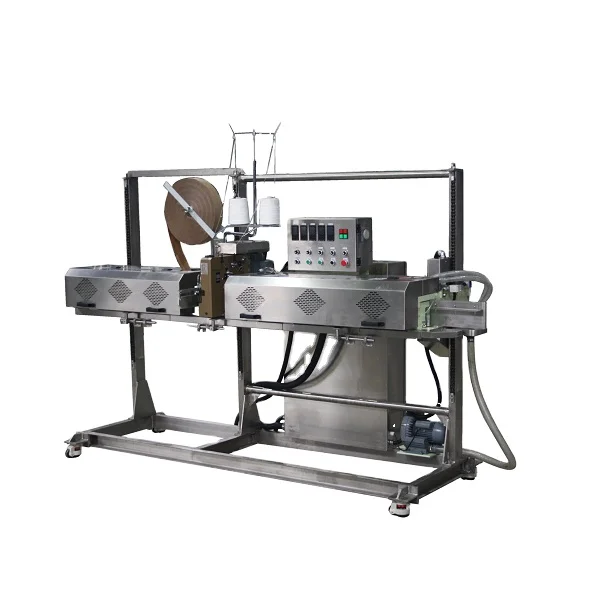

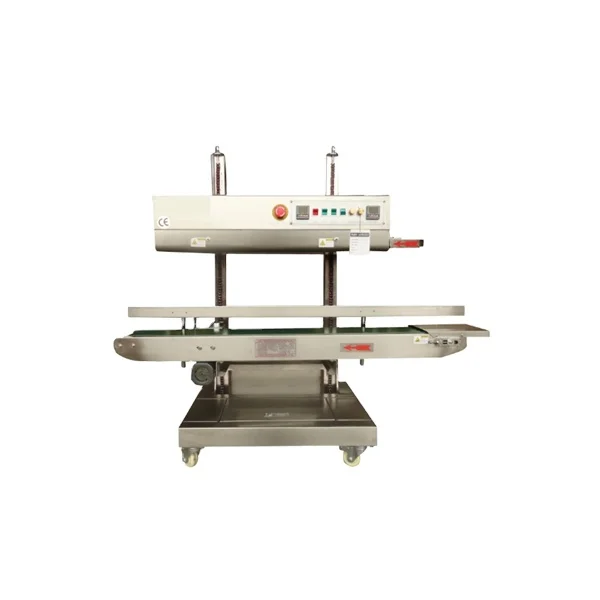

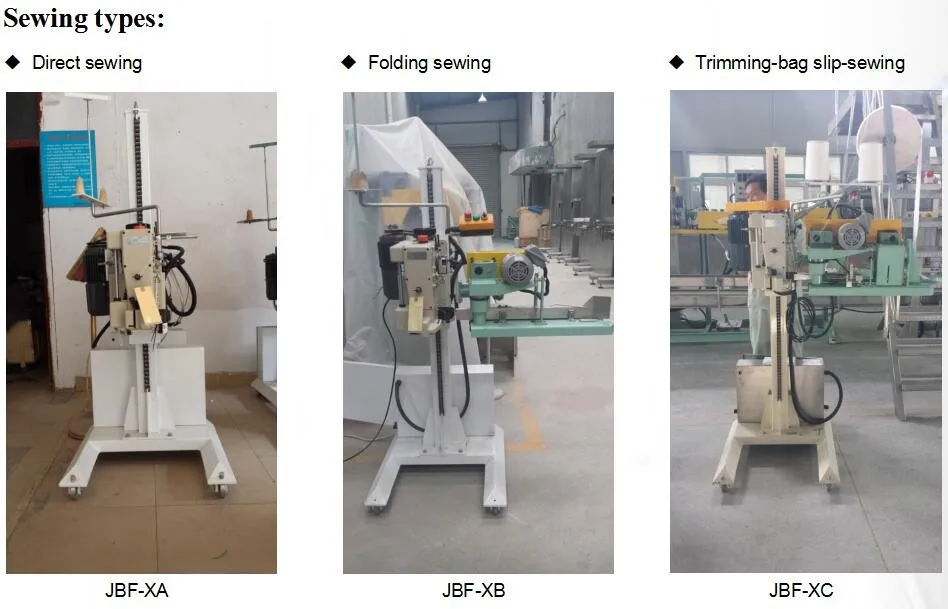

The pouch is made of paper,PE or other materials,and the pouch will be sealed by a series of heaters and stitch/sew machine.

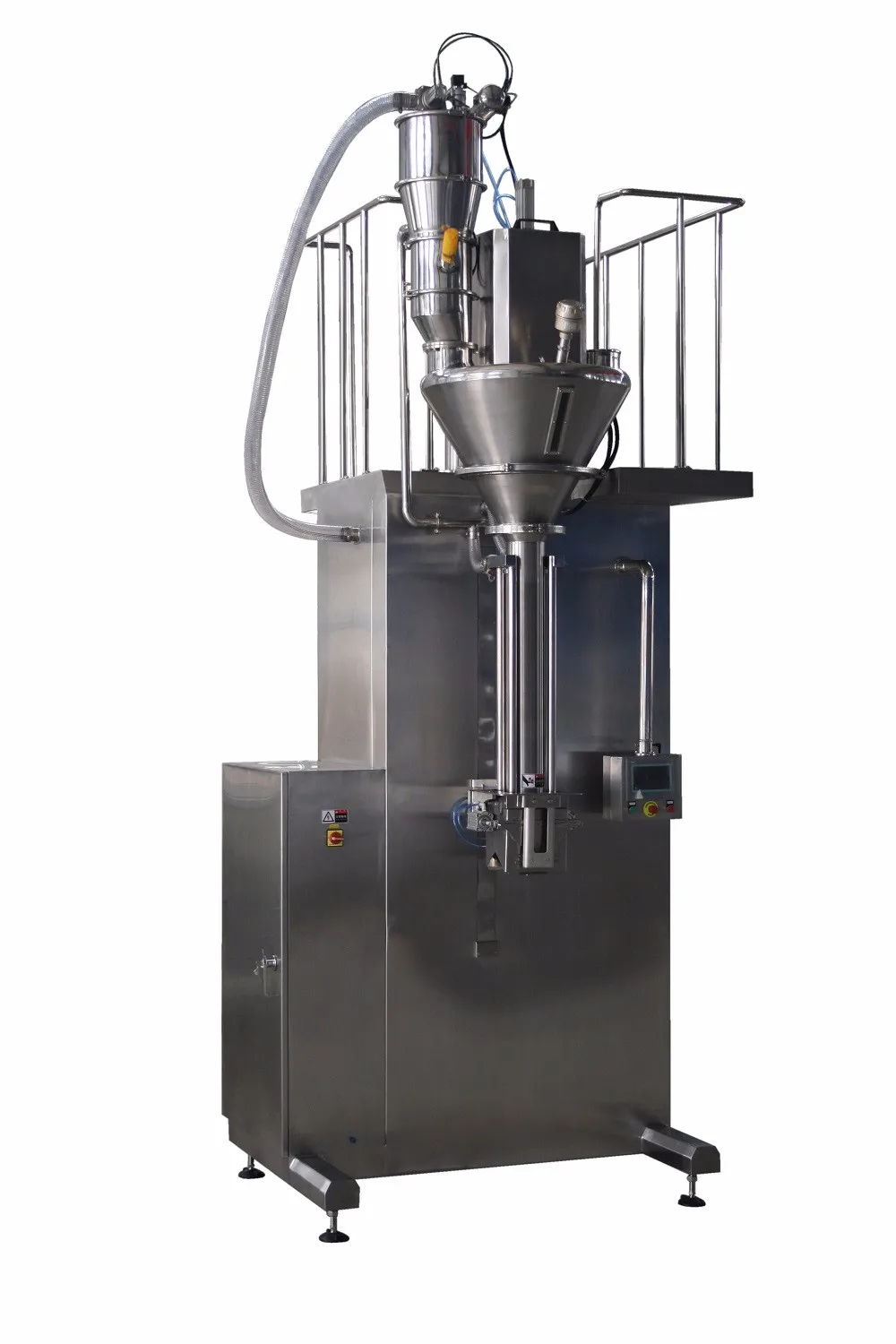

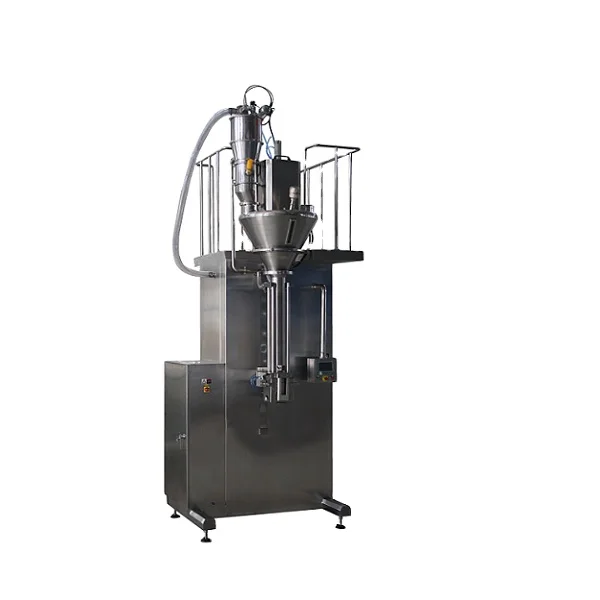

This semi-automatic bottom filling type package scale can finish process of exhaust braking, lifting type filling-measuring, sealing, conveying, ect.
B.Application & Specifications

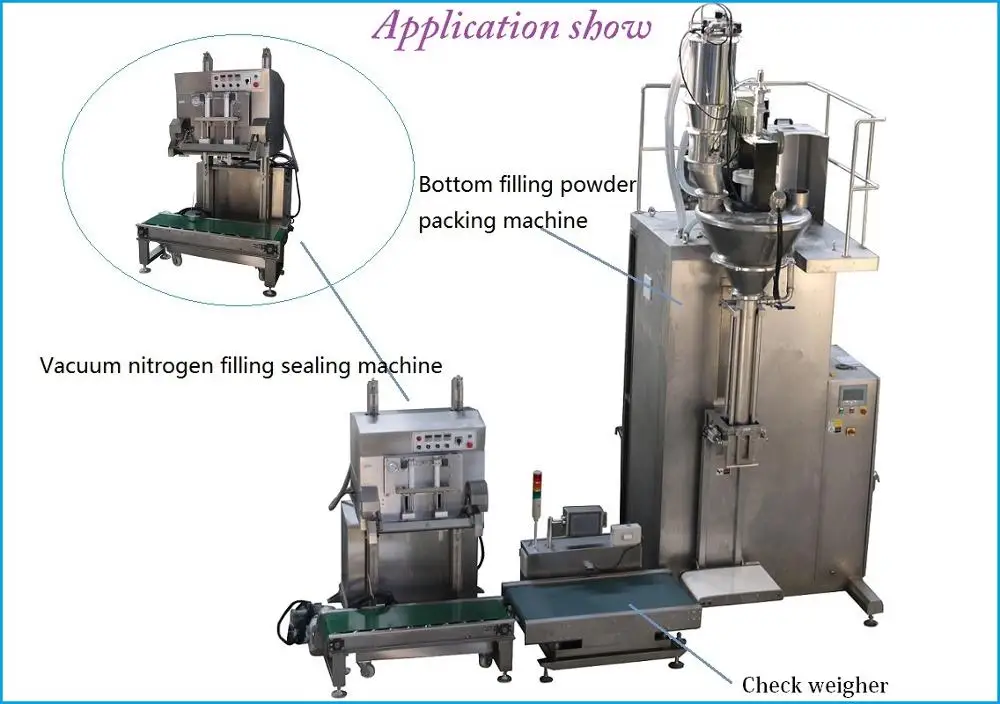

Suitable for powder products weighing packing, such as: milk power. wheat flour, food additives, carbon powder, protein powder, ect.
SPECIFICATIONS
Technical parameters
Model
DCS-70C-CLX-DM
DCS-100C-CLX-DM
DCS-150C-CLX-DM
Hopper capacity(L)
70
100
150
Packing range(kg)
2-5
5-25
10-50
Packing accuracy(%)
≤±0.2
≤±0.2
≤±0.2
Packing spped(bags/min)
1-2
1-2
1-2
Voltage
AC380V 50Hz
Power(kw)
3.9
5.4
5.4
Machine weight(kg)
440
510
620
Machine size(mm)
1100*600*2050
1300*700*2360
1450*900*2710
Features
* Vertical spiral feeding device combined with reverse mixing device , makes feeding more stable, and the bottom cone type valvecontrols the feeding process preciously;
* The whole device is equipped with storage bin easy-cleaning components and spiral type of easy-dismantling structure that material contact parts is convenient to clean and no blind angle.
* Lift type bottom filling-measuring device combined with spiral vacuum filling device that ensure high accuracy of the packaging and no dispersive powder problem.
* Using dust collecting function makes the packing process clean , no dust problem ;
* Adopting air exhaust techonogy , makes the powder rapid precipitation , improve the swelling powder packing capacity ;
* Touch screen interface which is convenient to operate , packing specifications and order can be adjusted via it .

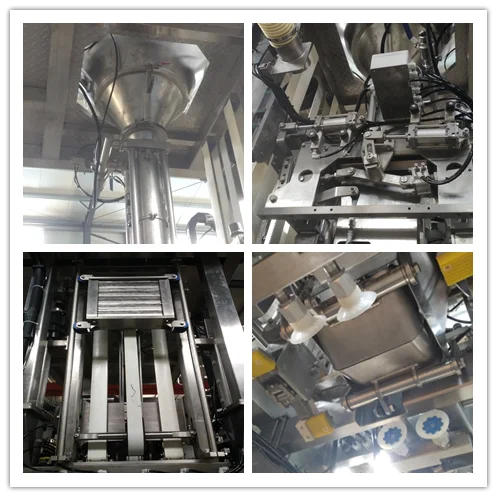

C.Detial images
D.Finished product display
Company Information
A.Company appearance
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.
B.Packaging & Shipping
Packaging:
- Machine packing inside is plastic films and outside is fumigation wooden case.
- Our wooden case is very strong,it can bear long time shipping on the sea.
- And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
- Upon receipt of payment , delivery date will be in 3-15days
- By Air, by Sea or by Express (DHL etc)
- Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
C.Our service
Life-time warranty.
Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment.
After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
