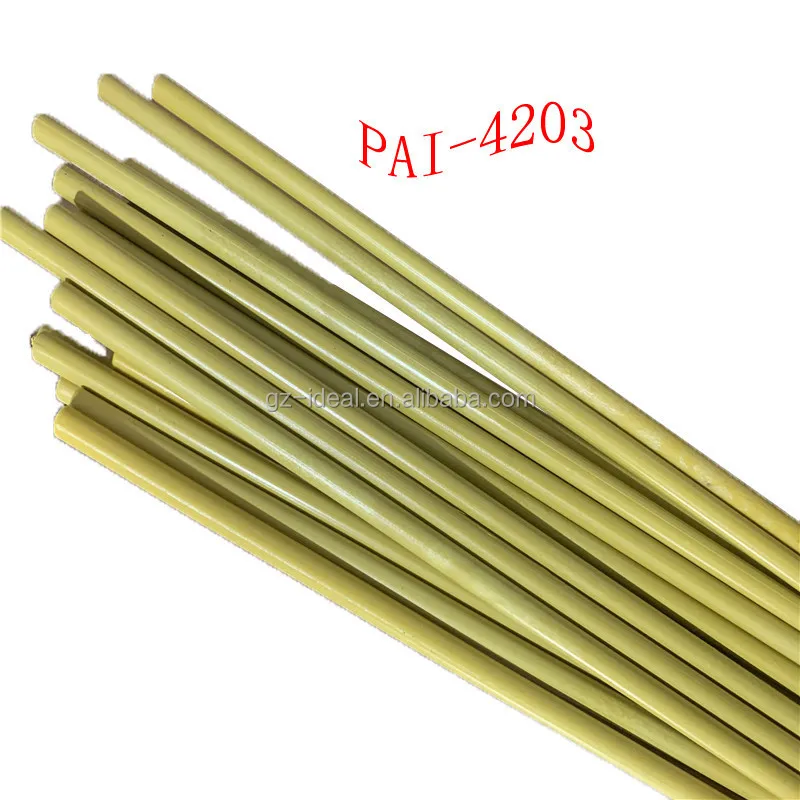

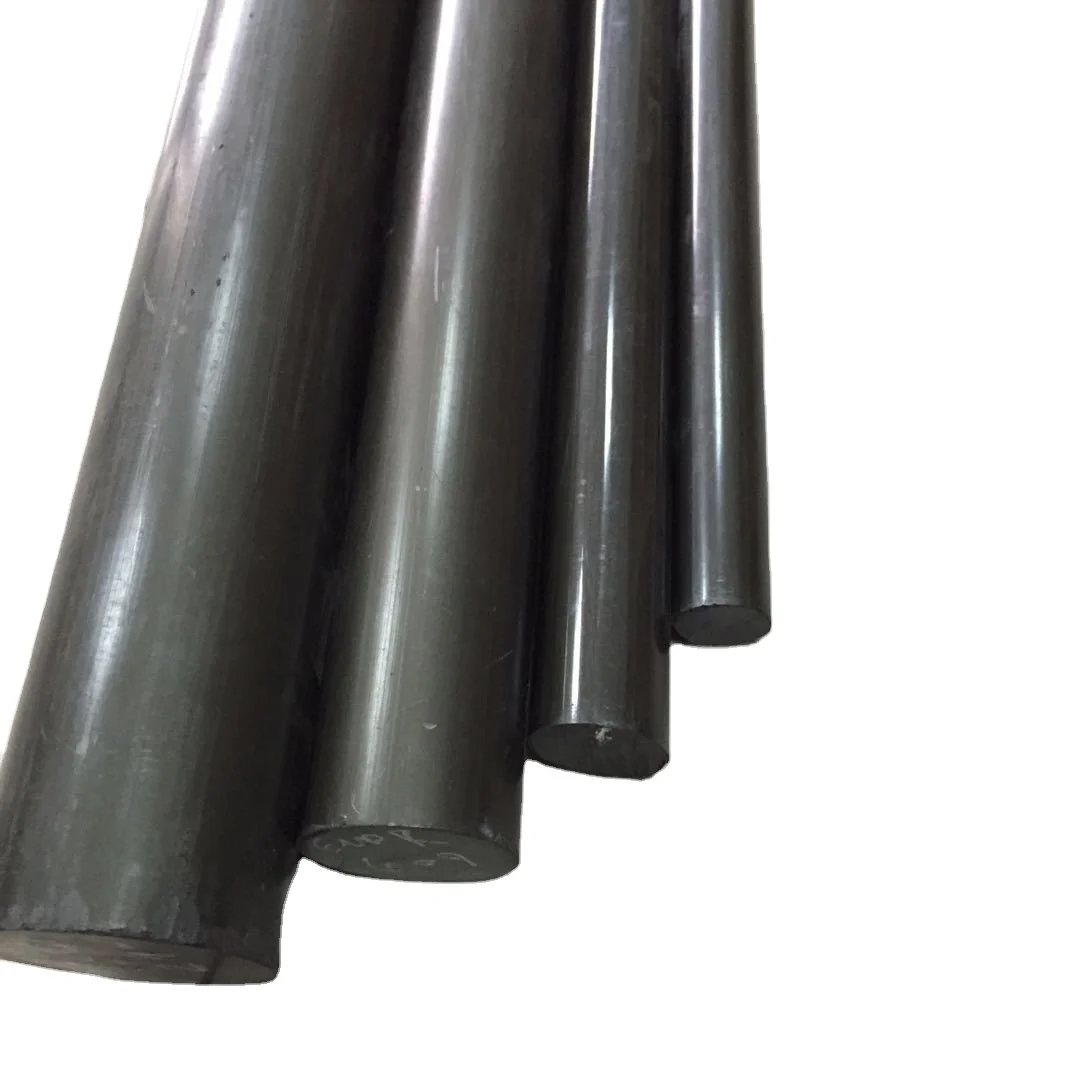

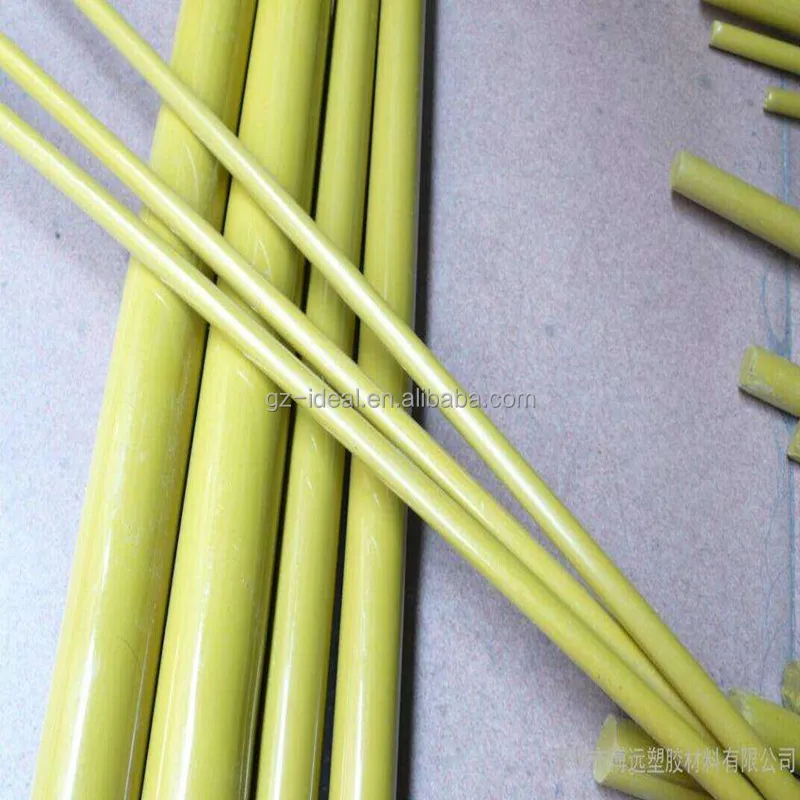

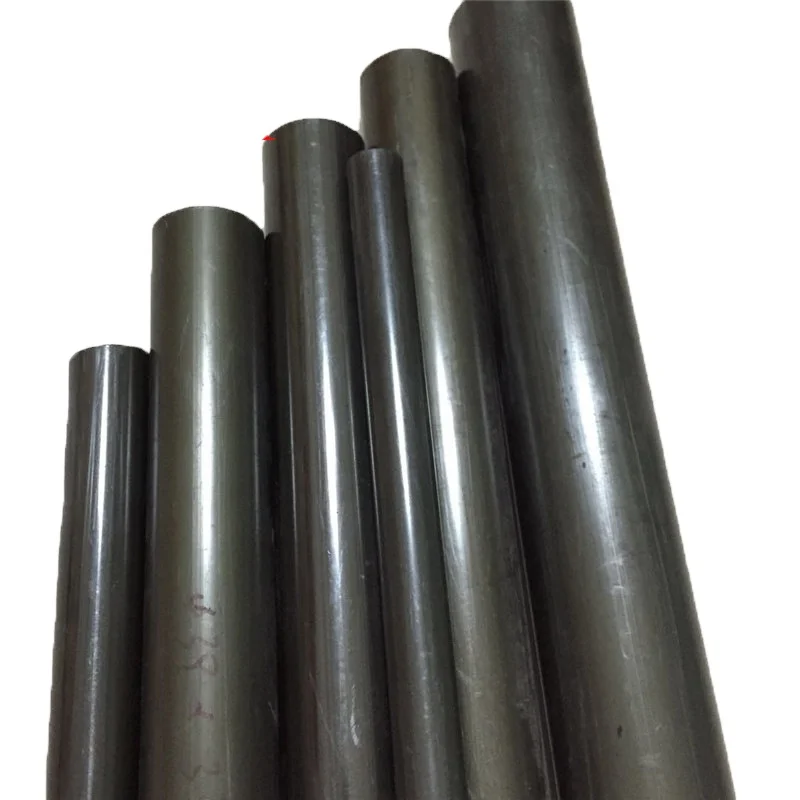

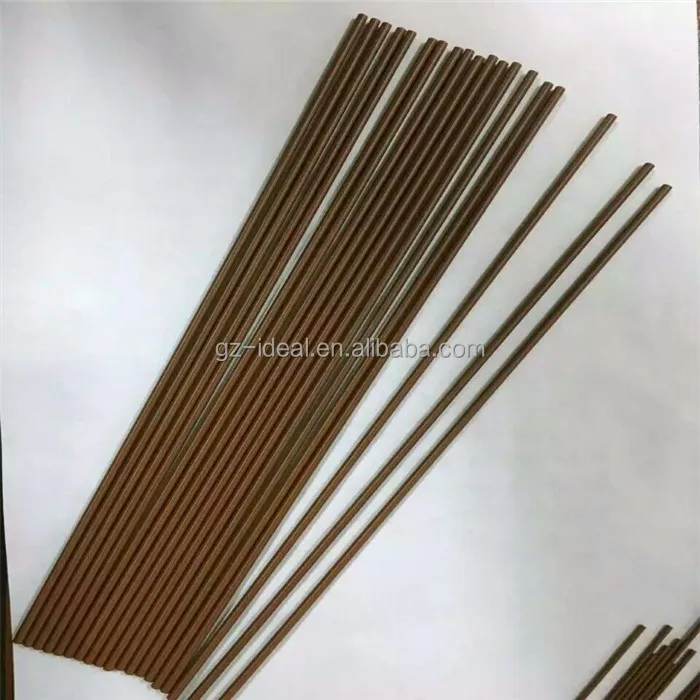

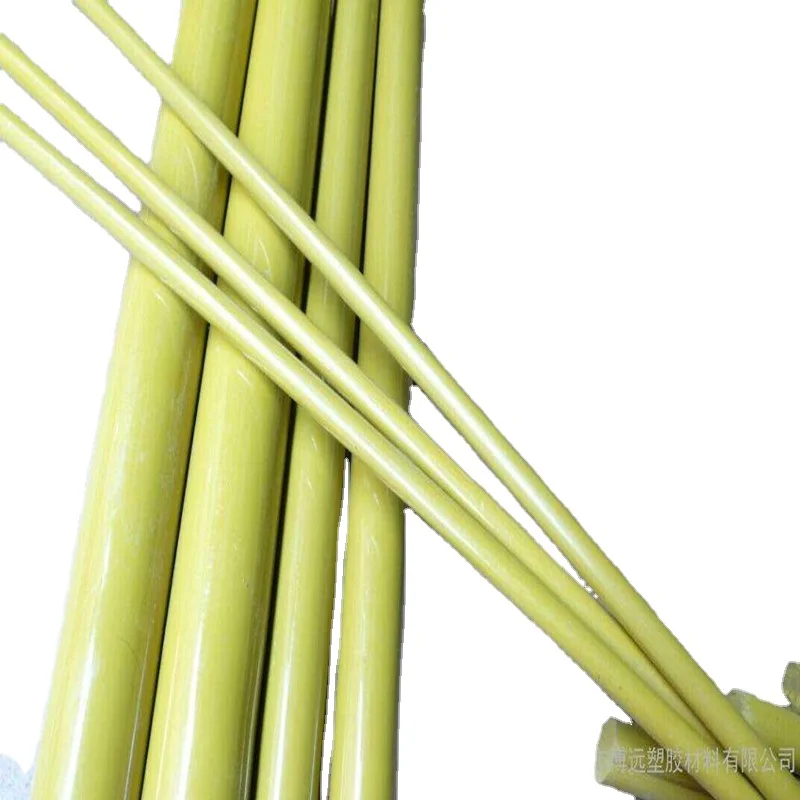

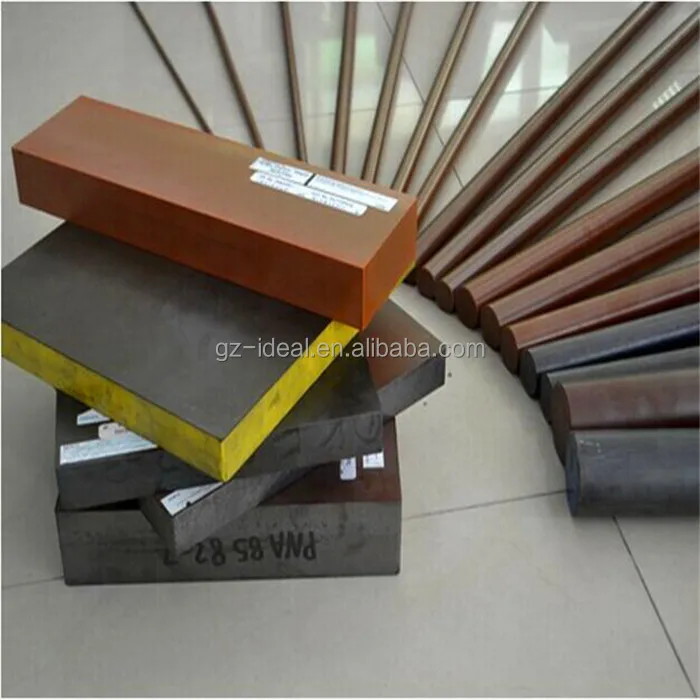

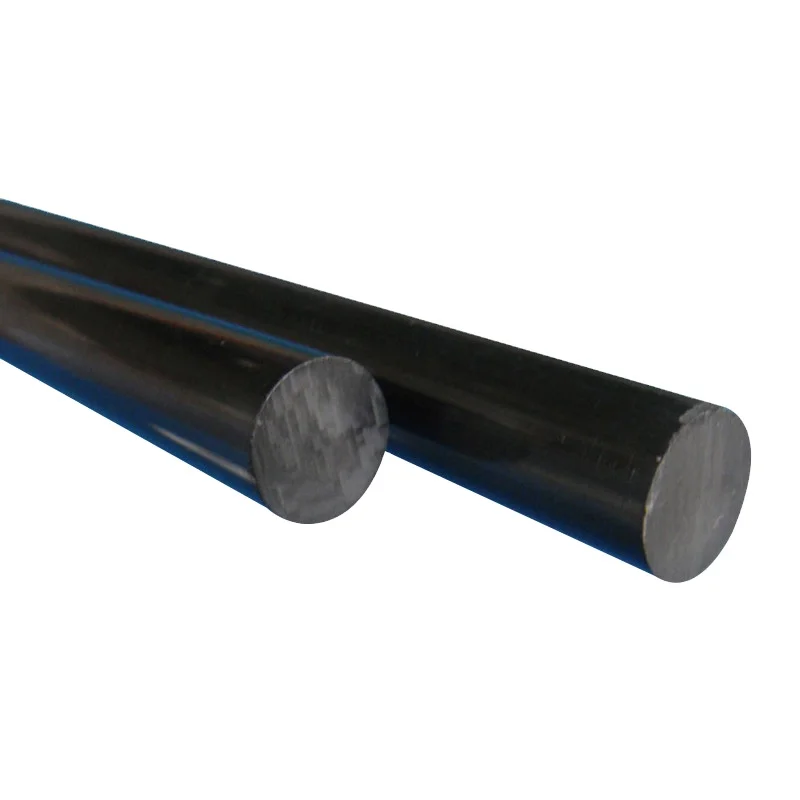

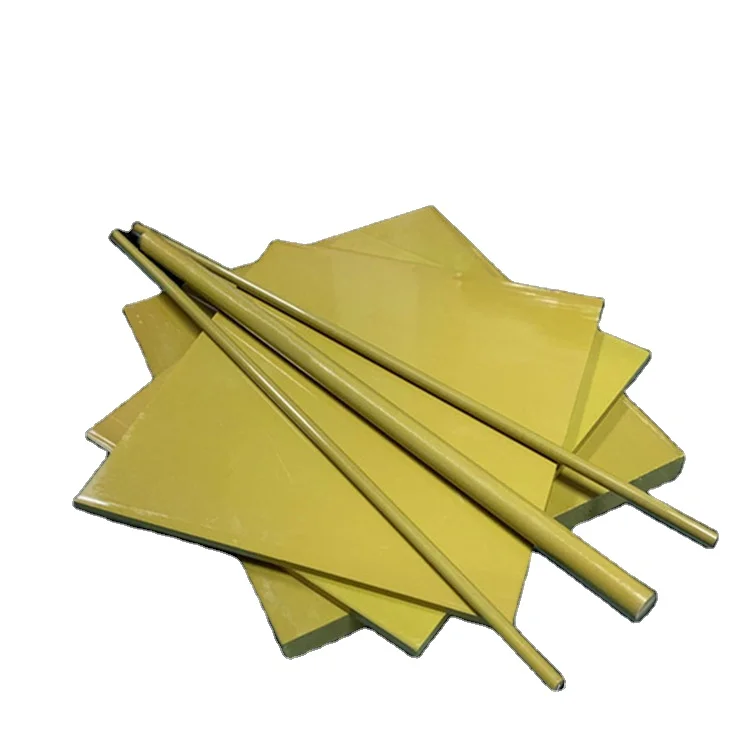

5mm Torlon PAI Plastic Rod
- Category: >>>
- Supplier: Guangzhou Ideal Plastic Technology Co. Ltd.
Share on (60648267278):
Product Overview
Description
PAI Description
1.The introduction of PAI material:
PAI polyamide-imide is a modified polyimide, it is a heat resistant amorphous engineering thermoplastic,primarily by trimellitic anhydride and various aromatic diamine condensation.From temperatures of 500°F to chemically harsh environments,TORLON® outperforms similar materials in a broad range of applications.This melt processible plastic offers exceptional toughness,stiffness and strength and is both impact resistant and extremely durable.Available at a lower cost than many advanced engineering plastics,TORLON® can be machined to tight tolerances,extruded and compression molded.
2.The typical properties of PAI for each grade:
| property | test method | units | high strength type | wear resistant type | ||||||
| 4203L | 5030 | 7130 | 4301 | 4275 | 4435 | 4630 | 4645 | |||
| tensile strength | D638 | MPa | 152 | 221 | 221 | 113 | 117 | 94 | 81.4 | 114 |
elongation at break | D638 | % | 7.6 | 2.3 | 1.5 | 3.3 | 2.6 | 1.0 | 1.9 | 0.8 |
| flexural strength | D790 | MPa | 282 | 374 | 310 | 200 | ||||
| 23°C | 244 | 338 | 355 | 219 | 212 | 152 | 131 | 154 | ||
| 135°C | 174 | 251 | 263 | 165 | 157 | 129 | ||||
| 232°C | 120 | 184 | 177 | 113 | 111 | 91 | ||||
| flexural modulus | D790 | GPa | 7.9 | 14.1 | 24.6 | 9.6 | ||||
| 23°C | 5.0 | 11.7 | 19.9 | 6.9 | 7.3 | 14.8 | 6.8 | 12.4 | ||
| 135°C | 3.9 | 10.7 | 15.6 | 5.5 | 5.6 | 11.2 | ||||
| 232°C | 3.6 | 9.9 | 13.1 | 4.5 | 5.1 | 10.3 | ||||
shear strength | D732 | MPa | 128 | 140 | 120 | 112 | 77 | 60 | 85 | |
Izod impact strength(3.2mm) | D256 | J/m | ||||||||
| notched | 142 | 79 | 47 | 63 | 84 | 43 | 48 | 37 | ||
| no notch | 1062 | 504 | 340 | 404 | 250 | 219 | 160 | 107 | ||
distortion temperature (1.82MPa) | D648 | °C | 278 | 282 | 282 | 279 | 280 | 278 | 279 | 281 |
| CLTE | D696 | ppm/°C | 30.6 | 16.2 | 9.0 | 25.2 | 25.2 | 14.4 | 11.5 | 4.5 |
| flammability grade | UL94 | 94 V-0 | 94 V-0 | 94 V-0 | 94 V-0 | 94 V-0 | 94 V-0 | |||
| limite oxygen index | D2863 | % | 45 | 51 | 52 | 44 | 45 | |||
| volume resistivity | D257 | ohm-cm | 2×1017 | 2×1017 | 8×1015 | 8×1015 | 2×107 | |||
| density | D792 | g/cm3 | 1.42 | 1.61 | 1.48 | 1.46 | 1.51 | 1.59 | 1.56 | 1.56 |
hardness (Rockwell E) | D785 | 86 | 94 | 94 | 72 | 70 | 62 | |||
| water absorption (24 H) | D570 | % | 0.33 | 0.24 | 0.26 | 0.28 | 0.33 | 0.12 | 0.2 | 0.3 |

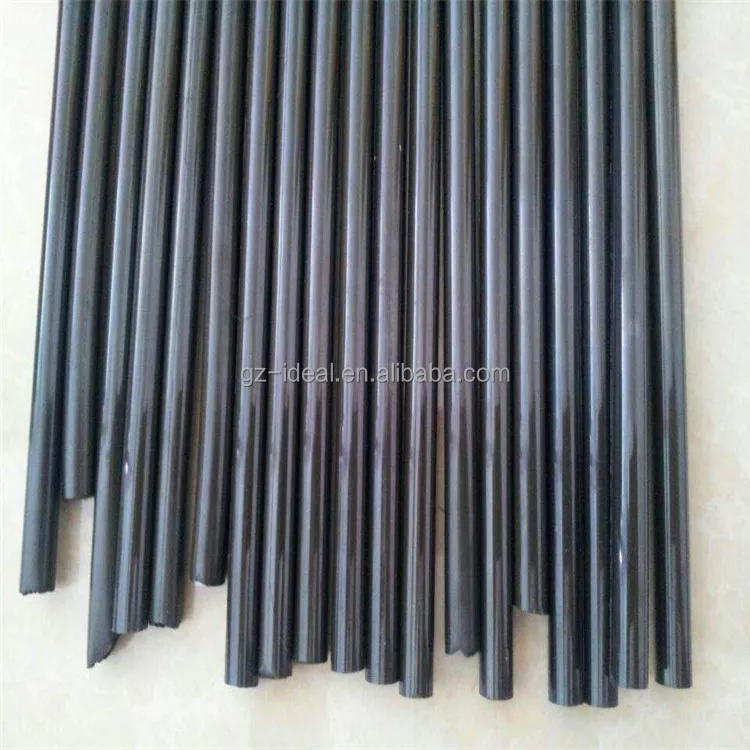

3. The properties of PAI Torlon rod
• Superior toughness, stiffness and strength
• Exceptional strength over wide range of temperatures
• Retains properties up to 500°F continuous use
• High wear and creep resistance
• Excellent dimensional stability
• Low coefficient of thermal expansion
• Excellent wear resistance
4. The applications of PAI Torlon rod
• Text fixture components
• Electrical insulation
• Seals
• Bearing parts
• Sliding compressor vanes
• Nests and sockets
Standard sizes:Dia 5-100mm Length: 0.2m 0.5m 1m 1.2m 1.5m 2m
Any specification is available, welcome to custom torlon PAI rods.
If you have any need to our products, pls feel free to inquire for me. Thanks!
