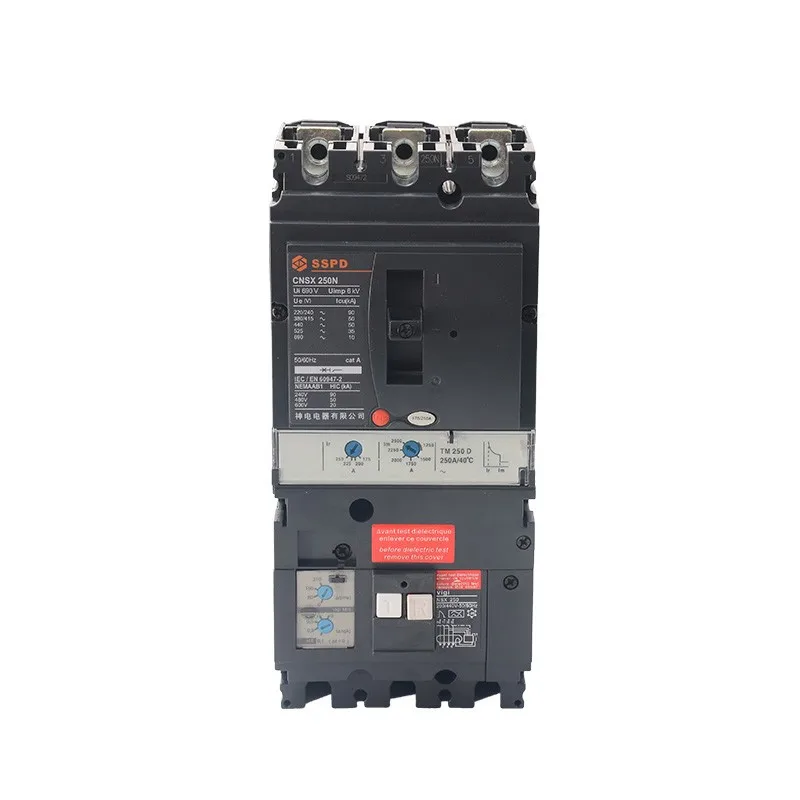

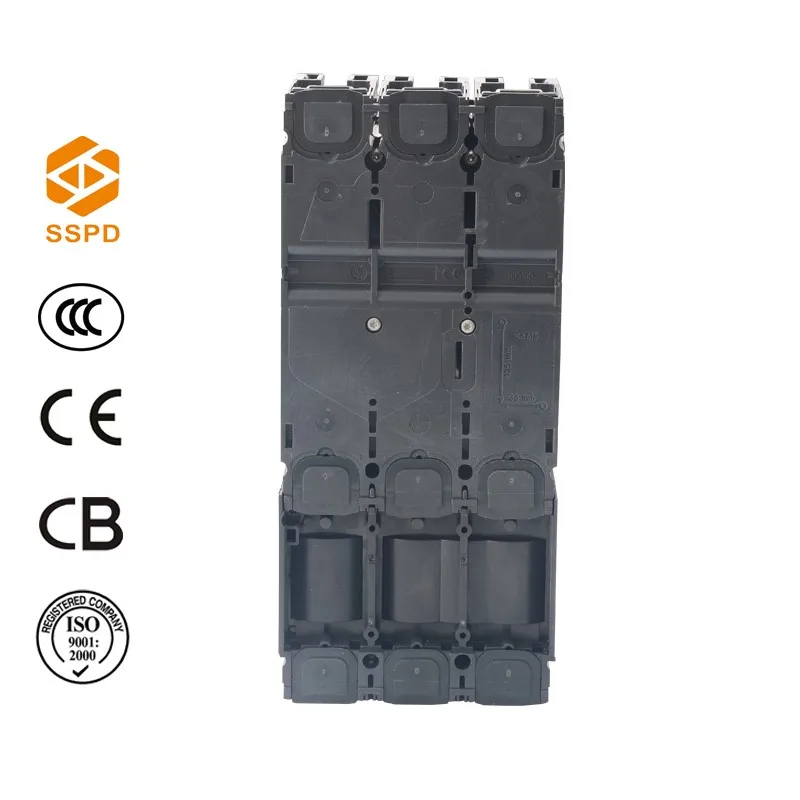

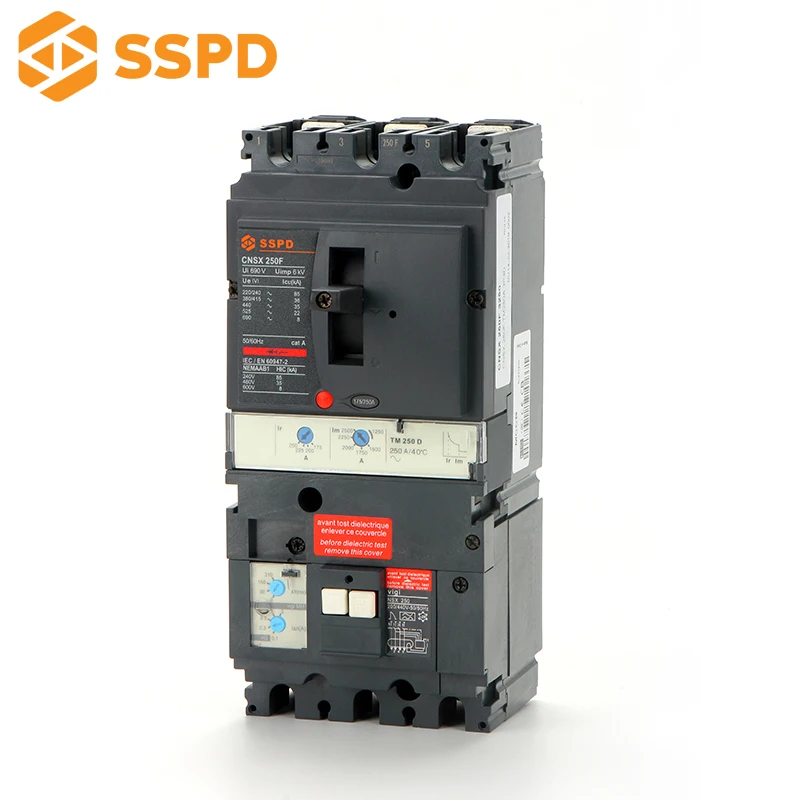

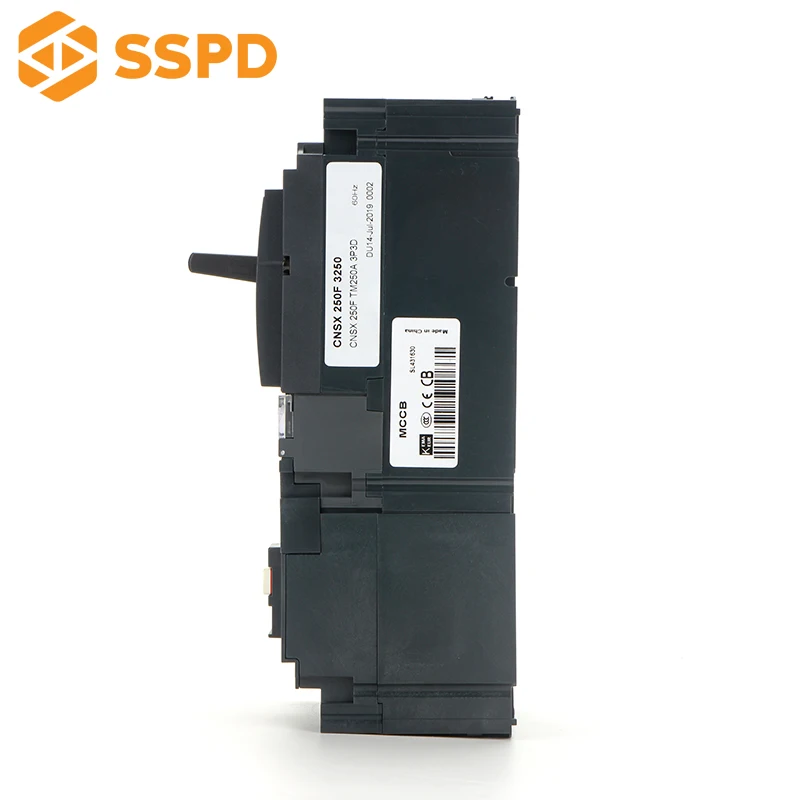

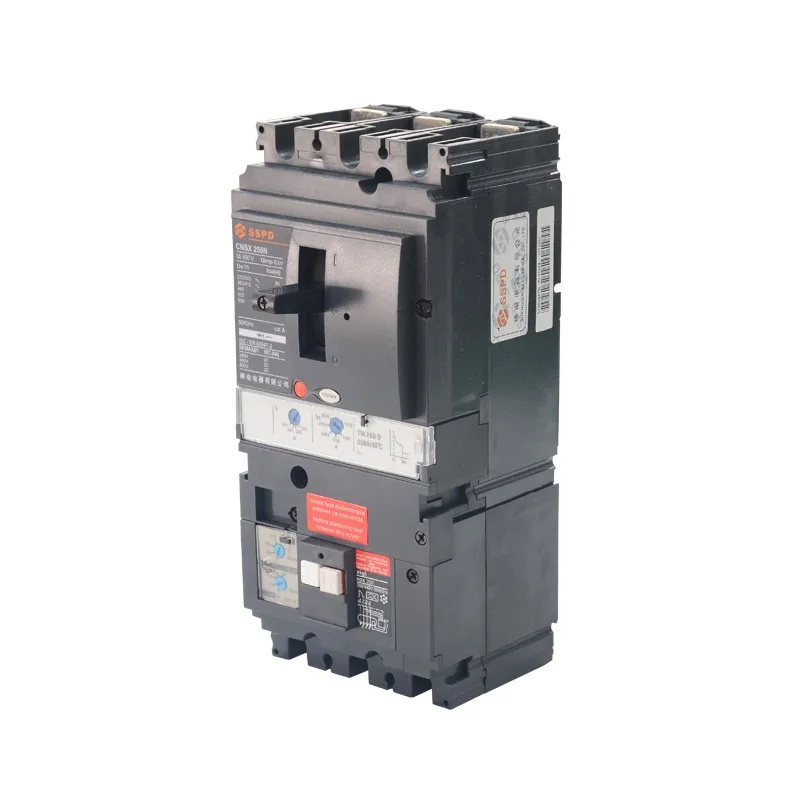

European Circuit Breaker MCCB Supplier CNSX250amp ELCB with CB/CE Certification

Yueqing Shendian Electrical Co.Ltd was founded in 1992, with 23 years of professional production experience in electrical equipment industry.We are committed to exploration and production of intelligent circuit breakers.
"Only do what we do best" is our corporate phliosophy.Shendian Electrical will try our best to achieve the goal of "safety in power grid, free and easy"with our actions.Perfact mccb CNSX 100a 3p electrical moulded case circuit breaker

                                           The birth of each product is inseparable from SSPD every effort.

Description & Dtails

Excellent performance

CNSX dual rotary contact structure and the energy release system to ensure stable and reliable protection,and has exclellent current-limiting characteristics.Transparent aluminum cover protects your trip unit from settings,rotary handle,motor operation mechanism,etc.can be installed.

Compliance with standards

International standards
♦ IEC947-1:general rules
♦ IEC947-2:circuit breakers
♦ IEC947-4:contactors and motor starters
♦ IEC947-5.1:control circuit devices and switching elements;automatic control components.

National standards
♦ GB14048.1:general rules
♦ GB14048.2:circuit breakers

Functions and characteristics

Item No.	100-250	400-630
Number of poles	3p,4p
Control	Manual	with toggle/with direct or extended rotary handle
Connections	Fixed	front connections
	Plug-in	front connections/rear connections
Electrical characteristics as per IEC60947-2 and EN60947-2
Rated current(A)	In	40°C
Rated insulation voltage(V)	Ui	750
Rated impulse withstand voltage (kv)	Uimp	8
Rated operation voltage(V)	Ue	AC50/60Hz,690V
Utilization category	A
Operation performance	Mechanical	8500	6000
	Electrical	1500	1000
Protection	Chart B-1      B-2
Indication and control auxiliaries
Auxiliary switch
MX Shunt coil
MN under-voltage coil

Packing & Shipping

1.Packing:

3P:12 pcs put in one carton, the gross weight for one carton is 21.50KGS, the net weight for one carton is 19.20KGS. the size of carton is 42.5cm X 40cm X 24.5cm.

4P:8 pcs put in one carton, the gross weight for one carton is 18.60KGS, the net weight for one carton is 16.80KGS. the size of carton is 40.5cm X 29cm X 31.0cm.

2. Shipping:
Usually do FOB Ningbo or Shanghai, if required, we can also make CIF or CFR. Our usually delivery time is 30 days.

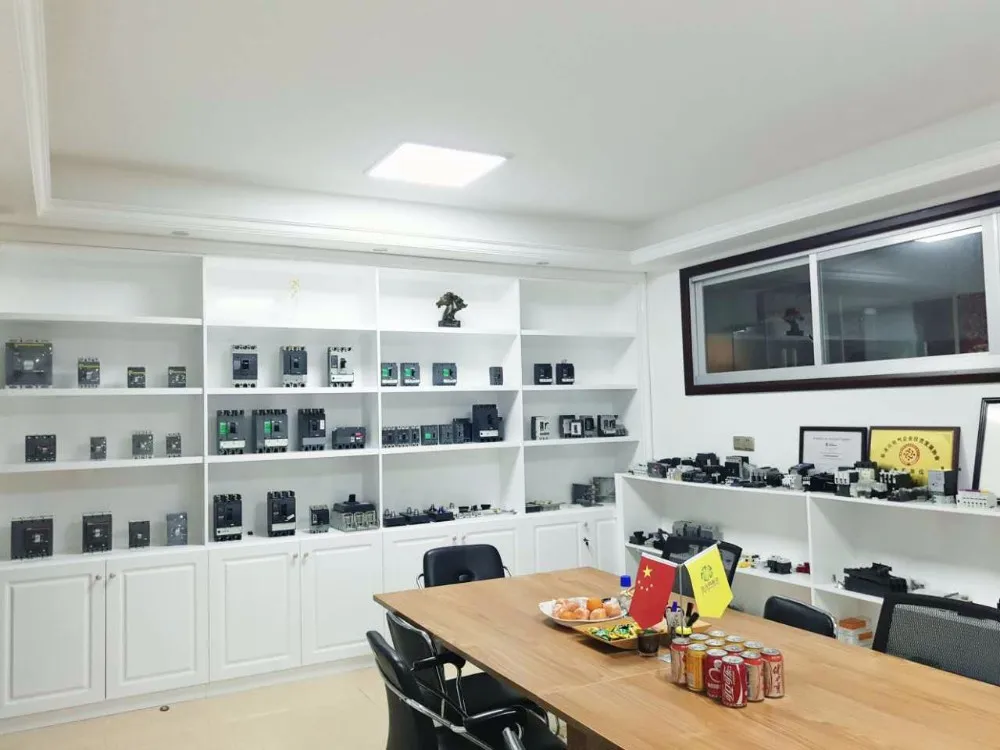

Our client & team

2017 Spring Canton Fair

2016 India Exibition

FAQ

Q1: What kind of material you use?
A1: PC,PA

Q2: Will you accept to customize logo for us?
A2: Sure

Q3: How about your production capacity per month?
A3: 10000pc

Q4: How long can I expect to get the sample?
A4: Within one week

Q5: Where is your mainly market?
A5:Middle East and Southeast Asia
