JHY334561 Shenzhen small rechargeable 12v lipo battery

JHY334561 Shenzhen small rechargeable 12v lipo battery

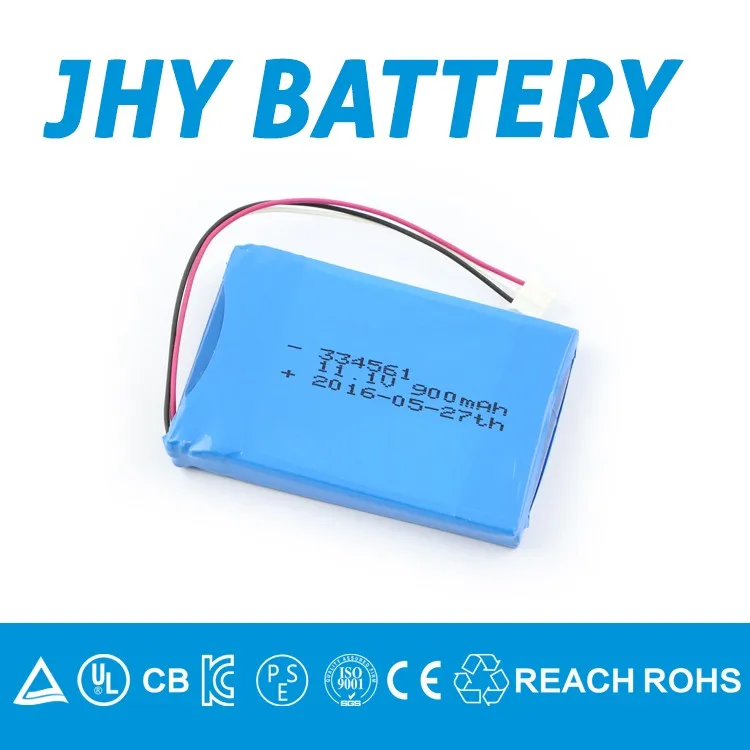

Battery Model\tJHY334561-900mAh 3S1P 12v
Nominal Voltage 11.1V
Min Capacity: 900mAh
Typical Capacity: 920mAh

Cell size:3.3*45.5*61.5mm

Pack size:12.8*47.5*65.0mm

PCM by customised, wires UL#, JST,Molex connector...

Charging Voltage :12.6V
Standard Charging:\t0.2C/12.6V
Max Charging : 1C/12.6V
Standard Discharging\t:0.2C/9.0V
Max Discharging:\t1.0C/9.0V

Shipment Voltage\t≥11.5v  (suggested)
Discharging Cut-off Voltage 9 .0V±0.5V

Operation Temperature\tCharging: 0°C ~ 45°C
Discharging: -20°C ~60°C
Storage: at 60% SOC
\t-10℃~25℃: 12 months,
-10℃~45℃: 6 months,
-10℃~55℃: 1 months,
Recommended Temperature: 20±5℃

Certification we got: CE, ROHS, IEC62133, CB, UN38.3, KC (cell & pack), UL1642, UL2054, PSE, WERCS;

12v lipo battery

Shenzhen JUHEYUAN (JHY) Science & Technology Co., Ltd is a leading hi-tech enterprise specializing in lithium ion battery R&D and manufacturing in China, particularly it is well-known as its small li-polymer batteries in battery industry.
Established in 2007 and headquartered in Longgang district, Shenzhen city, JHY is composed of an elite team with more than ten years experiences in li-ion battery technology, production and quality control and marketing.
