Horizontal Broaching Machine 30t Hydraulic Horizontal Internal Broaching Machine Model LC530
- Category: >>>
- Supplier: Shanghai Bomar Industrial Co. Ltd.
Share on (60648458693):
Product Overview
Description
Product Description
Horizontal Broaching Machine 30t Hydraulic Horizontal Internal Broaching Machine Model LC530
| Model | LC510 | LC520 | LC530 |
| Rated Tension (Kn) | 100 | 200 | 300 |
| Broaching Stroke (mm) | 1100 | 1400 | 1800 |
| Broaching speed (m/ min) | 7~10 | 1.7 | 1.7 |
| Return speed (m/ min) | 8~14 | 6 | 6 |
| Worktable pore diameter (mm) | 80 | 100 | 110 |

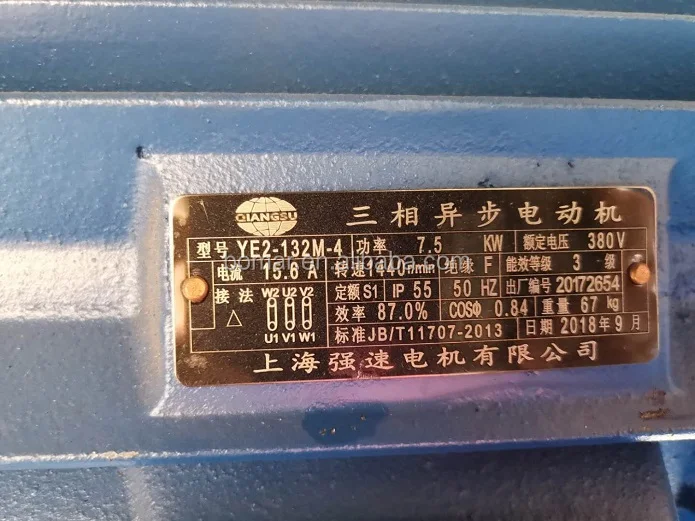

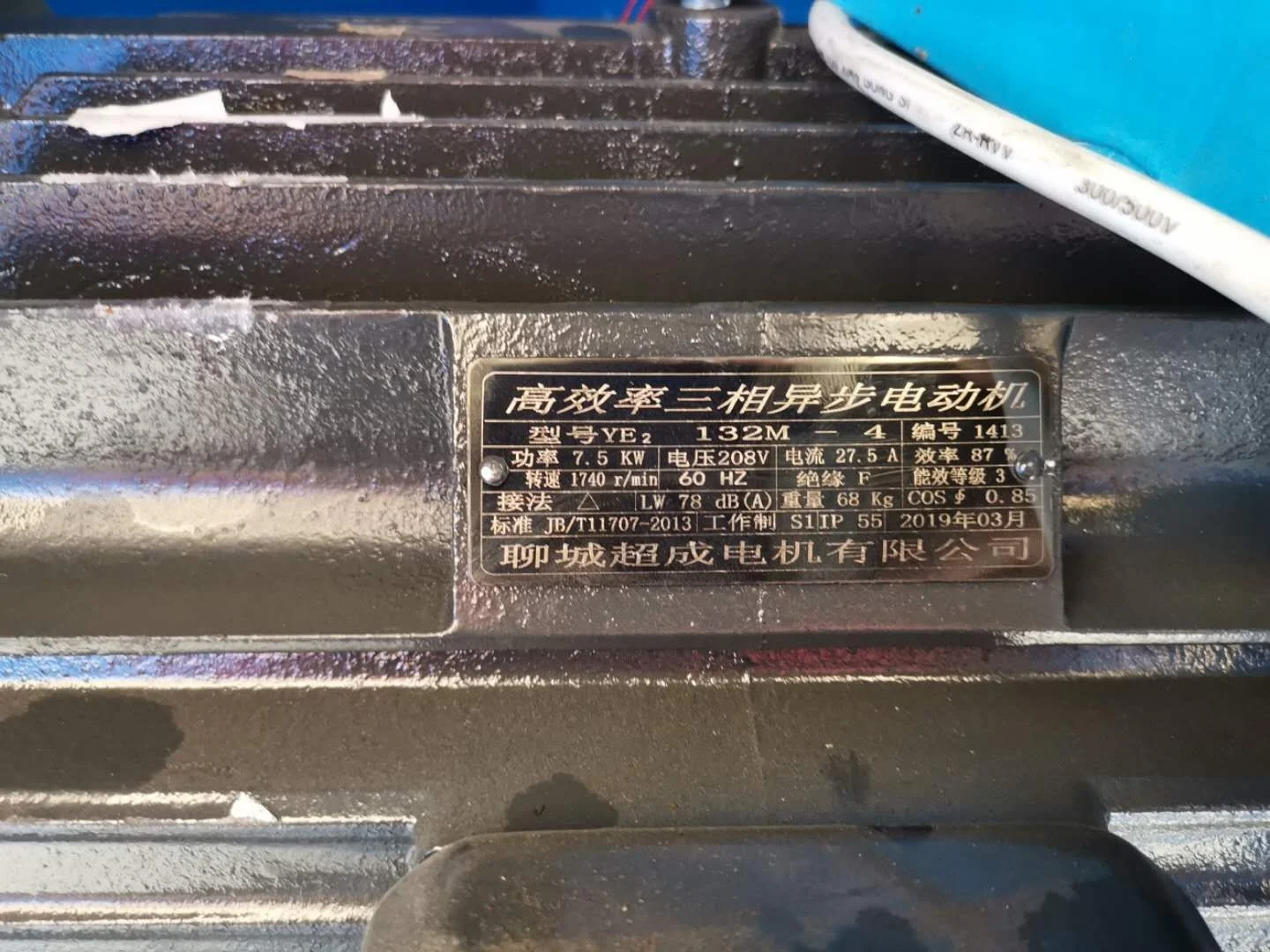

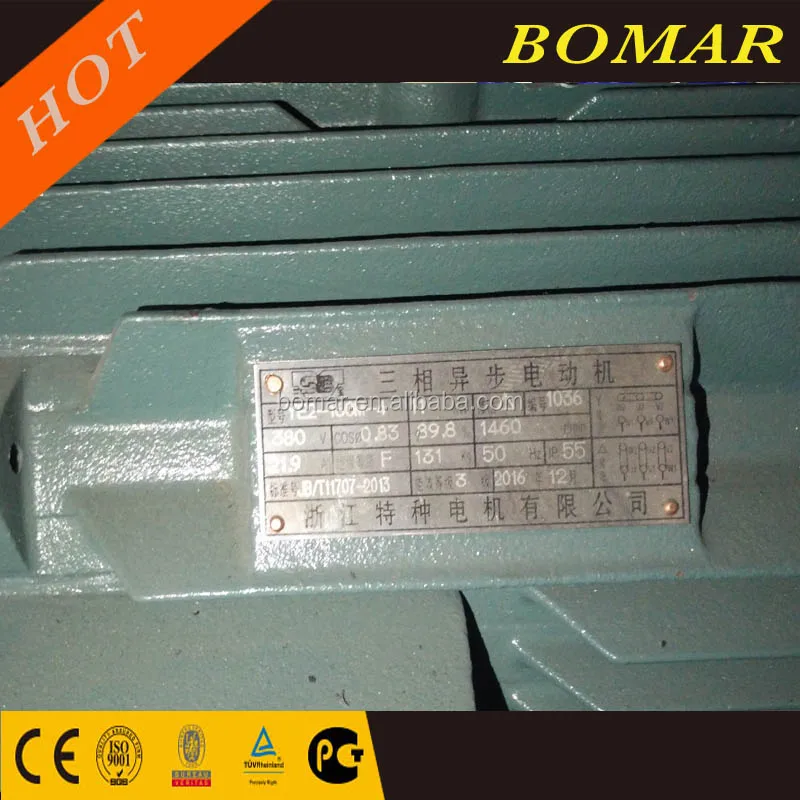

| Motor power (kW) | 4 | 7.5 | 11 |
| Cool pump power (kW) | 0.09 | 0.09 | 0.09 |
| Machine overal dimension (L*W*H) | 3500*530*900 | 3900*530*900 | 4200*530*900 |
| Machine weight (kg) | 950 | 1000 | 1600 |
For model LC520, 20t broaching machine, broaching stroke is 1.4m, 1.6/1.8m is option
For model LC510, 10t broaching machine, broaching stroke is 1.1m, 1.4m is option

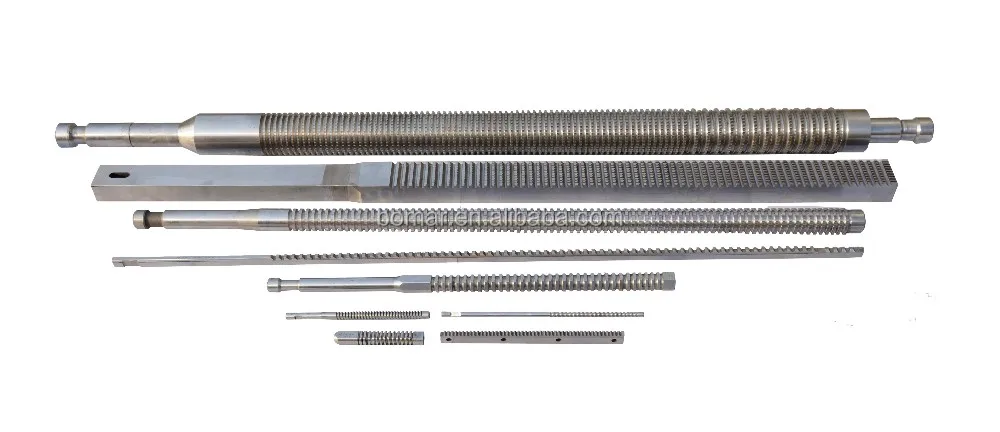

We also have multi-function broach head special for keyway broach as option parts
Our Services

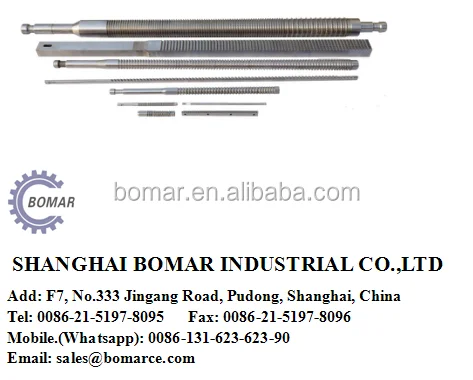

We are professional supplier of broaching machines and broaching tools, spline broaches manufacturer, we know how to supply the best machine and tools, we already export our tools & machine to Viet Nam, Ukraine,USA, Norway, Russia,Norway, Pakistan, Estonia, Macedonia etc, hope you will be the next destionation!
Due to 20 years experience, we will give you professional suggestion in broaching tools and how to choose machines.

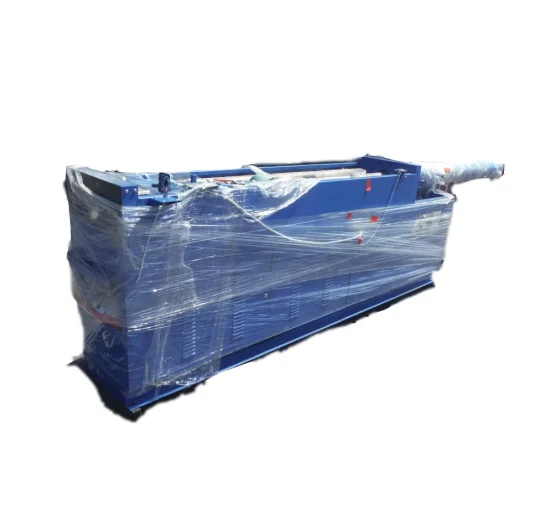

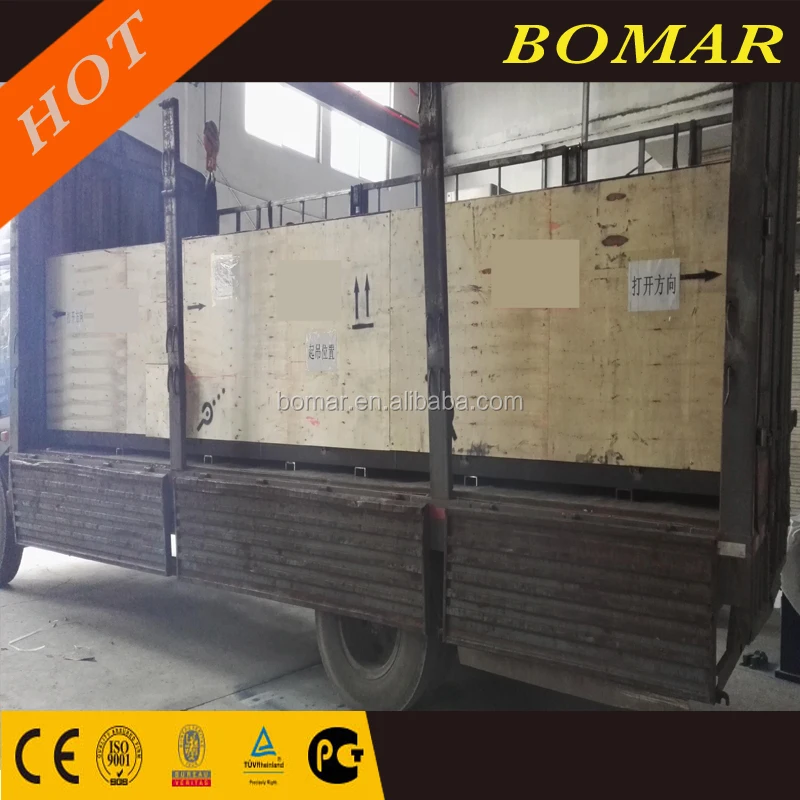

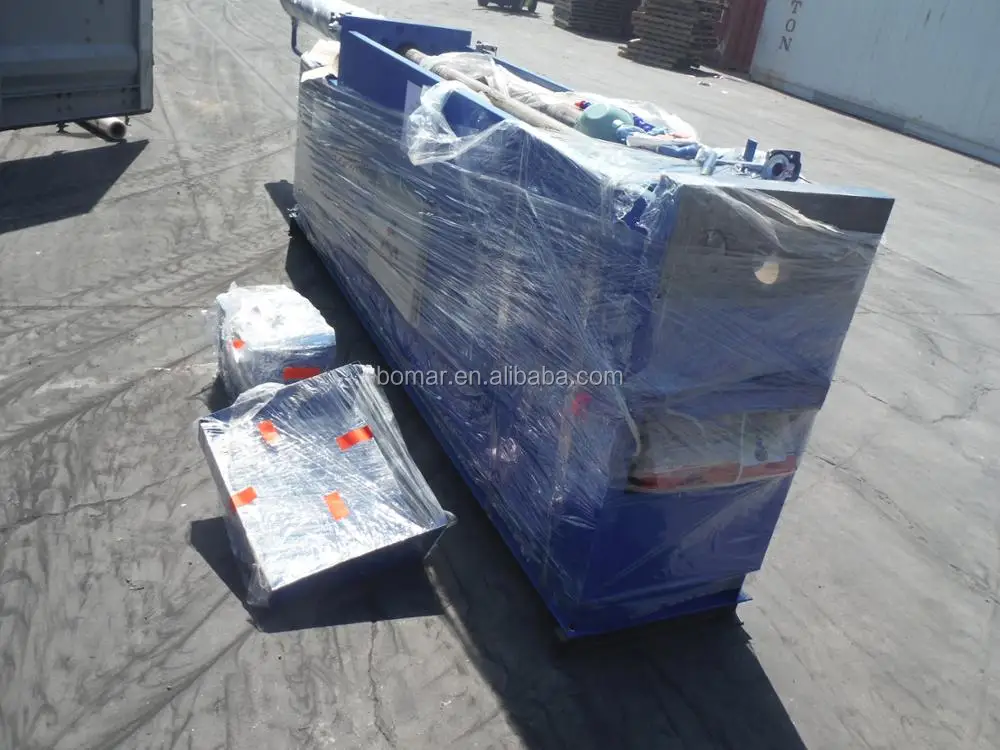

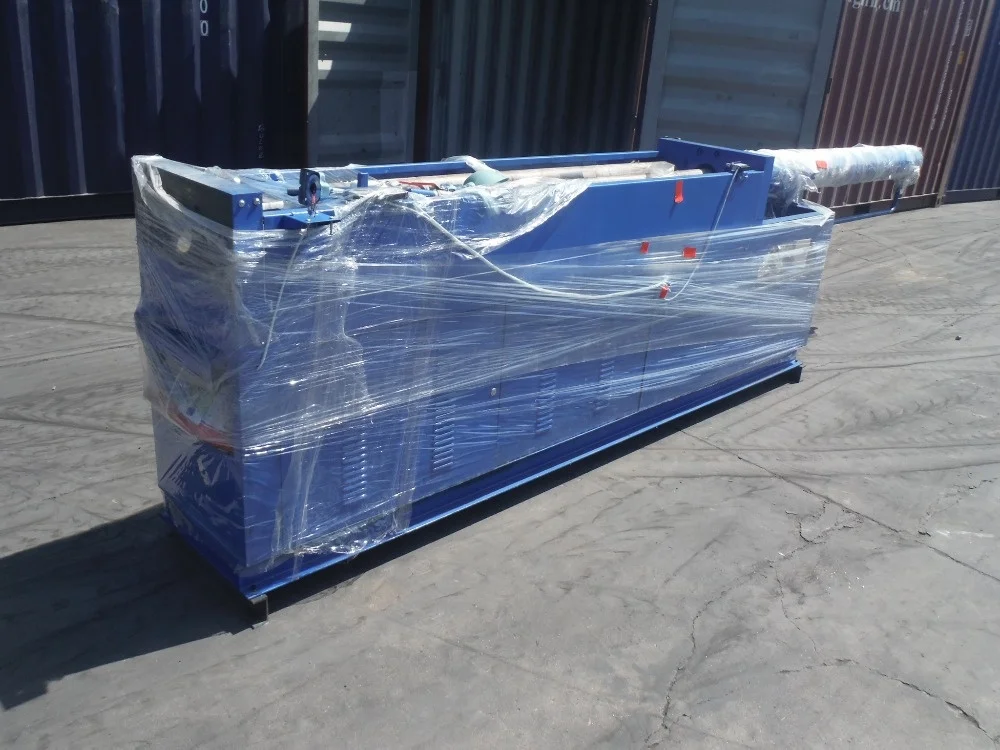

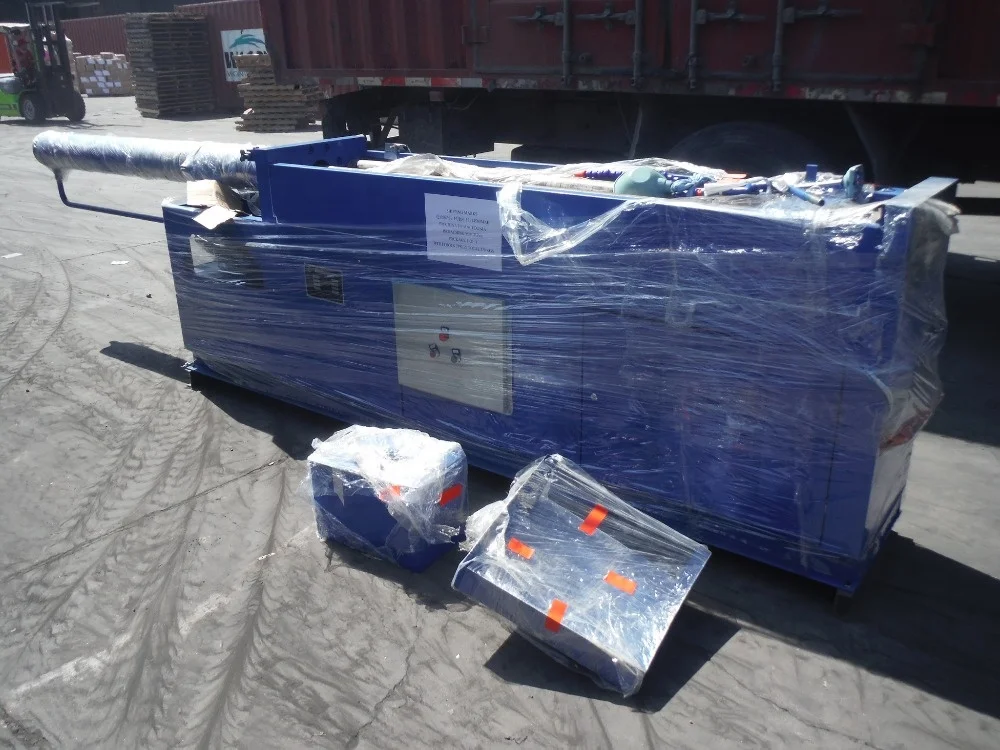

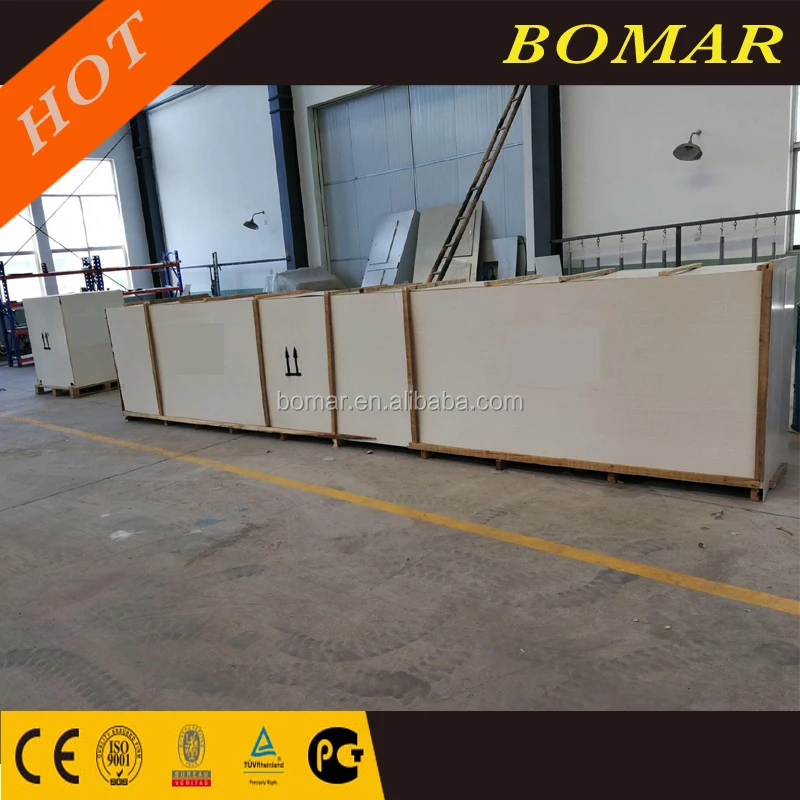

Packaging & Shipping
