portable x ray machine SMT pcb x ray inspection machine x6600
- Category: Certification, Inspection & Credit Management >>>
- Supplier: Shenzhen Zhuomao Technology Co. Ltd.
Share on (60648570103):
Product Overview
Description
Product Description

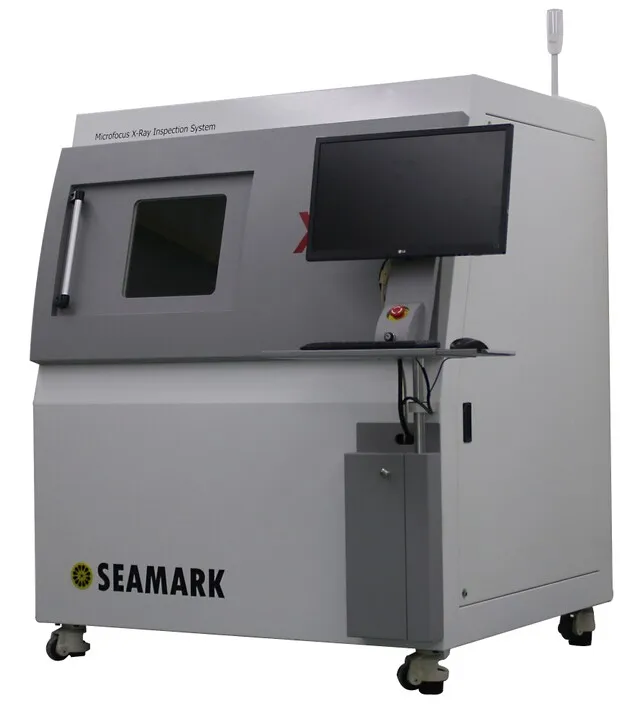

portable x-ray machine SMT pcb x ray inspection machine x6600
Major applications:
PCBA BGA/IC LED Aliminum die casting Battery connector inspecting
1. Semiconductor package
2. Electronic connector module.
3. Original Package
4. Aerospace components
5. Medical appliances
6. Automation components
Video Link:
https://youtu.be/yDAdR_cs5xs
https://youtu.be/N2jYu8h1bW8
https://youtu.be/0krZkxgzlNg
X-ray Inspecting Features:

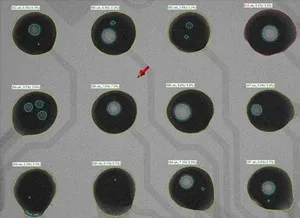

(1) Coverage of process defects up to 97%. Inspectible defects include: Empty solder, Bridge, Solder shortage, voids, components missing, and so on. In particular, the BGA, CSP and other solder joint devices can also be checked by X-Ray.
(2) Higher test coverage. It can check where the naked eye and the online test can not be checked. Such as PCBA was judged fault, suspected PCB inner trace break, X-ray can be quickly checked.
(3) The test preparation time is greatly reduced.
(4) It can observe other means of detection can not be reliably detected defects, such as: Empty soldering, air holes and poor molding and so on.
(5) Double layers board and multi-layer boards only one check (with layered function).
(6) Can provide relevant measurement information, used to evaluate the production process. Such as solder paste thickness, solder joints under the amount of solder.
X-ray detection technology for the SMT production testing means brought new changes, it can be said that it is the desire to further improve the level of production technology to improve the quality of production, and will soon find the circuit assembly failure as a breakthrough. It's the best selection for the manufacturer.
Principle Diagram
Detail Presetation

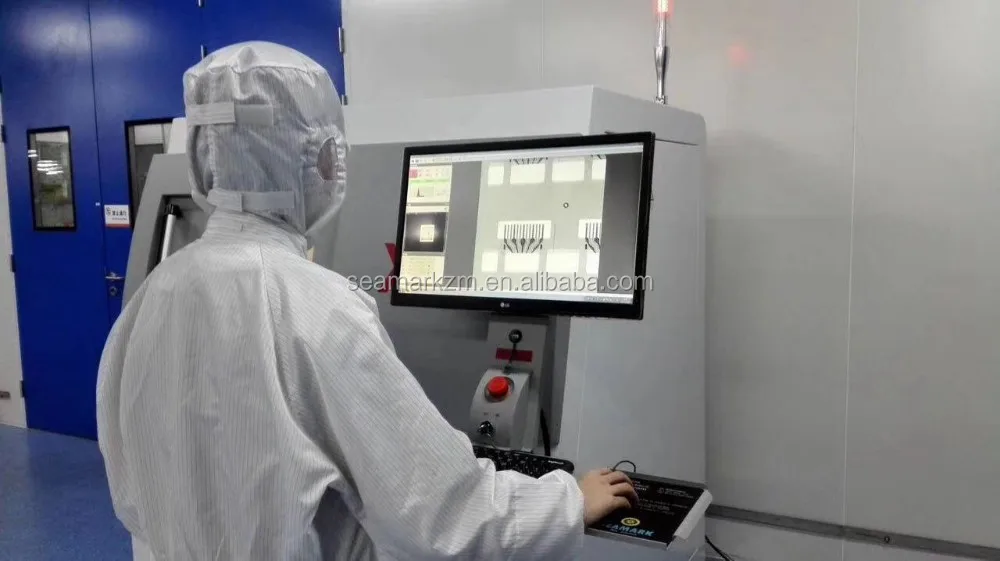

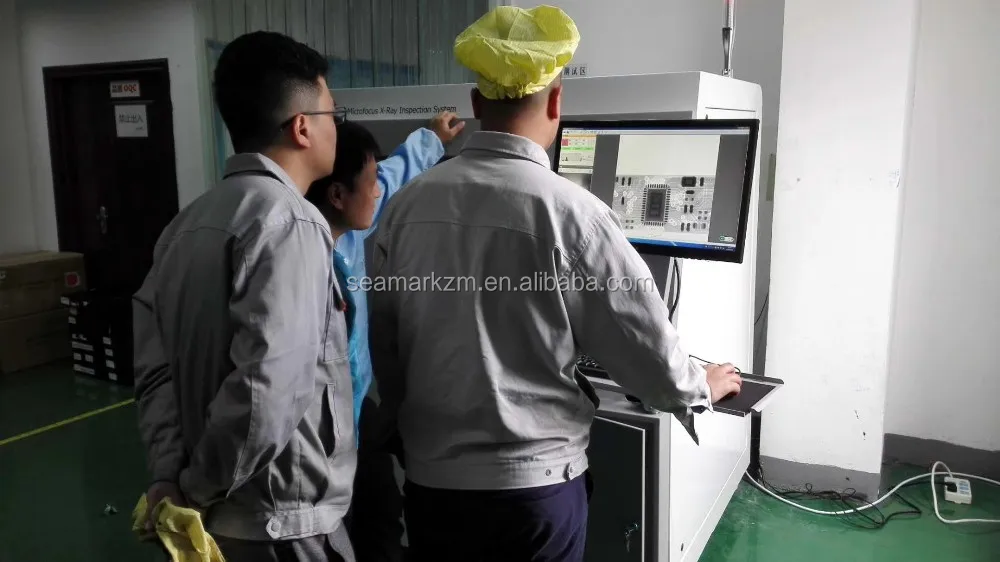

Digital Panel Detector Mapping Guide System+PC Control Interface

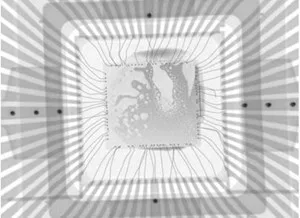

Application

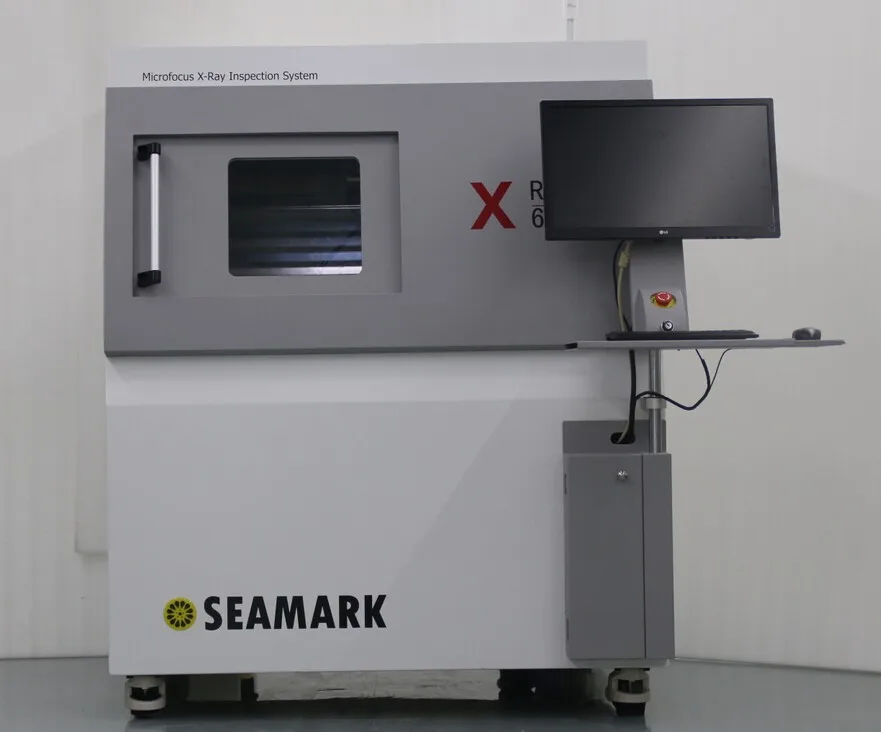

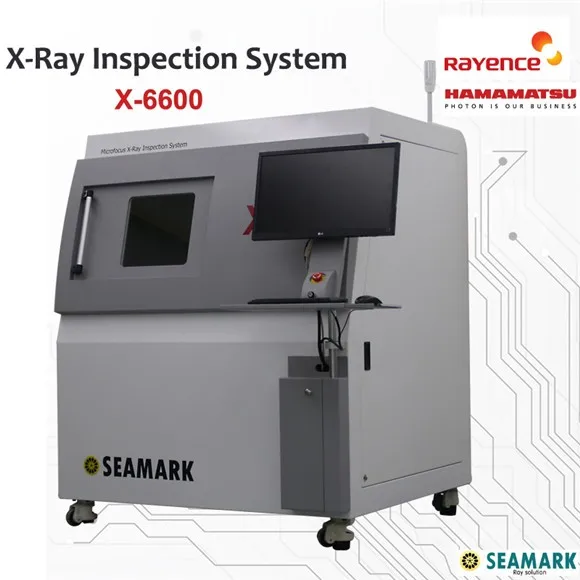

Specification for Seamark X6600 X-ray inspection system | |||
Mainly Functions portable x-ray machine | |||
Functionsportable x-ray machine | Advantages | ||
X-ray tube and detector can be moved along the Z axisportable x-ray machine | can be detected the Defects less than 2.5μm | ||
Software setting voltage and current | Easy maintenance, with long life | ||
Can control the speed in X-Y direction | Eeasy operation, Traning time just need 15minutes | ||
Editable detecting proceduresportable x-ray machine | Suitable for the large batch detecting | ||
Detectors maximum inclination 70 ° | Semiautomatic to identify OK / NG in Products | ||
Large navigation windowr, mouse clicks canl move the stage to a position that you need.portable x-ray machine | High accuracy detection Can meet the size for kinds of samples allows a unique perspective to detect sample | ||
Technical Parameters portable x-ray machine | |||
Itemsportable x-ray machine | Contents | ||
Modelportable x-ray machine | X-6600 | ||
X-RAY launching tube | Tube Type | Sealed type X-ray Tube | |
Maximum tube voltage | 90kV | ||
Maximum tube current | 0.12mA | ||
Focal size | 5um | ||
Magnification | Geometric magnification:150X System magnification:1000X | ||
Detector | Image Speed | 30 fps | |
Resolution | 1000*1000 | ||
Tilt angle | Detector60°Tilting | ||
Cabinet Specifications | Stage size | 640mm*540mm | |
Dimension | L:1360mm,W:1360mm,H:1650mm | ||
Net weight | 900kg | ||
Input voltage | AC 110-220V (+10%)(international general power supply) | ||
X-ray leakage amount | ≤1 u Sv/h | ||
Operation System | Windows 7 | ||
Total power | 1.5Kw | ||
Standard configurationportable x-ray machine | |||
Items | Quatity | Unit | Remark |
90KV-5umSealed type X ray Tube | 1 | PCS | |
Stage | 1 | PCS | Size:640mm*540mm |
Flat Panel Detector | 1 | PCS | High definition |
Image processor CPU | 1 | PCS | Full-featured |
LCD Monitor | 1 | PCS | 24" |
Most Zhuoao photoelectric X-RAY system supports all kinds of X-RAY tube, X-ray detector and image processor. We can provide different configuration of the shell, X-ray tube control, enhanced screen and image processing functions according to the needs of customers.
Customer Visiting
In order to meet the international market demand and customer customization requirement, we keep developing and researching different level of machines for different customer choice.
Nearly every day some customers from home and abroad come to visit our factory, we arrange the technician to show the PCB X-ray machine operation. Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
FAQ
1. How about the package? Is it safe during the delivery?
All PCB X-ray machine is packed by standard strong wooden carton.It is safe when shipping.
portable x-ray machine SMT pcb x ray inspection machine x6600
2. What is the delivery way? How many days will the machine arrrive us?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
portable x-ray machine SMT pcb x ray inspection machine x6600
3. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
portable x-ray machine SMT pcb x ray inspection machine x6600
4. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
portable x-ray machine SMT pcb x ray inspection machine x6600
5. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.
portable x-ray machine SMT pcb x ray inspection machine x6600
For more details of SMT industrial x-ray inspection machine x6600 bga inspecting machine. Looking forward to your inquiry
