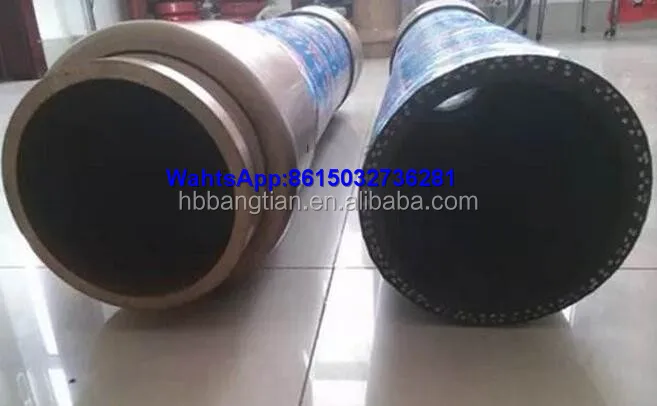

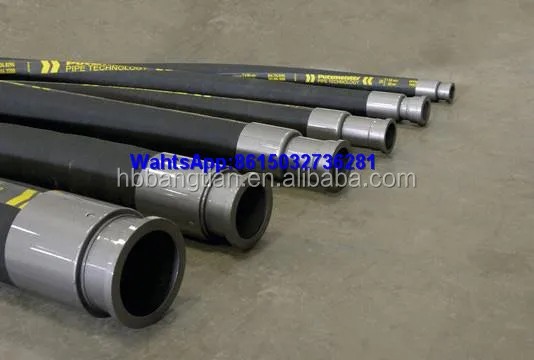

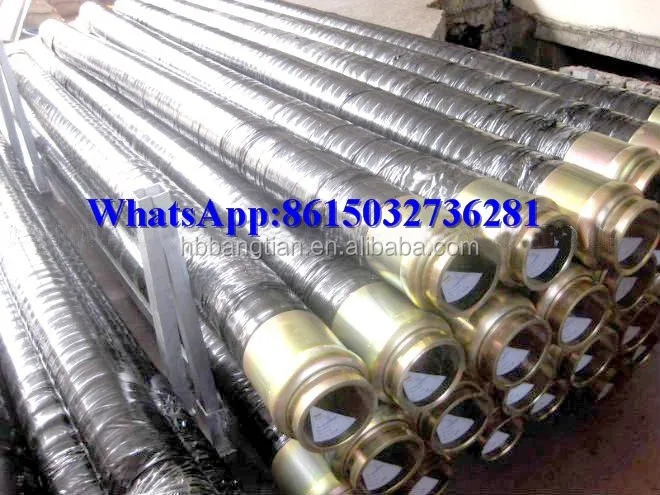

China Steel Wire Braided Flexible Concrete Pump Rubber End Hose
Product Description
We are make the China Steel Wire Braided Flexible Concrete Pump Rubber End Hose, peristaltic pump hose,many types of pump hose.

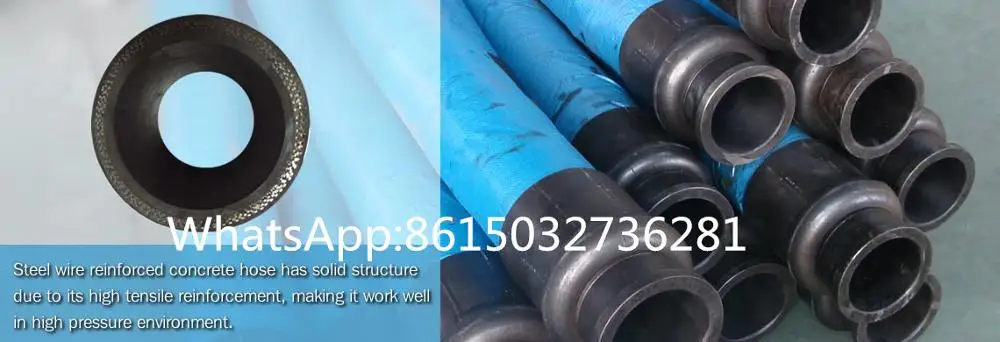

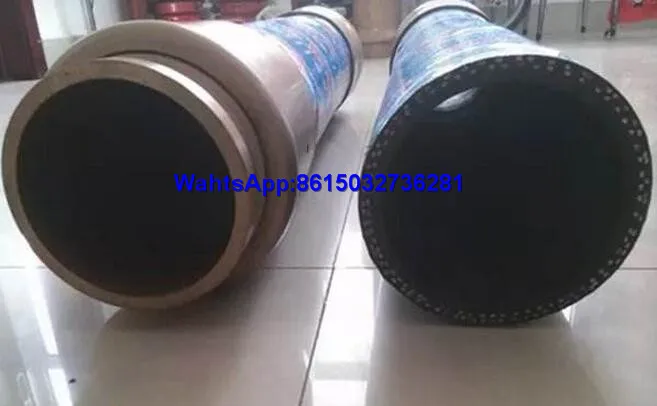

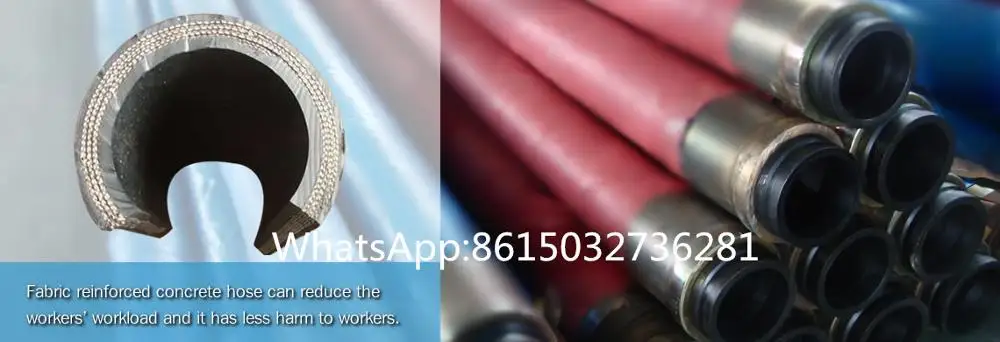

We have two type of hsoe: Fabric reinforce hose and Steel wire braid hose

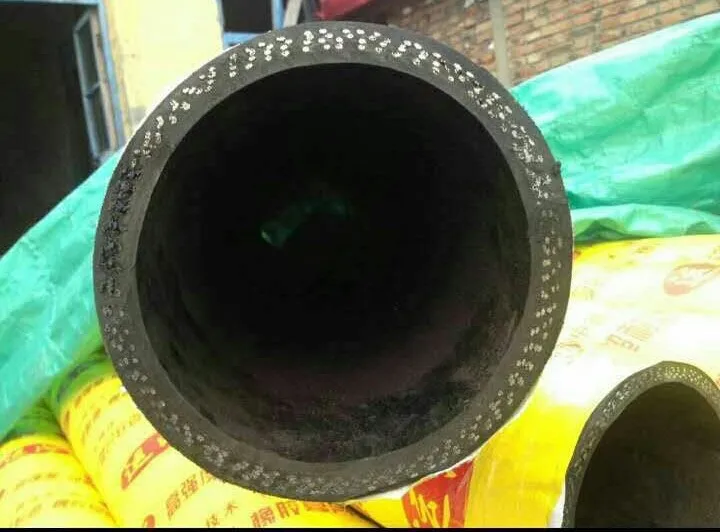

Concrete Pump Hose/Cement Hose/Gunite Rubber Hose
This Concrete Pump Hose is specially used for the peristaltic pump which has a soft and elastic pipe body and a better anti-abrasion function. The hose is added by synthetic fiber so that increased overall performance ,The heat building-up is low especially when using and it has a delightful elasticity recovery.

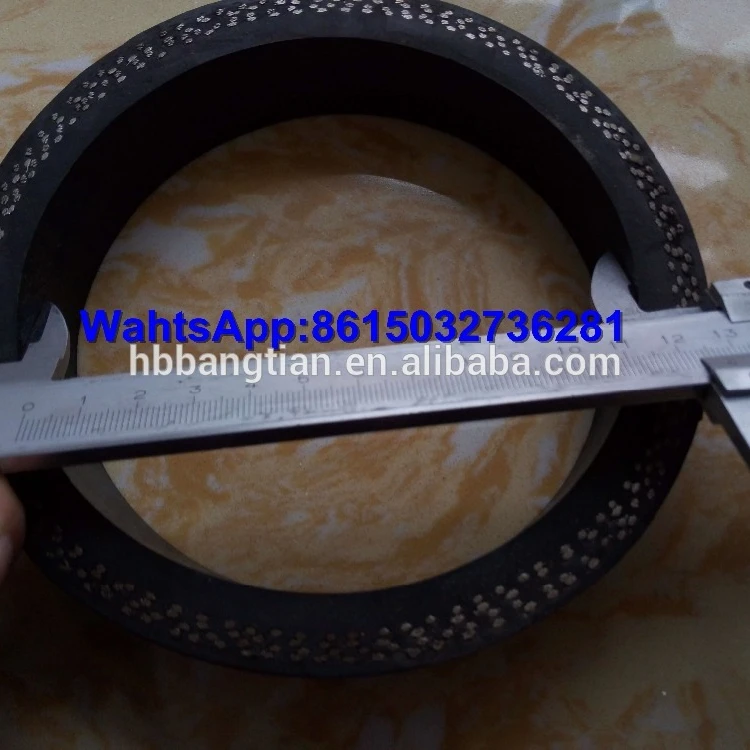

Tube: black conductive NR-abrasion resistant Reinforcement: high tensile textile cords/steel wire type Cover: black conductive SBR/NR-abrasion and ozone resistant Temperature: -30 °C +80 °C
Cement Pump Rubber Hose Specification:
Spec.
Inner diameter (mm)
Wall thickness tolerance (mm)
Outer diameter (mm)
Working pressure (bar)
Bursting pressure(bar)
Bend radius (mm)
Weight(kg/m)
2"
50
9±0.75
68±1.5
85
240
200
2.6
2.5"
64
10±0.75
85±1.5
85
240
250
4.3
3"
76.2
12.9±1
102±1.5
85
240
270
6.1
3.5"
89
13.5±1
116±1.5
85
240
290
8
4"
101.6
14.2±1
130±1.75
85
240
300
9
4.5"
115
14±1
143±2
85
240
320
10.2
5"
127
16±1
158±2
85
240
360
12.5
Hebei Bangtian Mine Safety Equipment Co., Ltd. is professional hose supplier.
If you are interested in any products, feel free to contact me.

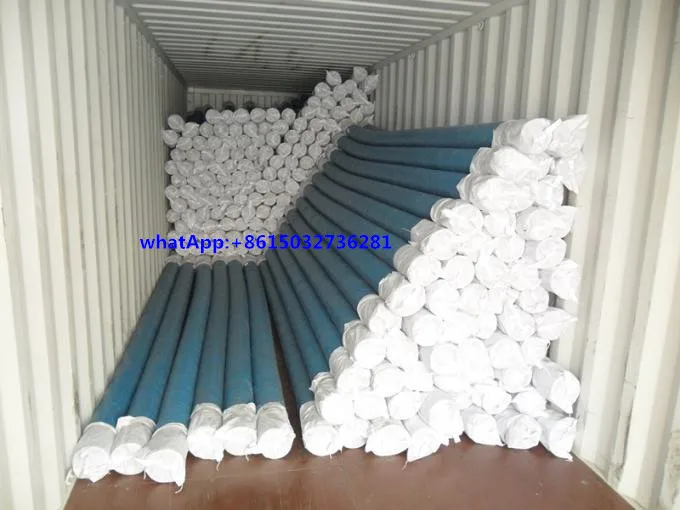

Packaging & Shipping

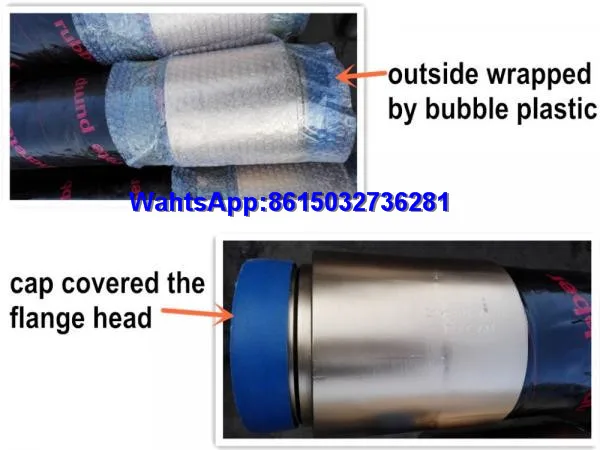

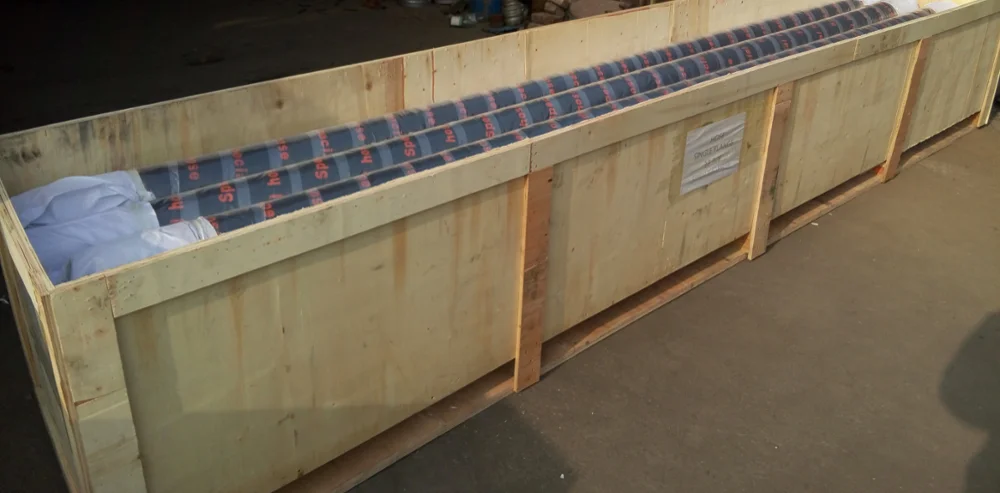

concrete pump hose Packing
Delivery
Company Information

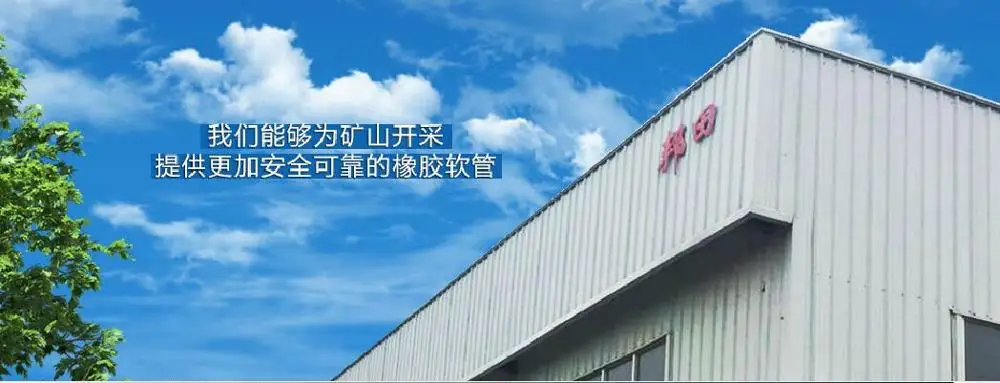

Hebei Bangtian Mine Safety Equipment Co., Ltd.
Hebei Bangtian Mine Safety Equipment Co., Ltd. is located in Fucheng, also known as the Canal City, an ancient town in southeast Hebei Province. Founded in 2010, the company is a specialized manufacturer of mining hole sealing devices, rubber hoses, and hole sealing materials. Currently, the company has 45 employees, of whom 6 are engineering and technical persons, besides, the company has specialized production and testing facilities, proving customers with qualified products.
Our advantages:
1, Our company was established in 2010 and we have rich experience.
2 we have our own factory and have dozens of advanced machining equipment.
3,we can design and munafacture various rubber hose and fluid couplings according your requirments
4,Our company passed the ISO9001,ISO14001 and as a CCS certification company.
5, we have many customer all over the world, like CNOOC, Petrochina, Sinopec, varous oilfield and so on.
concrete pump hose Workshop
