Product Overview
Description
Product Description
Fruit&Vegetable Vacuum Cooler

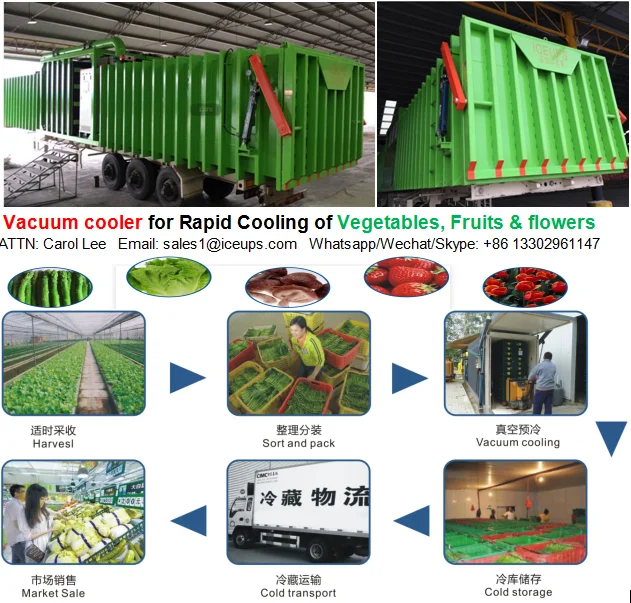

1.Vacuum Cooler is the quickest and most cost-effective cooling system for vegetable, fruits, flowers & more.
2.Vacuum cooler, which can strongly improve your product quality and at the same time reduce your cooling costs, is now becoming an acceptable investment for almost all vegetable growers!
3.Vacuum Cooler cools fresh product quickly and uniformly in large loads within 15-30mins/cycle, also suitable for packed produces.
ICEUPS will design and offer the most suitable machine according to clients'requirements.
* Vacuum Cooler Machine Condenser System Type:
1) Air condenser:The simplest construction, suitable for small system.Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install. Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.
*Door type of Vacuum Cooler Machine
1) Standard swing door: The simplest construction, manual operation. The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed ,besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door:Suggested solution for all systems from 2-6 pallets. Easy installation , easy ramp construction.
Please contact ME to get more technical information & quotations.
SPECIFICATIONS FOR 3000KG VACUUM COOLER | ||||||
Vacuum cooler | Model | KMS-06P | 3000kg/6 pallets | |||
processing temperature | From 30°C to 2°C | 20-30 Minutes | ||||
Vacuum chamer Dimensions | 6500x2609x2200 | mm | ||||
Main performance parameters | Refrigeration capacity | 200 | kw | |||
Compressor power | 68.5 | kw | ||||
Evaporating temperature | -15 | ℃ | ||||
Operation system | power supply | 380v/50hz/3p | or 220v,415v,480v | |||
Refrigerant | R404a | / | ||||
Automatic control system | PLC | international famous brand | ||||
Main Features of 6 pallets Vacuum cooler
1)Green Cooling: Energy saving &Optimal cooling efficiency
2)Radily Cooling: From 30°C to 2°C in 20-30 Minutes
3)Extend Shelf Life: Stay freshness and Nutrition Longer
4)Accurated Control: PLC combine with sensitive sensors&valves
5)Easy Operation Design: Automatic Control work with touch screen
Certifications
Detailed Images
Name: Vacuum Pump
Global famous vacuum pump with good quality

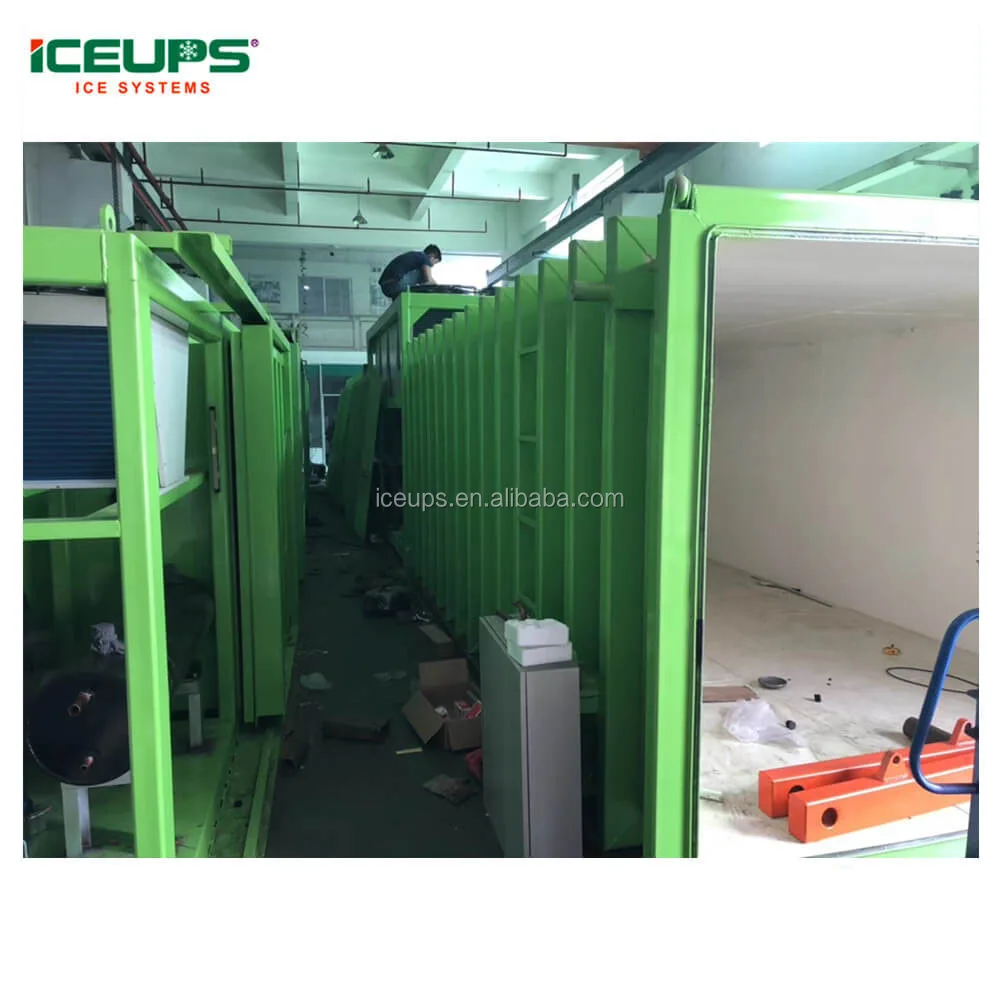

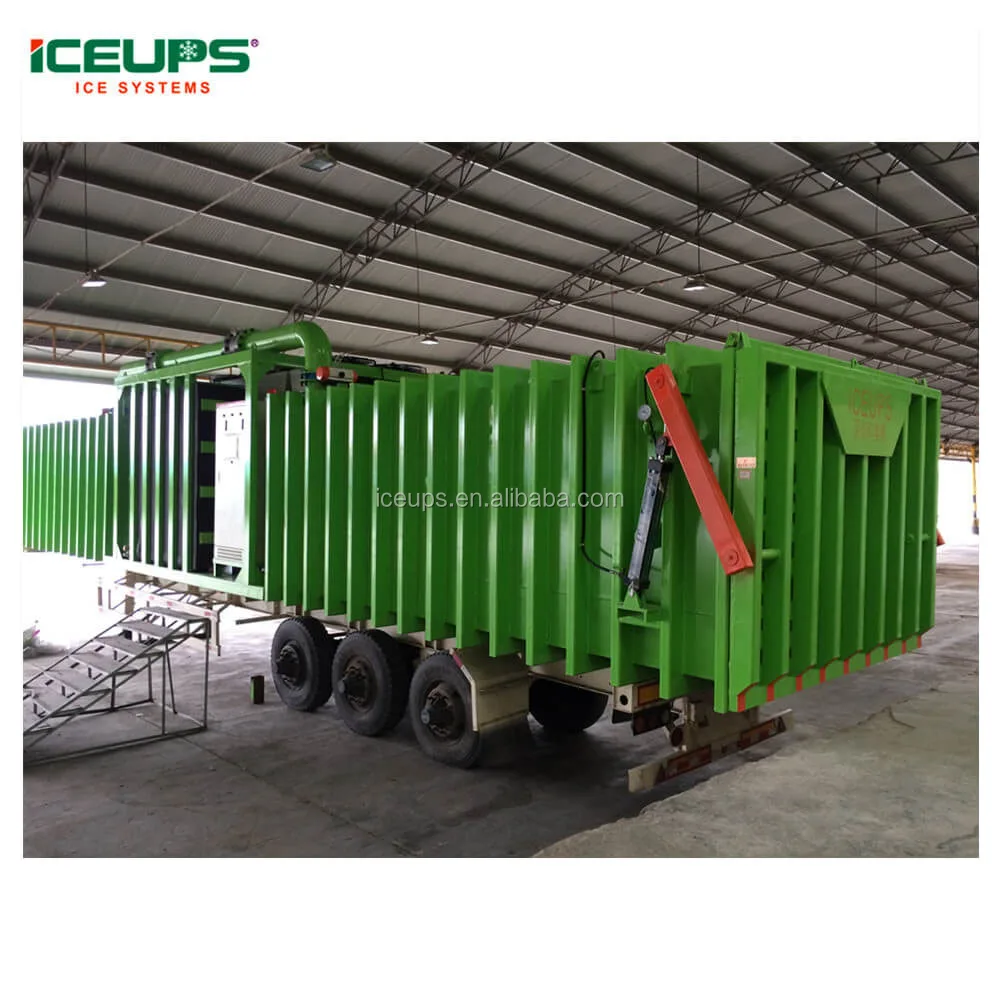

Name: Vacuum Chamber
1) the size of the chamber is defined by the amount of pallets(1~12pallets,weight ranging from 250 to 4,000kg)
2)Crops are to cool within 20~30minutes per time, and their individual
3)Chamber Material:Painted mild steel and Stainless steel
Name: Compressor
International famous compressor

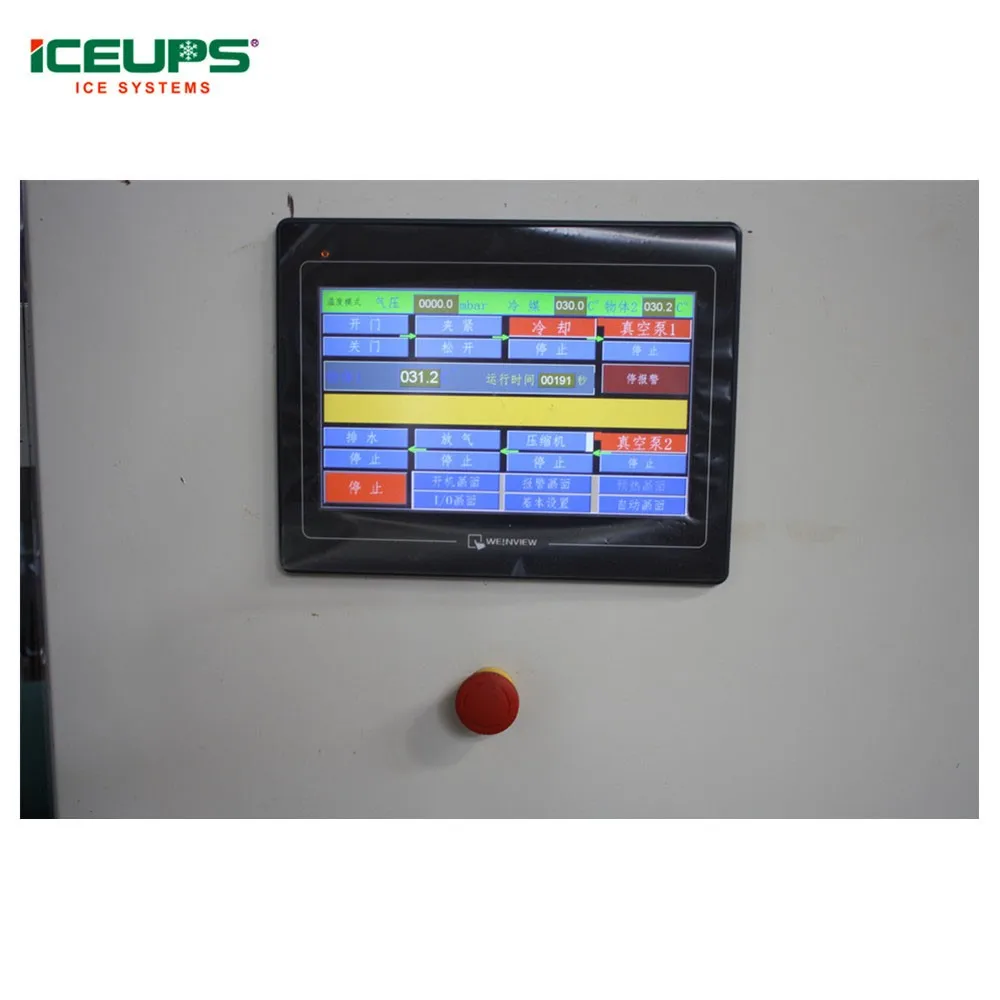

Name: Intelligent control system
Automatic and good quality, strong driving force, low fuel consumption, high economic benefits.
Automatical PLC programmable control system

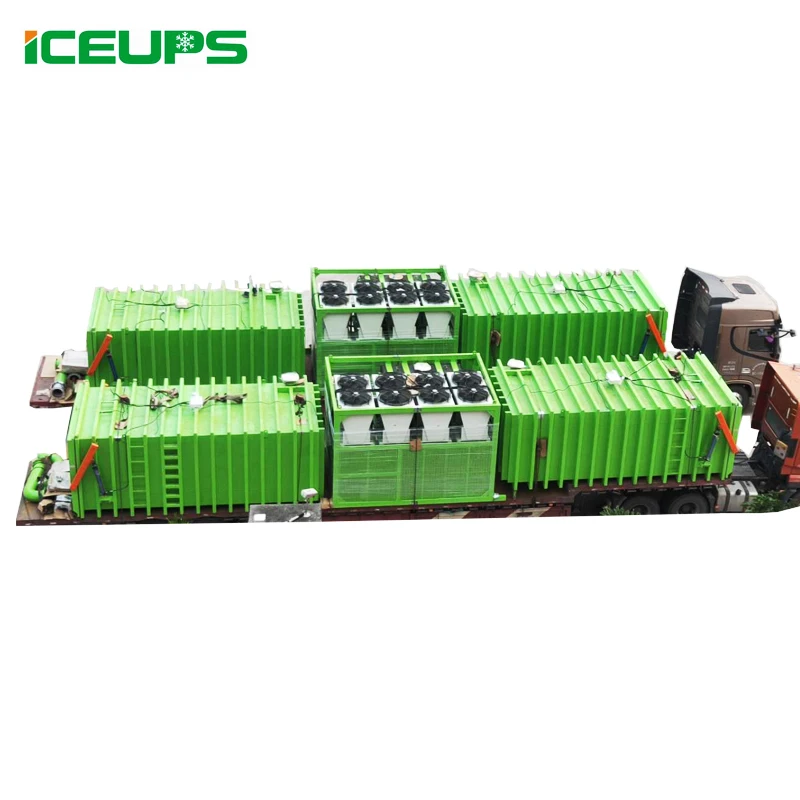

Packing & Delivery
Packaging | ||
Size | 40"GP | |
Weight | 5.6T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 20"GP | |
Weight | 3.4T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
