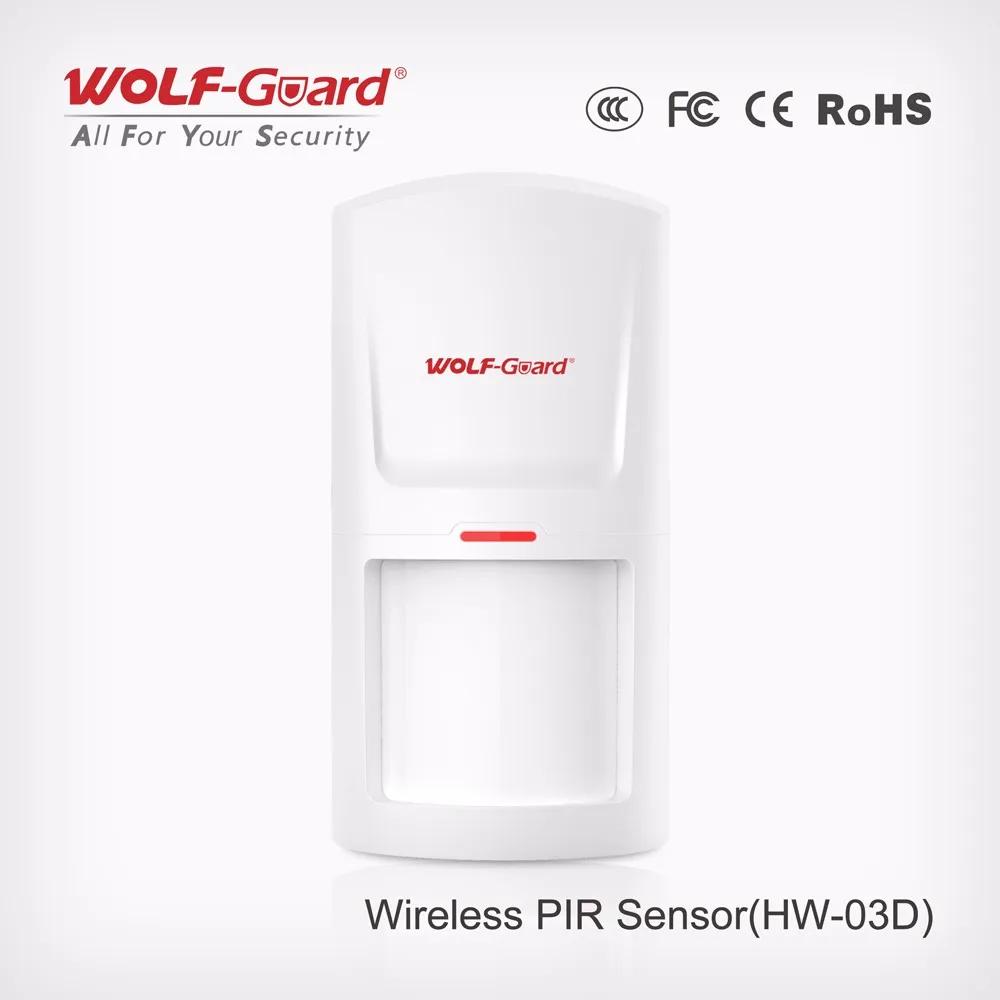

Best sell HW03D Wireless 868MHZ 433MHZ Movement sensors battery powered pir motion detector
Product Description
Features:
- This product is a special home and business PIR detector with delicate and modern design, adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and anti-strong light function and avoid false alarm.
- High technology to distinguish interference and motion signal;
- Re-detecting time adjustable: extend life span of the battery;
- Low standby current (30uA) to extend the battery life;

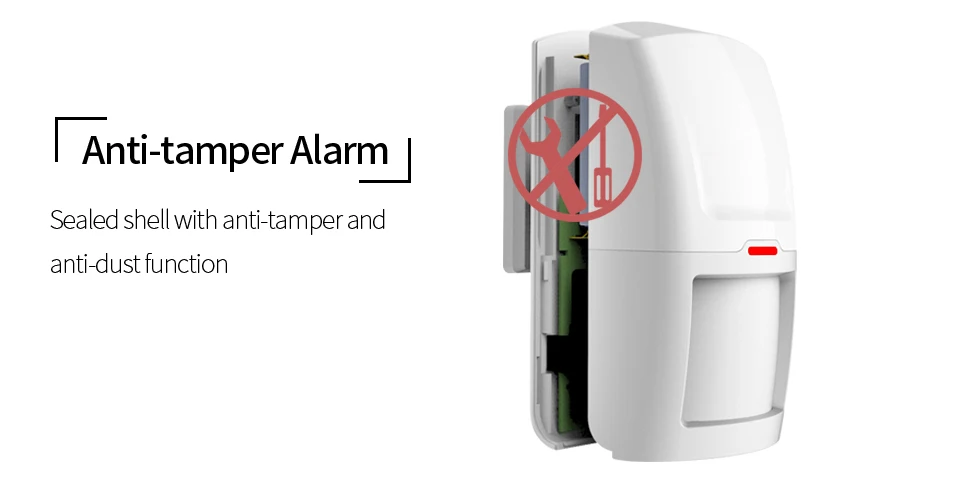

- Tamper alarm function: send signal to the control panel when the cover is open;
- Low power alert function: inform users to change batteries in time.
Technical Parameters:
- Average power: AC/DC exchanger 2A.
- Wireless receiving distance: ≥ 100m
- Operating Frequency: 315 or 433 MHZ,
- GSM 900-1800MHZ. ( 850/1900MHZ is optional)
- Operating voltage: DC12V, AC 220/110v

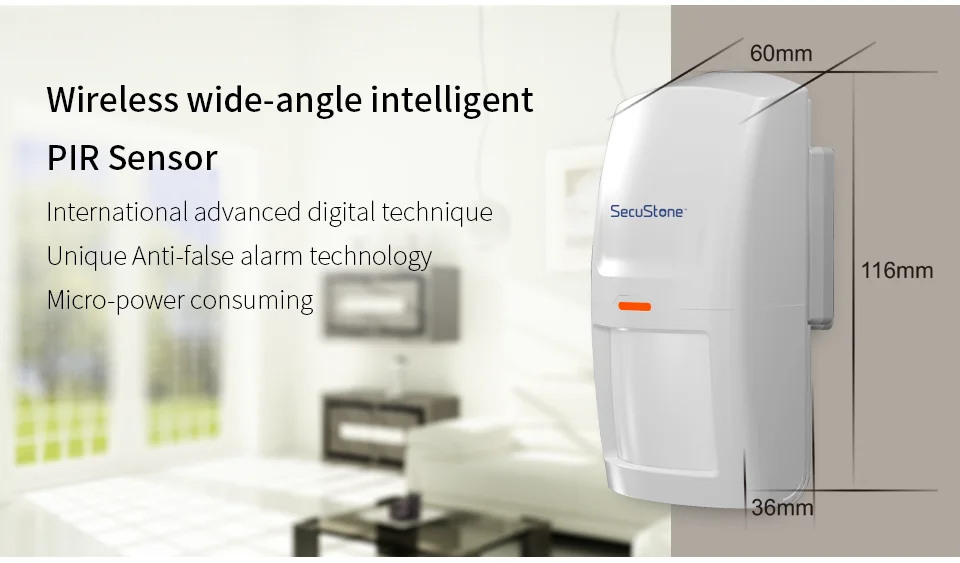

- Size:140*130*35mm
Sensor
| Passive IR sensor |
Working voltage
| DC6V (4pcs AAA 1.5V dry batteries) |
Static current
| <30uA |
Alarm current
| 15mA |
Transmitting frequency
| 315/433+0.5MHZ |
Transmitting distance
| no obstacle 80M |
Detecting distance
| 12M max |

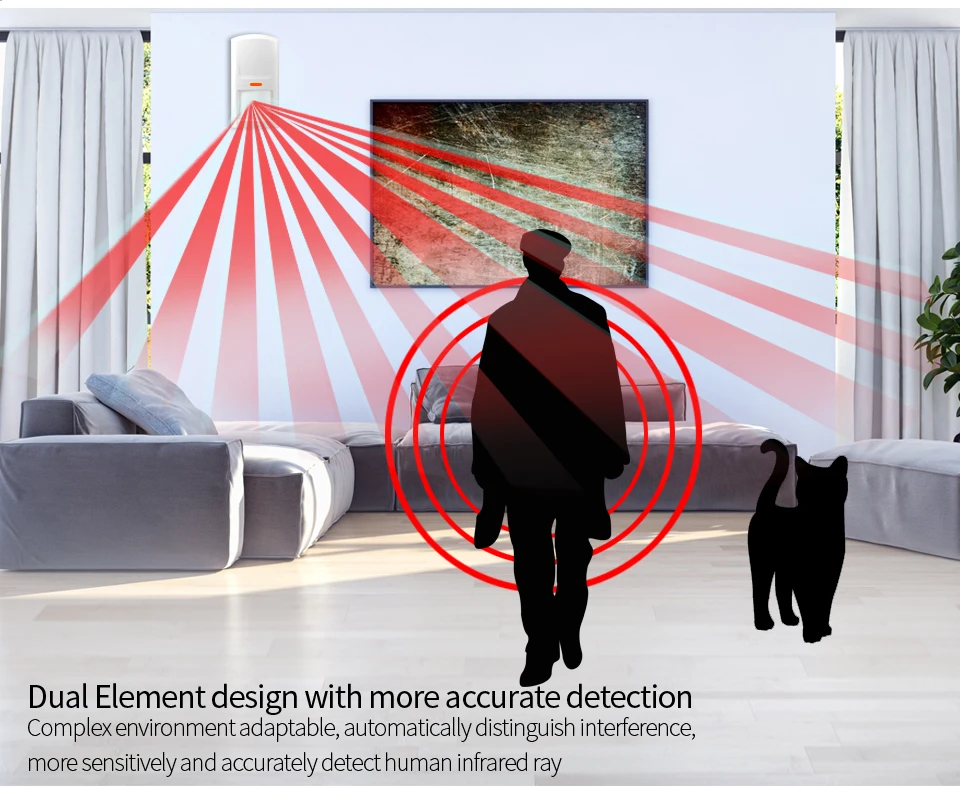

Detecting angle
| Horizontal 110°, Vertical 60° |
Working Temperature
| +0~+45℃ |
Coding method
| PT2262 or EV1527 optional |
