electric spotter dent puller,spotter auto body repair

Product Overview

Description

electric spotter dent puller,spotter auto body repair









Technical Parameters



TYPE	SG-6900	SG-7900	SG-8900
INPUT VOLTAGE	2PH380V	2PH380V	2PH380V
FREQUENCY	50Hz	50Hz	50Hz
RATED POWER	4KVA	4.5KVA	5KVA
FLOATING VOLTAGE	10V	12V	12.5V
WELDING CURRENT	200-6900A	200-7900A	200-8500A
MAX OUTPUT POWER	18KVA	19KVA	20KVA
DUTY CYCLE	15%	15%	15%
AUTOMATIC WORKING TIME	0.1--1S	0.1--1S	0.1--1S
DIMENSIONS(LxWxH)	420x500x1200mm	420x500x1200mm	420x500x1200mm
WEIGHT	40KG	43KG	45KG



electric spotter dent puller,spotter auto body repair



1.  Automatic mains voltage monitoring

2.The welding gun testing function evaluates the usage status of the welder more comprehensively

3.  Overheating protection

4.  High precision time and power adjustment system

5.  Complete with triangle washers for dent pulling

6.  Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud welding, OT washer welding, triangle washer welding etc

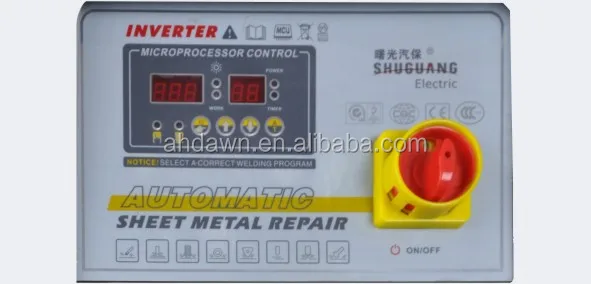

7.  Digital display

8.  Large pulling hammer and waveform wire welding

9. With several welding currents to choose from



  Standard  Accessories

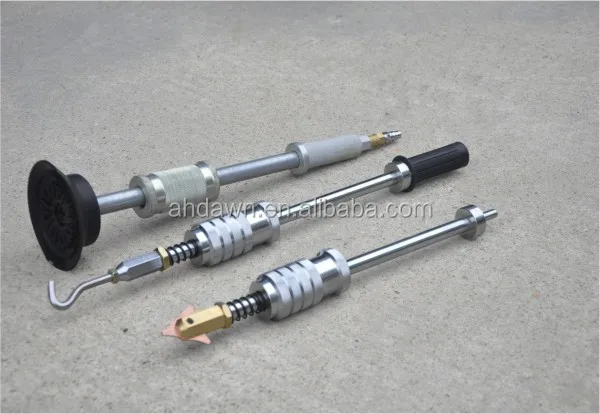

MULTIFUNCTION  PULLER	1	PC		1-SIDE WELDING HEAD	1	PC
MULTI-CLAW PULLER	1	PC		ROUND WASHER	10	PC
EARTH CLAMP	1	PC		TRIANGLE WASHER	5	PC
TRIANGLE WASHER PULLER	1	PC		CARBON ROD HEAD	1	PC
CARBON ROD	2	PC		HOST	1	PC
CASTOR	4	PC		INSTRUCTIONS	1	PC
WAVEFORM SOLDER WIRE	5	PC		WARRANTY CARD	1	PC
WASHER WELDING HEAD	1	PC





 Constructed Specification
