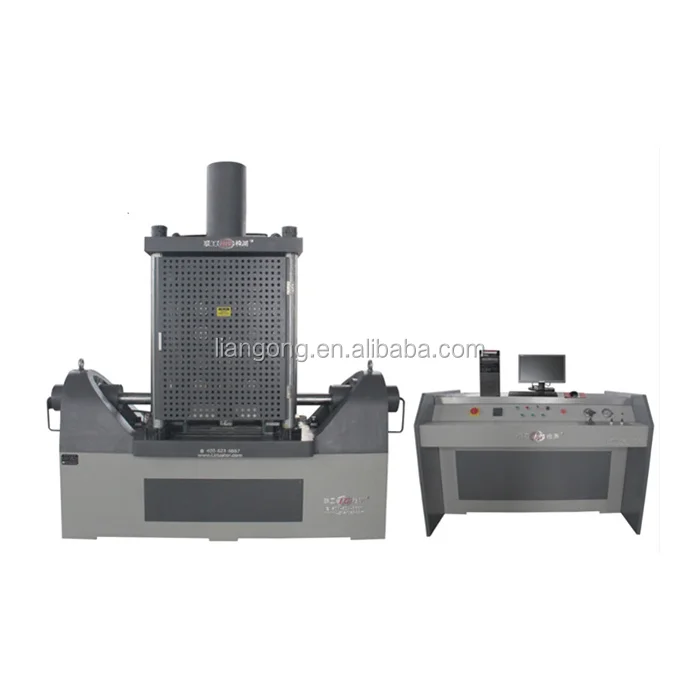

Three Point Transverse Rupture Strength Testing Machine for Cemented Carbides

Three Point Transverse Rupture Strength Testing Machine for Cemented Carbides

1.Use

  1000kN Hydraulic bending test machine is mainly on a variety of sheet metal and bar three-point bending test at room temperature mechanical properties of the test machine mechanical, electrical, hydraulic, automatic control technology in one, with the technology is mature, advanced and reliable characteristics , can reach the international advanced level; the main parts of pieces of good life; easy maintenance and repair of equipment, consumable parts to ensure quick replacement.

2. Meeting standards

GB / T 232-2010 "metal material bending test method"

GB 1499.1-2007 "Steel for reinforced concrete - Part 1: Hot rolled steel"

GB 1499.2-2007 "Steel for reinforced concrete - Part 2: Hot rolled ribbed bars"

    International standards (eg: ISO 7438-2005, bending test JIS Z 2248-2006 DIN EN ASTM BS and other standards required by a variety of samples;

3.Technical parameters:
1. Maximum bending force: 1000kN
2. Vertical cylinder Maximum load: 1000kN
3. Horizontal cylinder maximum load: 2 × 500kN
4. Vertical cylinder piston stroke: 400mm
5. Horizontal cylinder piston stroke: 2 × 220mm
6. Vertical cylinder compression speed: 200mm
7. Horizontal cylinder compression speed: 200mm
8. Bending angle control: 0-180 °
9. Compression space: 650mm
10. Curved support roller spacing: 400mm
11. Curved support roller length: 200mm
12. Bending branch roll width: 180mm
13. Curved support roller height: 200mm
14. Bent head width: 60mm
15. Cylinder horizontal synchronization accuracy: ± 2%
16. Displacement speed relative error: ≤5%
17. Accuracy: 1% of the vertical test force, displacement accuracy ± 0.5%
18. Running noise: no more than 70dB
19. Maximum working pressure: 31.5MPa
20. Apex diameter: ¢ 10- ¢ 300mm (for the user to select the configuration)
21. Plate thickness: 6-50mm
22. Total motor power: 7kW
23. Host Dimension: 2400 × 900 × 2500mm
24. Oil Source outer dimensions: 1120 × 600 × 849mm
25. Weight: 4500kG
