600 ton shipbuilding gantry crane shipyard crane
- Category: >>>
- Supplier: Henan Santo Crane Co. Ltd.
Share on (60648982006):
Product Overview
Description
600 ton shipbuilding gantry crane shipyard crane |
Product Overviews

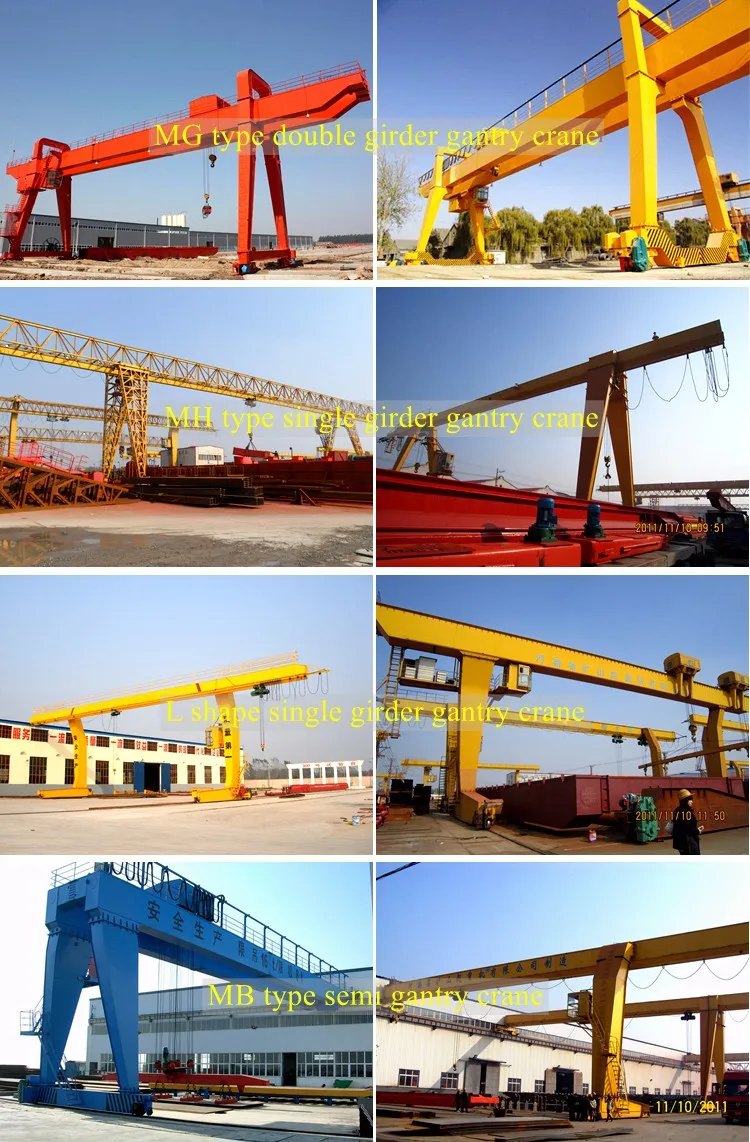

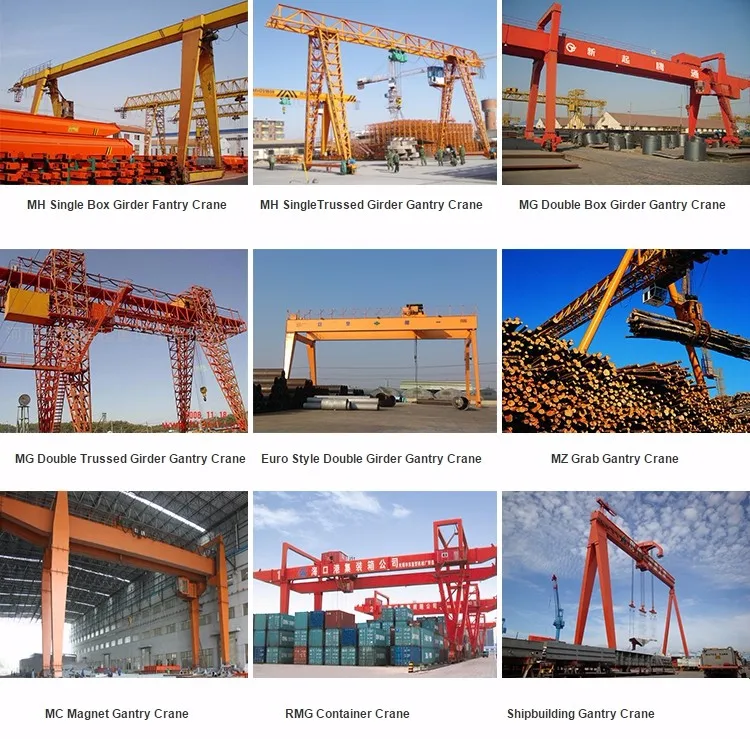

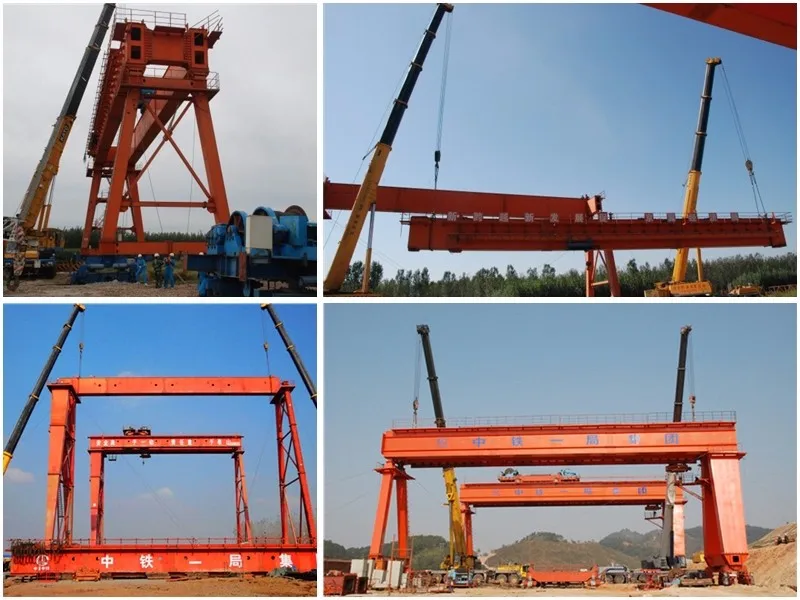

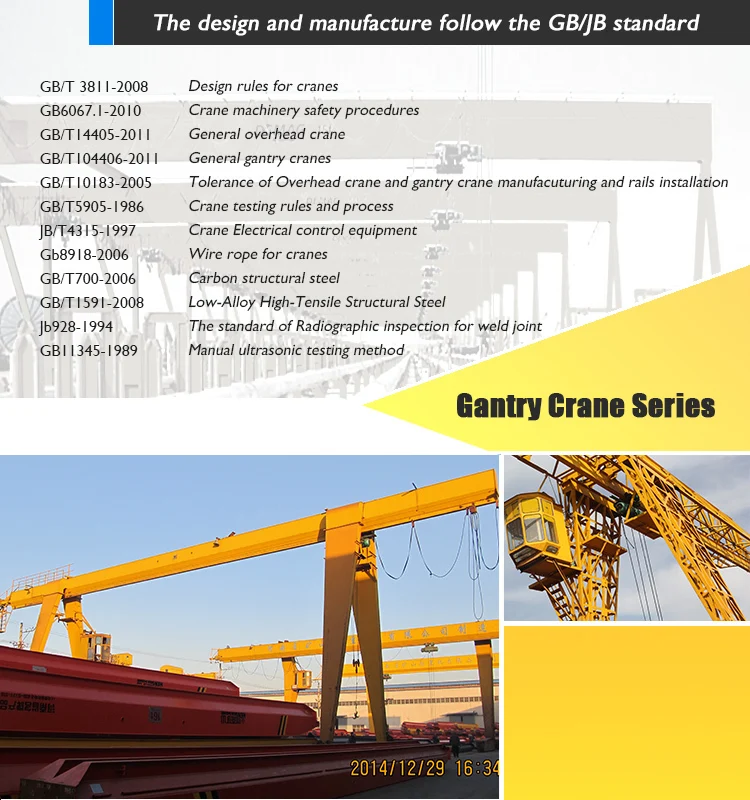

| 1. Gantry crane series we supply |
|
Product Description
| 2. Shipbuilding gantry crane |

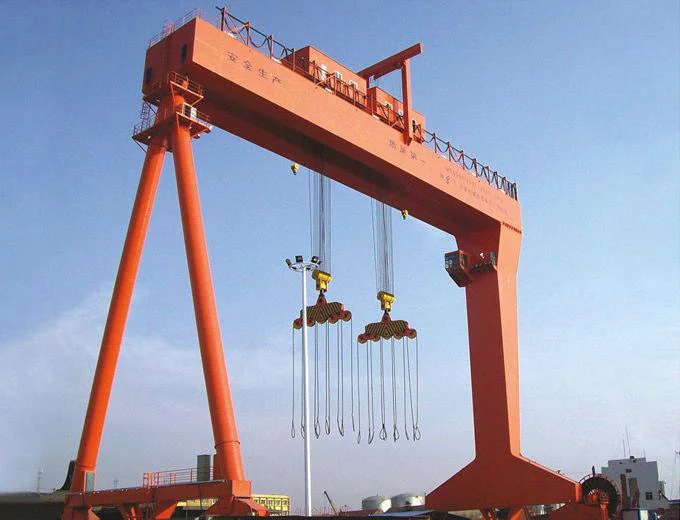

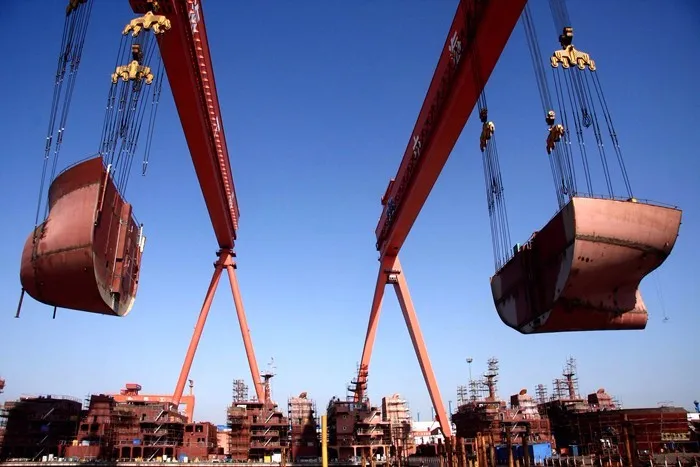

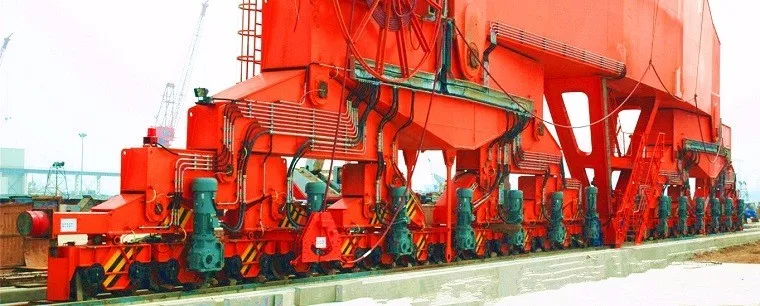

Shipbuilding gantry crane is a type of gantry crane with large lifting capacity, multiple functions and high efficiency, which is dedicated to transport the subsections of large ship, butt jointing, and overhead turning on dock or shipyard.
Brief parameters:
- Lifting capacity up to 1200 ton
- Span is 20m to 100m
- Lifting height up to 60m
- Working class: A5-A7
- Operated in the driver cabin or remote control
 |
Working mechanism:
|
 |
Safety features:
|
 |
Advantages:
|

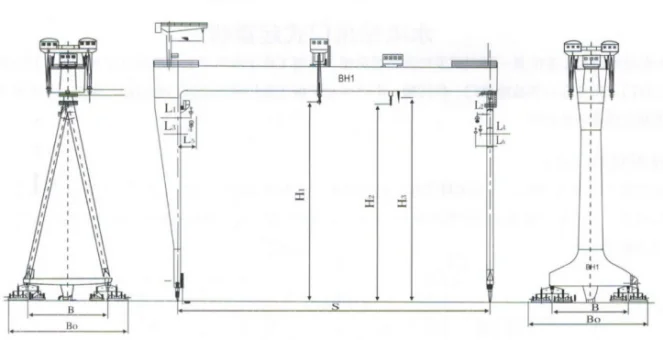

Sketch & Parameters
| 3. Technical Parameters |
| Load Capacity | ton | 2×25t+50/10t | 2×25t+75/20t | 2×75t+80/20t | 2×100t+160/32t | ||||
| Joint lifting crane | 100 | 150 | 200 | 300 | |||||
| Air turning | 50 | 100 | 150 | 200 | |||||
| Working class | A5 | ||||||||
| Span | m | 50 | 60 | 80 | 100 | ||||
| Lifting height (m) | H1 | 30/4 | 40/5 | 45/5 | 60/6 | ||||
| Rail/under rail | H2 | 30/4 | 40/5 | 45/5 | 60/6 | ||||
| H3 | 32 | 42 | 47 | 62 | |||||
| Speed | Lifting | Top Trolley | m/min | 0.75-7.5;0.75-15 | 0.6-6;0.6-12 | 0.5-5;0.5-10 | 0.5-5;0.5-10 | ||
| Bottom Trolley | Main hook | 0.75-7.5;0.75-15 | 0.6-6;0.6-12 | 0.5-5;0.5-10 | 0.5-5;0.5-10 | ||||
| Aux hook | 12 | 15 | 15 | 15 | |||||
| Travelling | Top Trolley | 0.42-42 | 0.42-42 | 0.5-20;0.5-30 | 0.5-20;0.5-30 | ||||
| Bottom Trolley | 0.42-42 | 0.42-42 | 0.5-20;0.5-30 | 0.5-20;0.5-30 | |||||
| Crane | 0.5-20;0.5-30 | 0.5-20;0.5-30 | 0.5-20;0.5-30 | 0.5-20;0.5-30 | |||||
| Weight (t) | ≈540 | ≈750 | ≈870 | ≈1650 | |||||
| Max wheel pressure (KN) | 350 | 430 | 480 | 620 | |||||
| Motor total power (KW) | ≈350 | ≈410 | ≈460 | ≈780 | |||||
| Rail recommended | QU100-QU120 | ||||||||
| Power supply | 3-phase 50Hz 380v or 50Hz 6-10KV | ||||||||
Parameter above for reference only. Please click the button below to send your inquiry.

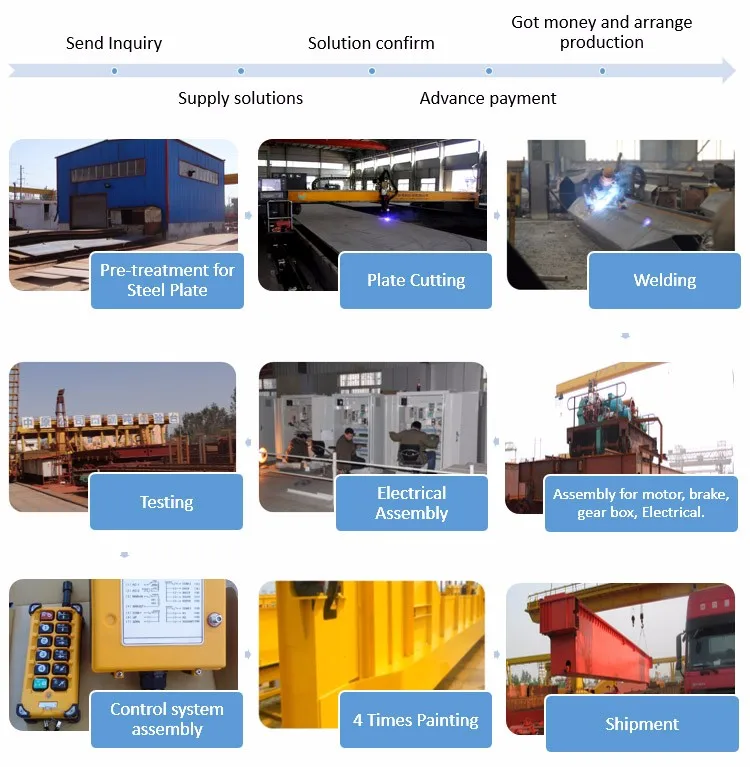

Parts Details
| 4. Crane details |

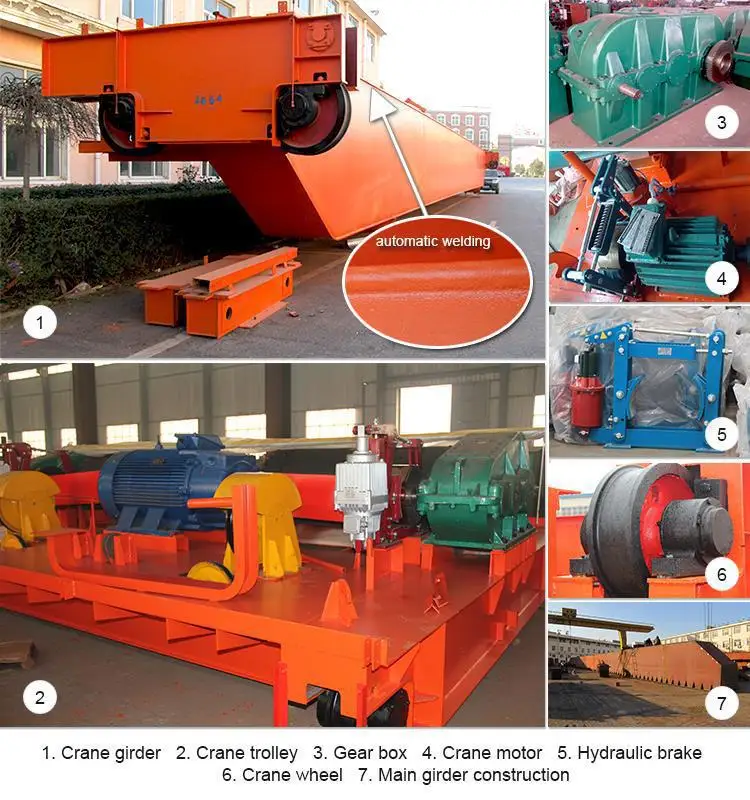

We have a very strictly parts selection system. We do all is to help improve our customers experience of our Crane.
No. | Items | Cooperate suppliers |
1 | Motor | Sino-US KDS Motor Factory |
2 | Gear Box | SEW-German |
3 | Wire Rope | Italy Redaelli S.p.A. |
4 | Electrical | CHINT |
5 | Converter | Yaskawa Electric (China) Co., Ltd. |
6 | Controller | Lee's Hi-Tech Enterprise Co.,LTD. |
7. | Shaft | China: HRB/LYC/ZWZ |

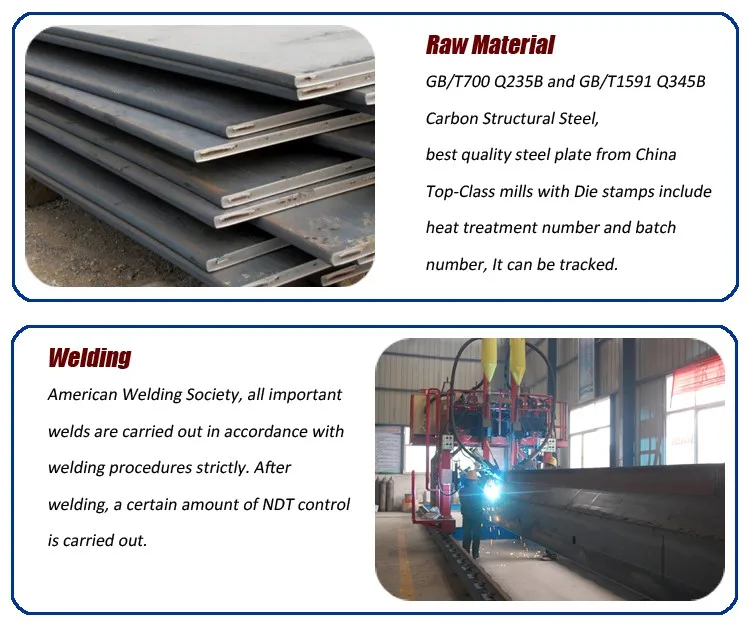

1. Main girder is used of U template and range of welding surface into the composite beams;
2. Steel frame are made by high quality carbon steel of Q235B or Q345B;
3. The main girder and end beams are contected with the high strength bolt of 10.9 grade;
2. Steel frame are made by high quality carbon steel of Q235B or Q345B;
3. The main girder and end beams are contected with the high strength bolt of 10.9 grade;

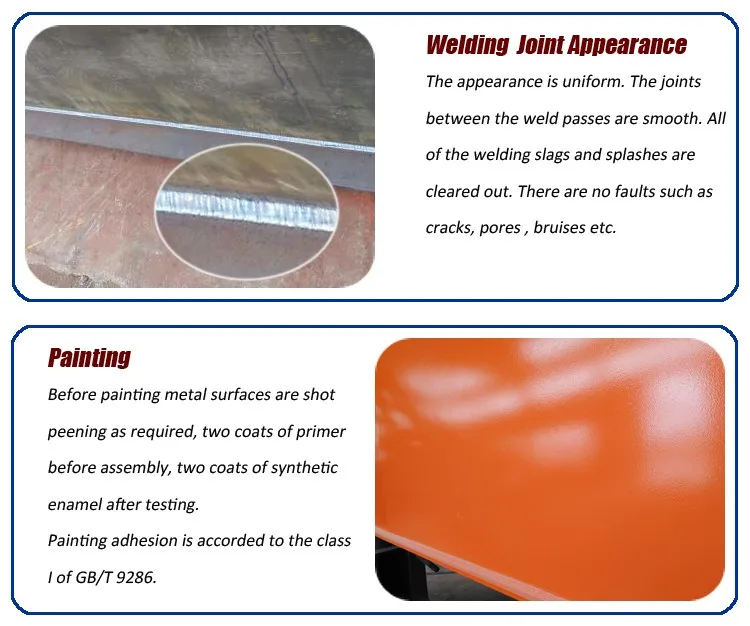

a. Process: Sand blasting, anti-rust painting, primer and finishing paint
b. Color: yellow, red, blue etc, or according to your requirments
c. Total thickness: about 105um.
b. Color: yellow, red, blue etc, or according to your requirments
c. Total thickness: about 105um.
4. Wheels are made of casting steel ZG340-640 or low alloy steel ZG-50SiMn, the mechanical property, accuracy, roughness are accord to standard of JB/T 6392-2008.

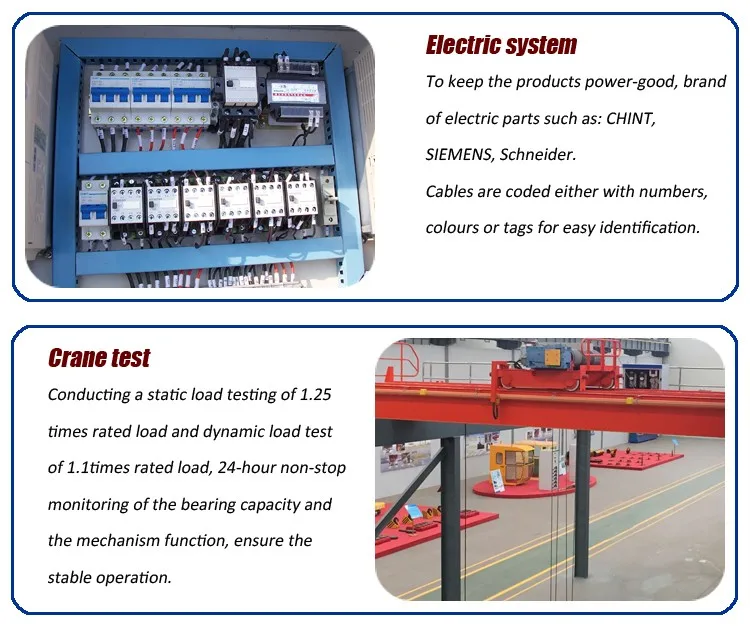

1. Generally, pendant panel control for cheap solution;
2. Cabin control is also available according to customer's requirement (recommend);
3. Cabin style: open style and close style, left or right installation;
4. Direction of entrance: side, end and top.
