Product Overview

Description



Product Description

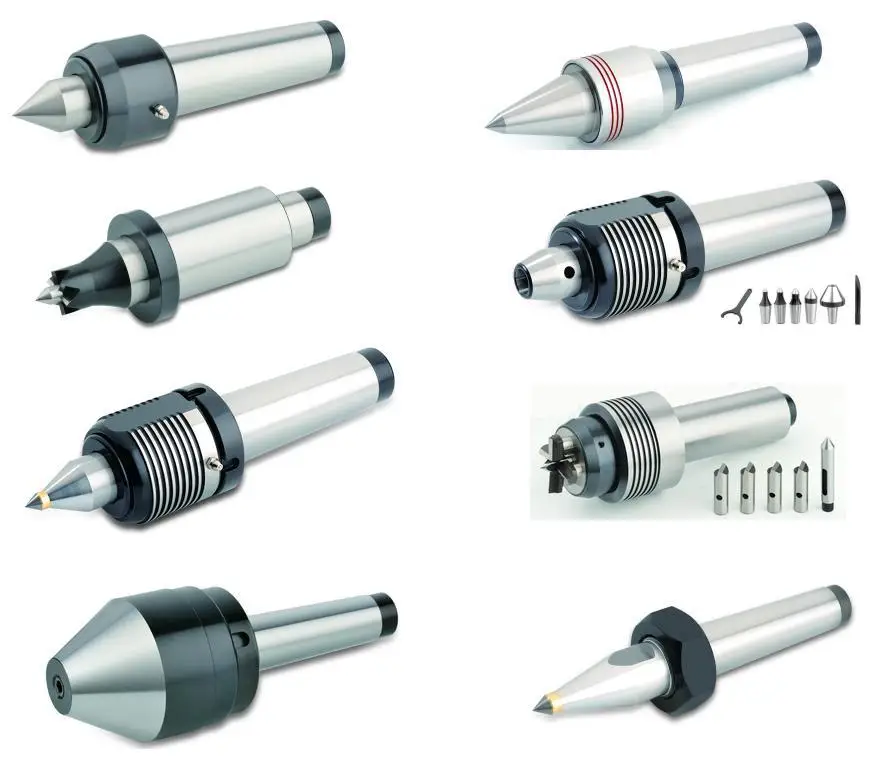

Products description: lathe center, live center, fixed point live center, heavy duty live center.



Item
Content
Selection Guidance
1, The model of machine's spindle or tailstock
2, The weight and OD of workpiece.
3, Machining range and accuracy requirement.
Products Advantage
1, The hardness of center shaft or the body is HRC 60±3.
2, The TIR is less than 0.005mm.
3, Waterproof design prevent cutting fluid and dust from entering into the center.
Use Tips
1, For oiling type, please fill in lubricating oil of SKF-LGMT2 per 4 hours.
2, The radial force is referred to the workpiece weight and turning force.
3, The axial force is referred to the hydraulic pressure of the tailstock.
Price Description
1, The price is just for one set of JK-562-4. other spec need inquiry.
2, "A" of the center model denotes a draw-off nut attached.
3, The price includes the accessories.


Products Details


Item
Description

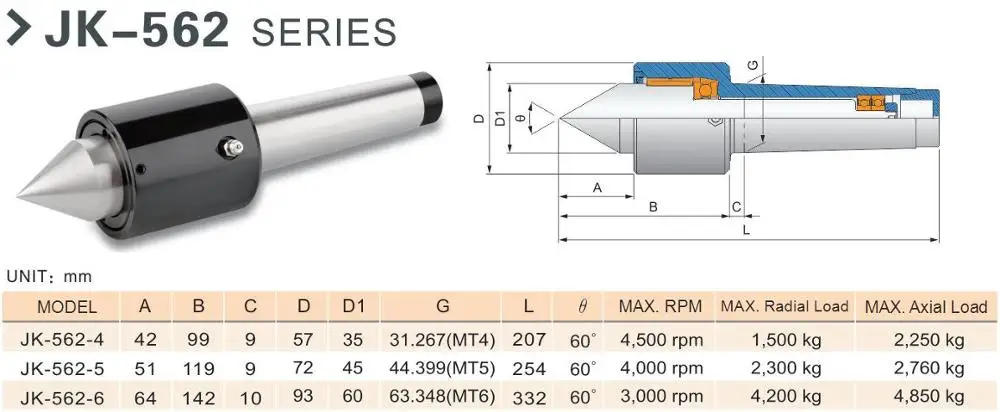

JK-562 Series
Heavy duty strong live center.
Application Machine
CNC lathe, high speed lathe, cylindrical grinding machine
Working Usage
Applicable for ordinary length workpiece stong turning process.
Structure
Combination of thrust bearing and needle bearing at front and rear place.
TIR
Less than 0.002mm
Mores Taper shank
4MT, 5MT, 6MT




Quality Promise


Item
Omatei Promise on Quality
1
100% inspected and 100% qualified
2
In case of quality defects before use, buyer should notify Omatei within a week after receiving goods, Omatei is responsible for returning and resending freight charge. Buyer should package the goods firmly for returning transportation safety.
3
If buyer need changing before use, buyer should notify Omatei within a week after receiving goods, Buyer is responsible for returning and resending freight charge, Buyer should package the goods firmly for returning transportation safety.


Contact us




Packing & Delivery


Packing Details : Our packing is firm and safe and suitable for air or sea shipping way.
Lead time: 1 day after received payment if in stock, otherwise, the lead time is 30 days.
