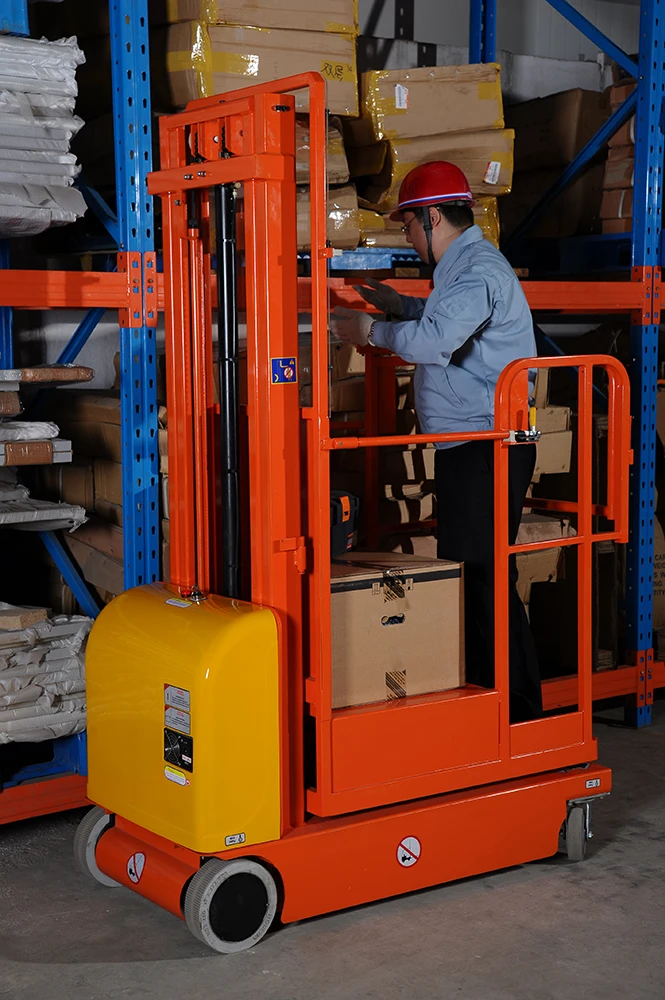

High quality electric cherry order picker with certificate CE
- Category: >>>
- Supplier: Qingdao Olift Equipment Co. Ltd.
Share on (60649147176):
Product Overview
Description
High quality electric cherry order picker with certificate CE
Order picker are widely used in factories, industries, properties, buildings, warehouses, airports, gas stations and other places. Especially It is a good helper for farmers, for example, it can used on the cherries, grapes etc fruits as well as the vegetables’ s picking.
Product Description
In terms of power supply, it has two main types: Full electric type and Semi electric
type.
Main specifications:
Platform load capacity: 300kg
Max. Platform height from 2700mm to 4500mm.
type.
Main specifications:
Platform load capacity: 300kg
Max. Platform height from 2700mm to 4500mm.
1. Walkingand lifting all by electric.
The electric order picker can carry 300 kg and lift 2700 to 4500mm.
2. Spacious operating platform.
The order picker has a wide operating platform and a high-quality non-slip surface, which embodies good stability and ensures safe operation at high altitude.
3. Suitable for single person operation.
It is mainly used for picking and placing items in narrow spaces such as warehouses, workshops, elevators, supermarkets, and
subway stations.
2. Spacious operating platform.
The order picker has a wide operating platform and a high-quality non-slip surface, which embodies good stability and ensures safe operation at high altitude.
3. Suitable for single person operation.
It is mainly used for picking and placing items in narrow spaces such as warehouses, workshops, elevators, supermarkets, and
subway stations.
1. The aerial order picker adopts Winner hydraulic pump station.
2. Advanced dual-wheel drive system.
3. American Curtis electric control system for flexible operation.
2. Advanced dual-wheel drive system.
3. American Curtis electric control system for flexible operation.
4. Micro oil drain valve for accurate operation.
5. Maintenance free battery with intelligent charger, long in service life and easy to operate.
6. The self-propelled order picker can automatically adjust running speed according to the lifting height, resulting in higher safety only.
7. It can be operated by one person.
8. The order picker can freely pass through the narrow aisle.
5. Maintenance free battery with intelligent charger, long in service life and easy to operate.
6. The self-propelled order picker can automatically adjust running speed according to the lifting height, resulting in higher safety only.
7. It can be operated by one person.
8. The order picker can freely pass through the narrow aisle.
Specifications chart:
Model Number | FH0327 | FH0333 | FH0340 | FH0345 | |
Max.Platform Height | mm | 2700 | 3300 | 4000 | 4500 |
Max.Machine Height | mm | 4120 | 5000 | 5400 | 6000 |
Ground Clearance | mm | 40 | 40 | 40 | 40 |
Capacity | kg | 300 | 300 | 300 | 300 |
Platform Size | mm | 600×640 | 600×640 | 600×640 | 600×640 |
Max.Drive Speed (platform Stowed) | km/h | 4 | 4 | 4 | 4 |
Max.Drive Speed (platform Elevated) | km/h | 1.6 | 1.6 | 1.6 | 1.6 |
Min.turning Radius | mm | 1600 | 1600 | 1600 | 1600 |
Max.Climbing Capacity | % | 15~20 | 15~20 | 15~20 | 15~20 |
Driving Wheel Size | mm | Φ230×80 | Φ230×80 | Φ230×80 | Φ230×80 |
Caster Size | in | 6 | 6 | 6 | 6 |
Driving Motor | v/kw | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 |
Lifting Motor | v/kw | 24/1.6 | 24/1.6 | 24/1.6 | 24/1.6 |
Anerold battery | v/Ah | 2×12/150 | 2×12/150 | 2×12/150 | 2×12/150 |
Charger | V/A | 24/15 | 24/15 | 24/15 | 24/15 |
Overall Length | mm | 1530 | 1530 | 1620 | 1620 |
Overall Width | mm | 700 | 700 | 700 | 700 |
Overall Height | mm | 1830 | 2130 | 1840 | 2000 |
Overall Net Weight | kg | 430 | 450 | 660 | 680 |
Weight | kg | 600 | 630 | 660 | 690 |

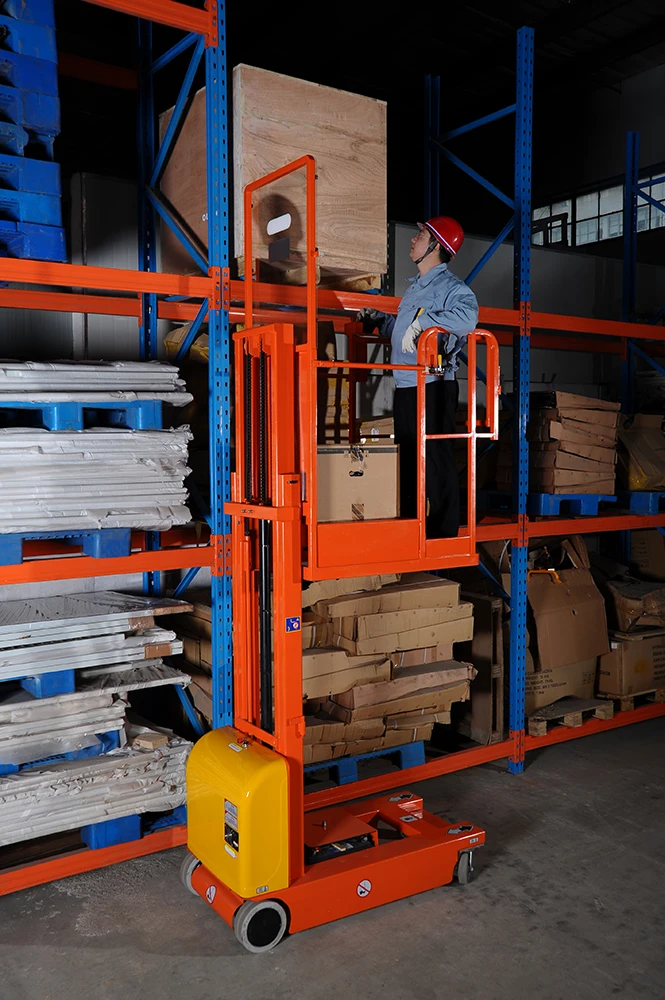

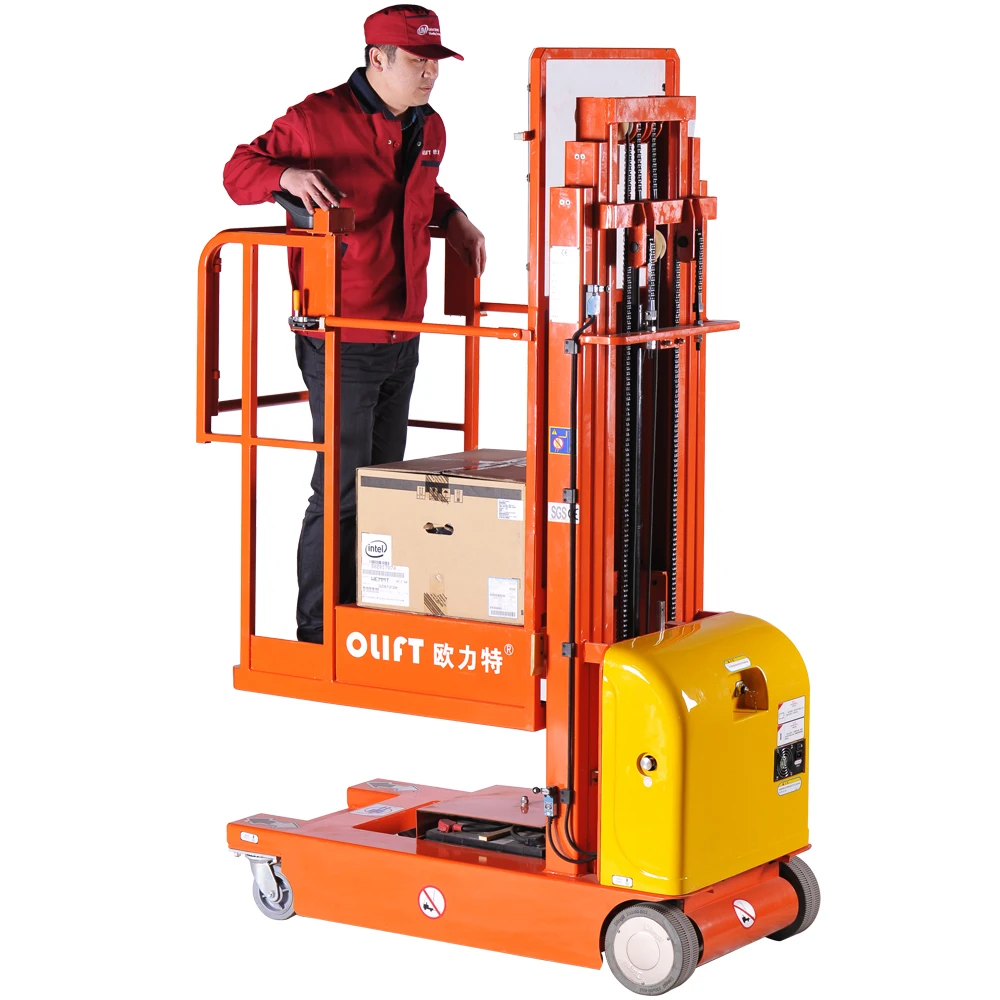

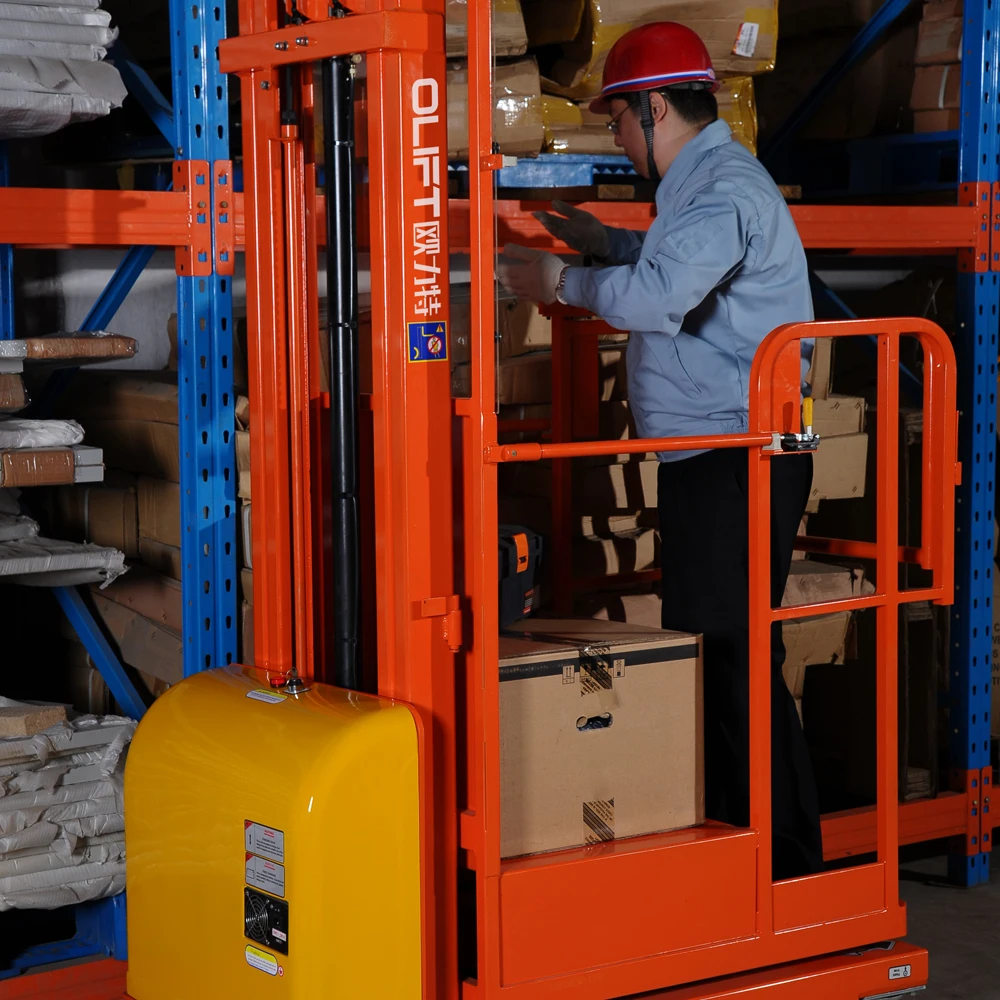

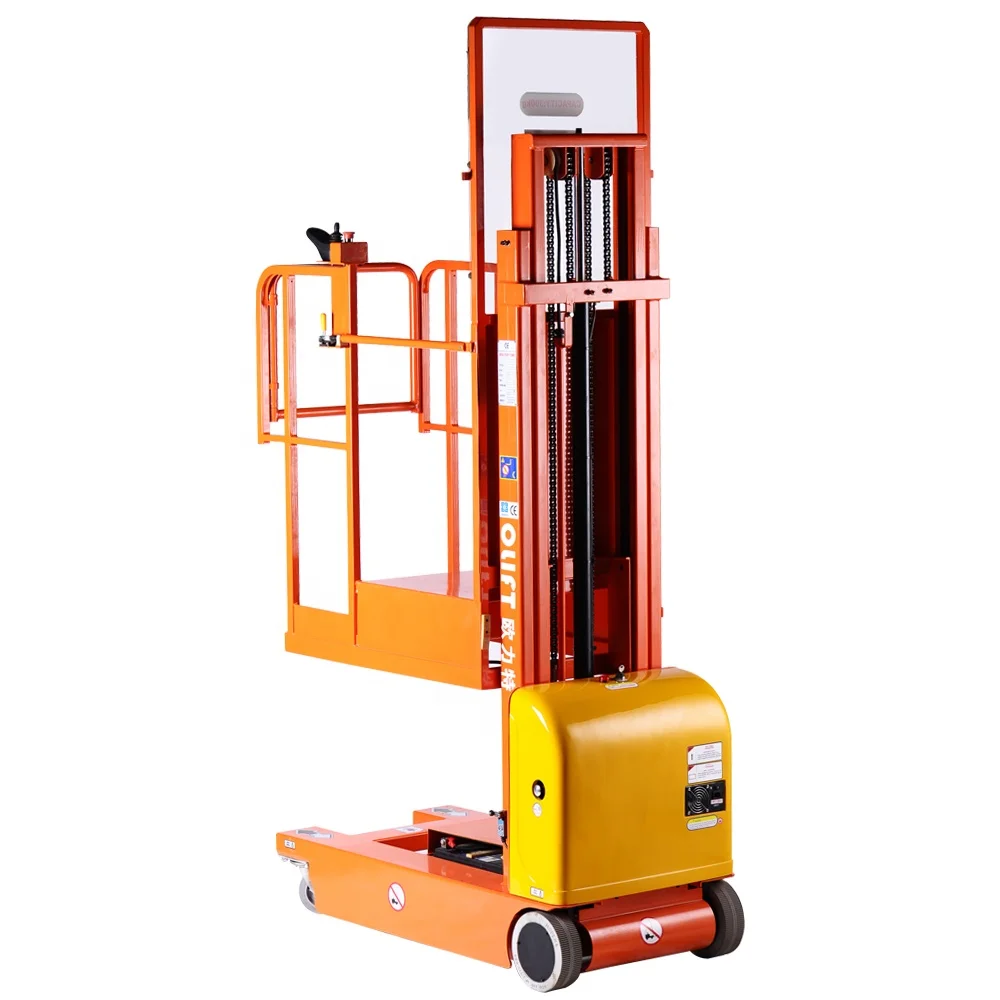

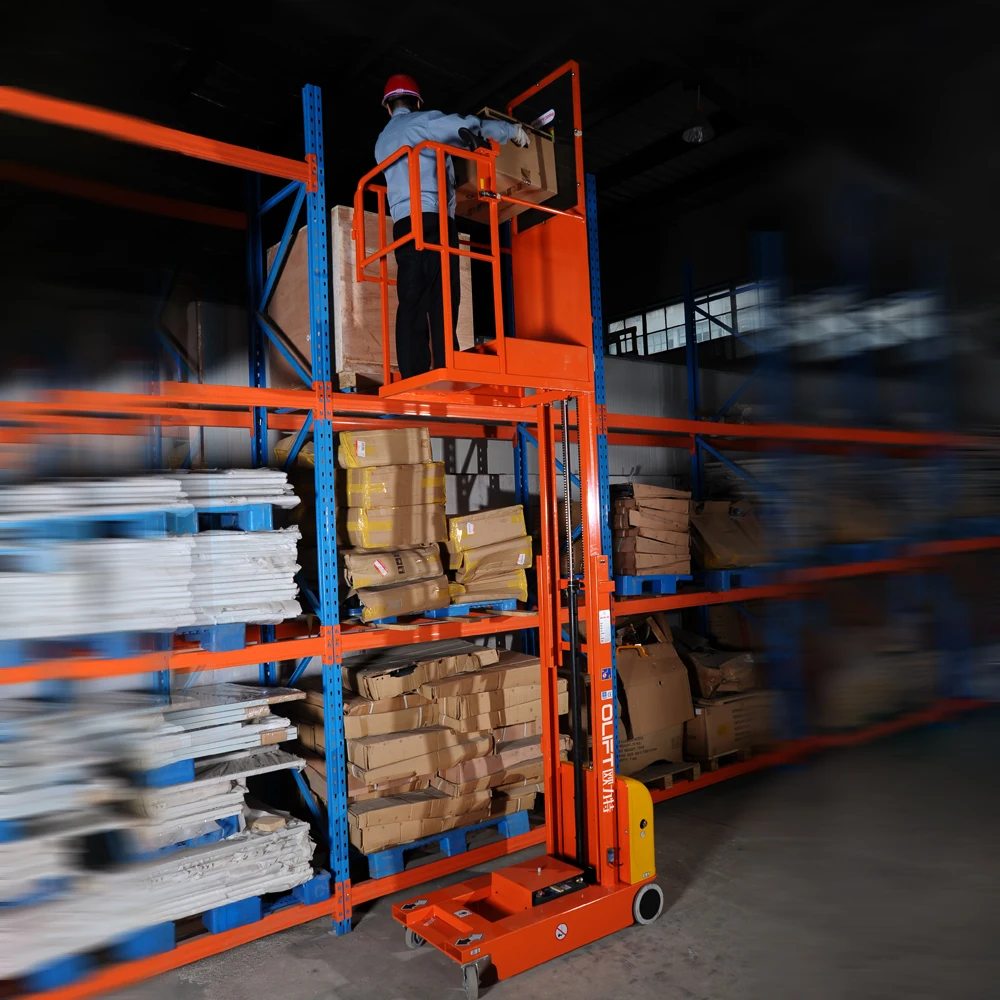

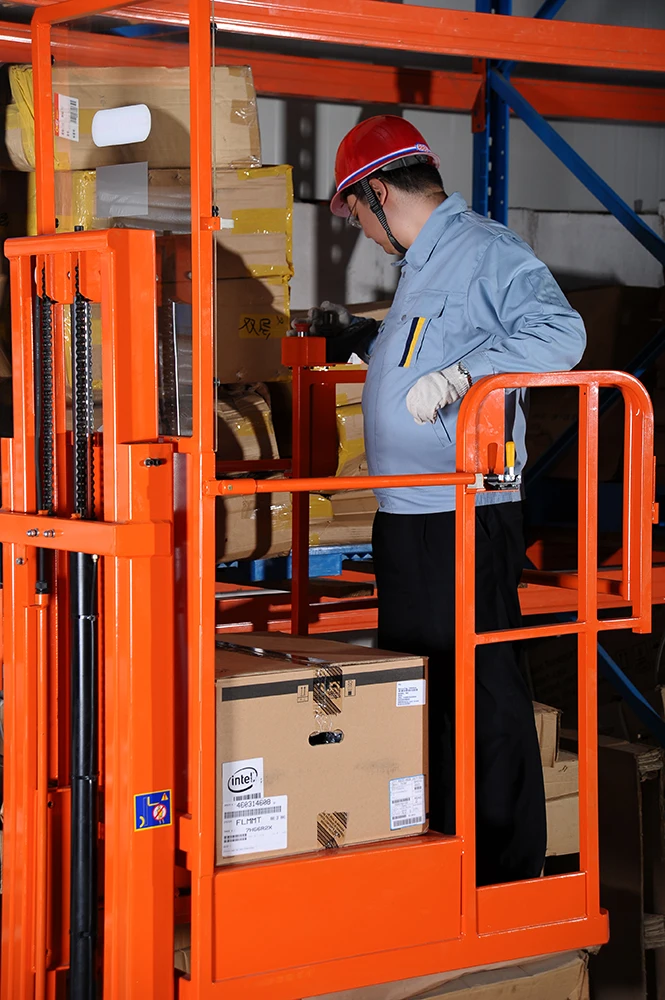

Detailed Images
Related Products

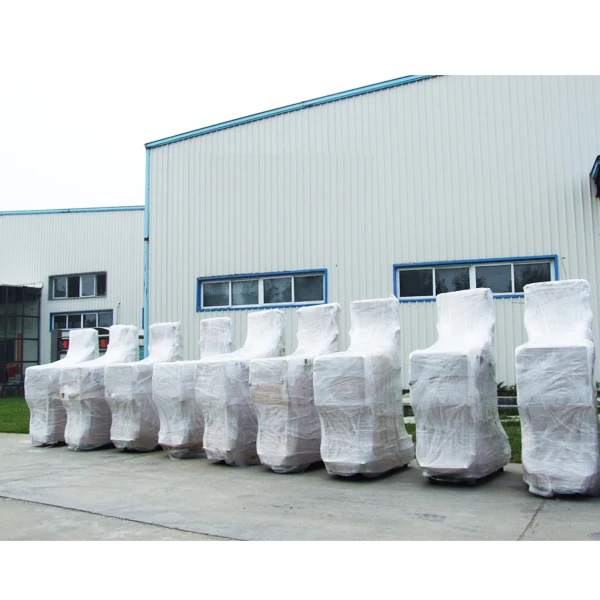

Packing&Shipping
Packaging Detail: | Olift 300kg capacity order picker will be packed by Flexible Package, Seaworthy Package | ||||||
Delivery Detail: | Within 15 days for Electric order picker. | ||||||
Certifications
Company Introduction
Qingdao Olift Equipment Co.,Ltd. provides wide selection of products such as forklift truck, pallet truck and electric stacker, semi-electric stacker, scissor lifts, moving tool, car mover, platform lifting, wheelchair lift platform and more. We have professional team members to design your hand pallet truck products and control the quality.
After Sales Service
Service for Glass Vacuum Lifter
1.We can design the customerized Electric Scissor Lift Platforms as per your requirement.
2.The most suitable Mini Scissor Lift will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the Electric Scissor Lift Platforms break down to help you repair.
6.Parts of Electric Scissor Lift can be sent to you by express within 7 days if needed.
2.The most suitable Mini Scissor Lift will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the Electric Scissor Lift Platforms break down to help you repair.
6.Parts of Electric Scissor Lift can be sent to you by express within 7 days if needed.
Qingdao Olift Equipment Co., Ltd. is professional Material Handling Expert.
1. After-sales service provided: Engineer available to service machinery overseas.
2. We offer technical supporting for the Scissor Lift Platforms all year round.3. Choose OLIFT is to choose higher work efficiency, better quality and service.
4. If you want to get more details, please visit our website: www.olift.com for more details of the trucks.
5. The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment.
6. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
Qingdao Olift Equipment Co., Ltd.
Address: No. 143, Zhuzhou Road, Laoshan District, Qingdao, Shandong, China
Tel : +86-532-88990008
Sales Manager: Jenny Jiang
Mobile/WhatsApp/Wechat:+86 18354255925
Website: www.olift.com
Tel : +86-532-88990008
Sales Manager: Jenny Jiang
Mobile/WhatsApp/Wechat:+86 18354255925
Website: www.olift.com
FAQ
1.How can customer buy parts once the Electric Scissor Lift Platform break down?
The order picker adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Electric Scissor Lift?
One of the great advantage of order picker is with very very low failure rate. Even it breaks down,we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 3-5 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the Electric vacuum glass lifter?
One year quality guarantee including battery. If it breaks down within one year,we can send the parts free of charge to you.
The order picker adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Electric Scissor Lift?
One of the great advantage of order picker is with very very low failure rate. Even it breaks down,we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 3-5 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the Electric vacuum glass lifter?
One year quality guarantee including battery. If it breaks down within one year,we can send the parts free of charge to you.
