Composite wear bars White Iron Standard Wear Bar Wear Blocks B108 for Abrasion Resistant
- Category: >>>
- Supplier: Hunan Hyster Material Technology Co. Ltd.
Share on (60649173140):
Product Overview
Description
Composite wear bars Laminated White Iron Standard Wear Bar Wear Blocks B108 for Abrasion Resistant
Product Description

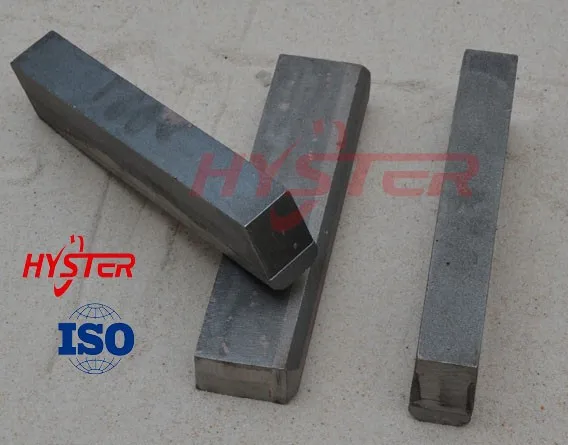

Wear Bars
1) Products: Wear Blocks / Wear Bars
2) Materials: high chrome cast iron(ASTM A532 15/3CrMo, Wear Portion) vacuum brazing onto High impact Mild steel
3) Chemicals:
C | Cr | Mn | Mo | Cu | P | Si | S | B. V. Nb |
2.5-3.5 | 15-18 | 0.5-1.0 | 0.5-2.5 | 0.5-1.0 | 0.02max | 0.5-1.0 | 0.02max | 0.1-0.5 |
4) Mechanical Property:
A) Tensile Strength 630Mpa Min.
B) Shearing Strength 250Mpa Min.
C) Hardness 63 HRC/700BHN Min.
5) Micro-structure
Carbide + Martensite + Retained Austenite The Carbide Content is about 35%
Product Overviews

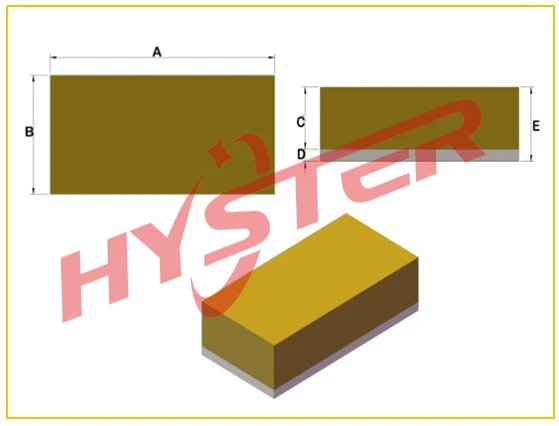

6) Typical Size for Wear Blocks / Wear Bars
7) OEM is welcomed, can also be customized as per the clients specific need
8) Certifications: ISO9001:2008

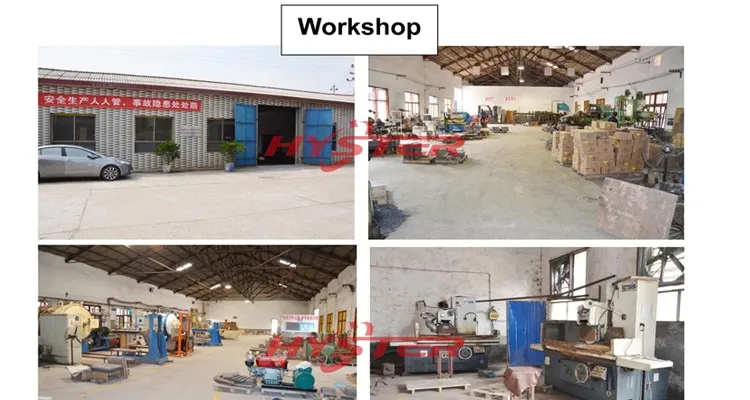

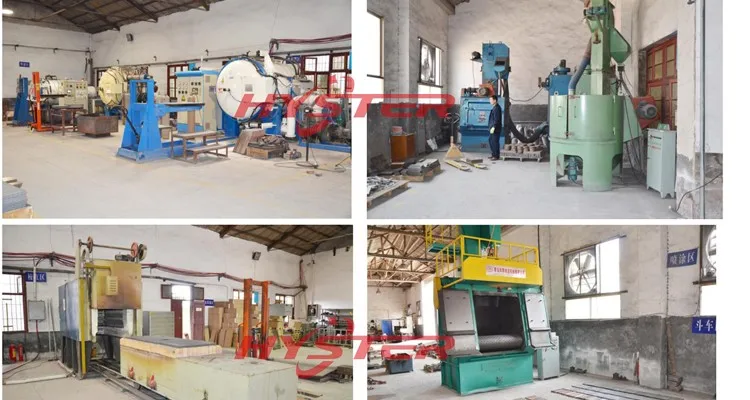

Factory Photo
Application
9) Applications
Bucket, Shovels, Chute, Hopper,
Typical Products
10) Some of our wear resistant material products and services:
--Wear plates, wear liners
--Chocky bars , wear buttons, Bolt Protectors
--Wear blocks, wear bars
--Carbide Chrome Overlay Wear Plate
--Hammer tips, Knife edges, Grid Bars for sugarcane, mining and steel industry
--Grizzly Bars, Roll Bars, Rockbox Liner
--Skid Bars, Bolt Portector
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
Contacts
12) Contact: Bonnie Deng, Cell: 86-189-4254-3248
Email: sales02(@)hystertech.com
Skype: bonniedeng.hyster
www.hystertechc.om
