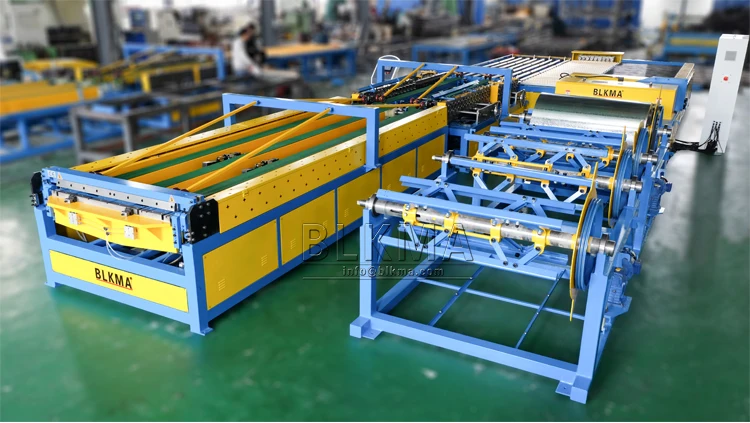

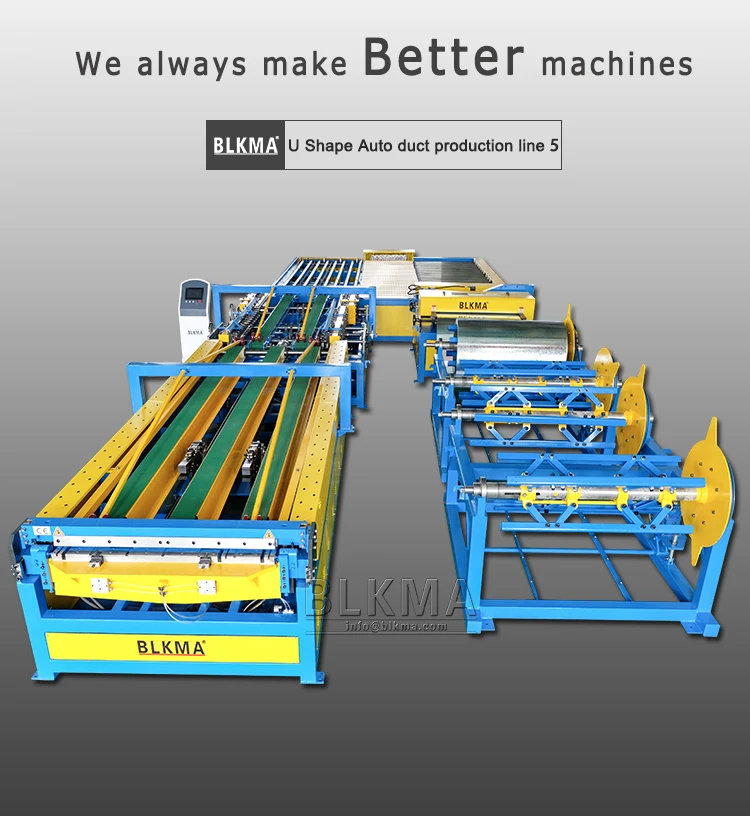

hot sale duct board manufacture auto line / duct production line 5

Product Overview

Description

hot sale duct board manufacture auto line / duct production line 5

YOUTUBE VIDEO

https://www.youtube.com/watch?v=4A3XTd_R9Fs



Main import Configuration:

Basic Configuration:

1. Beijing Huade+Taiwan hydraulic system.   2. Japan Omron encoder.      3. Taiwan Hiwin linear guideways.      4. Schneider electrical system.

1. Two electric coil cradles, 4 material trays.   2. One rack.     3. One host (line 2 host).      4. Two stainless steel roller convey platforms.      5. One fixed joint locking machine.       6. One duplex TDF flange forming machine.      7. One duplex angle steel flange forming machine.    8. One servo feeding platform.      9. One hydraulic folding machine.      10. One set of computer controlling system.



Main Technical Parameters:

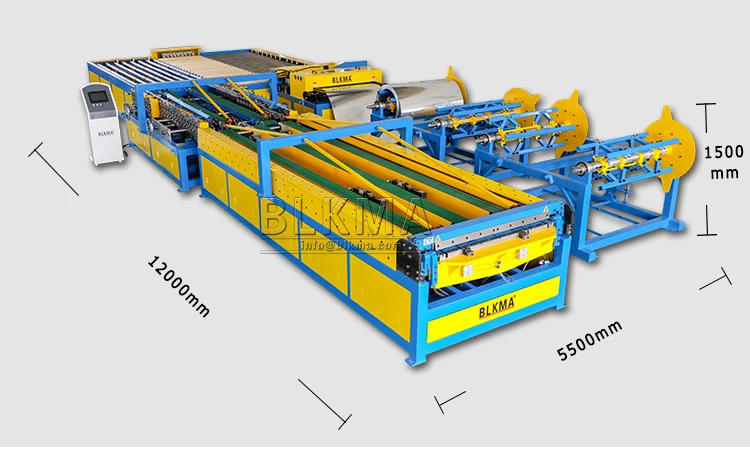

Model	Sheeting thickness (mm)	Max width (mm)	Max working speed (m/min)	Max weight  of coil (T)	Dimension L*W*H (mm)	Power (kw)	Weight (T)
ADL-5U-1300	0.5-1.2	1300	15	7	12000*5500*1500	30	13
ADL-5U-1500	0.5-1.2	1500	15	7	12000*5900*1500	30	14

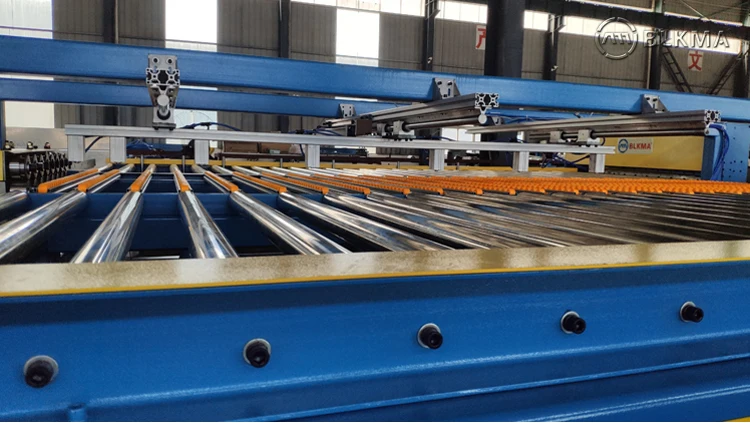

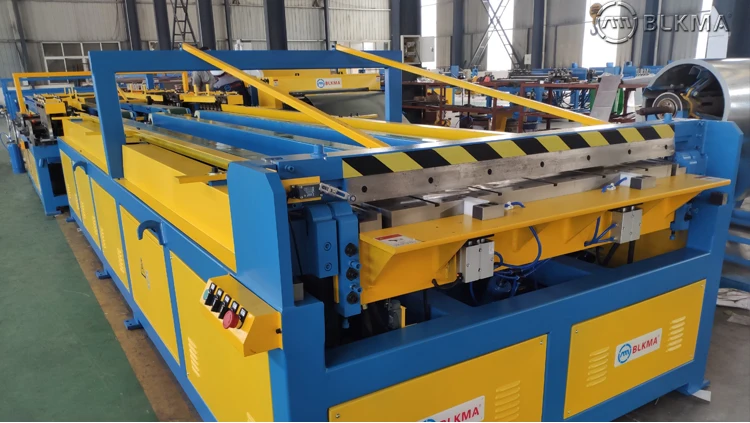

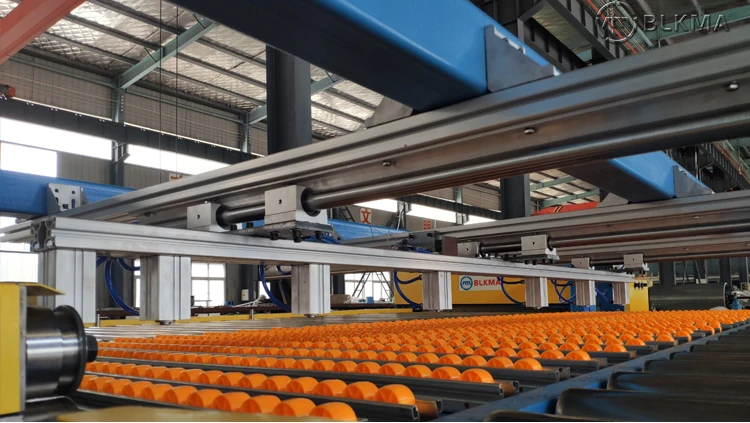

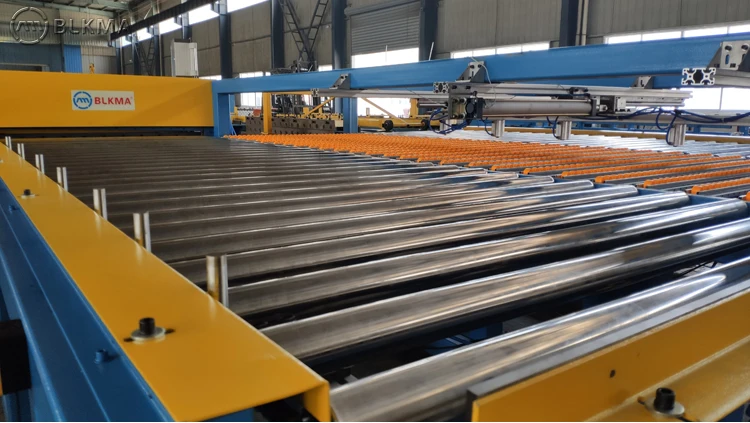

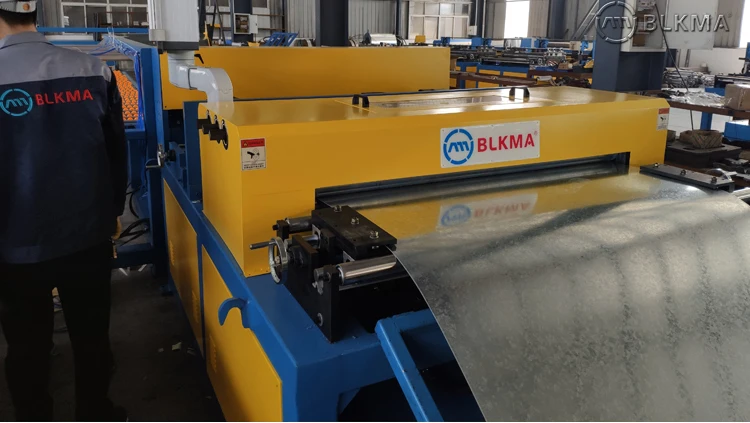

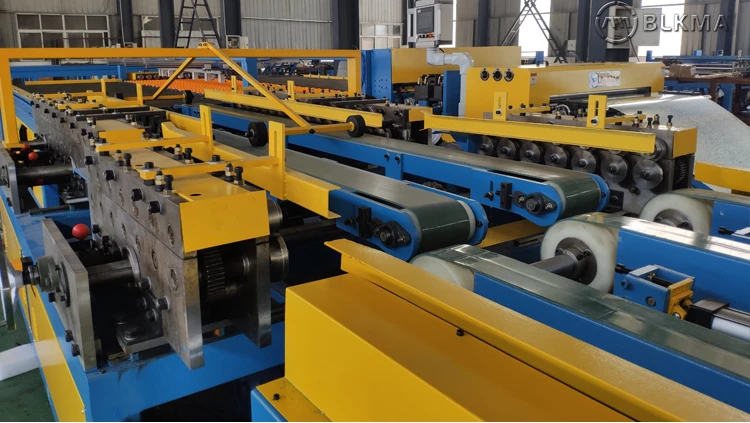

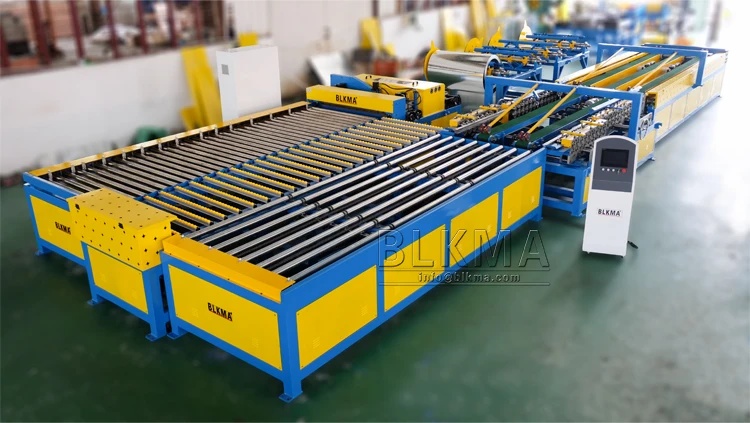

Detailed Images:



Working Schematic Diagram & Working Flow:







FAQ:

1. Are you manufacturer or trading company?

    We are manufacturer.

 2. What shall we do if don't know how to operate your machine?
    We can dispatch our engineers to your country and you can also send your engineers to our

    factory for learning operation. Besides, there are detailed installation and operating instructions

    attached, it is very simple. We have telephone and email support at 24 hours per day.



 3. What are your payment terms?
    We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance

    before the shipment.



 4. OEM is available?

    Yes.



 5. What's your package?

    There're two package methods. One method is that machines will be fixed directly in a whole

    container without wooden box when total machines dimensions need a container, in this

    situation, machines will be transported by FCL (full container load). Another method is that

    machines will be packaged with wooden box when total machines dimensions are small which

    does not need a whole container, in this situation, machines will be transported by LCL (less

    than container load).

    Both of these two package methods are safe.
