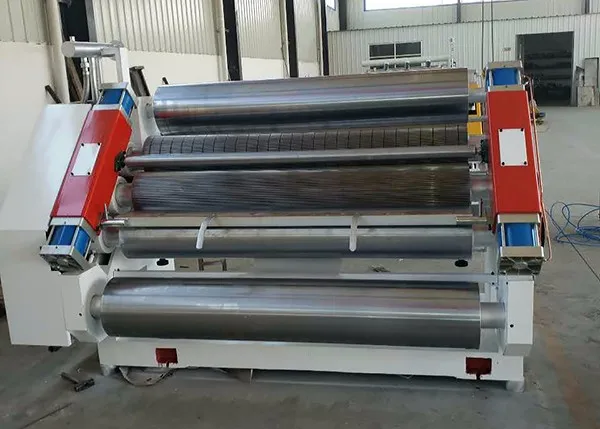

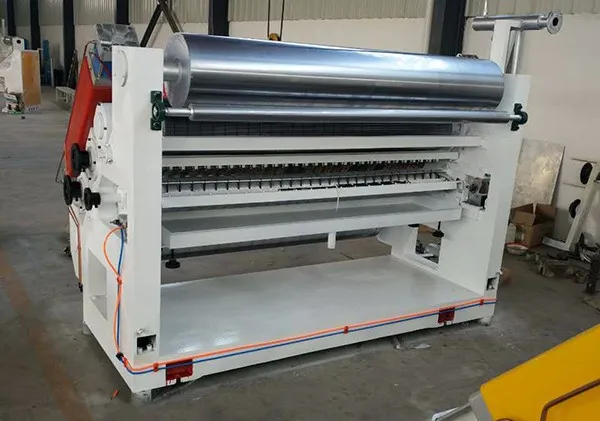

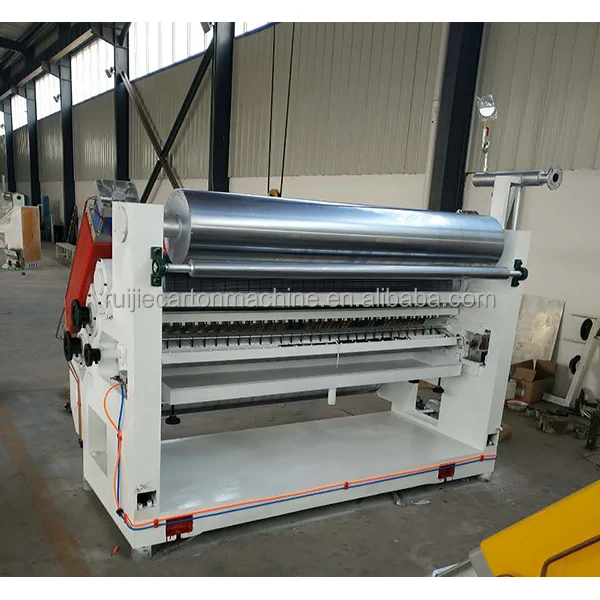

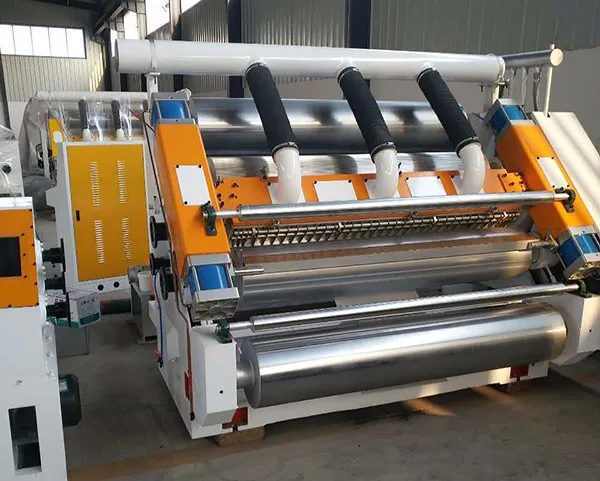

Ruijie 3 ply e flute single facer corrugated cardboard machine

Product Overview

Description

Ruijie 3 ply e flute single facer corrugated cardboard machine

Specifications





(Technological parameter)

Model number	Working speed (m/min)	Type of corrugation	Way of heating
1400-2500	120-200	A C B D E F	Electric/steam/gas



Uses and Features: 1.Design speed: 100m/min. 2.Effective Width: 1400mm-2500mm 3.The diameter of corrugated roller :280-380 mm



Electrical Mill Roll Stand



Uses and Features:



1. Cardboard transmit is vacuum suction method, with wind control system.

2. Glue roller section is designed unit assemblage type. Whole section can be moved by track, save maintenance time.

3.Universal joint drive, independent drive box body structure, more stable transmission, enclosed gear oil lubrication, prolong service life of the gear.

4.Upper corrugated roller, pressure roller bearings use high-temperature grease lubrication.

5.The use of electric slurry insulation device, paste Department operates independently in the host machine, prevent paste.

6. Electric adjustment, digital display of glue or manually adjust the amount of adhesive.

7. The upper and lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness is HRC58°-60°, the surface be grinded and chrome.

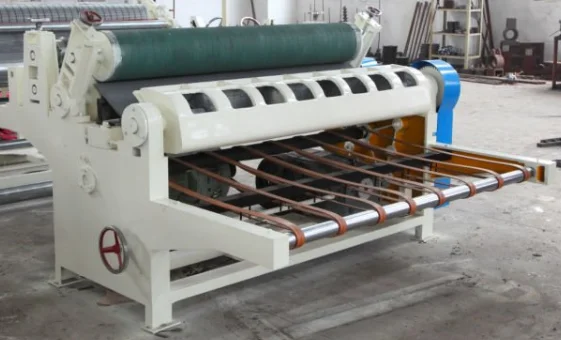

SINGLE CUTTER







Equipment performance:

Single cutter can do single corruagted cardboard vertically and horizontally cutting.It has Change order fast and high cutting precision,working speed fast etc.make little waster,when changed the order.It suit for the top grade colour prinitng machine.This machine adopt PLC touch screen to design .Through it operator can know all the production status. Adopt variable frequency motor to adjust the speed. Servo control make the cutting length more exactly, making the cutting precisiopn perfectly.(error±1.5mm).mechanical behavior will more fine.
