Product Description

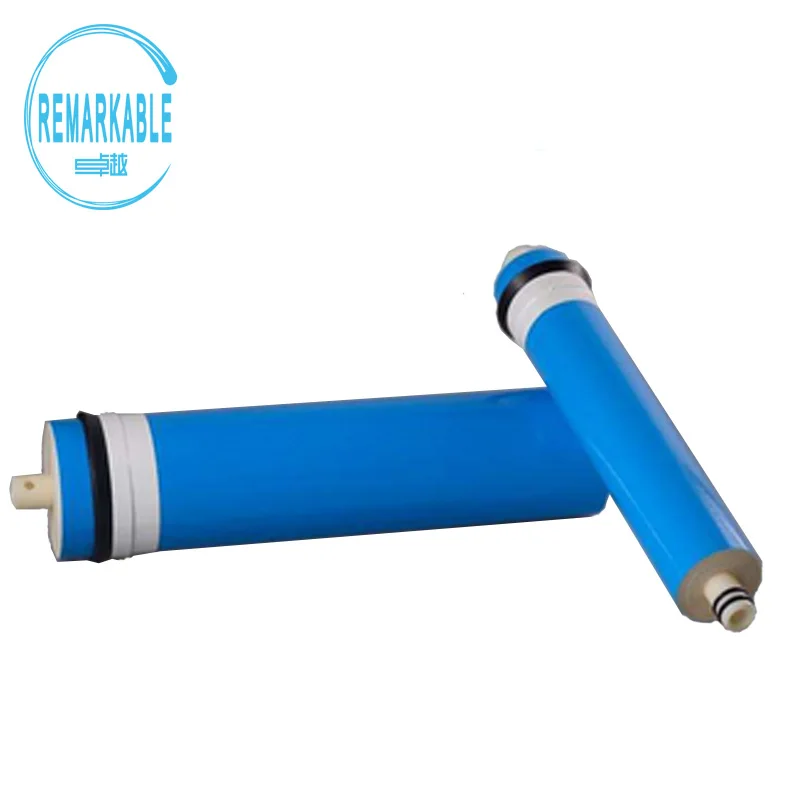

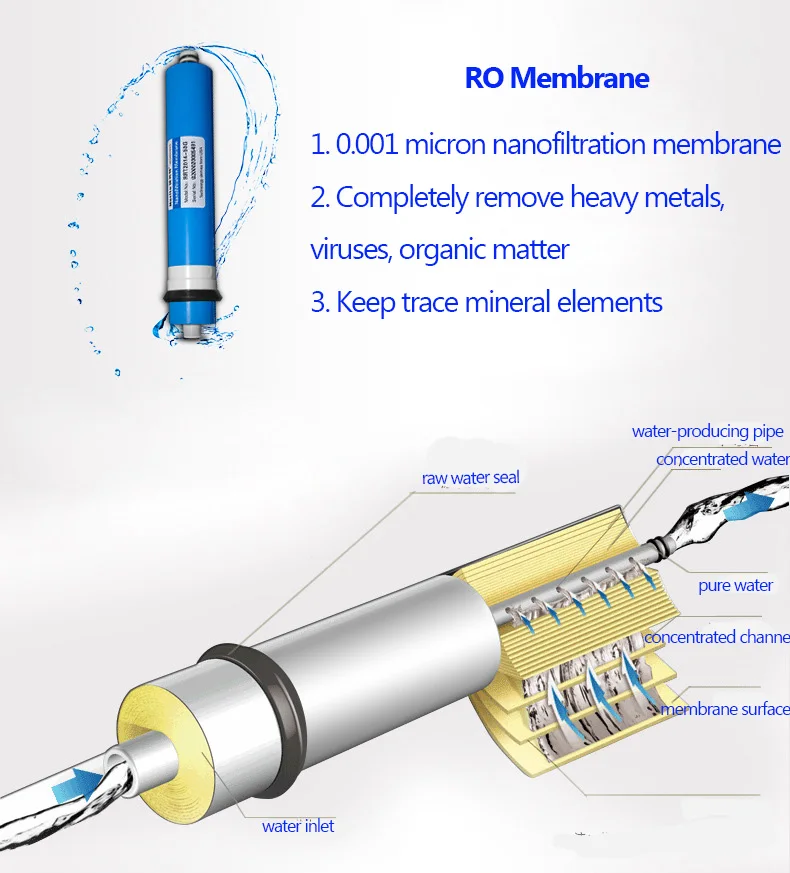

RO membrane ( reverse osmosis membrane) components using high-performance polyamide composite film processing roll, advanced membrane technology and consistent RO membrane components quality.
| RO Membrane Model | ZY-50 | ZY-75 | ZY-100 | ZY-3020 | |
Performance parameters | Minimum desalination rate% | 98 | 98 | 98 | 98 |
Permeation (GPD) | 6L/H | 12L/H | 20L/H | 60L/H | |
Test Conditions | Pressure (PSI) | 65 | 65 | 65 | 65 |
Temperature (C) | 25 | 25 | 25 | 25 | |
PH of test solution | 6.5-7.5 | 6.5-7.5 | 6.5-7.5 | 6.5-7.5 | |
NaCl solution (ppm) | 500 | 500 | 500 | 500 | |
Membrane element recovery rate(%) | 10 | 10 | 10 | 10 | |
Operating conditions | Maximum enter water temperature (C) | 45 | 45 | 45 | 45 |
PH range of enter water | 4-11 | 4-11 | 4-11 | 4-11 | |
Maximum turbidity (NTU) | 1 | 1 | 1 | 1 | |
Maximum SDI of enter water | 5 | 5 | 5 | 5 | |
Maximum residual chlorine concentration (PPM) | 0.1 | 0.1 | 0.1 | 0.1 | |
Single ro membrane element maximum pressure loss (PSI) | - | - | - | - | |
Winding way
| TAPE (tape) | TAPE (tape) | TAPE (tape) | TAPE (tape) | |
Material | PA (polyamide) | PA (polyamide) | PA (polyamide) | PA (polyamide) | |
Configuration of 100 gpd RO Membrane

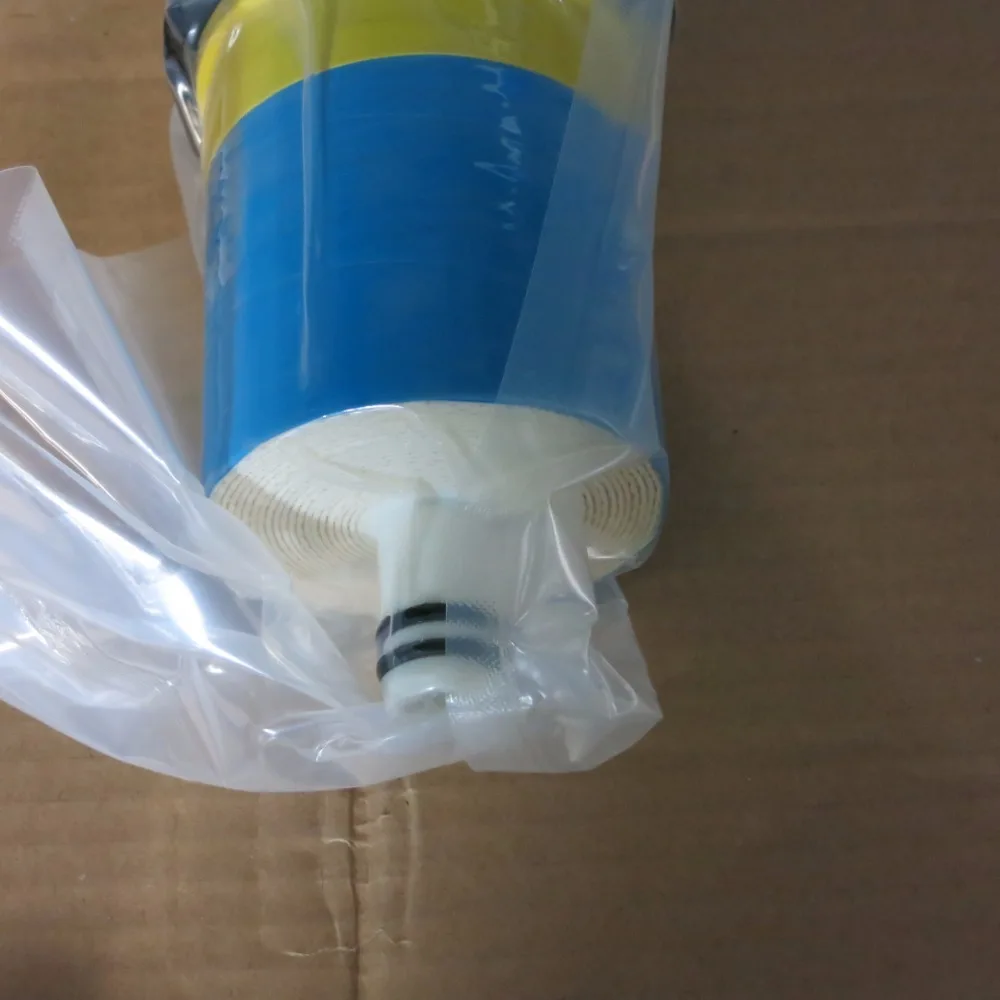

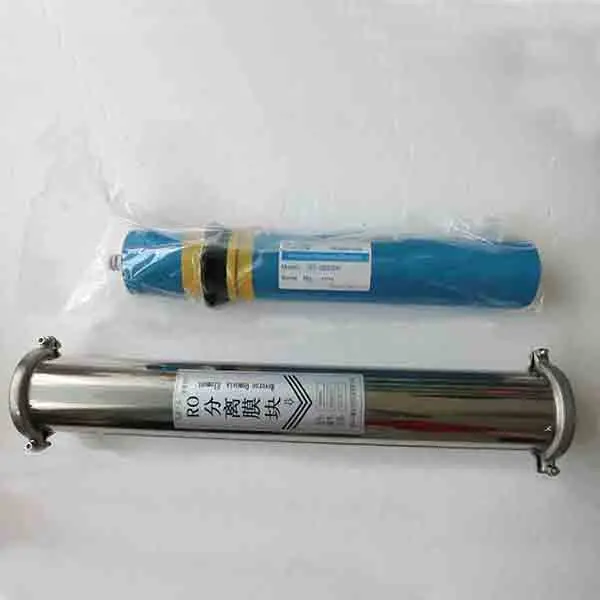

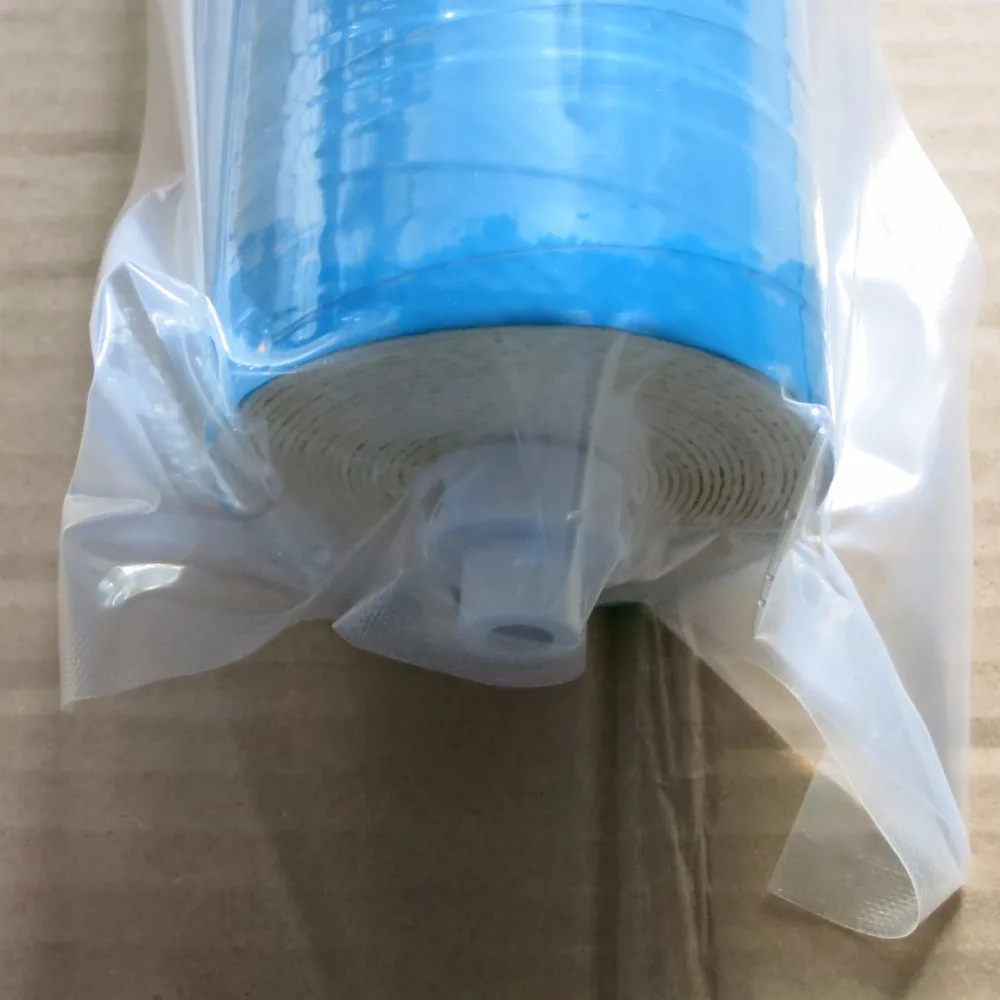

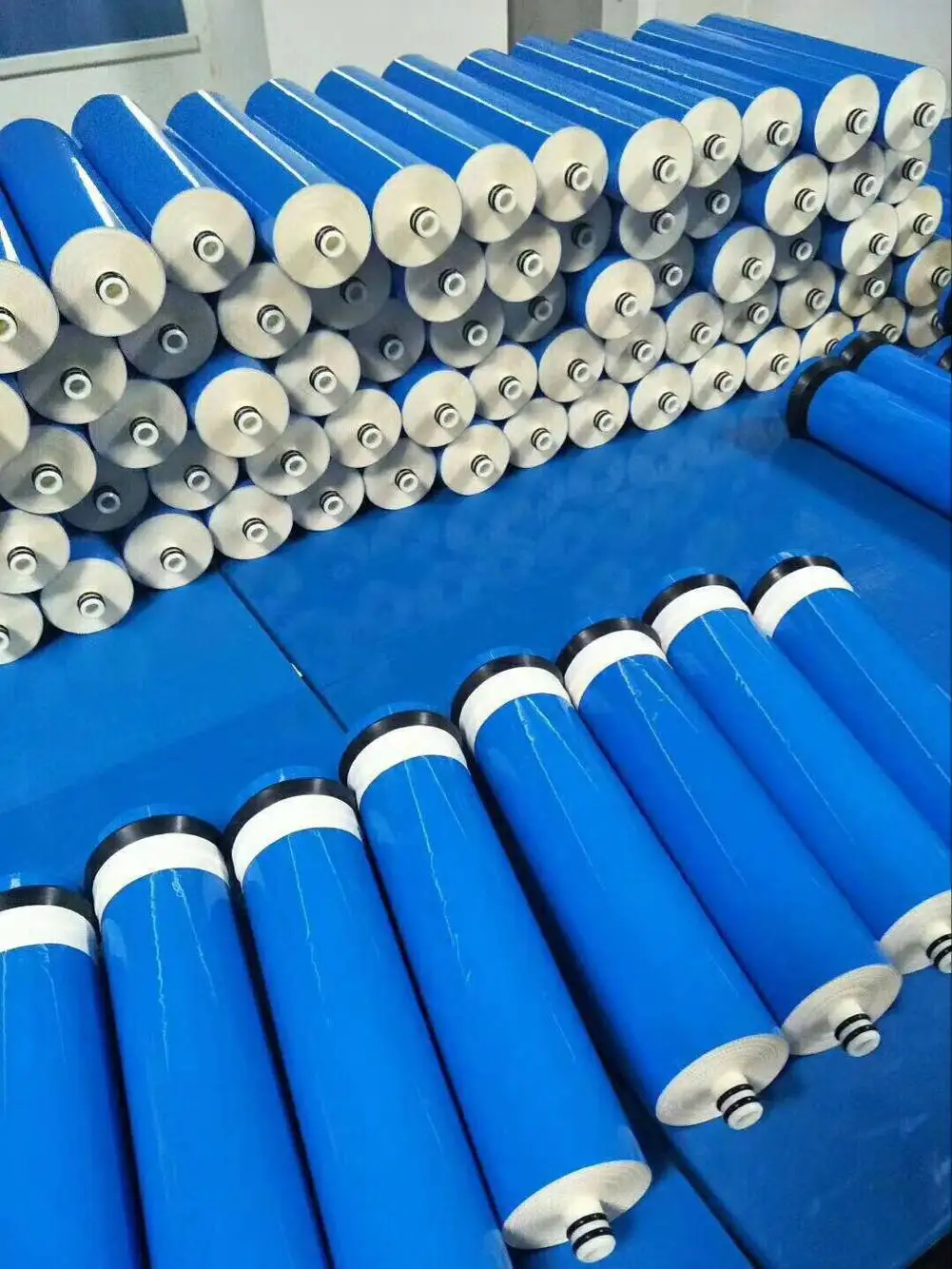

Detailed Images

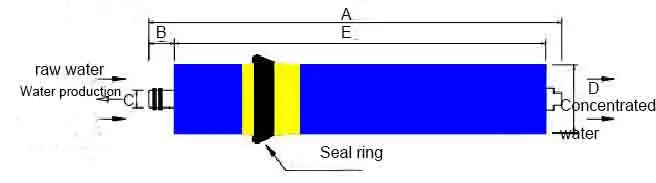

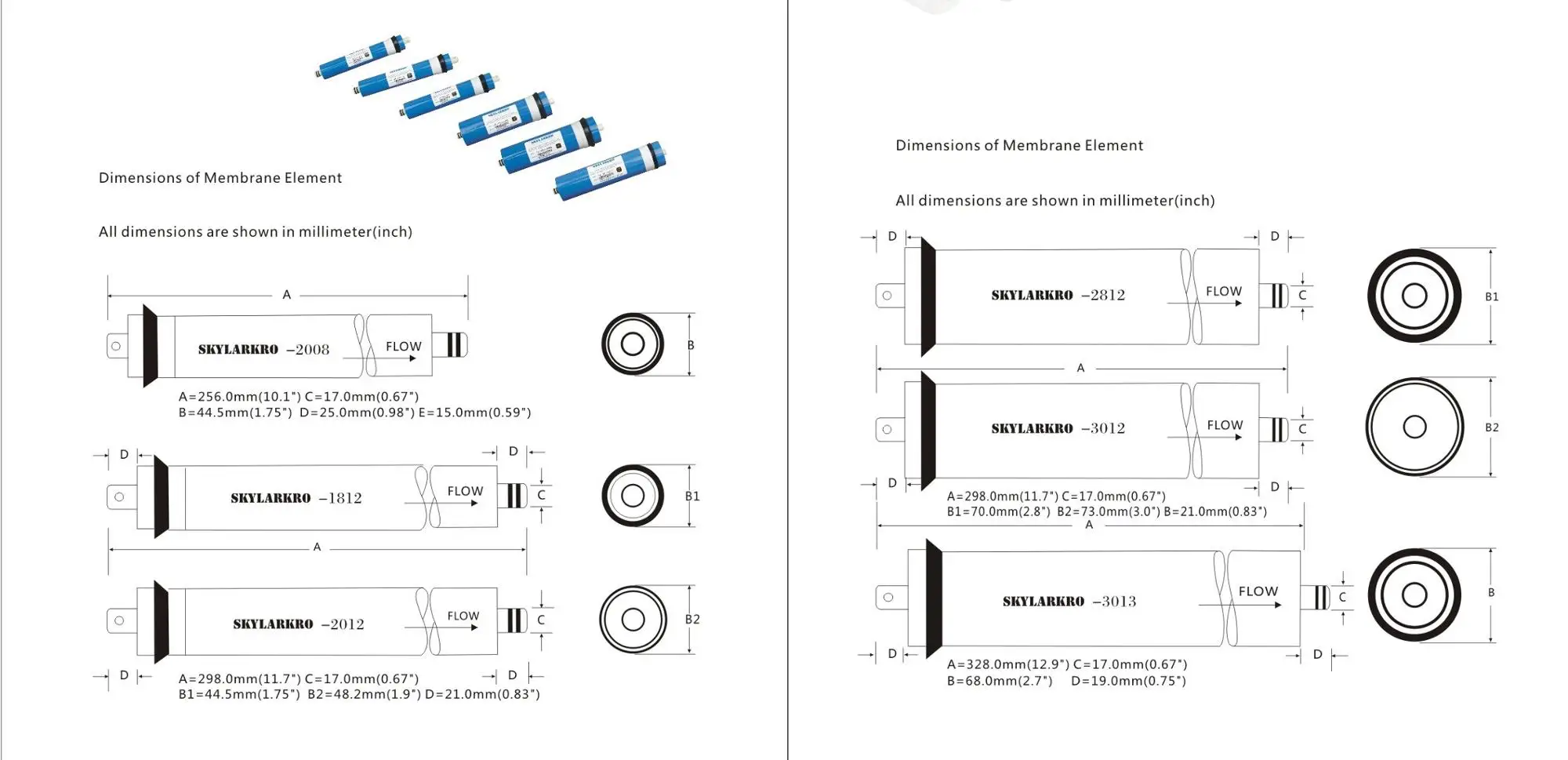

Specification of 100 gpd RO Membrane:
| ro membrane Model | A | B | C | D | E |
| ZY-2012-50/75 | 298.2(11.74) | 22(0.87) | 17(0.68) | 44(1.7) | 254(10) |
| ZY-2012-100 | 298.2(11.74) | 22(0.87) | 17(0.68) | 45.5(1.8) | 254(10) |
| ZY-3020HF | 510(20.08) | 31.5(1.24) | 18(0.71) | 77(3.03) | 458.5(18.05) |
1. Water production and desalination rate is based on the following test conditions: 250ppm softened tap water, test solution temperature 25 ℃, PH8, recovery rate of 15%
2. Change in the range of ± 20% of the amount of water produced by a single membrane element.
Unit: mm (inch) 1inch=25.4mm
