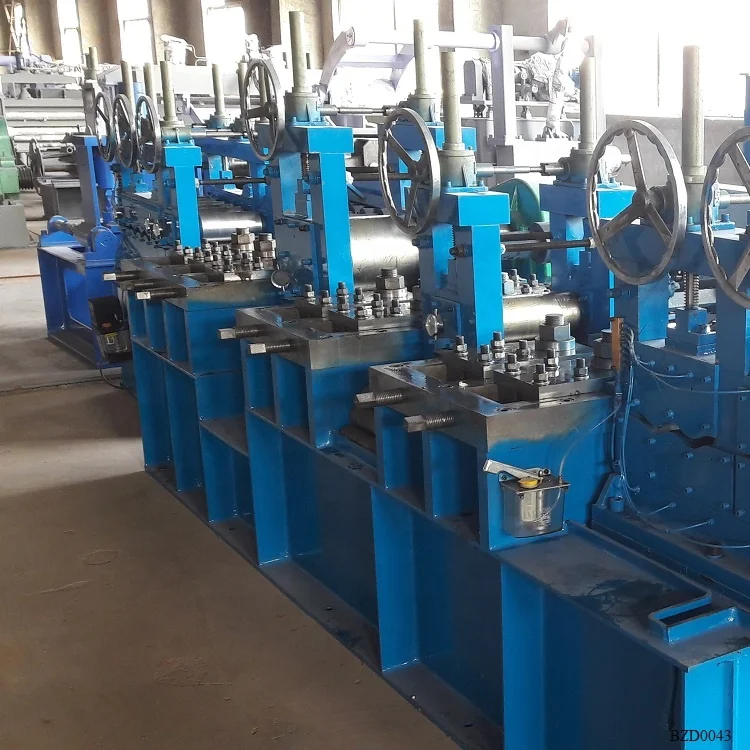

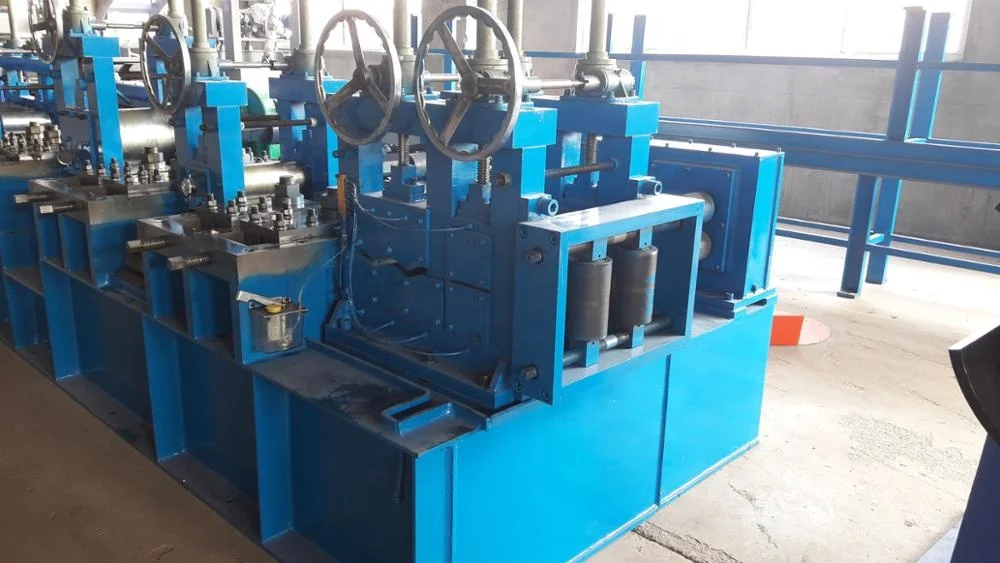

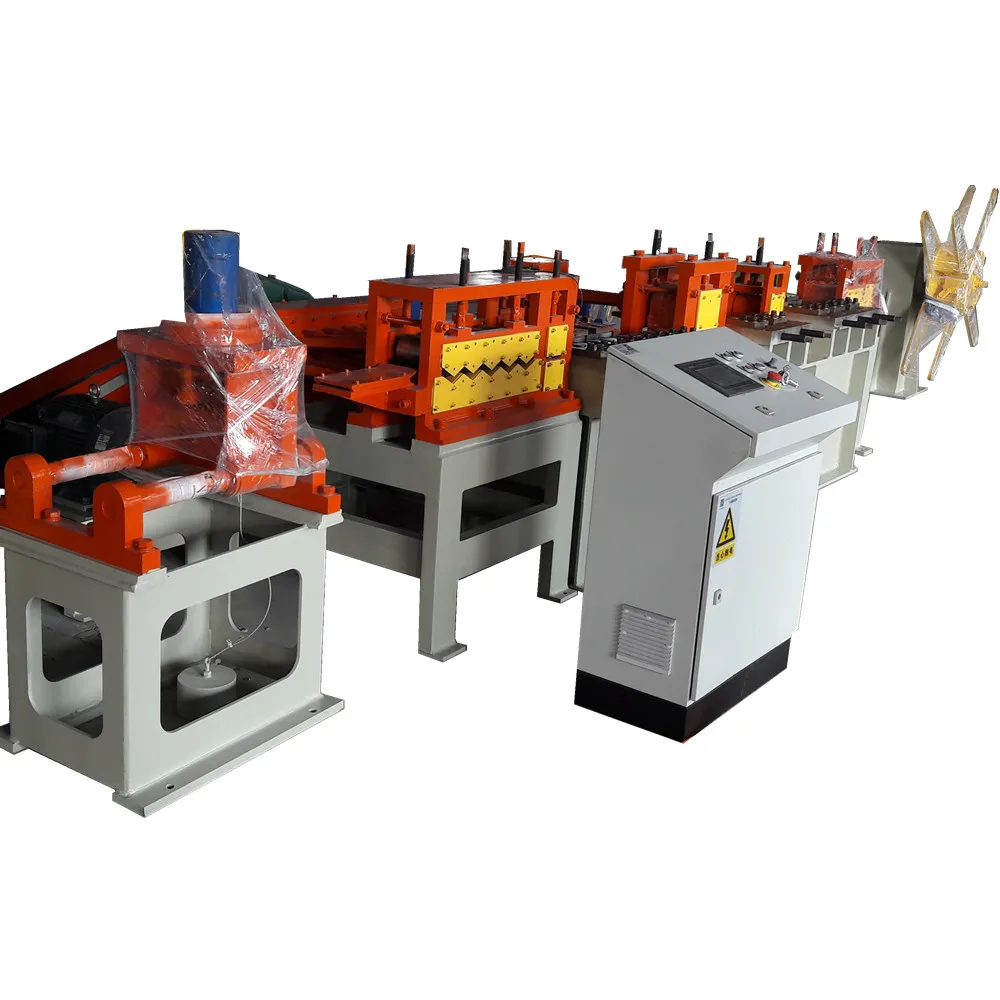

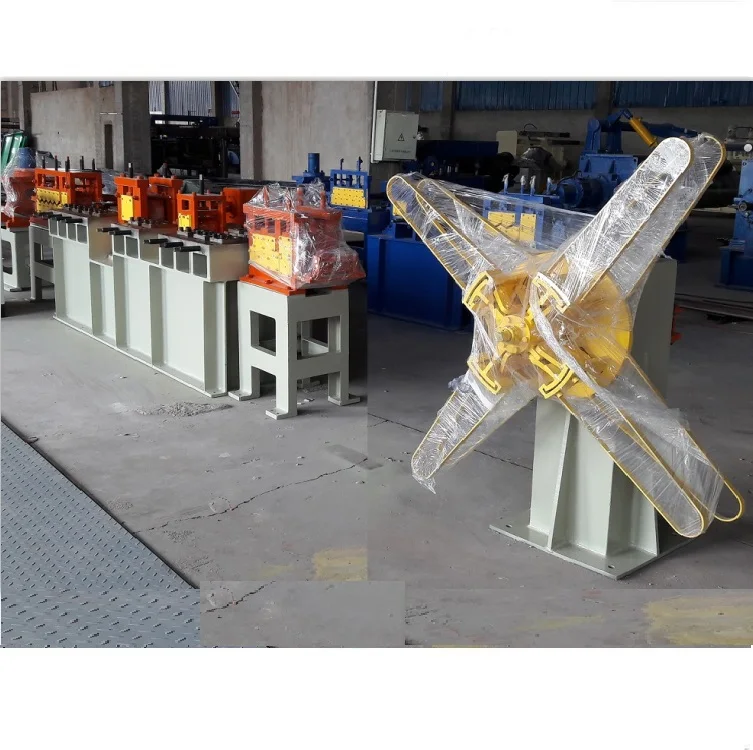

flat bar leveling straightening and cut to length machine
- Category: Cut to Length Line >>>
- Supplier: Wuxi Bangzhou Machinery Manufacturing Co. Ltd.
Share on (60649387259):
Product Overview
Description
Products Description
Flat bar machine
Flat bar machine is used to do uncoiling,deburring,chamfering,longitudinal and straightening then cut to length
Flat bar machine
The flat bar machine is low output but high added value,especially for the bright flat bar and stainless steel flat bar
Product Paramenters
Standard specifications of flat bar machine(if other size,can be customlized)
Model | Thickness(MM) | Width(mm) | Chanfering angle | Speed(m/min) |
BG-6X80 | 2-6 | 12-80 | Round or Square | 0-25 |
BG-8X100 | 3-8 | 15-100 | Round or Square | 0-25 |
BG-10X150 | 3-10 | 20-150 | Round or Square | 0-20 |
BG-12X200 | 6-12 | 20-200 | Round or Square | 0-20 |
Details Images

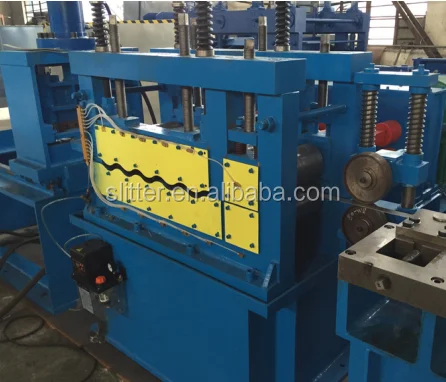

Flat surface straightener
It is composed of 2 pinch rollers and 9 leveling rollers(Material: GCr15. Hardness: 62-64).Can ensure the surface straighten quality
Chamfering and extrusion machine
This part can make the sharp edge to blunt so that forming the sides of the flat bars.

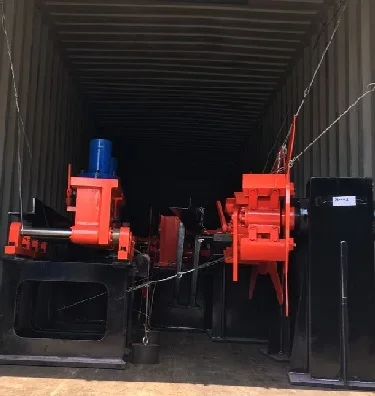

Product packaging
Machine device will be naked and all rollers will be antirust treatment to protect the rollers.All the spare parts will be collected into the homemade iron boxes. After loading to the container,it will be fixed by lifting rope.
Company Profile
WUXI BANGZHOU MACHINERY
We are the manufacturer specialized in steel coil straightening machine, slitting line, cut to length line and flat bar
straightening and chamfering machine for about15 years.
It is professional in designing and producing all kinds plates processing machines. At present, we have own team of design,
production and sales. We can provide our customers with one-stop and high quality service.
straightening and chamfering machine for about15 years.
It is professional in designing and producing all kinds plates processing machines. At present, we have own team of design,
production and sales. We can provide our customers with one-stop and high quality service.
Certifications
Customer Photos
Our compnay will attend professional exhibition of this industry every year.Always welcome to visit our factory.
FAQ
What is your advantages?
A1:More than 15 years experience in manufacturing the machines. Professional and humanized .
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 3-4 lines per month.
A3: Can produce 3-4 lines per month.
Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any
problem , contract us and we will solve for you.
problem , contract us and we will solve for you.
How to visit your company?
Our factory is located in Wuxi city, near Shanghai. So there are two ways to our city. One is by flight, direct to Wuxi Airport.
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
What information you need to prepare the quotation?
1. coil thickness(min-max)?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
