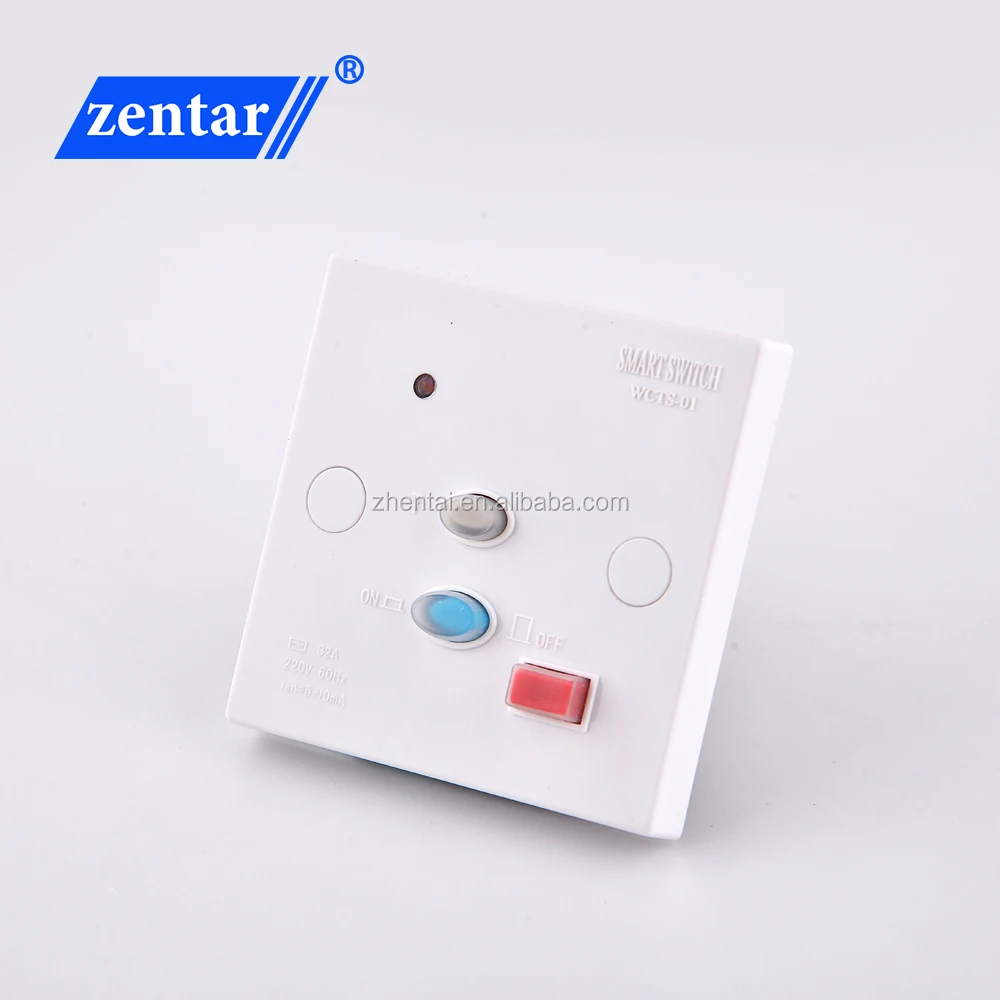

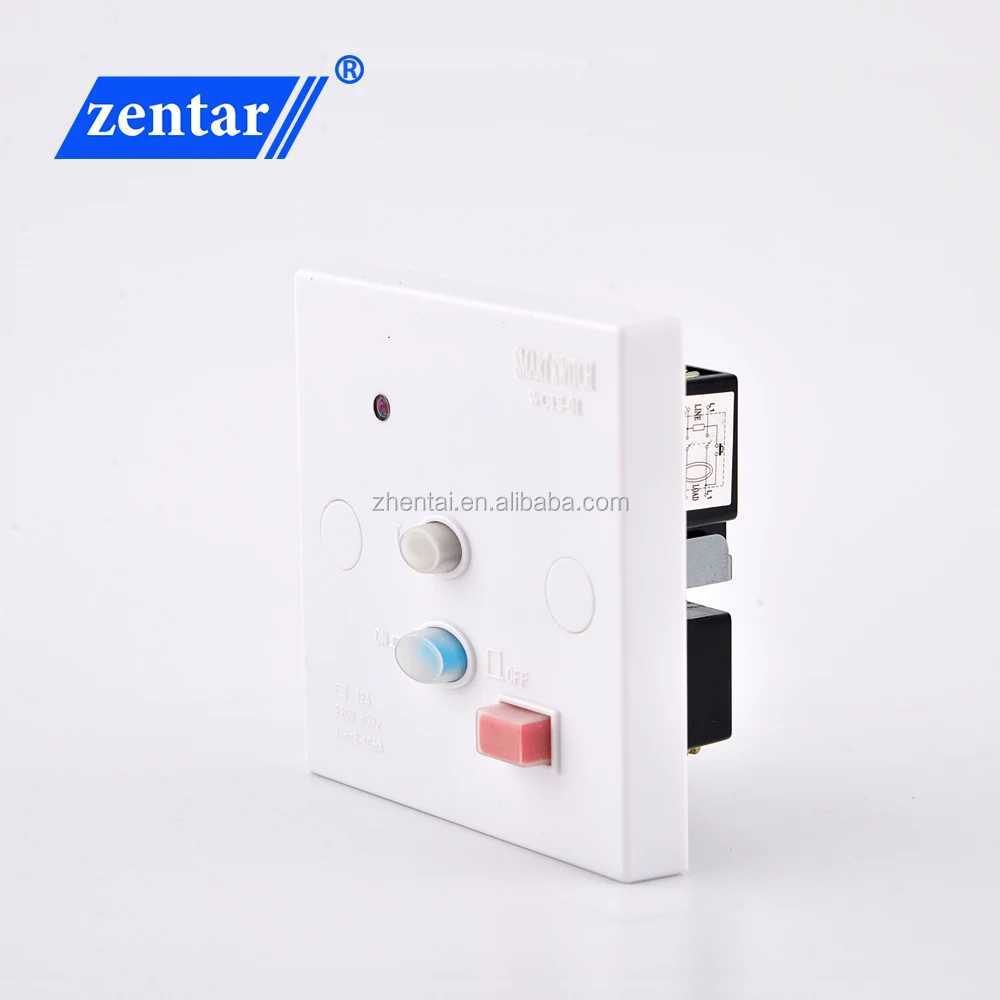

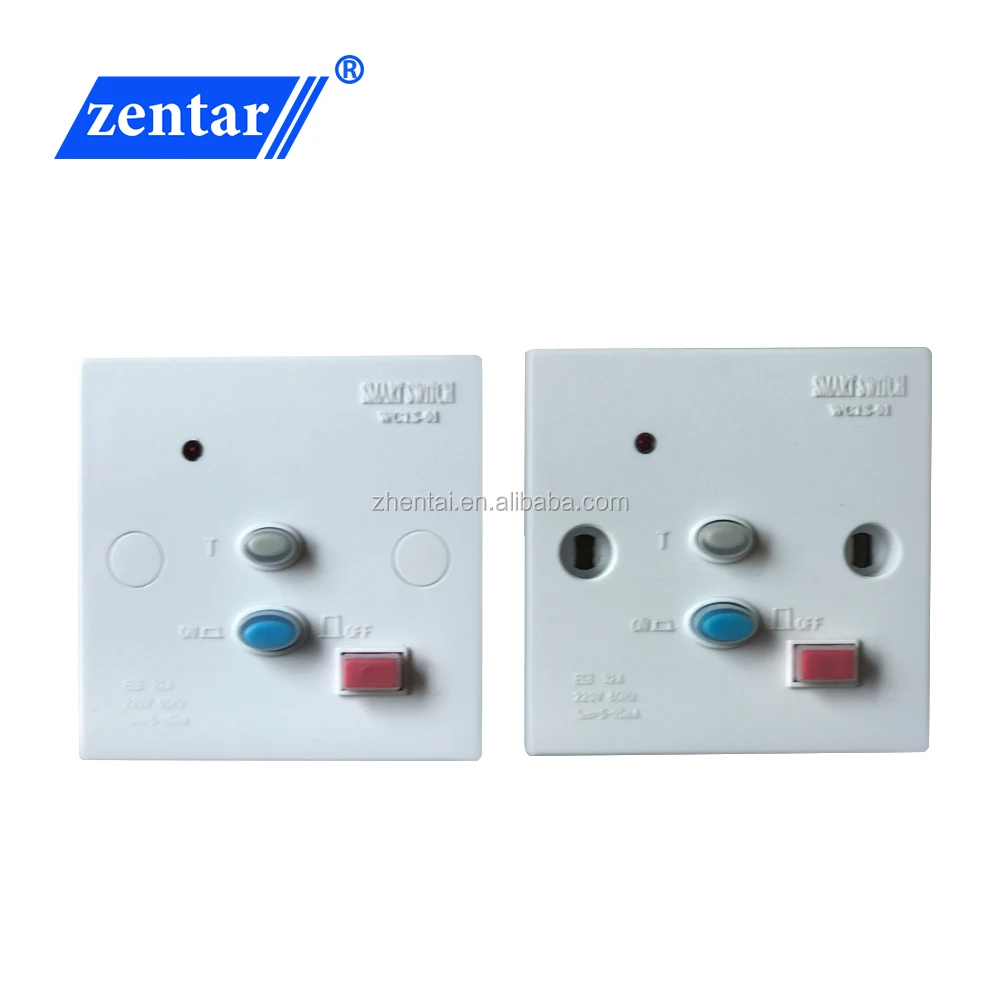

30mA ZT5S RCD protection fused spur with SASO
- Category: >>>
- Supplier: Xiamen ZTC Technology Co. Ltd.
Share on (60649432477):
Product Overview
Description
What is the APPLICATION of our RCD protection fused connection?
Air Conditioner, Oven
Heat Pump Water Heater
Solar Water Heater
Vending Machine
Water Dispensers
Refrigerator
Washing Machine
- other electrical appliances
l
l What is FEATURES of our RCD protection fused connection?
- Protect from leakage of electricity,Earth wire disconnection, Hot line Misconnect and Zero Line misconnect
- Waterproof
- Big Current
- Stable performance
Unique Elegant in Design; Bright pretty in Color
What is SPECIFICATION of our RCD protection fused connection?
| Brand Name | Zentar |
| Model No. | ZT5S |
| Rated current | 32A |
| Application | Air Condition, Water Heating Electrical Machine |
| Certificate | SASO |
| Color | WHITE |
| Clamp times | 3000 times |
| Rated Output Voltage | 230V |
| Rated Frequency | 50Hz/60Hz |
| Trip Time | ≤0.1s |
| Dielectric Strength | 2000Vrms/2 secondary between SEC./PRI. |
| Rated connecting and breaking Capacity | 500A |
| Rated residual operating current | 10mA |
| Rated residual non-operating current | 30mA |
| Endurance Test Times | 2000VAC |
| Pole no. | 2p plus PE |
| Inspection Standard | IEC61008-1:2013 |
| Waterproof Class | IPX1 |
Certifications
We have various of cetificates as below.
Trade Shows
We attend 2010 HK Global Sources Trade Show.
Packaging & Shipping
Packaging: IN Cartons
- 100pcs/Carton
- Dimension of carton: 472*260*390
- Gross weight:18 KG
Shipping: 15-30 days after payment
Company Information
Why choose us as CURRENT TRANSFORMER SUPPLIER?
- 12 years Gold Supplier in ALIBABA
- No. 1 factory manufacturer in ZERO PHASE CURRENT TRANSFORMER wall switch
- 100% INSPECTION Before Shipment
- CE, ISO 9000, ISO14000 and ROHS
FAQ
Q1: Could you send us samples we required?
A1: SURE. If your data sheet matches our current ct, we will send you FREE samples.
However, if yours is not in our list, we will make a new mould.
Q2: How can we buy your wall switch?
A2: Click SEND Now!
