12V to 5V 3A 15W USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter 12 Volt to 5 Volt
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60649561187):
Product Overview
Description
12V to 5V 3A 15W USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter 12 Volt to 5 Volt
| Model | F22J5V3AL-A |
| Input rated voltage | DC 12V |
| Input voltage range | DC 8-22V |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | DC 5V |
| Output current | 3A Max |
| Output rated power | 15W Max |
| Voltage regulation | < 3% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Full load temperature rise: | 40°c |
| Protection | Over-current, Over-temperature, Short-circuit protection,Input Reverse Polarity Protection |
| NW | 20G |

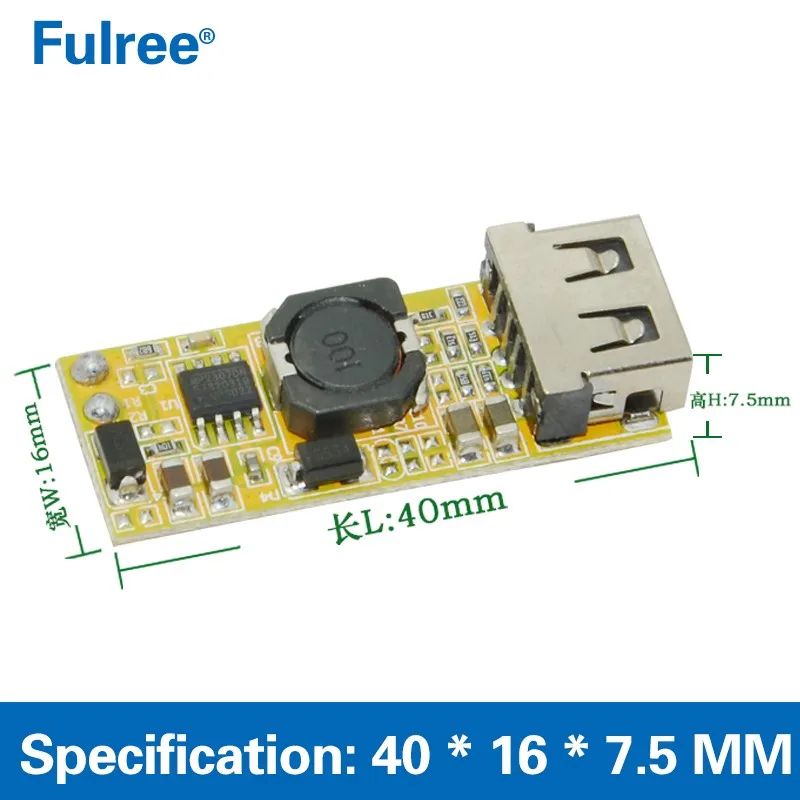

| Product size | 40*16*7.5mm |
Attention: >Pls install according to the the label strictly | |
