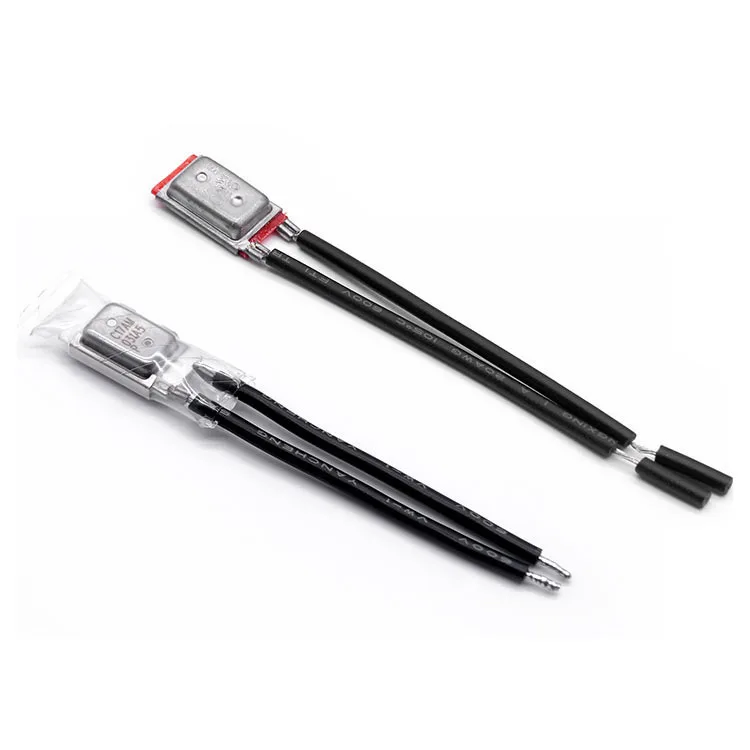

17AM036 17AM036A5 145c Automatic Thermal Overload Protector Switch
- Category: >>>
- Supplier: Dongguan Reomax Electronics Technology Co. Ltd.
Share on (60649565185):
Product Overview
Description
Product Description
17AM thermal protector advantages:
• Miniature size.
• Individually temperature calibrated and checked.
• Positive make and break with Klixon snap action disc.
• Repeatable temperature performance over life.
• Gasket steel case suitable for many impregnation processes.
• Current and temperature sensitivity for maximum design flexibility.
• Wide selection of leads and insulating sleeves.
• Same size and opposite side terminations.
• Cadmium free contacts.

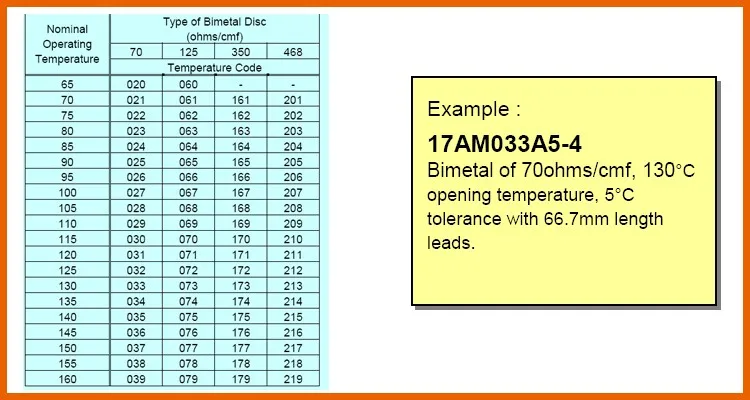

Technical parameters of 17AM thermal protector:
Rating: 22 A / 115 V--- AC, 9 A / 250 V--- AC, 20 A / 16 V--- DC
Action temperature range: 65 ℃~ 160 ℃ ±5℃
Tolerance:±5℃
Dimension: 23×10.4×4.6 mm
Contact resistance:﹤40mΩ
Insulation resistance:﹥100MΩ
Response speed:≤1℃/min
Operation cycles: ﹥10000 Times
Approvals: UL CSA VDE CE CQC RoHS
Applications:
• Shaded Pole Motor• Permanent split capacitor motor
• Fluorescent lighting ballasts
• HID ballasts
• Transformer
• Recessed lighting fixtures
• Battery packs
• Vacuum cleaners
• Automotive accessory motors, solenoids, PC boards
Thermal protectors
Our Service
High Quality Guarantee
Global Services
Fast Response
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Packing Details : Standard cartons
Delivery Details : 5 days after the confirmation of payment
Our Certifications
Customer Feedback
Favorable Comment
--From United Kingdom
Screen capture on Trade Assurance Feedback Management
Favorable Evaluation Result
--From Thailand
Screen capture on Report of Supplier Evaluation Result
Favorable Questionnaire
--From Bulgaria
Screen capture on Report of Supplier Questionnaire
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-100 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
If you have another question, pls feel free to contact us.
17AM036A5 145C
