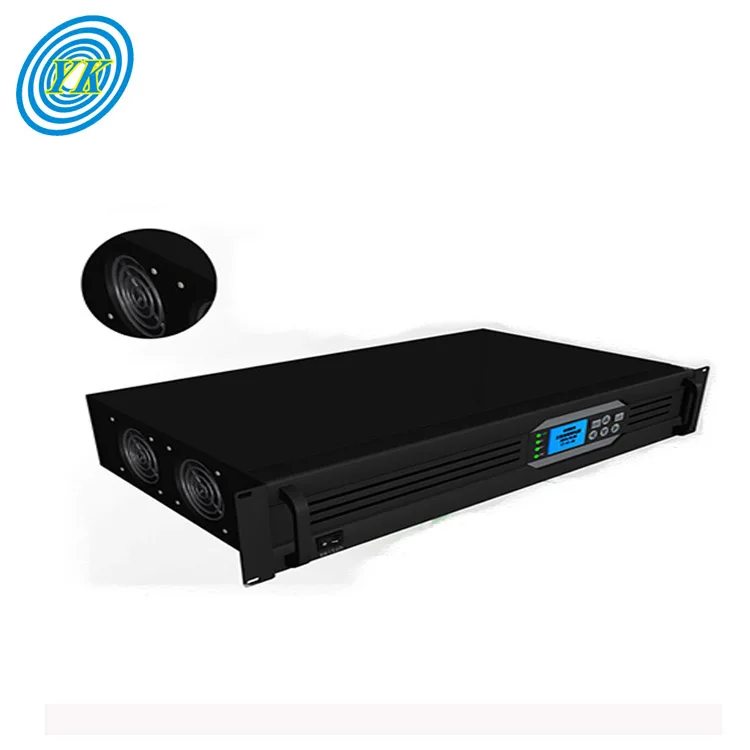

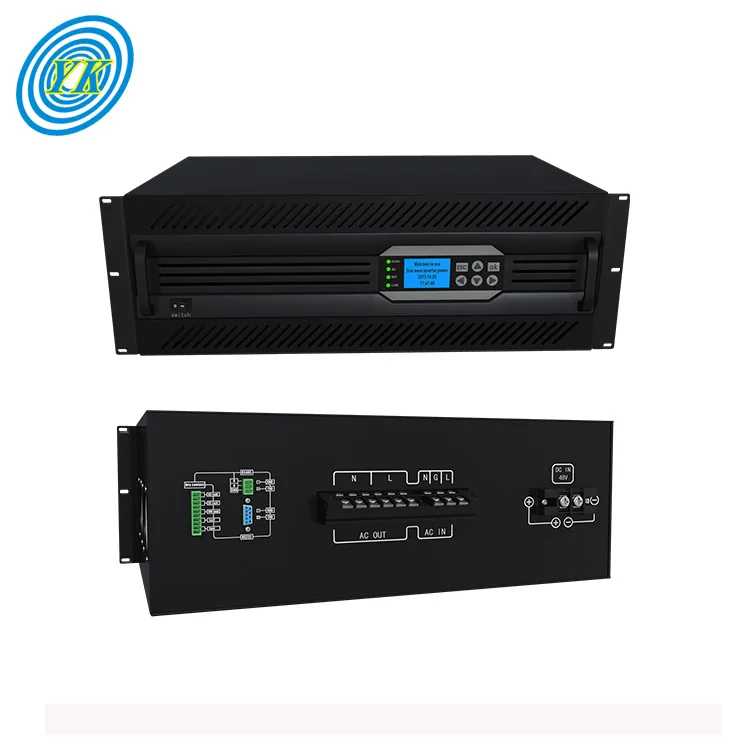

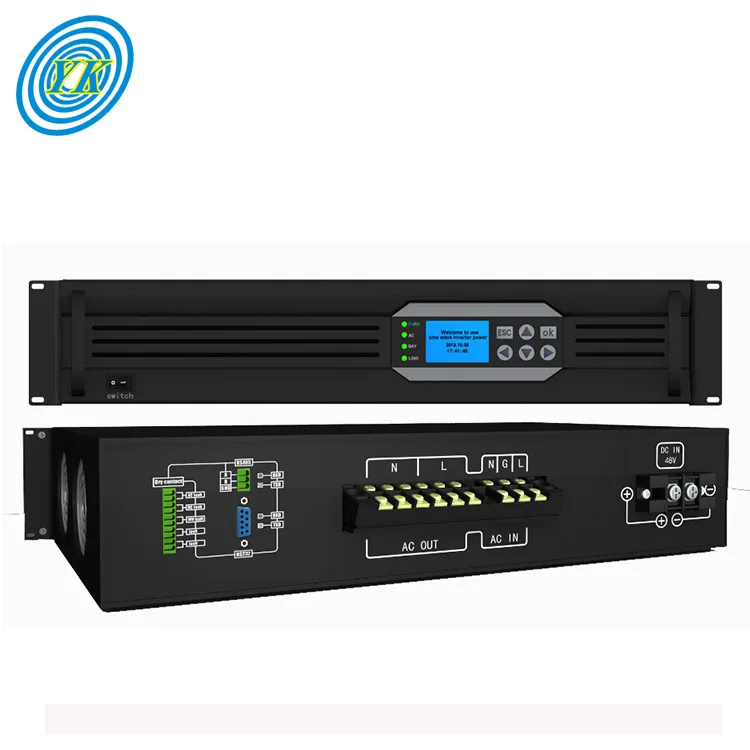

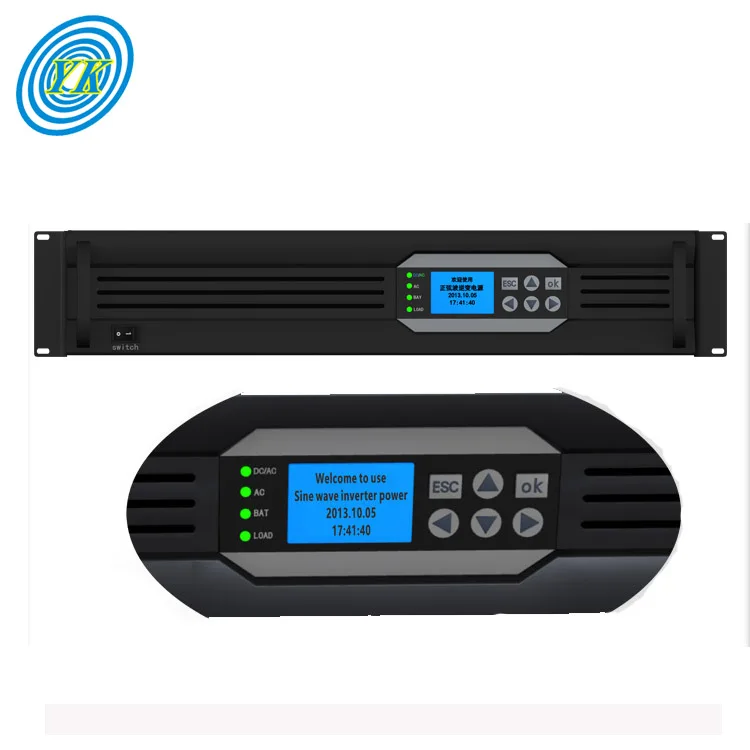

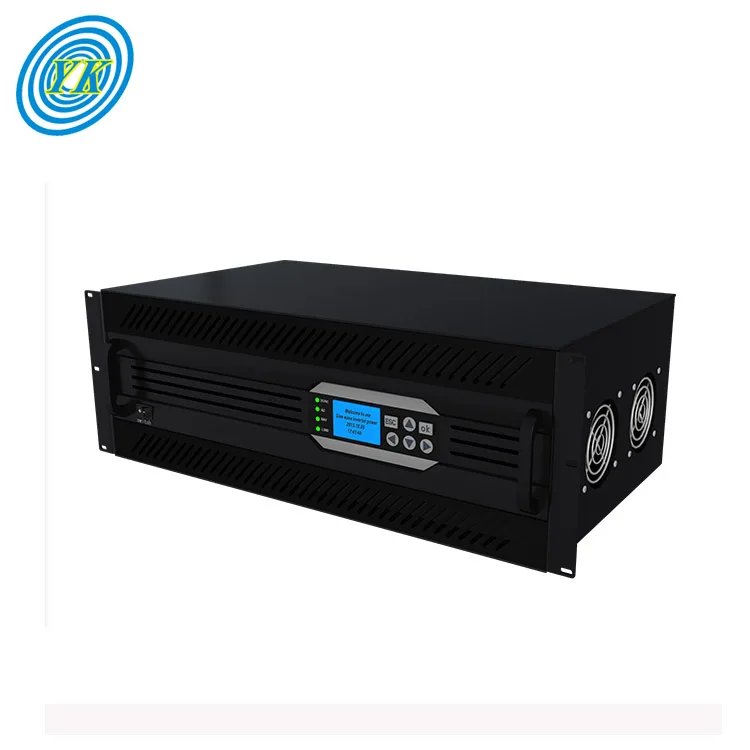

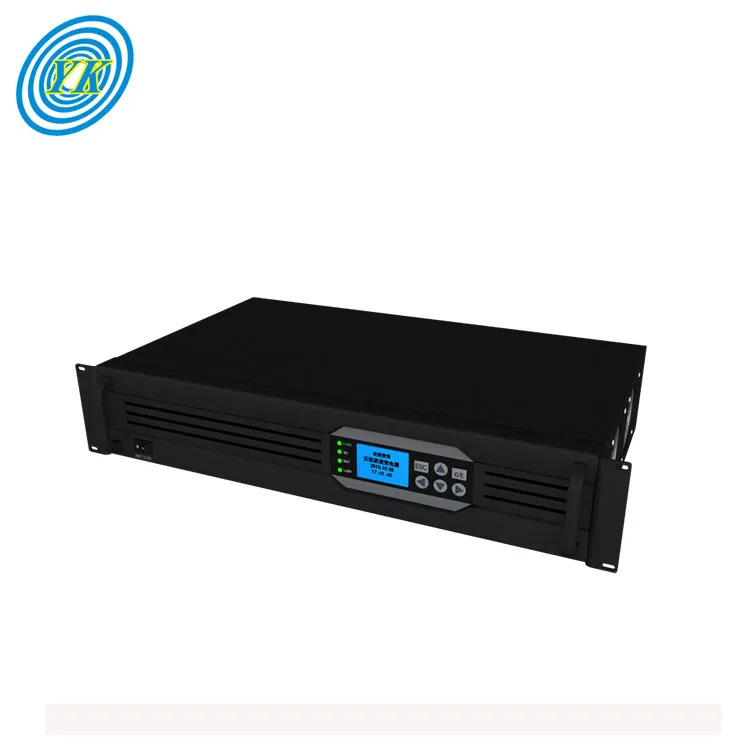

Pure sine wave 19inch 2U 1KVA 220vdc to 220vac inverter

Model

YKDA-HD1000

YKDA-HD2000

YKDA-HD00

YKDA-HD4000

YKDA-HD5000

YKDA-HD6000

YKDA-HD8000

YKDA-HD10000

DC Input

Rate input Voltage/Vdc

220Vdc

Rate input Current/A

5A

9A

14A

18A

23A

27A

37A

46A

Input dc range Voltage

DC shut down voltage range : 180V-270V

DC start up voltage range : 208V--260V

Reverse noise Current

≤10%

AC Bypass input

Allow bypass voltage (Vac)

220Vac±20%

Rate input current/A

4.5A

9.1A

13.6A

18.2A

22.7A

27.3A

36.4A

45.4A

Bypass conversion time/ms

≤5ms

AC Output

Rated output Capacity/KVA

1KVA

2KVA

3KVA

4KVA

5KVA

6KVA

8KVA

10KVA

Rated output power/W

800W

1600W

2400W

3200W

4000W

4800W

6400W

8000W

Rated output voltage and frequency

220Vac,50Hz/60HZ

Rate output current/A

3.6A

7.2A

10.8A

14.5A

18.1A

21.8A

29A

36.3A

Output voltage accuracy/V

220Vac±1.5%

Output frequency accuracy/Hz

50hz±0.1%/60hz±0.1%

Waveform distortion rate (THD)

≤3%(Linear load)

Dynamic Response

5%(Load 25%←→100%)

Power Factor/PF

0.8

Over load ability

100%-120%   60 seconds

121%-150%   10 seconds

Efficiency

≥85%(80% Resistive load)

Bypass conversion time/ms

≤5ms

Operating Environment

Insulation strength (input and output)

1500Vac,1min

Noise/1m

≤40dB

Operating temperature

-25℃~+50℃

Humidity

0~90%,no cooling

Altitude /m

≤1000M

Protection

Protect function

Input lower voltage, input overvoltage protection; output overload protection, output short circuit protection

Product Dimension/mm

482*347*88mm

482*430*88mm

482*480*176mm

Product Net Weight/kg

9kg

10kg

10kg

12kg

13kg

13kg

20kg

22kg

Package Dimension/mm

580*520*240mm

590*590*240mm

590*570*420 mm

Gross Weight/kg

11kg

11kg

11kg

13kg

14kg

15kg

30kg

.30kg
