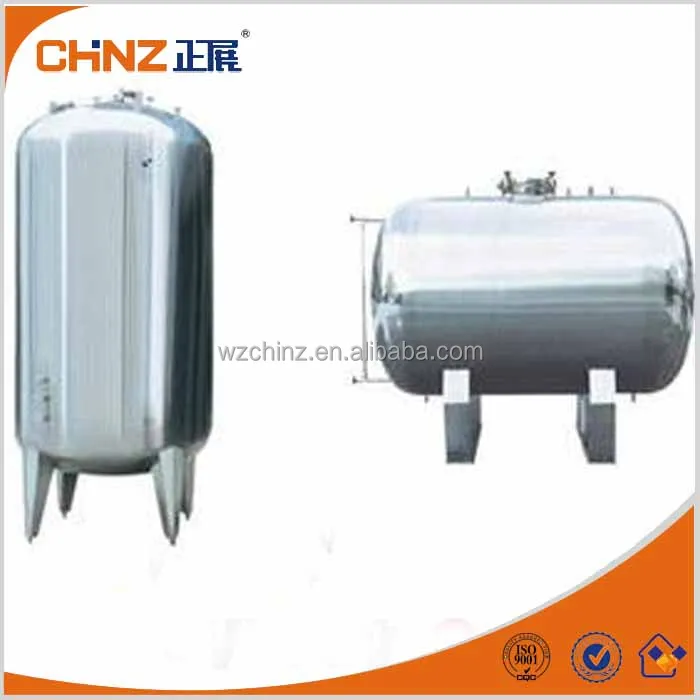

Large stainless steel 304 or 316 horizontal storage tank for oil and water
- Category: Storage Tank >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (60649753474):
Product Overview
Description
Products Description
Large stainless steel 304 or 316 horizontal storage tank for oil and water
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements
are allowed in special cases)
4. Design work temperature:-4~~+150C.
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements
are allowed in special cases)
4. Design work temperature:-4~~+150C.
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Stainless steel storage tank (storage tank, stainless steel water tank) is usually used for storage water, liquid, milk, temporary storage, material storage, etc. Suitable for fields such as dairy, juice, beverage, medicine chemical or bio-engineering Project, etc.
We can make single-layer, dual-layer and three-layer stainless steel tanks with or without agitator to blend product, with a wide capacity range from 100L to 100,000L and even larger.
We can make single-layer, dual-layer and three-layer stainless steel tanks with or without agitator to blend product, with a wide capacity range from 100L to 100,000L and even larger.
Single-layer tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as
blender tank, buffer tank and storage tank, which cleanable to sanitary standards.
blender tank, buffer tank and storage tank, which cleanable to sanitary standards.
Structure characteristics:
Made of single-layer,double layer or three layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Made of single-layer,double layer or three layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Product Paramenters
Modle and specification | CG-1000 | CG-2000 | CG-3000 | CG-4000 | CG-5000 | CG-6000 | CG-10000 |
Volume(L) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 10000 |
Diameter(mm) | 1100 | 1300 | 1500 | 1600 | 1800 | 1800 | 2300 |
Height(mm) | 2000 | 2200 | 2600 | 2750 | 2900 | 353100 | 2300 |
Details Images
Applocation:
The machine is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth.
It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application
1.Cosmetics: Skin cream, hair gel, lotion, liquid soap, shampoo, etc.
2.Food: Jam, chocolate, sauce, etc.
3.Pharmacy: Ointment, syrup, paste,etc.
4.Chemicals: Painting, adhesive, detergent.etc.
It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application
1.Cosmetics: Skin cream, hair gel, lotion, liquid soap, shampoo, etc.
2.Food: Jam, chocolate, sauce, etc.
3.Pharmacy: Ointment, syrup, paste,etc.
4.Chemicals: Painting, adhesive, detergent.etc.
Similar products
Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of scientific and innovative team. Many of our products have obtained national invention patents. Our company has been awarded many titles, including Zhejiang High-Tech Enterprise, etc. Wenzhou Chinz Machinery Co., Ltd. is always devoted to the research and development of machinery project and high precision sanitary fluid equipment. Through several years of efforts, our company has successfully designed and developed various specifications of methanol and ethanol reclaimers, low temperature concentrators, heat hump type water-alcohol concentrators, multi-purpose countercurrent extraction tank groups, integral functional application machine sets, dynamic counter-current adsorption resin units, and so on.Wenzhou Chinz Machinery Co., Ltd. has introduced advanced production equipment and technical process from Germany, adopted the first-class management and produced and stored products in warehouse in accordance with various industrial standards (like ISO9001, DIN, IDF, SMS and 3A). We have complete inspection facilities, such as devices and instruments for hydrostatic test, X-ray flaw detection, chemical analysis, mechanical property test, etc.
Exhibition
FAQ
1. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea? A : Yes, if need, we can also send
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
A : We will take photo or video during manufacturing every two weeks to make
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea? A : Yes, if need, we can also send
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
