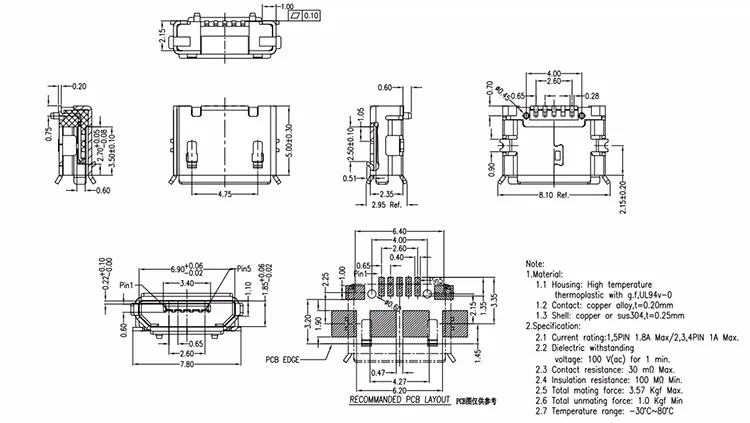

Wholesale SMT SMD Micro USB Type B 5-Pin Female Jack Port Socket Connector Made in China
1.Color/insulator:Black/Blue,LCP
2.Housing:high temperature thermoplastic with g.f,UL94v-0
3.Contact:Copper alloy, t=0.20mm
4.Shell:copper alloy,t=0.25mm
5.Current rating:1,5Pin 1.8A Max/2,3,4Pin 1A Max
6.Contact resistance:30mΩ Max
7.Insulation resistance :100mΩ Min
8.Total mating force :3.57Kgf Max
9.Total unmating force:1.0Kgf Min
10.Temperature range:-30℃~80℃
Product Description
Email: bella(at)bsc-elec.com
Skype:belle.wu3340
Tel:0086-13712299763
Contact me to get the PDF file
Packaging & Shipping
Our Services
1. More than 7 years experience in Connector industry, pls provide drawing or send sample to us, then we will send you our drawing or sample for you approval;
2. 100% tested before shipping out to guarantee the best quality;
3. OEM available
5. Fast delivery time, Best production capacity, Best price;
