CE SGS approved manufacturing 1500lbs hand worm gear ratchet winch
- Category: >>>
- Supplier: Yuhuan Jiansu Electromechanical Manufacturing Co. Ltd. [Zhejiang China]Yuhuan
Share on (60649779792):
Product Overview
Description

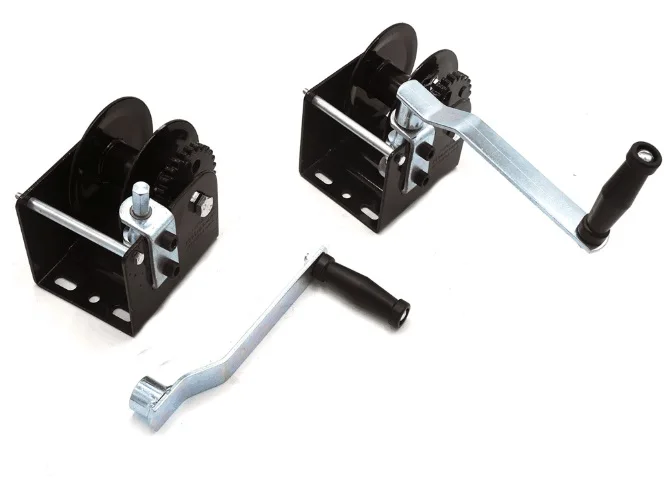

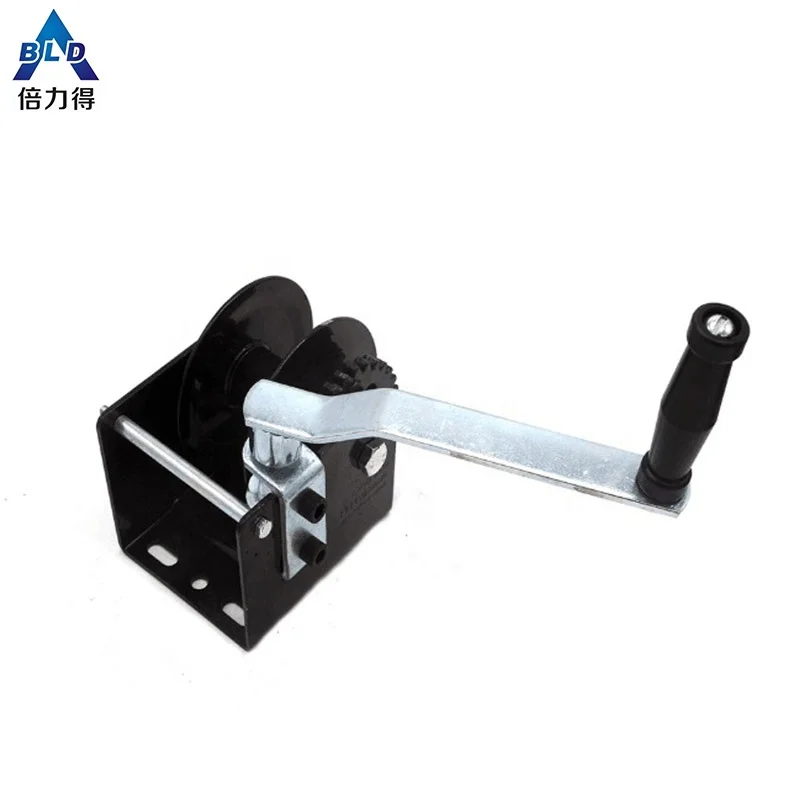

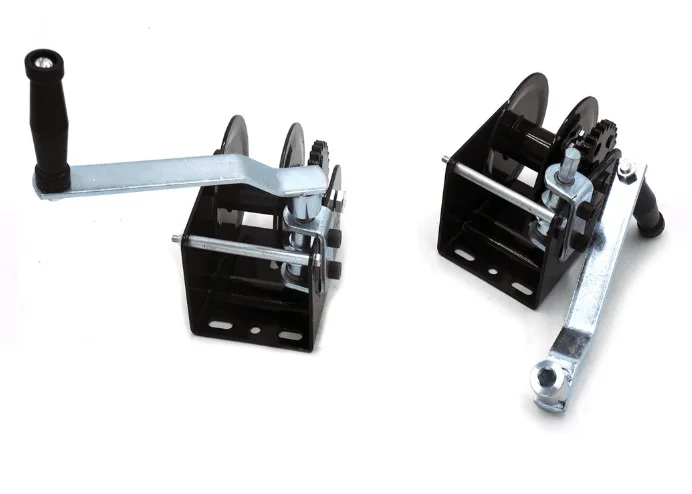

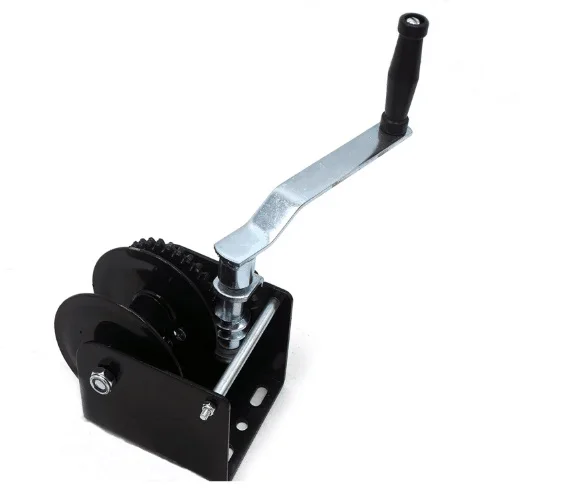

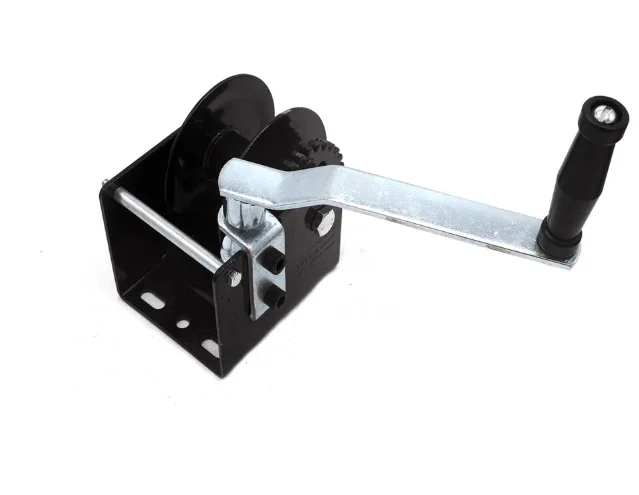

CE SGS approved manufacturing 1500lbs hand worm gear ratchet winch
The 1500 lb. capacity worm gear hand winch is easy-to-mount and ideal for mobile use on pickup trucks and trailers. The worm gear winch features steel towing cable and a smooth-action worm gear drive to keep a firm hold on items in tow.
DESCRIPTION
Capacity:1500lbs/700kgs
GEAR RATIO: 31 :1
Cable material Galvanized Steel
Material Steel
Accessories Included Cable and hook
MORE SPECIFICATION
| Model | CAPACITY | GEAR RATIO | REEL | HUB DIA | N.W.(KG) | G.W.(KG) | CUFT | QTY |
| W1500A | 1500lbs/700kg | 31:1 | Single | 38mm | 24 | 25 | 1.62 | 6 |
| W1500B | 1500lbs/700kg | 31:1 | Divided | 38mm | 24 | 25 | 1.62 | 6 |
| W2000A | 2000lbs/900kg | 41:1 | Single | 38mm | 25 | 26 | 1.62 | 6 |
| W2000B | 2000lbs/900kg | 41:1 | Divided | 38mm | 25 | 26 | 1.62 | 6 |
| W3000A | 3000lbs/1350kg | 51:1 | Single | 79mm | 27 | 28 | 1.62 | 6 |
| W3000B | 3000lbs/1350kg | 51:1 | Divided | 79mm | 27 | 28 | 1.62 | 6 |
HAND WINCH ADVANTAGE
• Portable, easy-to-mount manually operated winch.
• Smooth-operating worm gear drive.
• 25 ft. aircraft grade wire rope.
• Maximum weight capacity: 1500 lb.
