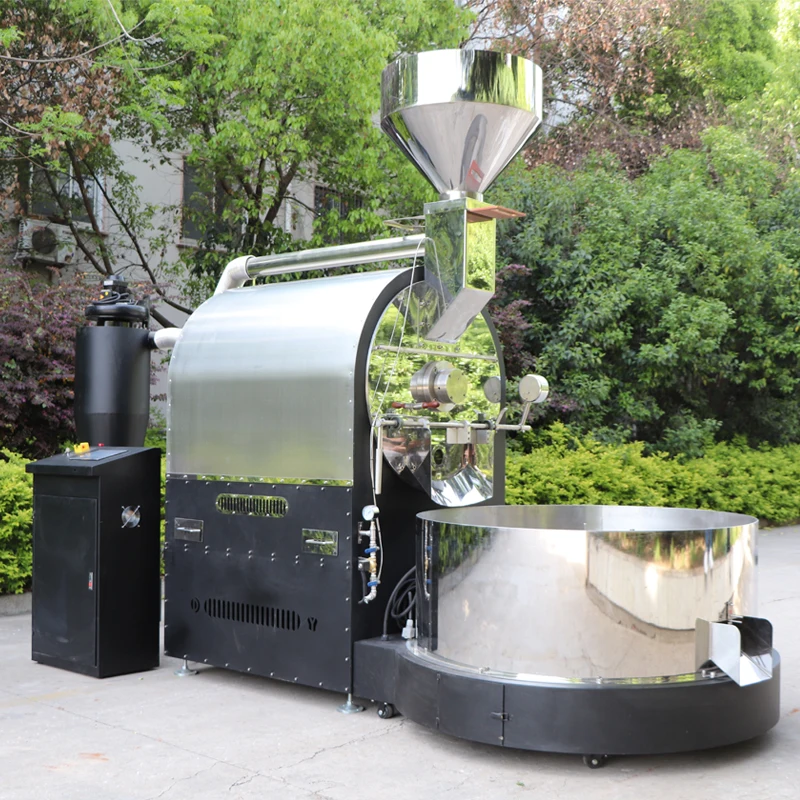

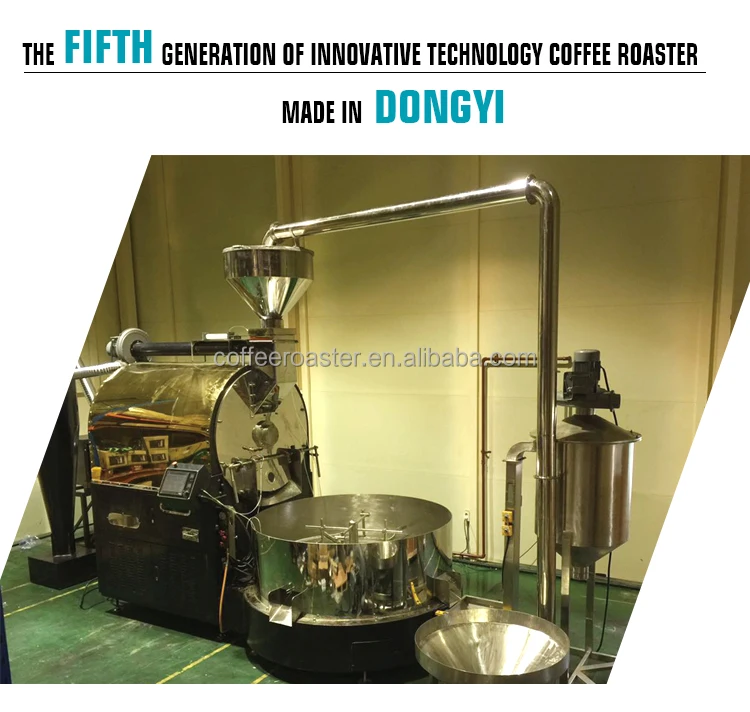

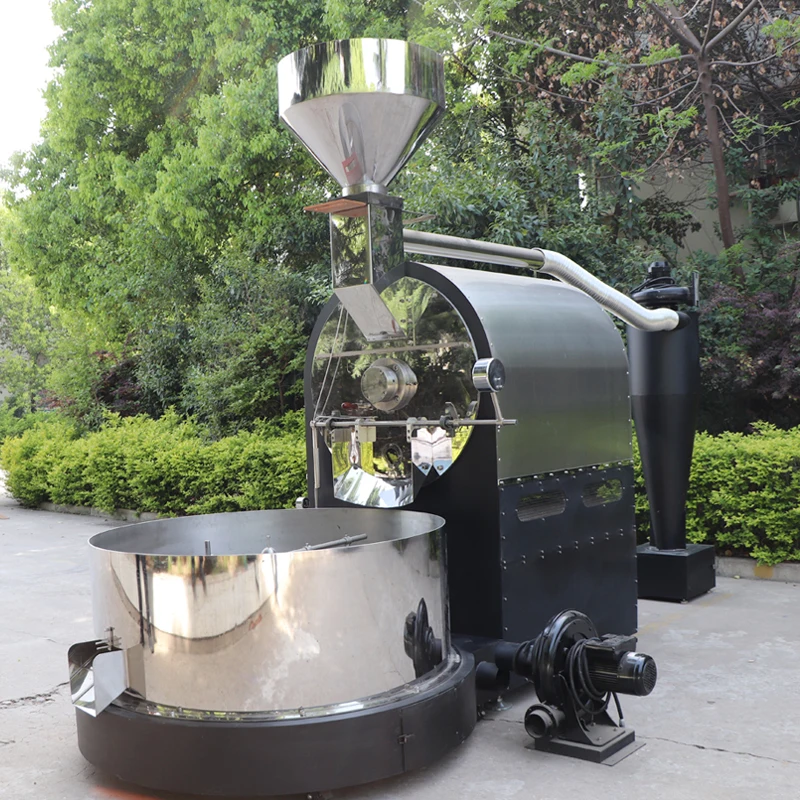

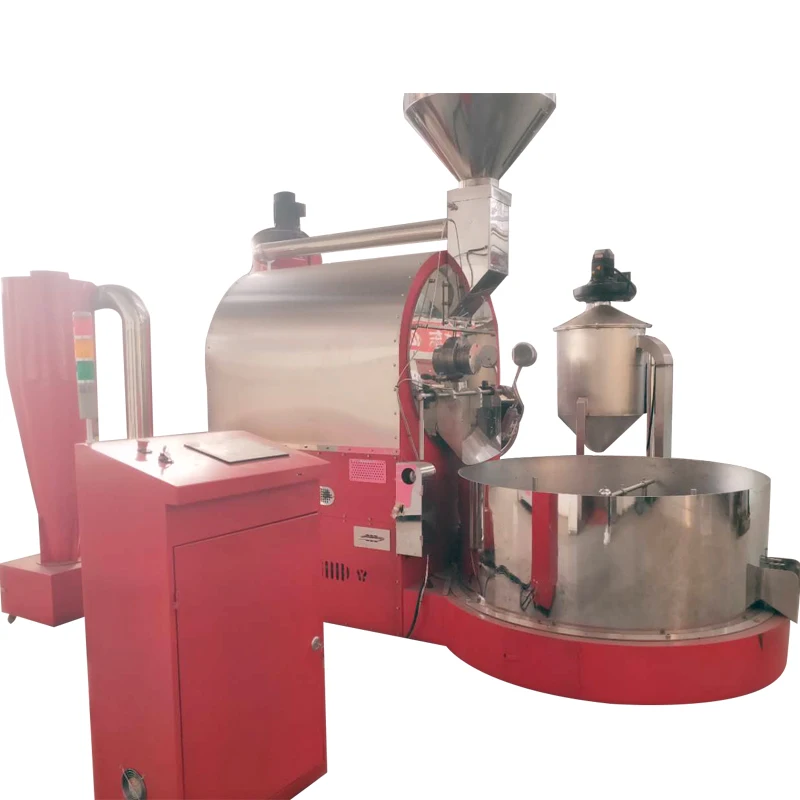

Idustrial 200kg 250kg 300kg Coffee bean hot air roaster/ LPG gas or nature gas heating mode
- Category: Coffee Roasters >>>
- Supplier: Nanyang Dongyi Machinery Equipment Co. Ltd.
Share on (60649845149):
Product Overview
Description
Technical Date | Model | DY-300kg PLC Touch Screen Controller | DY-200kg PLC Touch Screen Controller | |
Basic Parameters | Batch Capacity | 300-330kg/batch | 200-225kg/batch | |
Roasting Time | 12-18 minutes/ drum (after preheat) | |||
Heating Type | LPG gas, N-Gas | |||
Temperature Range | 0-300℃ | |||
Drum Construction | Heat-resistant double layer 304 food grade stainless steel | |||
Cooling Time | 1-2 minutes | |||
Gas Consumption | 5.5kg/H | 4.5kg/H | ||

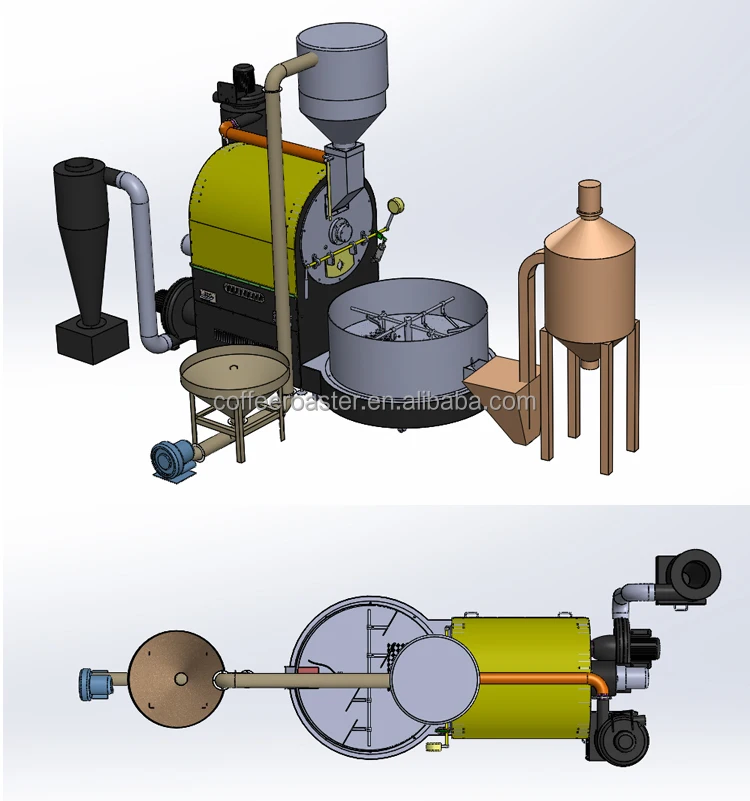

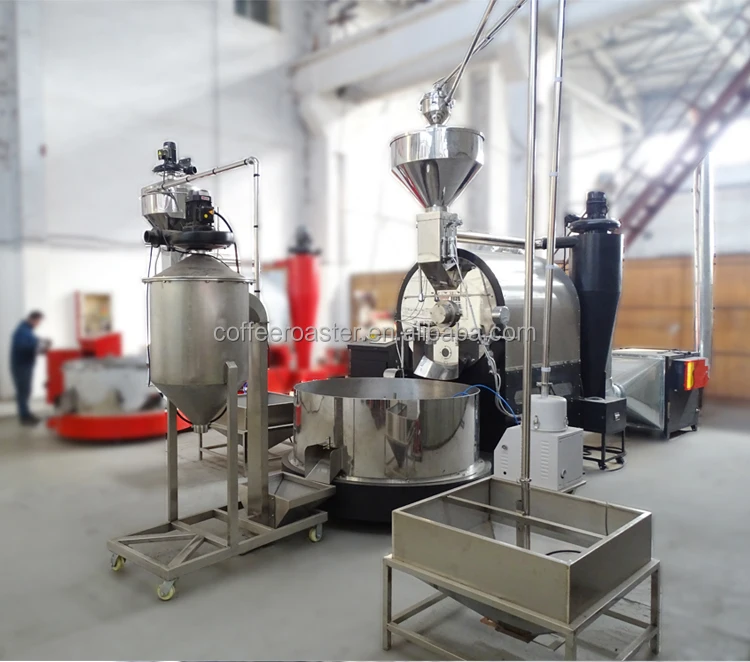

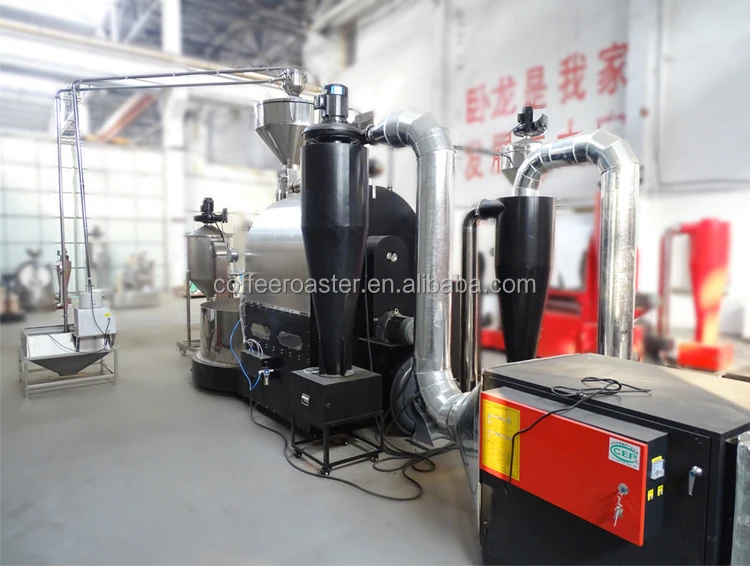

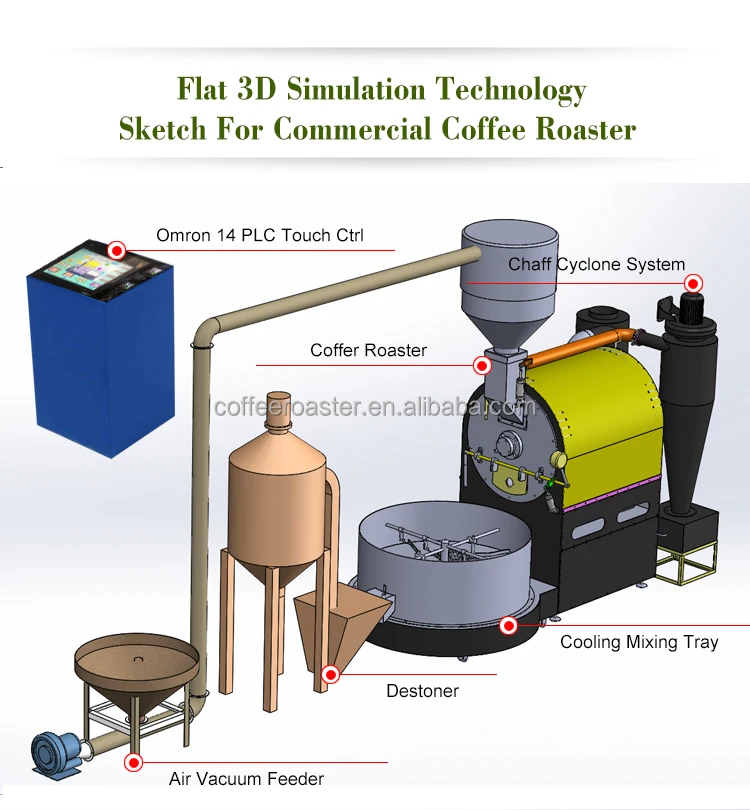

Equipment | Bean Chaff cyclone collector included | 900*900*2800*2pcs | 800*800*2800*2pcs | |

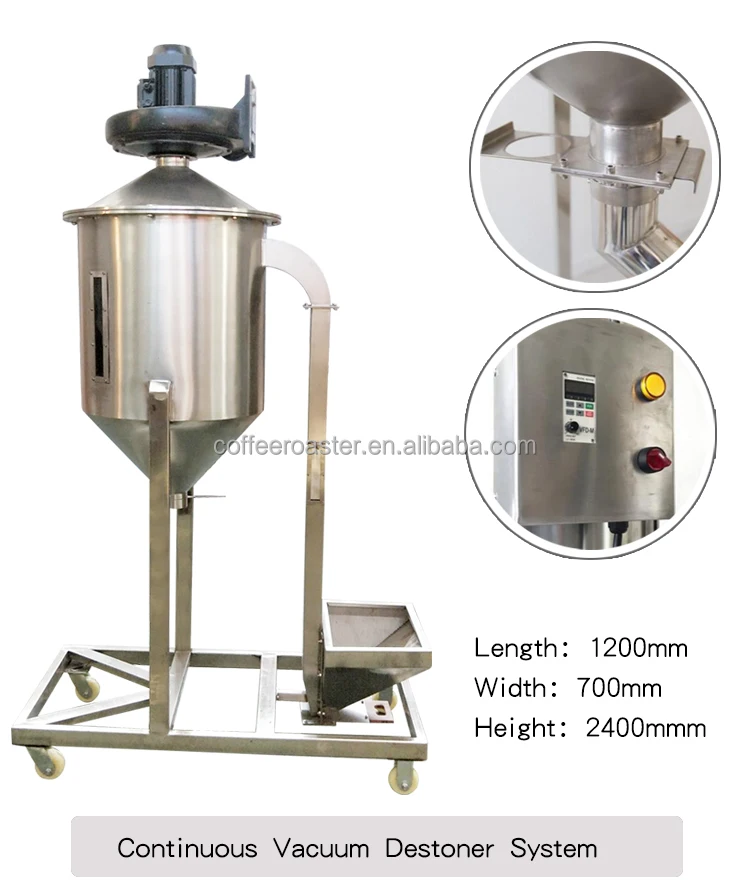

Destoner machine included | 1000*1520*2800mm 1pc | |||
Air conveyor transporter | bean container 1000*1000*1000mm stainless steel air pipes 2600*50*3000mm | |||
Optional device afterburner | Electrostatic smoke precipitator | |||
Power | Drum Motor | 3.7KW | 2.2KW | |
Cooling Tray Fan Motor | 3.7KW | 3.7KW | ||
Hot Air Fan Motor | 1.5KW | |||
Cooling Mixing Motor | 1.5KW | |||
Description | Machine Weight | 6350KG | 5150KG | |
Chaff Cyclone Weight | 100KG | |||
Machine Dimension | 3400*1900*3700MM | 3000*1600*3700MM | ||
Body Color | Red/Black/White/Blue/Green/Pink | |||
Drum Housing color | Stainless steel/Gold/Rose gold/Brass | |||
Package | Film plastic&wooden case | |||
Packing Size | by a container | |||
Gross Weight | 7850KG | 6550KG | ||
Others | Certificate | CE/RoHS/ISO9001 | ||
Warranty | 1 year limited | |||

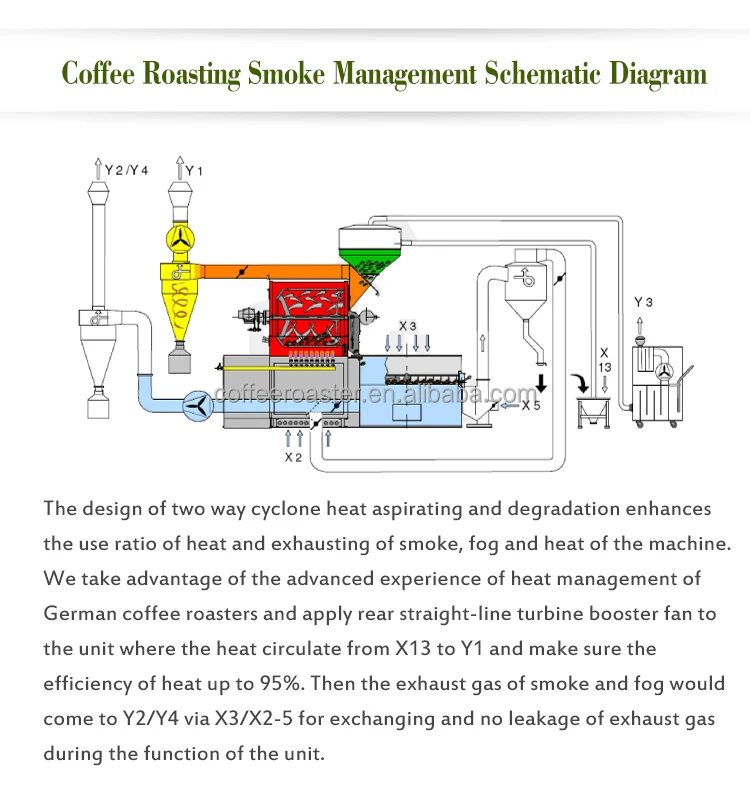

Heat circulation method is applied for continuing roasting without halting to load and upload, Suitable for middle-large size coffee roasting factory.
1. Automatic computer controlling from uploading, roasting, ejection, cooling and uploading
2. Special DONGYI Pro-roasting high efficiency heat energy cycle management and utilization design, enery-saving effect is remarkable.
3. OMRON pneumatic servo system is applied, the machine is smart when operated, low failure rate, stable and durable and long time use.

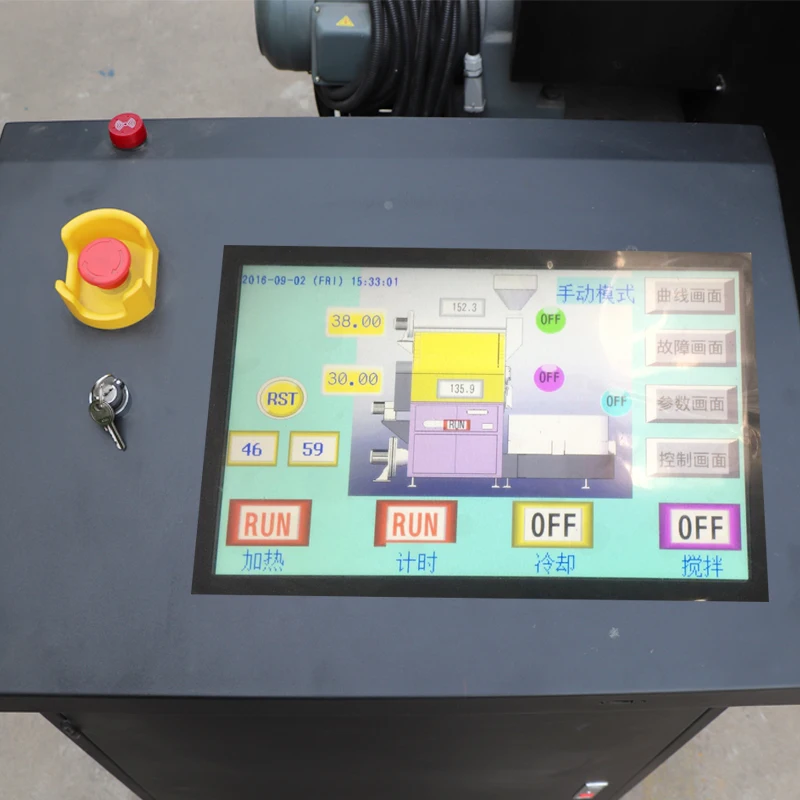

4. OMRON PLC colorful touch panel micro-computer system associated with human-computer interface makes operation more easy and multilingual interface switch is available.
1. Automatic computer controlling from uploading, roasting, ejection, cooling and uploading
2. Special DONGYI Pro-roasting high efficiency heat energy cycle management and utilization design, enery-saving effect is remarkable.
3. OMRON pneumatic servo system is applied, the machine is smart when operated, low failure rate, stable and durable and long time use.
4. OMRON PLC colorful touch panel micro-computer system associated with human-computer interface makes operation more easy and multilingual interface switch is available.
1 year sold 2000+ to the world
Germany technology made by Military production
Electronic speed governor for HOT AIR
ADDKA superior motor with OMRON VFD converter speed control
310SUS double wall drum
Artisan roasting data logging [Bluetooth connect computer]
25℃+ warm up temperature rate per minute
*CE,RoHS,ISO9001:2000
Germany technology made by Military production
Electronic speed governor for HOT AIR
ADDKA superior motor with OMRON VFD converter speed control
310SUS double wall drum
Artisan roasting data logging [Bluetooth connect computer]
25℃+ warm up temperature rate per minute
*CE,RoHS,ISO9001:2000
New-Technology advantages
The latest 2019 DY series coffee bean roaster, classic appearance, seiko quality,
coffee shop treasure. Barista baking competition designated equipment sponsors
1. All bean contact body are made of High temperature resistant stainless steel.
2. Including cyclone dust collector and exhaust pipe.
3. Import rosewood bean sampling handler.
4. Large independent stirring plate, cooling rapidly (1-2minutes), continuous roasting.
5. Electric igniter.
6. Omron PID Double Temperature instrument. precised long using life.
7. hot air regulation system. you can adjust hot-wind speed.
8. 304 stainless steel made gas valve regulator you can adjust fire volume precise...
9. ADDKA Japan motor. Equipped with infinitely adjustable-speed system
10. Data logger function for option,the computer via USB direct connection, to realize synchronous transmission copy operationcurve.
11. Fuse and leakage protector on application
12. LED deluxe Lamp.
The latest 2019 DY series coffee bean roaster, classic appearance, seiko quality,
coffee shop treasure. Barista baking competition designated equipment sponsors
1. All bean contact body are made of High temperature resistant stainless steel.
2. Including cyclone dust collector and exhaust pipe.
3. Import rosewood bean sampling handler.
4. Large independent stirring plate, cooling rapidly (1-2minutes), continuous roasting.
5. Electric igniter.
6. Omron PID Double Temperature instrument. precised long using life.
7. hot air regulation system. you can adjust hot-wind speed.
8. 304 stainless steel made gas valve regulator you can adjust fire volume precise...
9. ADDKA Japan motor. Equipped with infinitely adjustable-speed system
10. Data logger function for option,the computer via USB direct connection, to realize synchronous transmission copy operationcurve.
11. Fuse and leakage protector on application
12. LED deluxe Lamp.
1.Every machine, we attached the care tool box for your easy clean and maintain, this is cost free
2.Logo, we can make your company logo on the machine to create your own brand.
2.Logo, we can make your company logo on the machine to create your own brand.
*Fumigation free wooden box with standard export packing.
*Nylon belt and screws fixing the roaster with wooden crates to prevent the roaster shaking.
*Steel belt fixing the wooden crates.
*All of the productions are inspected carefully by QC before delivery.
*Nylon belt and screws fixing the roaster with wooden crates to prevent the roaster shaking.
*Steel belt fixing the wooden crates.
*All of the productions are inspected carefully by QC before delivery.
As a professionaly coffee roaster manufacturer in China, we are able to provide OEM & ODM
1.Prompt shipment: complete production and assembly lines to ensure customer prompt shipment for each order.
2.Cargoes photo: stirct QC quality control and inspect before shipment, cargoes photo will be provided to customers before and after loading.
3.Packing: machine packed in sturdy and strong wooden case, nailed and secured by overall nylon strapping; or packed as customers' special request.
4.Best service after shipment with email: 24/7 lifetime phone & online tech support to offer our customers the best service after shipment.
5.Feedback email after end-users received the cargo
6.Trade assurance service as a trade safe guards
1.Prompt shipment: complete production and assembly lines to ensure customer prompt shipment for each order.
2.Cargoes photo: stirct QC quality control and inspect before shipment, cargoes photo will be provided to customers before and after loading.
3.Packing: machine packed in sturdy and strong wooden case, nailed and secured by overall nylon strapping; or packed as customers' special request.
4.Best service after shipment with email: 24/7 lifetime phone & online tech support to offer our customers the best service after shipment.
5.Feedback email after end-users received the cargo
6.Trade assurance service as a trade safe guards
1. Are you the manufacturer factory or trading company?
We are the manufacturer with professional produce experience on roaster machines more than 15 years. We have both Domestic and international sales department.
2. Where is your factory located? How can I visit there?
Our factory is located in Nanyang City, Henan Province, China,
Airport : Nanyang airport.
Rail Station: Nanyang Station
We will pick you up by car from above.
3. What are your main products?
Our main products include: 1kg-6kg small commercial coffee roaster/6-120kg industrials automatic coffee roasting machine/electric nuts roasting machine / grain seeds gas roaster/ Nuts and grain continuous electric roasting dryer/coffee bean feeding machine /de-stone conveyor / grinder
4. What payment types do you accept?
We accept T/T in advance (30% of deposit before production and 70% balance before delivery), bank transfer, Paypal or credit card under Alibaba online trade assurance or offline payment. We also accept L/C.
5. How to distribute your products? If you are dealing coffee business and have interests in us.
if you want to be our wholesaler or distributor in your place,we are very willing to share profits together with you and we
promise here you will get
A: Min order quantity up to 5 units (can be mixing color and model ), we can offer best distributor price again
B: free DIY color and customer logo on roasters ( I have indicated some done color before, also welcome new color require by Pantone color lists)
C: factory costs price supply spare parts for distributor stock
D: distributor markets Special protection policies
E: quick delivery and other more priority NEW products share items
6. How do your quality control systems operate?
We have professional designer team and experienced engineers to strictly guarantee the production from beginning to shipment.
7. What is your delivery time and cost?
For goods in stock, can arrange fast delivery around 5-10 working days after collect the full payment. In the case of out of
stock and large quantity, production time varies about 15-30 working days depending on the situation.
We have customized special delivery package for certain markets, such like US, UK, Australia, Southeast Asia, Europe, South America etc. Contact sales to get further information.
8. How long is your warranty and after-sale service?
One-year limited warranty. Additionally, all of our roasters come with guaranteed personal support for the roaster’s entire
lifetime. While it is rare for our machines to face problems, our teams is always available to troubleshoot and answer
questions. Simple call or email us and a member of our support team will provide the necessary assistance in a quick, succinct manner.
9. Does your company offer worldwide distribution?
Yes, we are proud to be a global company. We ship our products all around the world.
Welcome to contact us any time and welcome to our company!
We are the manufacturer with professional produce experience on roaster machines more than 15 years. We have both Domestic and international sales department.
2. Where is your factory located? How can I visit there?
Our factory is located in Nanyang City, Henan Province, China,
Airport : Nanyang airport.
Rail Station: Nanyang Station
We will pick you up by car from above.
3. What are your main products?
Our main products include: 1kg-6kg small commercial coffee roaster/6-120kg industrials automatic coffee roasting machine/electric nuts roasting machine / grain seeds gas roaster/ Nuts and grain continuous electric roasting dryer/coffee bean feeding machine /de-stone conveyor / grinder
4. What payment types do you accept?
We accept T/T in advance (30% of deposit before production and 70% balance before delivery), bank transfer, Paypal or credit card under Alibaba online trade assurance or offline payment. We also accept L/C.
5. How to distribute your products? If you are dealing coffee business and have interests in us.
if you want to be our wholesaler or distributor in your place,we are very willing to share profits together with you and we
promise here you will get
A: Min order quantity up to 5 units (can be mixing color and model ), we can offer best distributor price again
B: free DIY color and customer logo on roasters ( I have indicated some done color before, also welcome new color require by Pantone color lists)
C: factory costs price supply spare parts for distributor stock
D: distributor markets Special protection policies
E: quick delivery and other more priority NEW products share items
6. How do your quality control systems operate?
We have professional designer team and experienced engineers to strictly guarantee the production from beginning to shipment.
7. What is your delivery time and cost?
For goods in stock, can arrange fast delivery around 5-10 working days after collect the full payment. In the case of out of
stock and large quantity, production time varies about 15-30 working days depending on the situation.
We have customized special delivery package for certain markets, such like US, UK, Australia, Southeast Asia, Europe, South America etc. Contact sales to get further information.
8. How long is your warranty and after-sale service?
One-year limited warranty. Additionally, all of our roasters come with guaranteed personal support for the roaster’s entire
lifetime. While it is rare for our machines to face problems, our teams is always available to troubleshoot and answer
questions. Simple call or email us and a member of our support team will provide the necessary assistance in a quick, succinct manner.
9. Does your company offer worldwide distribution?
Yes, we are proud to be a global company. We ship our products all around the world.
Welcome to contact us any time and welcome to our company!
