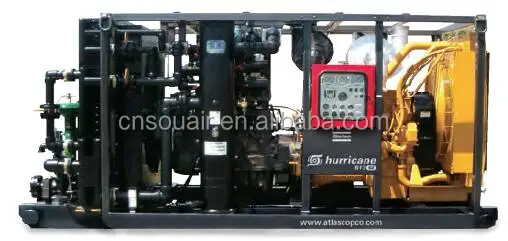

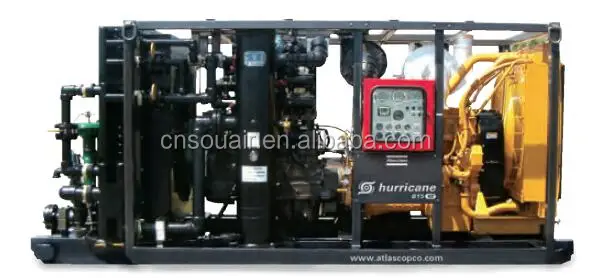

AtlasCopco Air Nitrogen Booster Compressor B15 62/2175 (24 150bar/73M3/min) for geothermy/oil field/water well drilling project

Product Overview

Description

Atlas Copco Air or Nitrogen Hurricane Booster B15-62/2175,B13-62/2175 Compressor 350Psi 24bar-2175psi 150bar 1932cfm/55M3/min 2576cfm/73m3/min for geothermy/oil field/water well drilling project

Hurricane brand boosters are second-to-none.
They are smaller, lighter and still pack as much power as the larger and heavier comparable units available in the marketplace today.

Our quality control and turnkey manufacturing process guarantee excellence, while superior engineering and design help drive custom solutions for our customers. Every feature that is built into our boosters shows you the experience, the power, the quality the hurricane difference.

Over 40 years of experience has taught us to maximize every component. Like all of our boosters, this unit provides you with a better penetration rate, cooler bit temperatures and longer bit life.

Typical applications include: mineral exploration and blasthole drilling, coal bed methane drilling, oil and gas air/foam drilling, nitrogen generation, and pipeline services



Standard Features
• Automatic load/unload system
• Booster bypass manifold
• Engine speed adjustment
• Double acting concentric valves
• Staging valves on the 2-stage models
• Watercooled booster and diesel engine
• Precooler (a+15°F / 8°C) & suction scrubber tank
• Aftercooler (a+50°F / 28°C)
• Heavy-duty skid with four point lifting
• 24 volt DC starting and operating system
• Suction, interstage and discharge safety relief valves
• Full function instrument panel monitoring all pressures,
temperatures and controls with full protection shutdown and
fault indicators

Options
• Automatic scrubber tank drain
• Cold weather kit (-20°F/-29°C)
• Manual louvers in front of coolers
• Low pressure switch at booster inlet
• Lights for operation at night
• Weatherproof container
• Spark arrestor
• Overspeed shutdown
• Air starter
• Service pack 250 hrs / 500 hrs / 1000 hrs / 2000 hrs
• Valve kits and piston kits
Other options, pressures, capacities: available on request

Hurricane boosters are second-to-none. They are smaller, lighter and still pack as much power as the larger and heavier comparable units available in the marketplace today.

Our quality control and turnkey manufacturing process guarantee excellence, while superior engineering and design help drive custom solutions for our customers. Every feature that is built into our boosters shows you the experience, the power, the quality…the Hurricane difference.

Over 40 years of experience has taught us to maximize every component. Like all of our boosters, this unit provides you with a better penetration rate, cooler bit temperatures and longer bit life.

Typical applications include: mineral exploration and blasthole drilling, water well and geothermal drilling, oil and gas air/foam drilling, nitrogen generation, and pipeline services

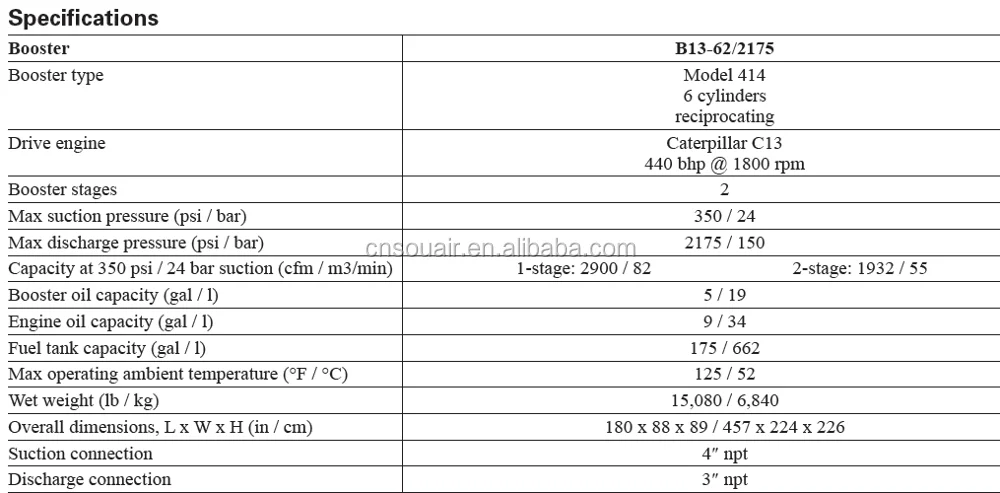

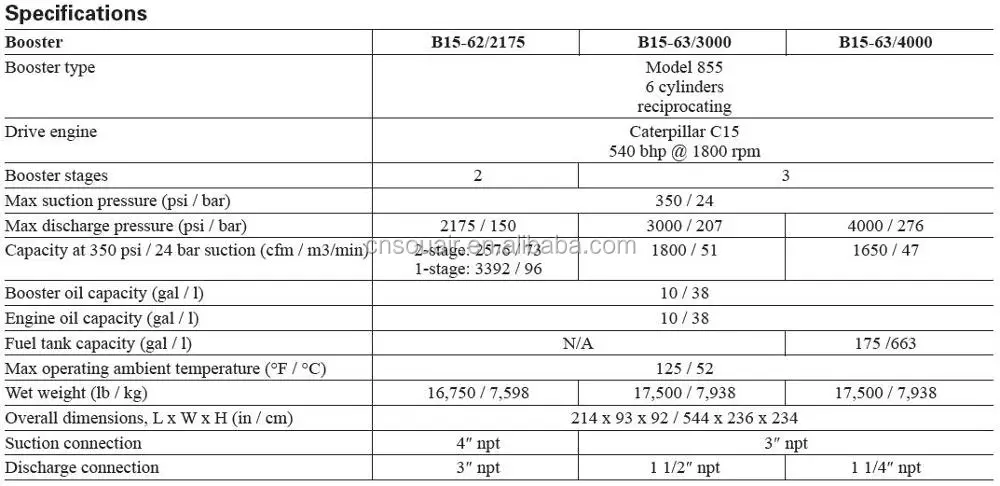

SPECIFICATIONS



Standard Features

• Automatic load/unload system

• Booster bypass manifold (single and 2-stage only)

• Engine speed adjustment

• Two-way concentric valves

• Watercooled booster block

• Precooler bypass system

• Dual inlet suction manifold

• Discharge temperature sensor at each valve

• Precooler (a+15°F / 8°C) & suction scrubber tank

• Aftercooler (a+50°F / 28°C)

• Open skid with single point lifting and fork lift slots

• 24 volt DC starting and operating system

• Suction and discharge safety relief valves

• Full function digital instrument panel monitoring all pressures,

temperatures and controls with full protection shutdown and

fault indicators



Options

• Automatic scrubber tank drain

• Cold weather kit (-20°F/-29°C)

• ComAp control panel

• Low pressure switch at booster inlet

(only with analog control panel)

• Lights for operation at night

• Full protection frame

• Weatherproof container

• Trailer

• Spark arrestor

• Overspeed shutdown

• Air starter

• ASME B31.3 welding standard

• Inlet mesh filter & particle filter

• Discharge particle filter & coalescing filter

• Service pack 250 hrs / 500 hrs / 1000 hrs / 2000 hrs

• Valve kits and piston kits
