Stainless steel drive shaft coupling electric motor gear shaft coupling with ISO certification

Product Overview

Description

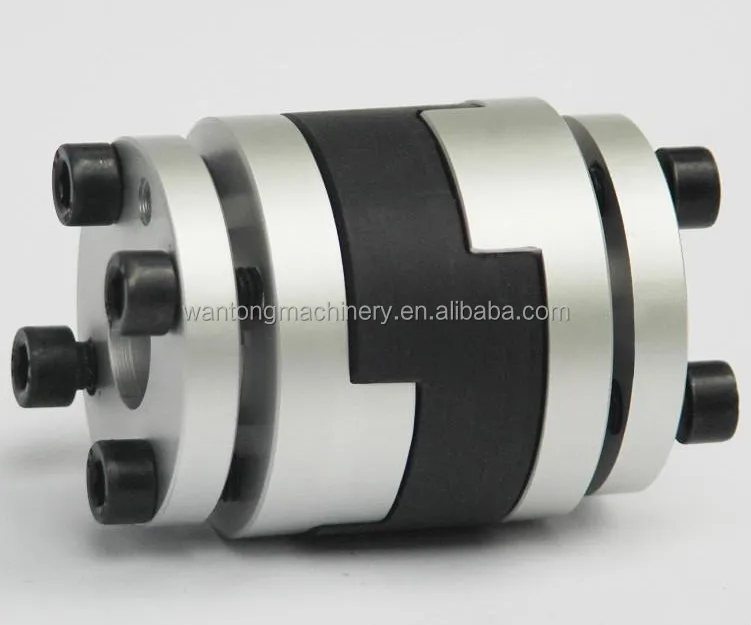

 Stainless steel drive shaft coupling electric motor gear shaft coupling with ISO certification

1. Coupling is a mechanism applied to connect the transmission and transmit the
    safety torque between two shafts.
2. Flexible couplings are the first choice when the installation of two shafts is simple or when the alignment between two shafts is hard to remain.

3. It is integrated with the ability not only to absorb parallelism, deflection, and axial displacement, but improve the traditional transmission way to solve the problem of little deflection.

4. It's widely applied in the market.

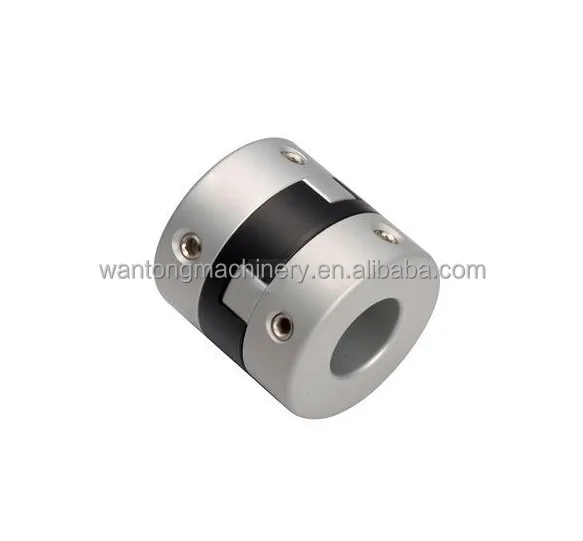

Specification of Dup DSCG Clamp fixing bronze insert Oldham Coupling



1. The allowable value will be reduced while it comes to more than one reasons for axial offset existing at the same time.
2. The allowable value of offset angular, parallel, and axial deviation shown on spec table are only valid for individual reason existing.
3. Choose bigger lock torque for the over-small dia. to avoid slipping. The value shown on the spec table is only the standard value.
4. The key way is optional while the inner dia. is bigger thanø6.

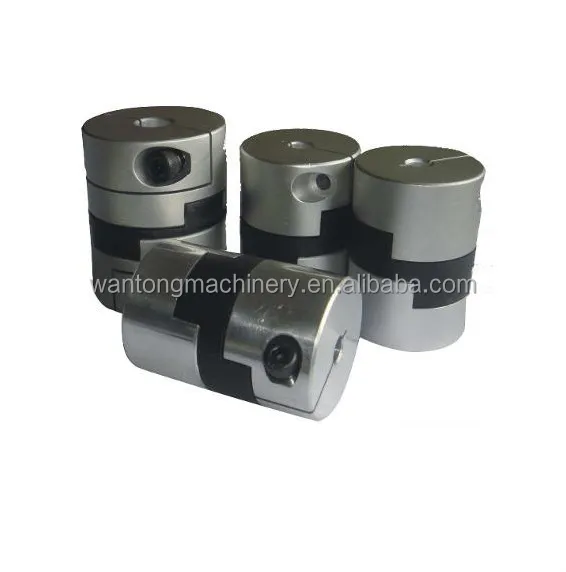

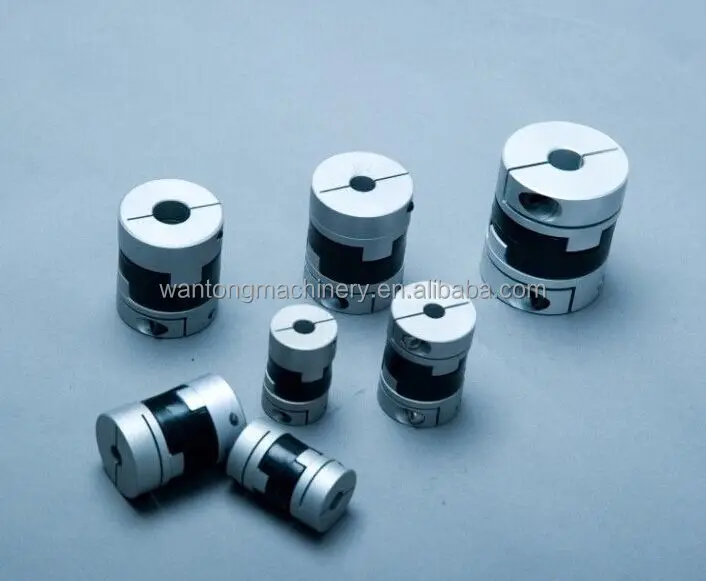

Feature of Dup DSCG Clamp fixing bronze insert Oldham Coupling



1. Light weight, lower inertia and the high response

2. Easy to install and maintenance

3. The max/min inner bore 14mm/6mm

4. Aluminum alloy

5. Clamp type

6. Small batch can have a express delivery



Application of Dup DSCG Clamp fixing bronze insert Oldham Coupling



1.Power transmission to industrial equipment such as Pumps, Gear boxes, Compressors, Blowers, Mixers, and Conveyors

2.Various mechanical and hydraulic fields
