ADH150 E 12/24VDC 150A 12 900VDC Energy Saving 1NO Contact For HV Power Supply System AOKAI Normally Open Relay

Share on (60650084319):


Price:

Quantity:


Product Overview

Description


ADH150-E 12/24VDC 150A 12-900VDC Energy Saving 1NO Contact For HV Power Supply System AOKAI Normally Open Relay()_01.jpg()_02.jpg


SPECIFICATION
























































































Contact Type1K (1NO Contact)
Contact Resistance≤0.3 mΩ (150A)
Contact Related Load (Resistance)150A 500VDC
Max.Switching Current1500A 320VDC (over 1 times)
Rated Voltage(12-900)VDC
Max.Switching Power480kW
Withstand VoltageBetween Contact and Coil4000VAC
Between Contacts4000VAC
Air Gap>10mm
Creepage Distance>10mm
Mechanical Life (times)1×10times
Electric Life (times)10,000 times
Coil Outlet MethodsOutlet Wire
Load Outlet MethodsM6 Internal Thread Screw
WeightEnergy-Saving (E)About 460g
PackingPlastic Sealed
External DimensionEnergy-Saving (E)80*64.2*67 mm
Vibration10Hz~500Hz 10G
Humidity5%~95%RH
Temperature Range-40℃~85℃

USAGE ENVIRONMENT

















IP GradeIP67
Operate Temperature-40~+85℃
Operate Humidity5~95%RH

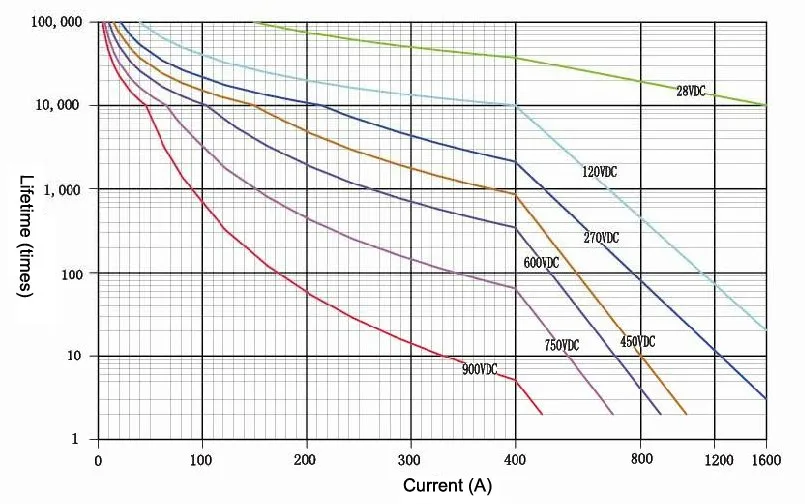

LOAD SWITCHING LIFE CURVE

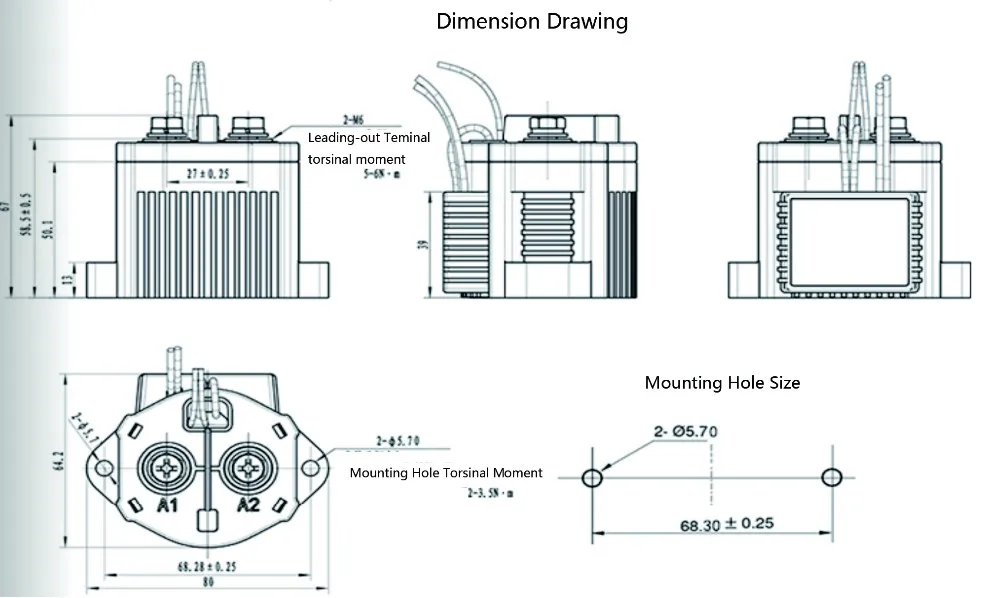

INSTALLATION DIAGRAMADH150A .jpg


SCHEMATIC DIAGRAM


ADH-50-P .jpg



COMPANY PROFILE




AOKAI has a better organized, high efficiency and the most reliable engineer team and state-of-the-art technology,we are able to design and develop high-quality components, and provide customized solutions. We also have our own vacuum microwave oven, mold development and design team, punches,assembling production line and QA department. We are devoted to strengthen our connection with people, automobiles, life, environment and the world.








TEAM ACTIVITY







OUR PURSUIT


Aokai insists on building a professional team, producing the top quality products, providing the excellent service and creating a first-class enterprise. Aokai is always committed to the development road of specialization, talents and scale, tries to establish a equality, mutual benefit and win-win cooperative relationship with clients.


OUR QC


 Every product will be inspected before leaving factory.Each procedure has strict quality control.


OUR R&D


 We have our own mold development and design team, vacuum microwave oven, punches, assembling production line and QA department.


OUR SERVICE


Realizing customer satisfaction through high standard service, your inquiry will be replied in 12hours.


OUR TEAM


We have professional technology team, customer-oriented sales team to meet customers' special requirements.





EXHIBITION




1. Q: Do you have the catalogue? Can you send me the catalogue to have a check of all your products?


     A: Yes, we have the product catalogue. Please contact us on line or send the Email to us for it.


2. Q: I need your price list of all your products, do you have it ?


    A: We do not have a price list of our all products. There are so many items, and the prices are always changing because of the producing cost. Please kindly let us know the specific products that you need, we will send offer to you soon!


3. Q: I can’t find the product on your catalogue, can you make this product for me?


    A: Our catalogue shows most of our products,but not all.So please let us know the detailed parameters of the products you need, we will check for you.


4. Q : Can you make customized products and customized packing?


   A: Yes, customized services are available in our company. Kindly let us know your detail requirements,we can custom-make for you.


5. Q: Can you provide samples ? Are the samples free ?


   A: Because the unit prices of our products are very high, free samples to every customer is a little difficult for us. While we can minus the samples charge in the official order amount. And old clients can enjoy the free sample service.


6. Q: Which kind of payment you can accept? Can I make the payment in RMB ?


   A: T/T(bank transfer), Western Union and Paypal are all available. And RMB, USD, EUR, GBP, HKD are acceptable.


7. Q : What about your delivery time?


   A: Many of our products are in stock. We can send the stock products in 3 working days. If without stock,or stock is not enough, we will confirm the delivery time with you.


8. Q : How to deliver my order ? Is it safe?


   A: For small packages, we will send them by Courier, such as DHL,FedEx,UPS,TNT,EMS, etc.That’s a Door to Door service. For big packages, we will send them by Air or by Sea. We will pack them carefully in accordance with the export standards to ensure the safety. Please check the packages before signing them. If there is any damage of the cartons, please contact us first, and not sign them.





9. Q: Do you have a guarantee of your product quality?


    A: We have a guarantee of one year.


10. Q: Can I become an Agent / Dealer of AOKAI products?


    A: Welcome! But please let us know your Country/Area first, and your annual sale volume, then we could have a further discussion. If you want any other kind of cooperation, do not hesitate to contact us.





Any requirement or question, welcome to "Send" us an e-mail  Now!!!
It's our great honor to serve you! You also can get the SAMPLES soon.
