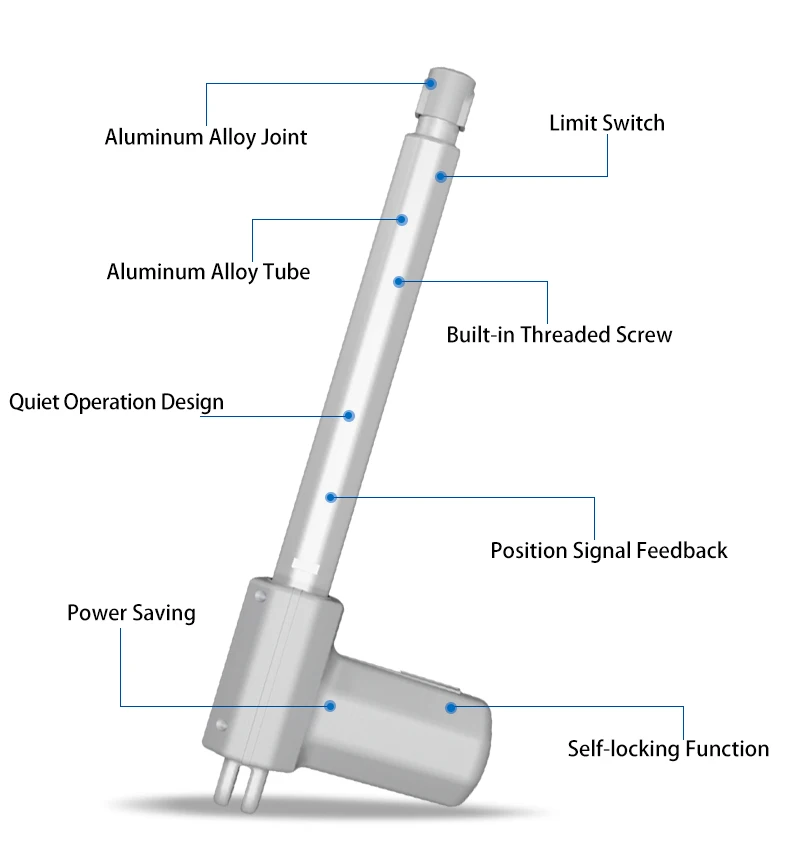

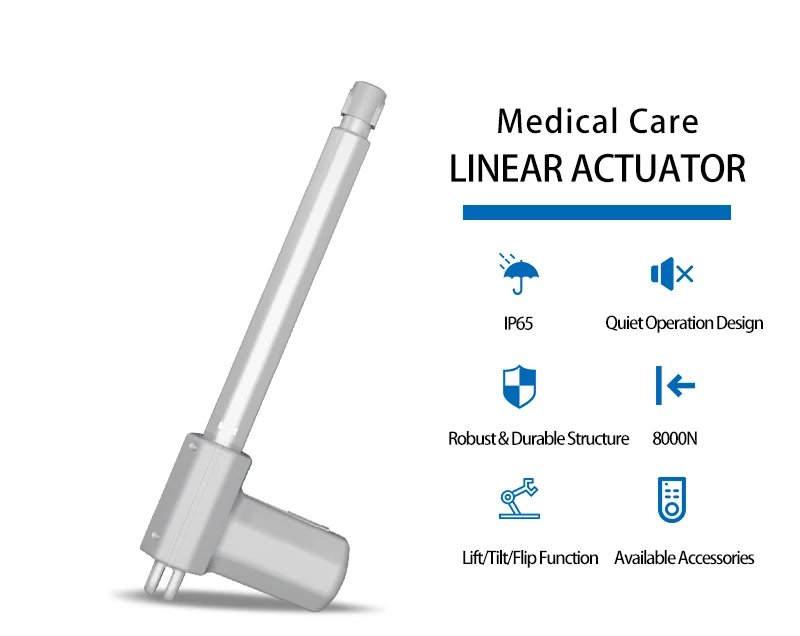

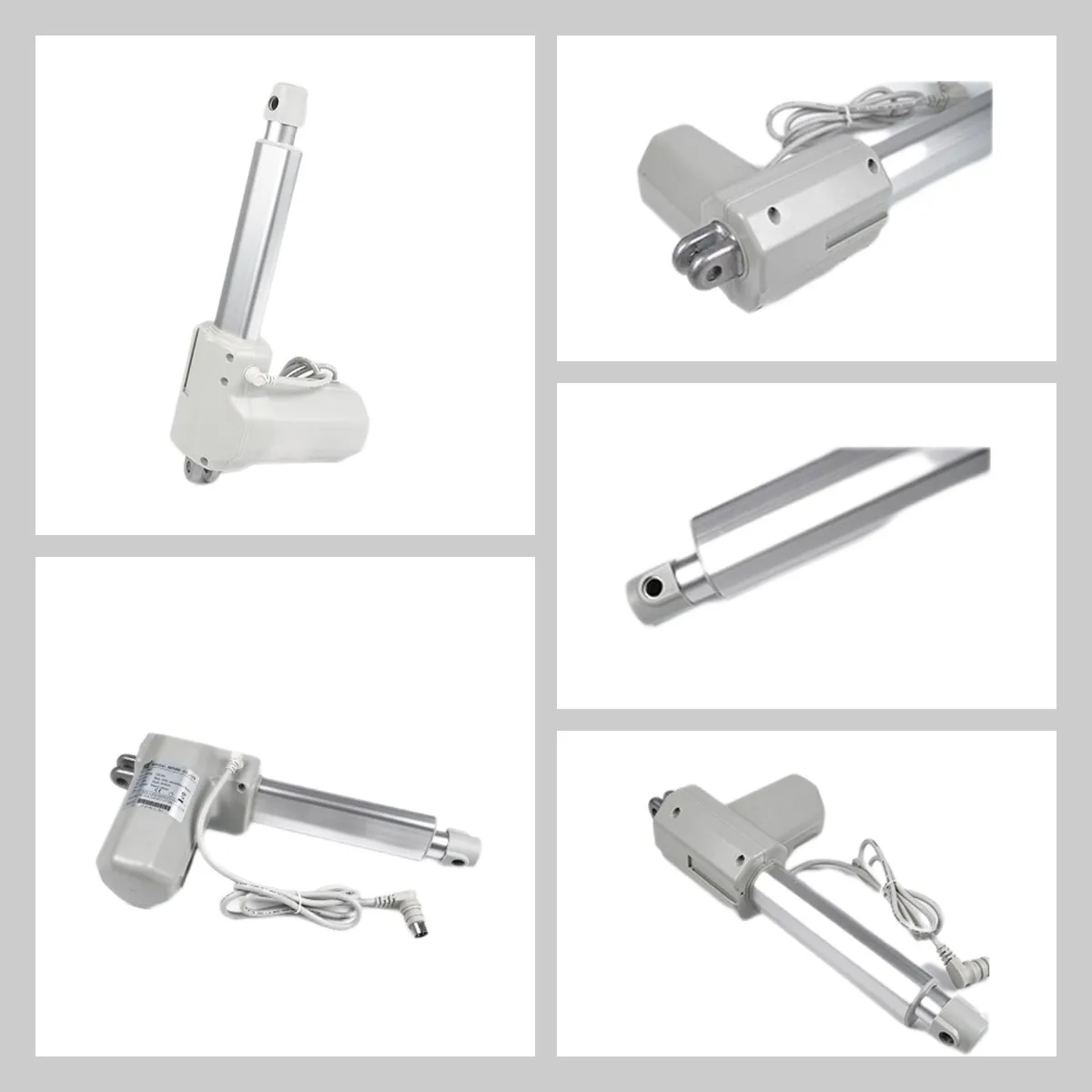

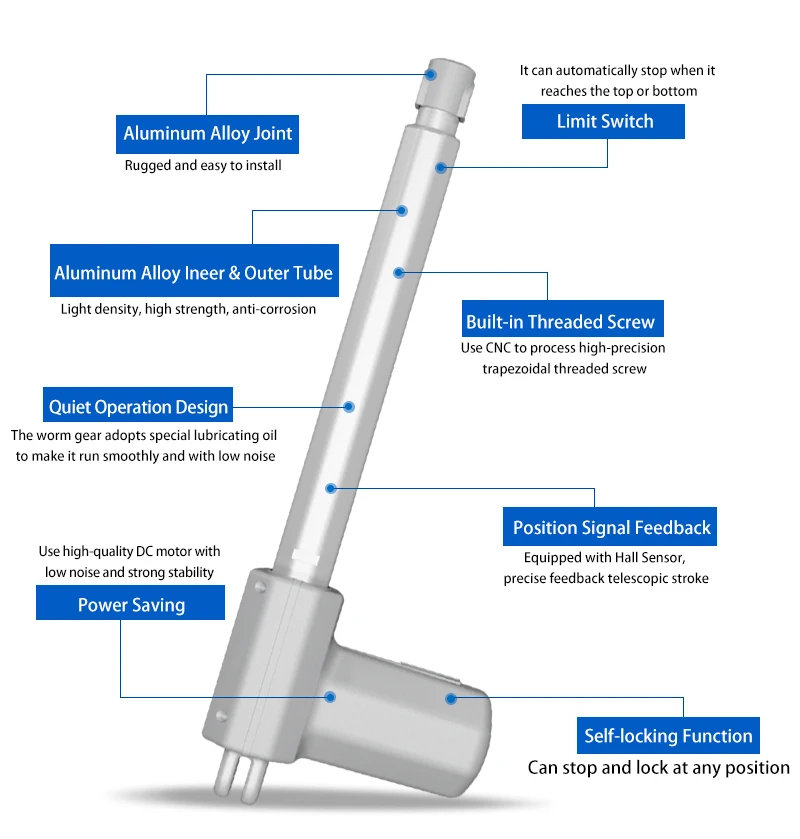

TOMUU Electric Actuator 8000N Low Noise Linear Actuator
- Category: Motors >>>
- Supplier: Dongguan TOMUU Actuator Technology Co. Ltd.
Share on (60650129471):
Product Overview
Description
Products Description
Voltage | 12/24VDC |
Load (N) | 8000 |
Speed (mm/s) | 12-31 |
Stroke (mm) | 20-800 |
Options | Hall Sensor Handset/Control Box |
Duty Cycle | 10% |
Protection Class | IP65 |
Material | Aluminium Alloy |
Noise | ≤52db |
Power | 50W |
Stroke (mm) | 100 | 150 | 200 | 250 | 300 | 350 | 400 |

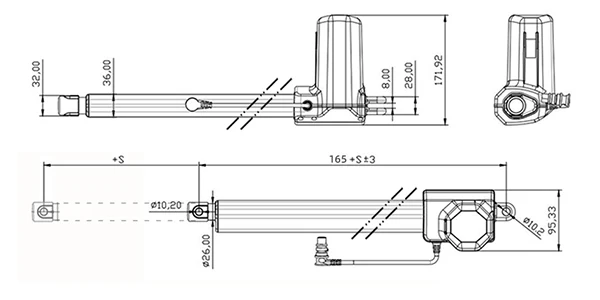

Installation Distance (mm) | 283 | 325 | 375 | 413 | 463 | 513 | 563 |
Customer Reviews
Company Profile

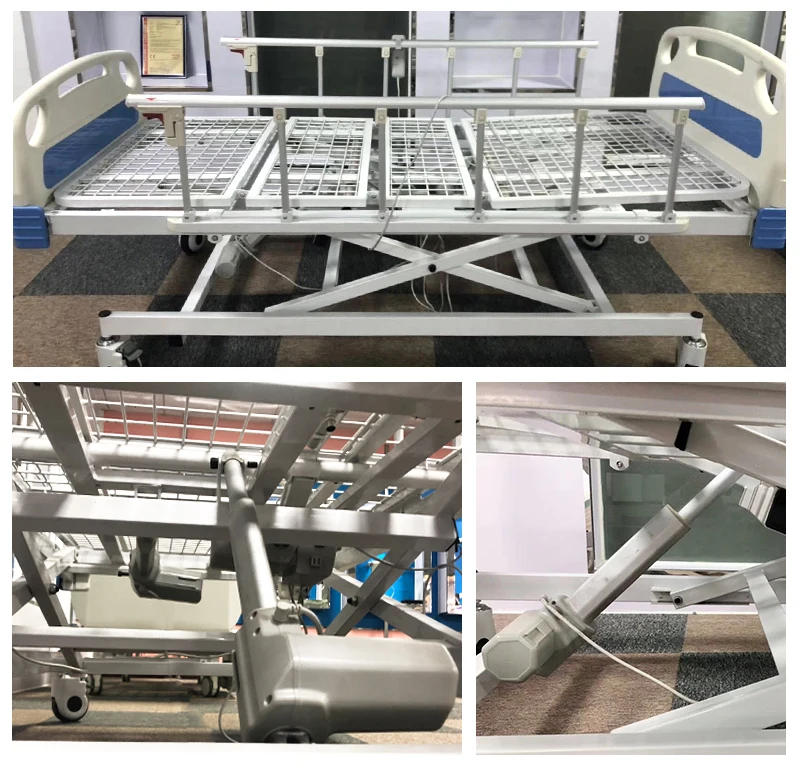

TOMUU is a solution provider of linear actuators, a high-tech manufacturing enterprise. Our electric linear actuators are widely used in Solar Tracking, Home Appliance , Medical Care Bed, Industrial Automation, Agricultural Equip, etc.

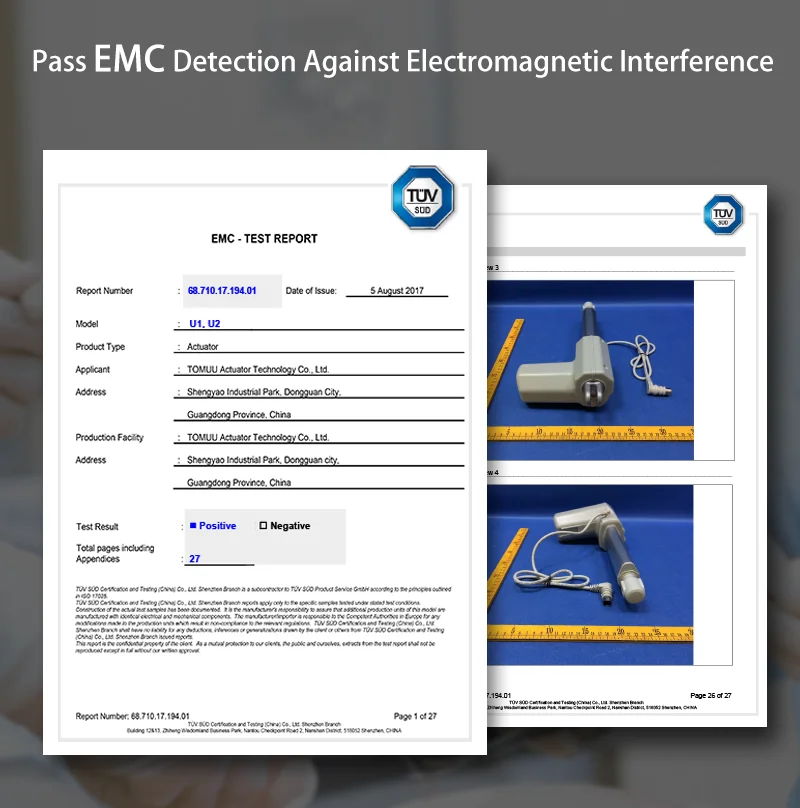

To get quick response and cost advantage, we built a complete manufacturing chain-- 70% parts built-in-house. Our management systems and product solutions are certified in accordance with ISO 9001:2015, ISO14001, OHSAS18000 and the safety test report. (CE, UL, KCC, etc.)
To get quick response and cost advantage, we built a complete manufacturing chain-- 70% parts built-in-house. Our management systems and product solutions are certified in accordance with ISO 9001:2015, ISO14001, OHSAS18000 and the safety test report. (CE, UL, KCC, etc.)
Main Products
FAQ
Q1: How long is your delivery time?
A1: the delivery time for sample is between 12-14 days, for mass production is 15 days.
Q2: How do I know the products' quality and the packing ways are the ones we required?
A2: Each product will be tested before sending out. We will send you photos for the goods to confirm the packing ways.
Q2: Can you provide samples before mass production?
A2: Sure, sample fee is needed, will be returned when mass production is possible.
Q3: Can I customize a linear actuator to my specifications?
A3: All of our linear actuators are available for customization. Please refer to your desired product’s datasheet to view the full capabilities of its custom options. Please note there will be a lead time of approximately 15–30 business days for production according to your specifications, excluding shipping time. There will also be an additional fee for each actuator that is modified.
Q4: Are linear actuator kits available?

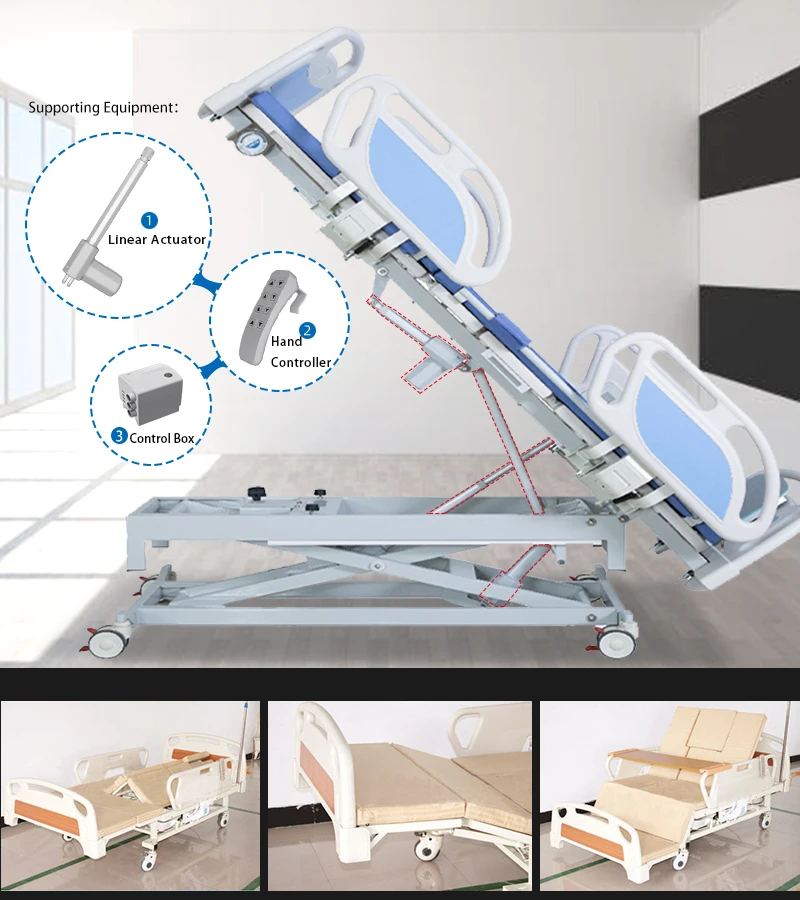

A4: We have multiple kits available, such as mounting brackets, handsets, wire or wireless remote controllers, control boxes, and so on.
