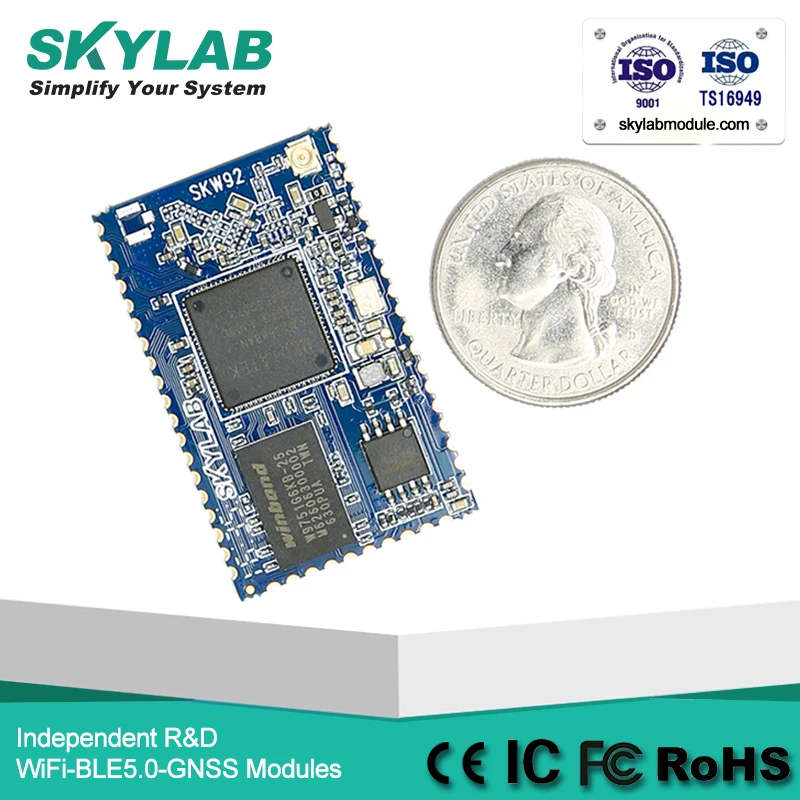

skylab IoT AP WiFi module 802.11n chipset mediatek mt7688 module for 3G/4G WiFi Router for USB WiFi Camera
Product Description

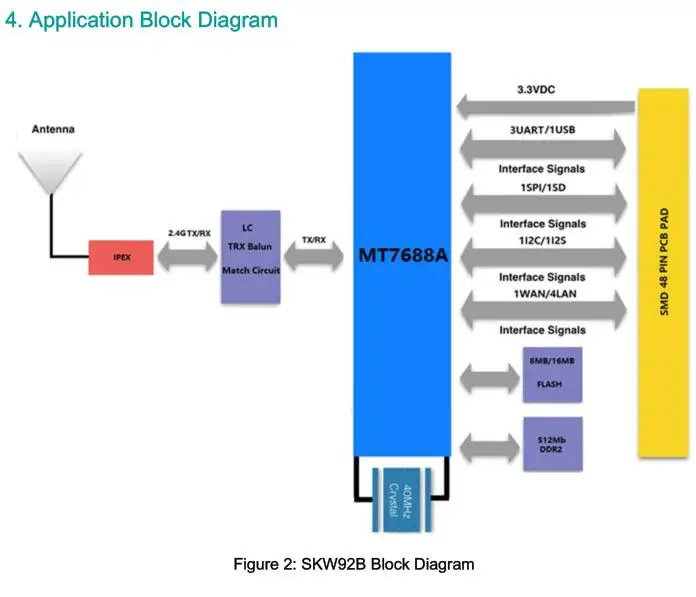

The SKW92B module integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS CPU,1-port fast Ethernet PHY, USB2.0 host, I2C/PCM and multiple slow IOs.The module provides two operation modes –IoT gateway mode and IoT device mode. In IoT gateway mode, the high performance USB2.0 allows SKW92B to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, the module supports eMMC, SD-XC and USB2.0. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs. For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-wave and sub-1G RF for smart home control.
Applications of wireless networking equipment | 1. IoT (internet of things) 2. 3G/4G WiFi Router 3. USB WiFi Camera 4. Building Automation 5. Home Automation 6. Smart Home Gateway 7. Smart Lighting 8. Smart Plug 9. Industry Control |
| Feature | 1. Compliant to IEEE 802.11b/g/n. 2. 1T1R 2.4GHz with support for a 150Mbps PHY data rate. 3. DDR2 memory up to 1024Mb. 4. Flash memory up to 526Mb. 5. 4 LAN ports and 1 WAN port. 6. Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera. 7. 24 STA-Proxy. 8. Support interface: SD-XC, I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO. 9. Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI. 10. Support IoT gateway mode and IoT device mode . 11. RoHS compliance meets environment-friendly requirement. 12. Conform to FCC/CE/IC/RoHS certification standards. 13. 40.5mm(L) x 25mm(W) x 3.0mm(H) dimension. |
Hardware Features | |

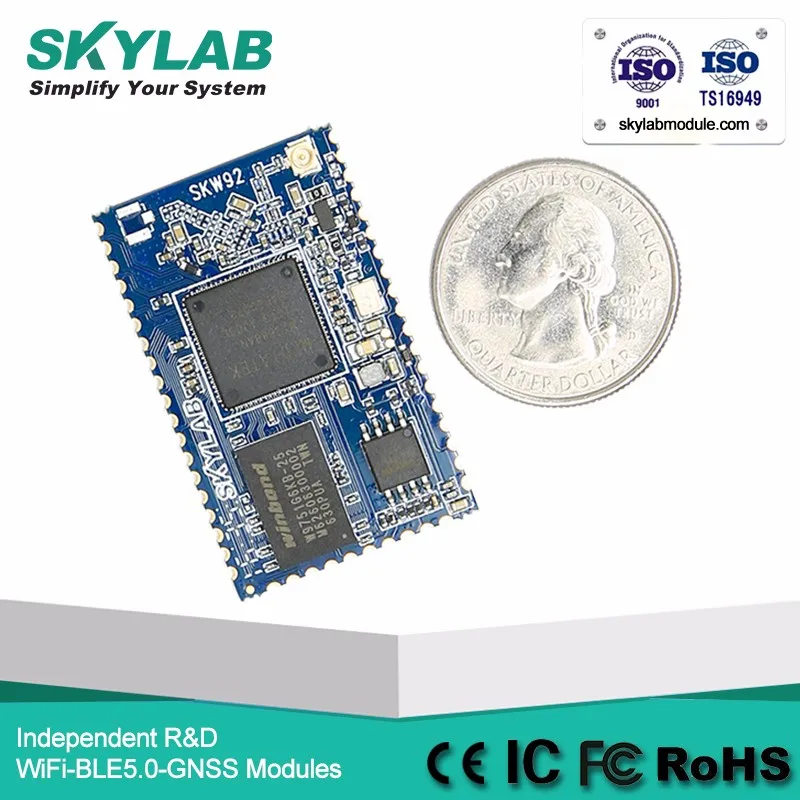

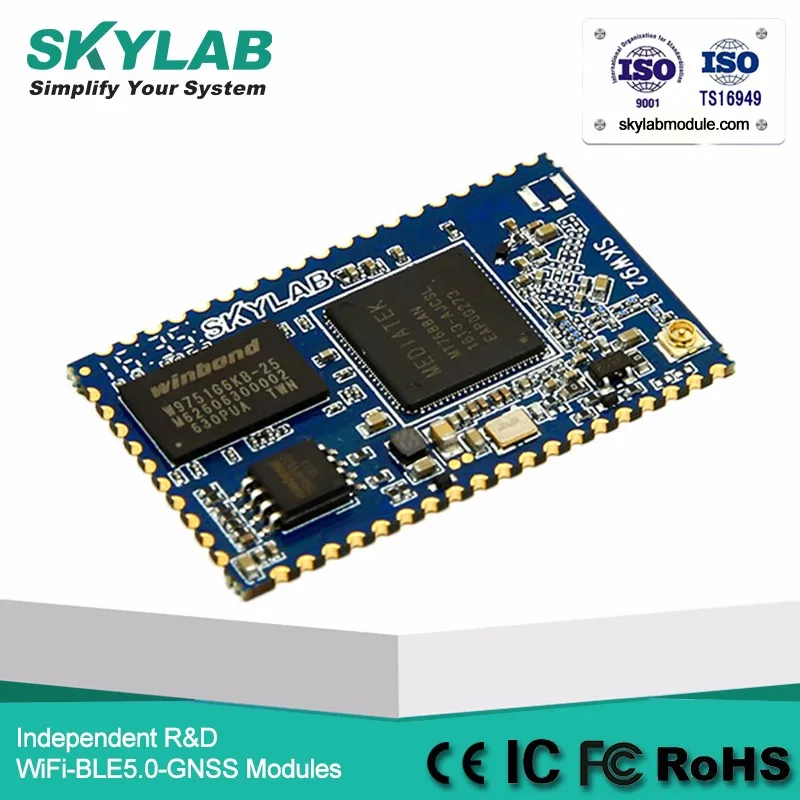

Model | SKW92B |
Antenna Type | IPEX |
Chipset solution | MT7688A |
Voltage | 3.3V±5% |
Dimension(L×W×H) | 40.5mm*25.0mm*3.0mm |
Wireless Features | |
Wireless Standards | IEEE 802.11b/g/n |
Frequency Range | 2412GHz---24884MHz |
Data Rates | IEEE 802.11b: 1,2,5.5,11Mbps |
IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps | |
IEEE 802.11n: MCS0--MCS7 @ HT20 | |
MCS0--MCS7 @ HT40 | |
Receiver Sensitivity | HT40 MCS7: -70dBm@10% PER(MCS7) |
HT20 MCS7: -73dBm@10% PER(MCS7) | |
54M: -77dBm@10% PER | |
11M: -89dBm@ 8% PER | |
Modulation Technique | DSSS (DBPSK, DQPSK, CCK) |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
Wireless Security | WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI |
Transmit Power | IEEE 802.11n: 16dBm @HT20/40 MCS7 |
IEEE 802.11g: 16dBm @54MHz | |
IEEE 802.11b: 18dBm @11MHz | |
Work Mode | IOT Gateway/IOT Device |
Others | |
Certification | RoHS |
Environment | Operating Temperature: -20℃~55℃ |
Storage Temperature: -40℃~125℃ | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing | |
Hot sale product
Trade Shows
FAQ
SKYLAB SKW92B Wireless Networking Equipment for Signal Repeater Hot Sale MT7628 Wifi Module
Contact Us
We Recommend

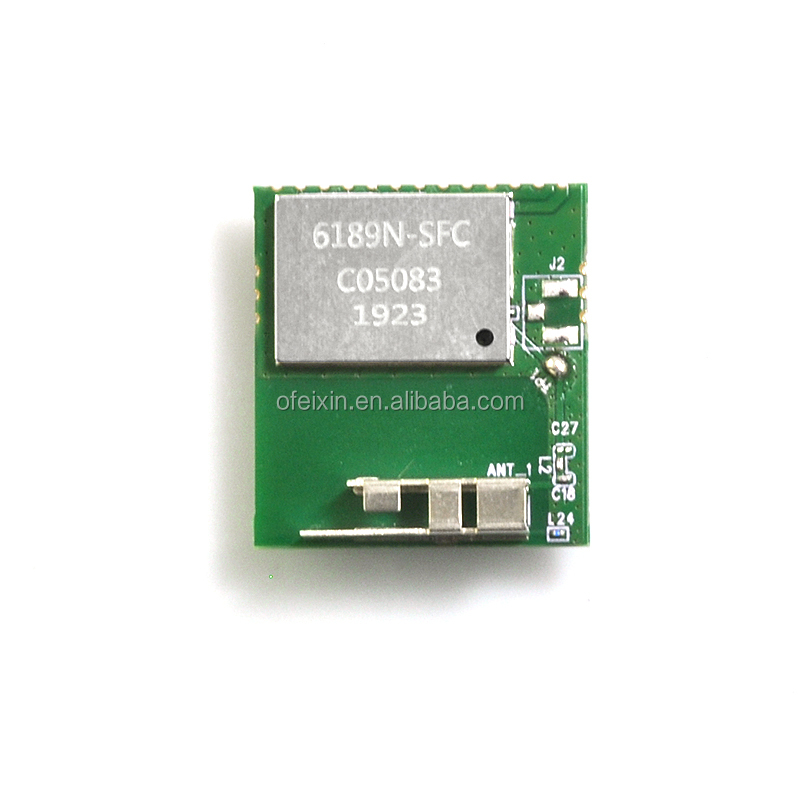

wifi usb rtl8189 wireless module for drones
US $2.20-$3.30

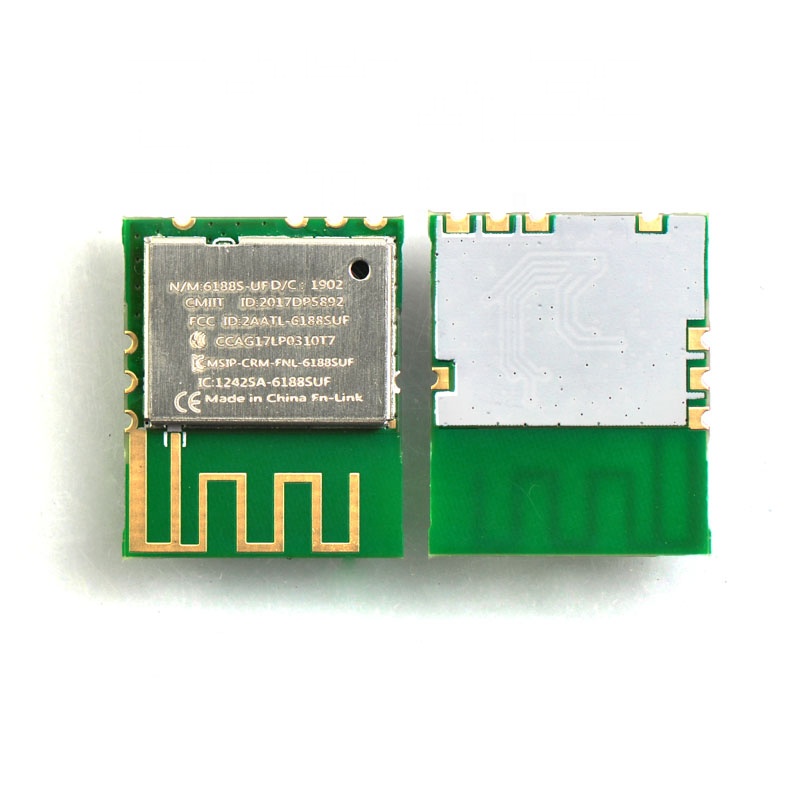

2.4G Realtek RTL8188FTV USB Embedded WiFi Direct Module
