LPG cylinder repairing hanger Shot Blasting Machine

Q37 series hook type sand blast machine/ hook abrasive blaster is mainly used for surface cleaning and strengthening of steel structural parts,castings,aluminum alloy parts and other spare parts.It is widely used in foundry,mechanical and steel industry .This series has following advantages:no pit,double hook without rail exchanging,compact structure,and high productivity.

General Description

1. The Hanger Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the work piece structure, can be used for different kind of work pieces.
4. Widely used in cleaning and strengthen for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.

Product Features

1. Single or Double electric hoist for choice.
2. Loading capacity is designed as per your producticity and your workpiece weight.

MODEL AND SPECIFICATION OF Hook SHOT BLASTING MACHINE
ITEM   /  MODEL	QD376	QD378	QD3710	QD3720	QD3730
Workpiece diameter	700mm	1000mm	1200mm	1400mm	1800mm
Workpiece height	1000mm	1500mm	1800mm	2200mm	2300mm
Turbine quanity	2	2	2	3	3/4
Turbine motor power	7.5 kw	7.5 kw/ 11kw	11/15kw	11kw/15kw	15/kw
Cleaning time	5-10 minutes	5-10 minutes	5-10 minutes	10-15 mintes	10-15 minutes
Foundation	no pit	no pit	no pit	need pit	need pit
Total power	about 22 kw	about 35 kw	about 47 kw	about 67 kw	about 74 kw
Abrasive used	S280, S330	S280, S330	S280, S330	S330,S390	S330,S390
Dust collector	Cartridge type	Cartridge type	Cartridge type	Cartridge type	Cartridge type

Main Features

Q37 series hook shot blasting machine

1.Applicable to many varieties, large, casting, forging, welding and heat treatment of surface cleaning or reinforcement;

2.Single hook type and double type two kind of main form;

3.Chamber adopts fully closed structure, no  splash phenomenon;

4.With special wear-resistant alloy cast iron plate

5.Using electric hoist implementation artifacts on unloading, lifting and walking

6.Using rotation devise implementation artifacts in indoor blasting of positive and negative rotation

7.Use automatic or manual control

Certifications

Detailed Images

First step: 3D model design

Name: Solidworks

Engineers:  10 engineer use 3D design

Advantage: high precision, visual

Before production, our engineers use 3D model deisgn to make all drawings, and keep filing in our cloud drive for ever.  We can check every detail components for customer at any time when they need.

Main Parts

Name:  Turbine wheel
Brand:  CHJ (own brand)
Original: China
We adop Germany technology to make our own turbine wheels, low noise and vibration.  20% chrome steel casting as the inner wearable parts, which has long life time.

Machine Parts

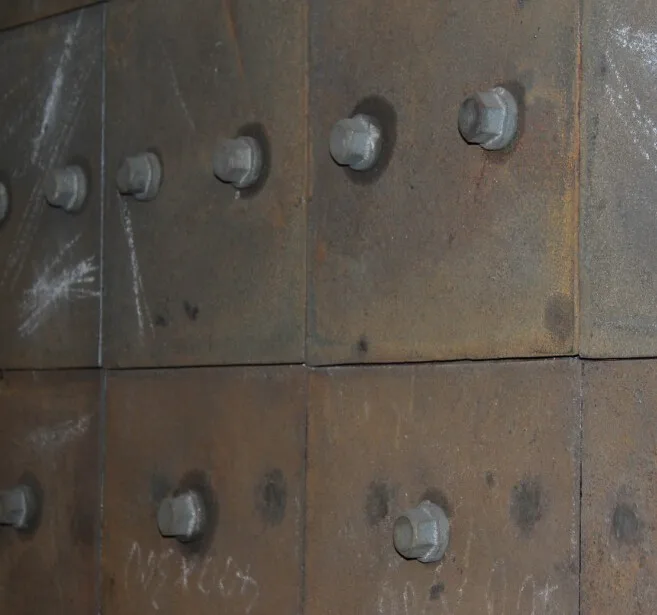

Name:  Protective liner
Material:  Mn 13

Lifetime:  10000 hours
Original:  China
China famous steel mill: Shan Xi Tai Yuan Steel Mill, the only professional SPMn 13 steel plate manufactuer in China.

Main Parts

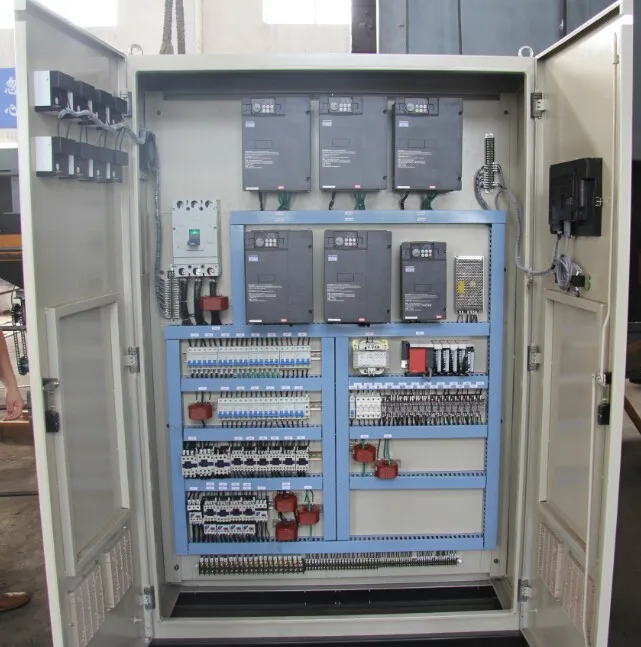

Name:  Electric cabinet
Brand:  own made
Original: China
PLC, Inverter and other electric components can choose to use Siemens, Schneider, Mitsubishi, Omron brand accessories.
