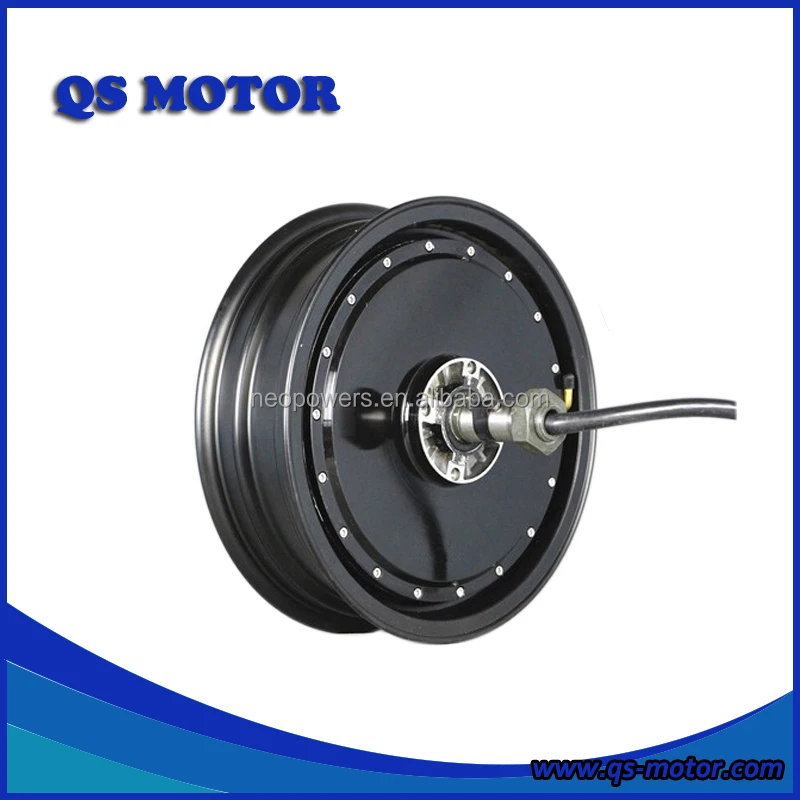

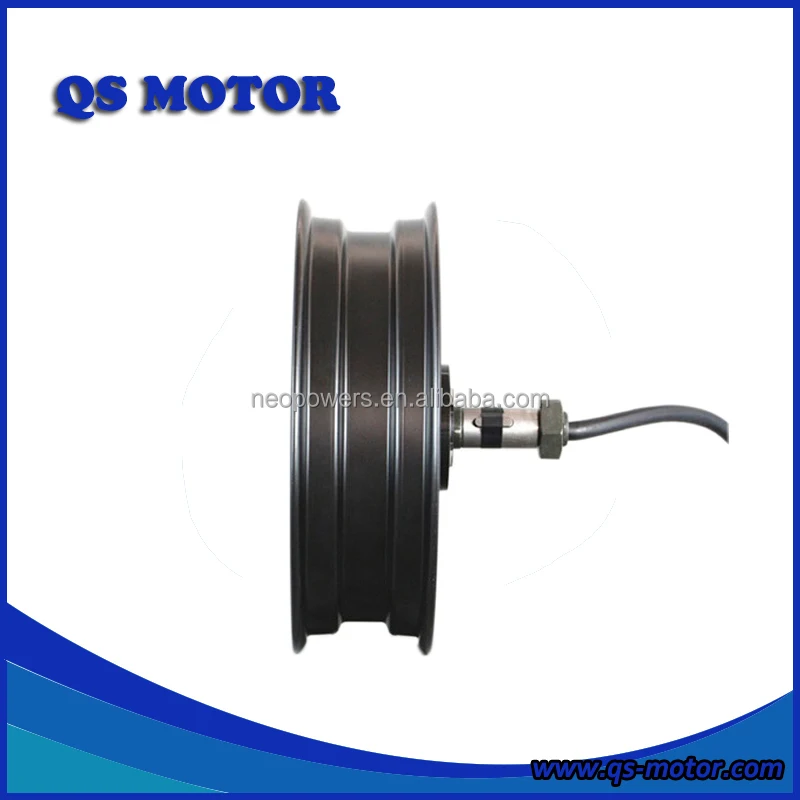

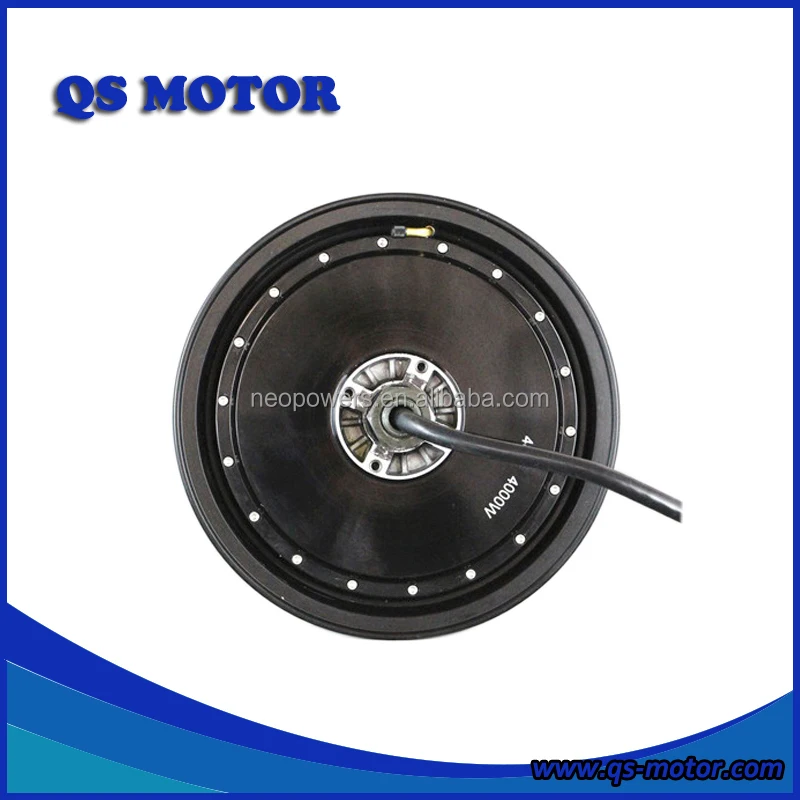

New QS Motor 13 Inch 273 Detachable Single Shaft Hub Motor 40H 3000W V2 Type

Product Overview

Description









13inch Single shaft Hub Motor(40H) With Removable Rim 3000W V2 Type

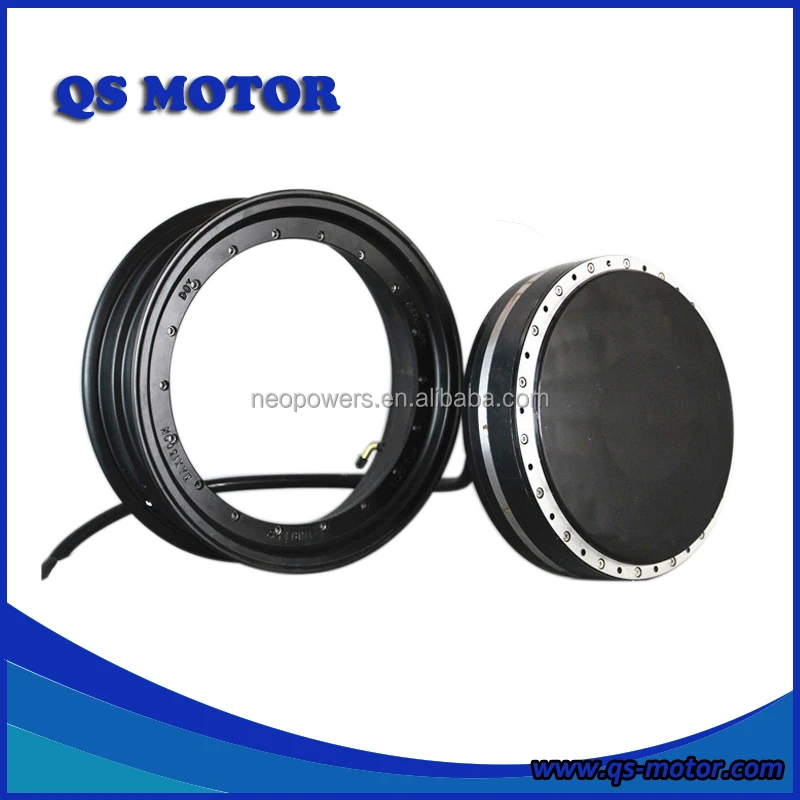

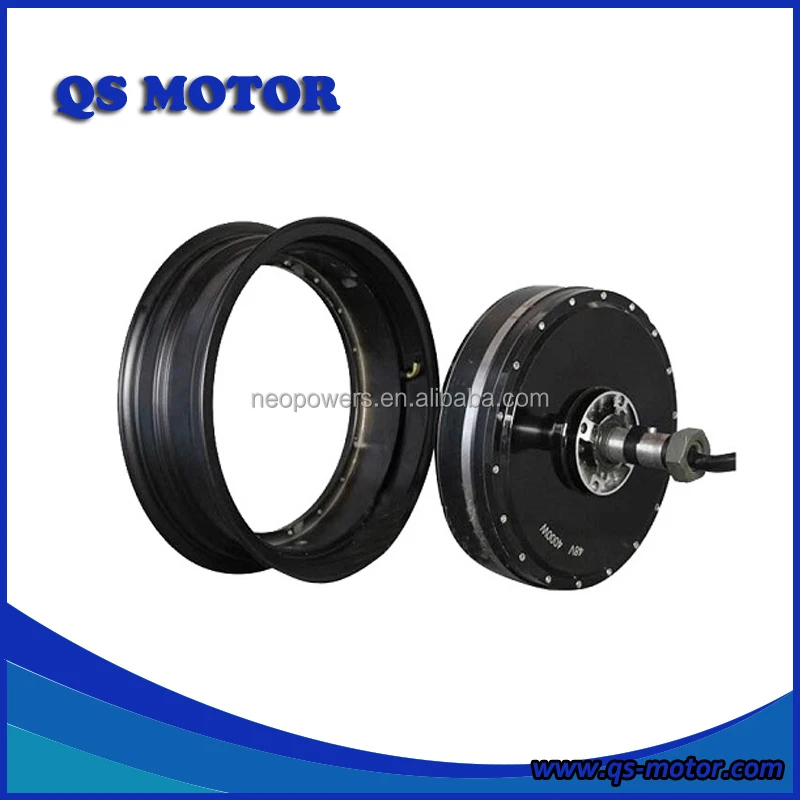

13inch Single Shaft Hub Motor with Removable rim is new designed for electric scooters and small Electric vehicles. The rim can be easily removable, so it will be very easy to replace and repair the tires.





1.      Motor Type: BLDC Hub Motor with Permanent Magnets

2.      Motor design: Single axle out with 13inch removable rim

3.      Rim size:3.5x13

4.      Matching Tire: 130/60-13

5.      Magnet Height: 40MM

6.      No. of Pole Pairs: 28 pairs

7.      Rated Power: 3000W

8.      Peak Power:5200W

9.      Rated Voltage: 72V( 48-96V Can be optional)

10.  Speed: 70km/h (30-80km/h can be customized)

11.  Max No-load RPM:900RPM

12.  Max Torque: 185N.M

13.  Max Efficiency: 88%

14.  Continious current:50A

15.  Max current:100A

16.  Brake type: Disc brake

17.  Winding Core material: Aluminium

18.  Cross Section of Phase wire: 10 mm2

19.  Hall sensor phasing angle: 120 degree

20.  Temperature Sensor: Optional

21.  Max. Working Temperature: 70 degree, Peak 120 degree

22.  Waterproof Grade: IP54

23.  N.W./ G..W. : 23kgs / 24kgs



24.  Package Size: 44*43*41CM
